Selector Lever Cable Adjustment-Floor Shift

Selector Lever Cable Adjustment-Floor Shift

NOTE: The shift control cable adjustment procedure must be performed in the order shown.

1. Position the transaxle range selector lever in OVERDRIVE.

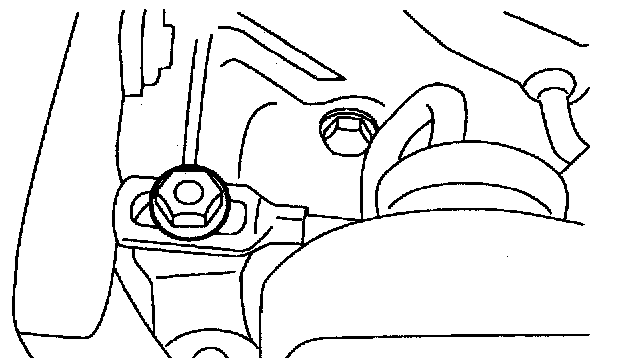

2. Loosen the manual control lever-to-shift control cable nut.

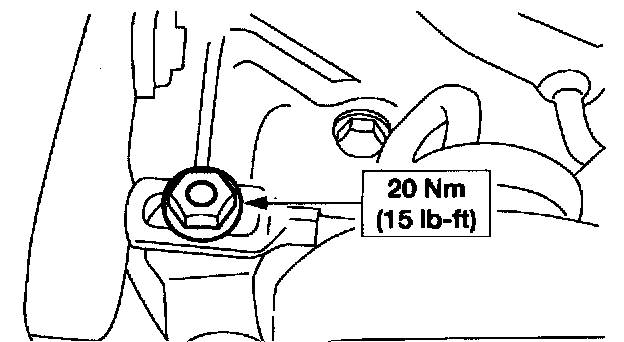

3. Position the manual control lever in OVERDRIVE. Tighten the nut.
4. Check the operation of the transaxle in each transaxle range selector lever position.
