Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Noise, Vibration, and Harshness Diagnosis >> Symptom Charts >> Squeak and Rattle

Squeak and Rattle

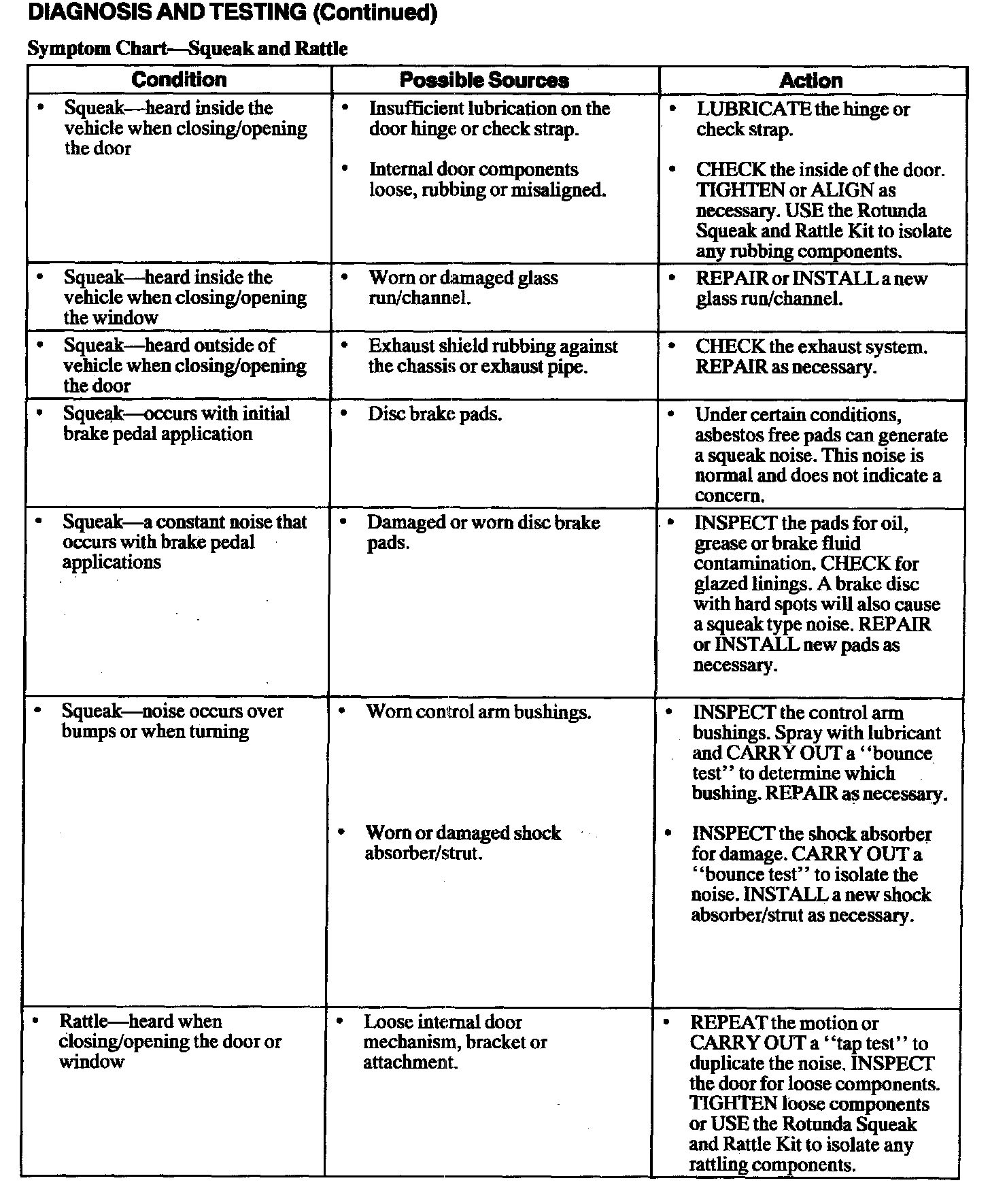

Symptom Chart - Squeak And Rattle, Part 1:

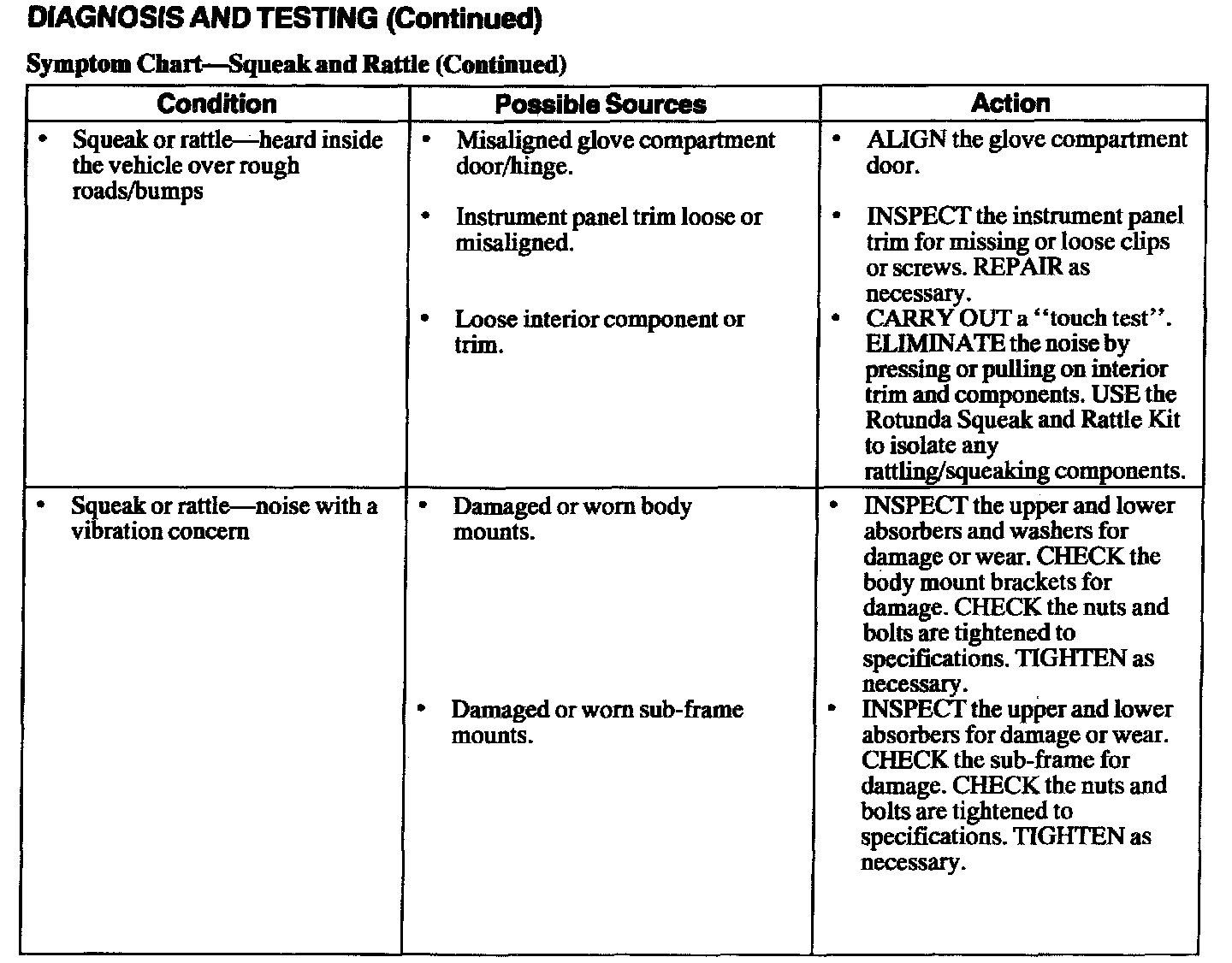

Symptom Chart - Squeak And Rattle, Part 2:
