Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Test C

Test C





PINPOINT TEST C: THE IGNITION SWITCH IS INOPERATIVE

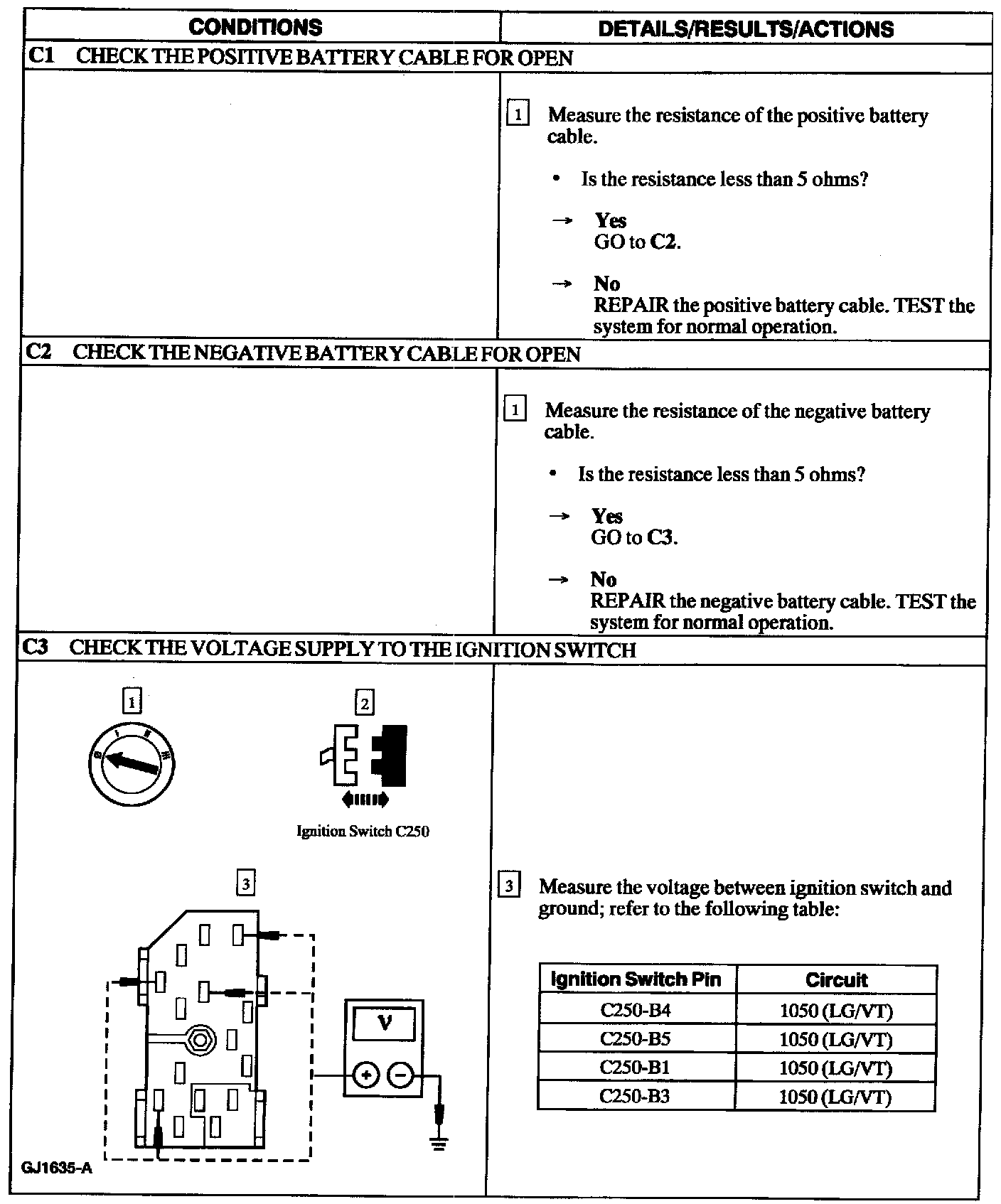

Test C1-C3

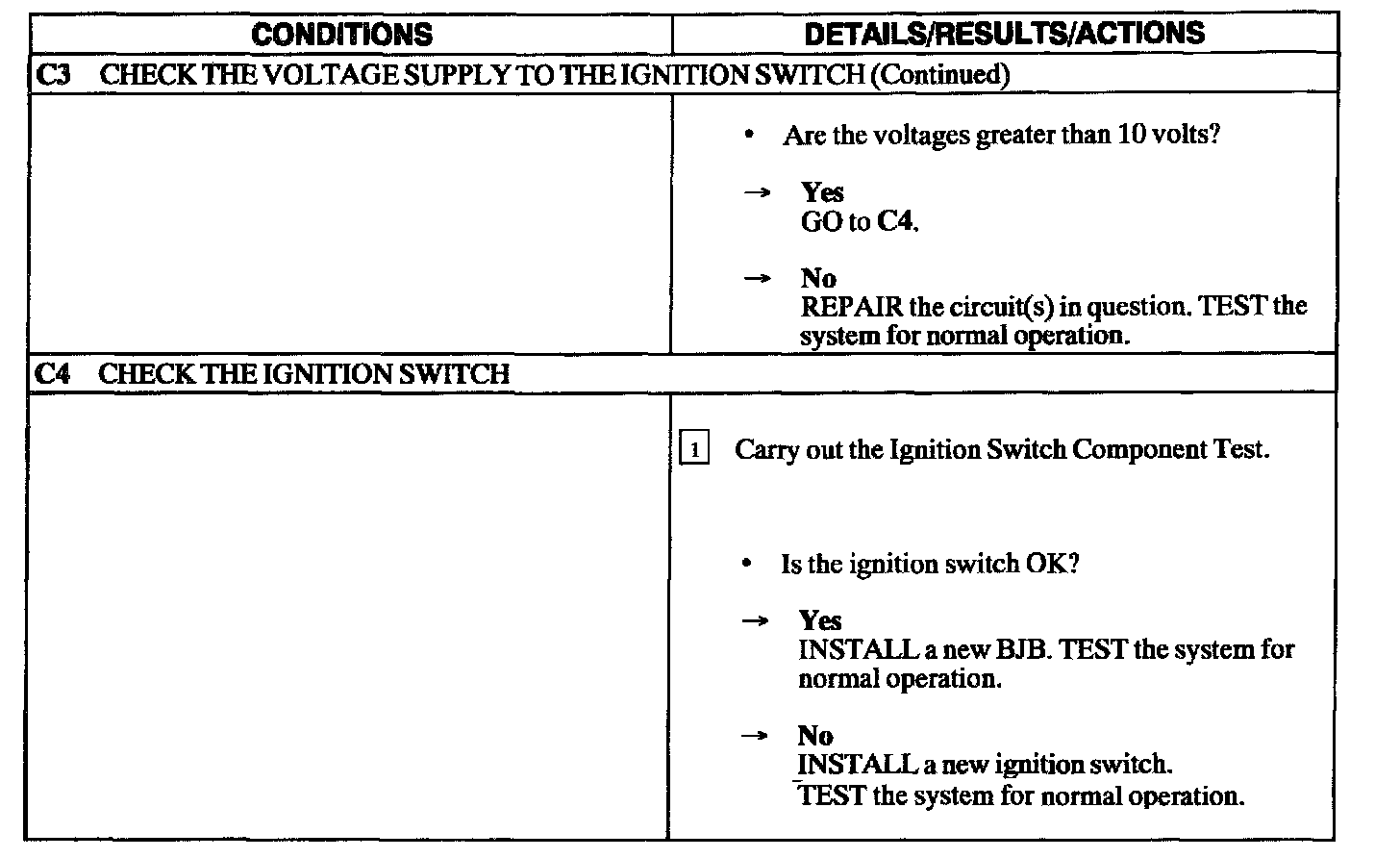

Test C3-C4
