Power Steering Fluid Reservoir: Service and Repair

Power Steering Fluid Reservoir-CIII

Removal and Installation

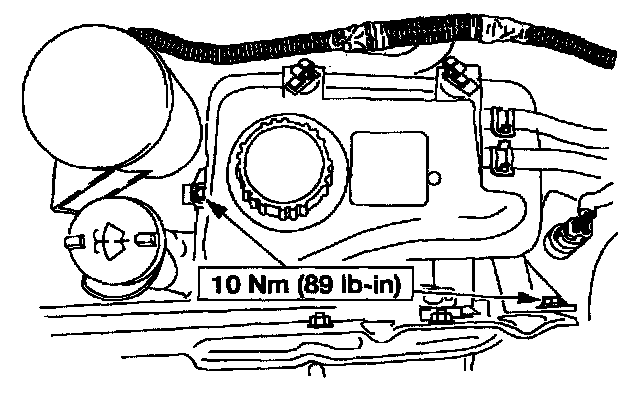

Note: 3.0L 4V shown, 3.0L 2V similar.

3.0L 4V engine

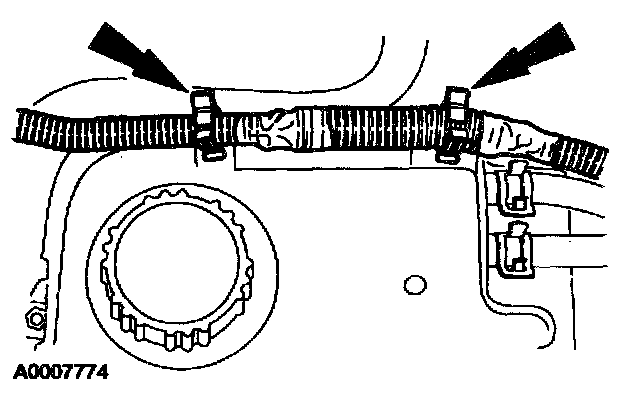

1. Detach the wiring harness.





2. Remove the nut and disconnect the wiring harness retainer.





3. Remove the nut and the bolt and position the degas bottle out of the way.





All vehicles

4. Loosen the clamps and disconnect the hoses. Drain the fluid into a suitable container.





5. Remove the nuts, the bolt and the reserv6ir.
6. To install, reverse the removal procedure.
7. Fill, purge and leak check the system.
