Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Locations >> System View CIII Pump

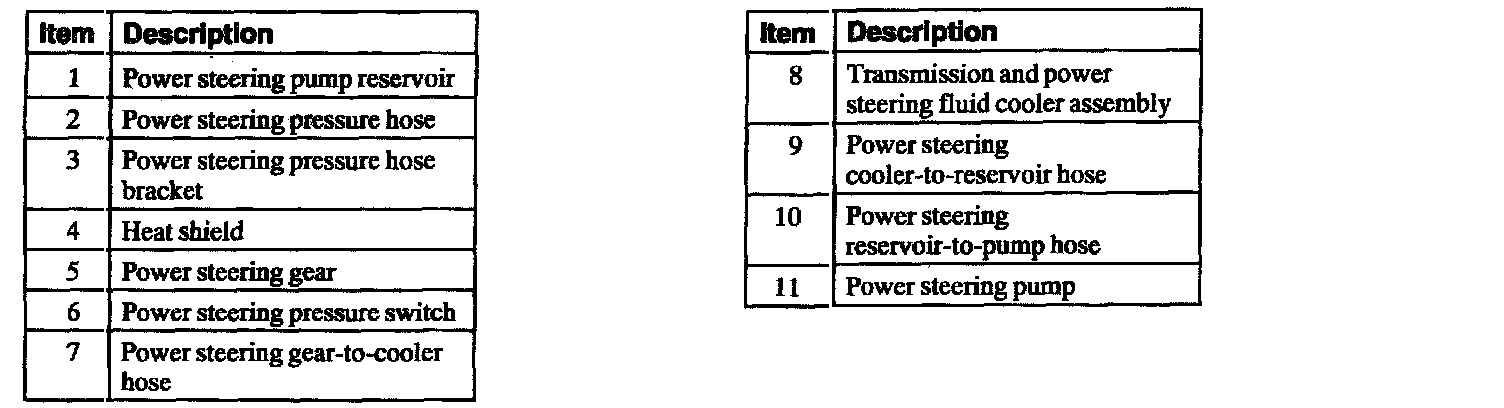

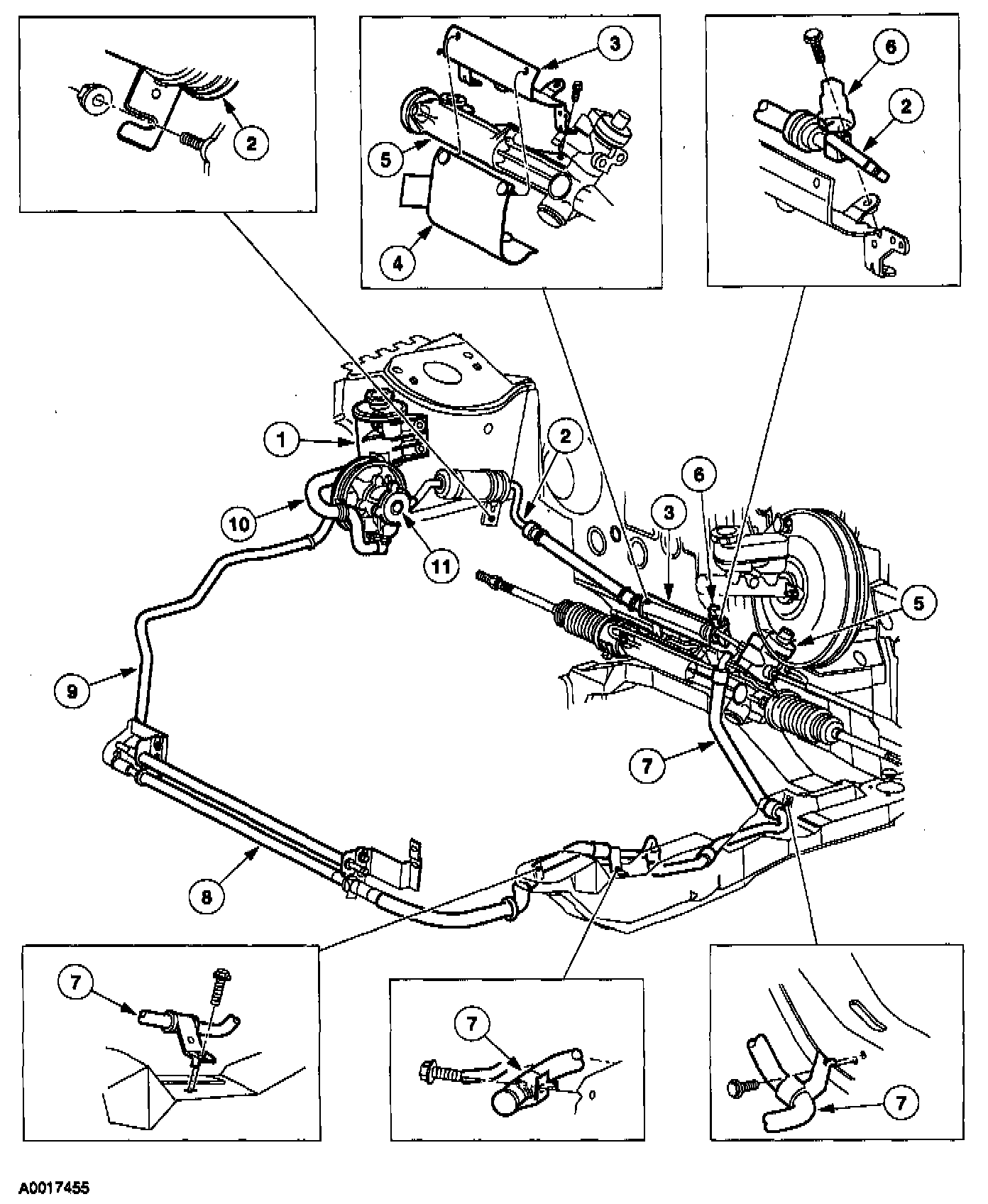

System View CIII Pump

1 Of 2:
