Alternator: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the accessory drive belt from the generator.

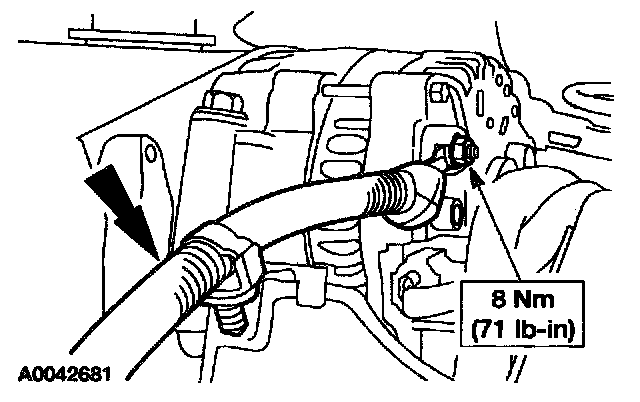

3. Remove the generator B+ nut and the B+ cable.
^ Position the B+ cable cover aside.

4. Position the wiring harness aside.

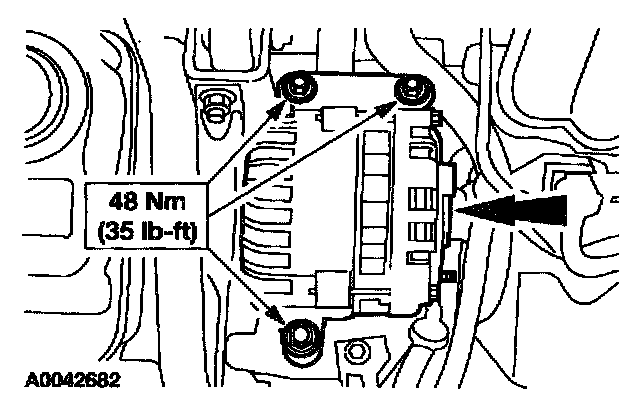

5. Remove the bolts and the generator.
^ Disconnect the voltage regulator electrical connector.

INSTALLATION
1. To install, reverse removal procedure.
