Master Window Adjust Switch

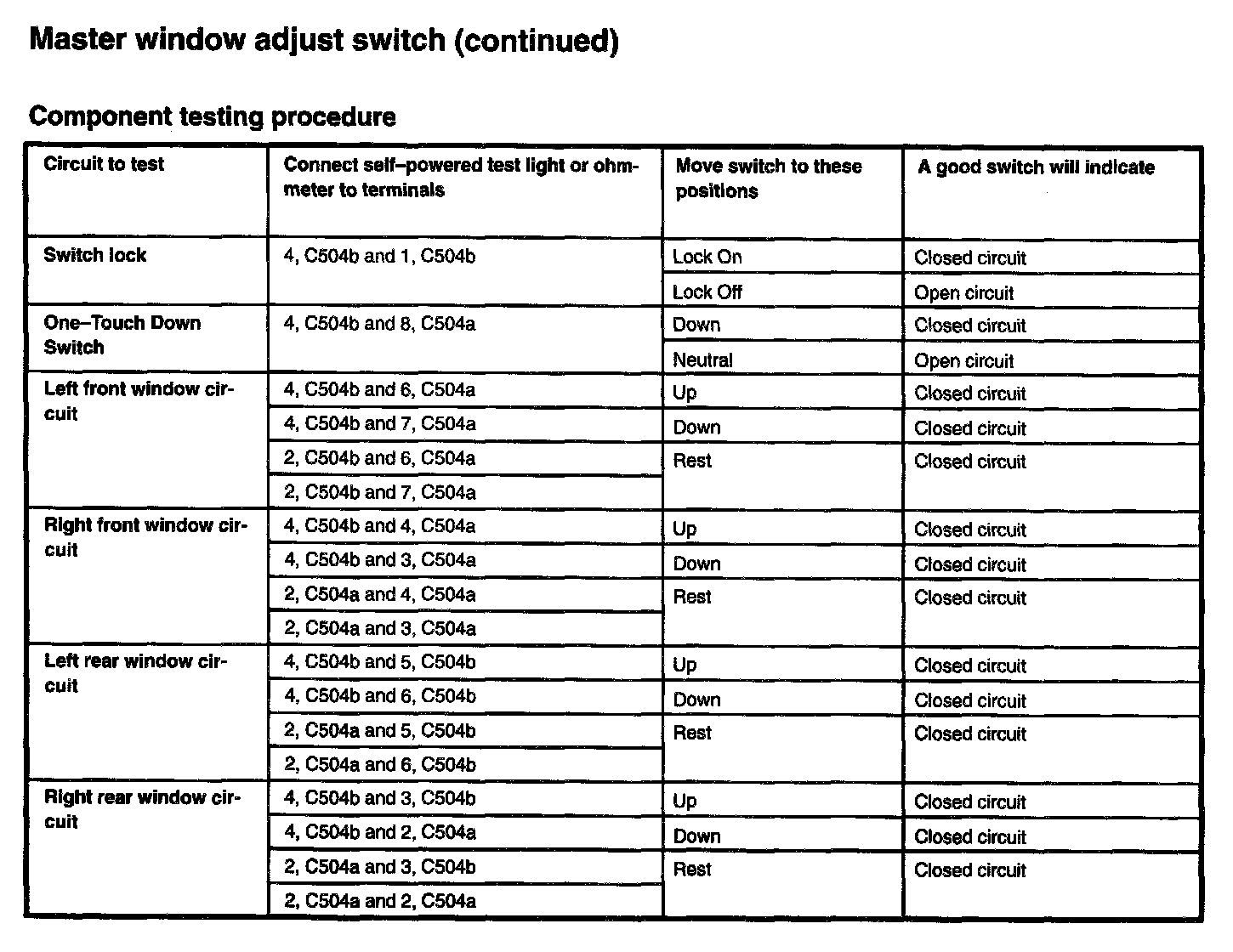

Introduction To Component Testing:

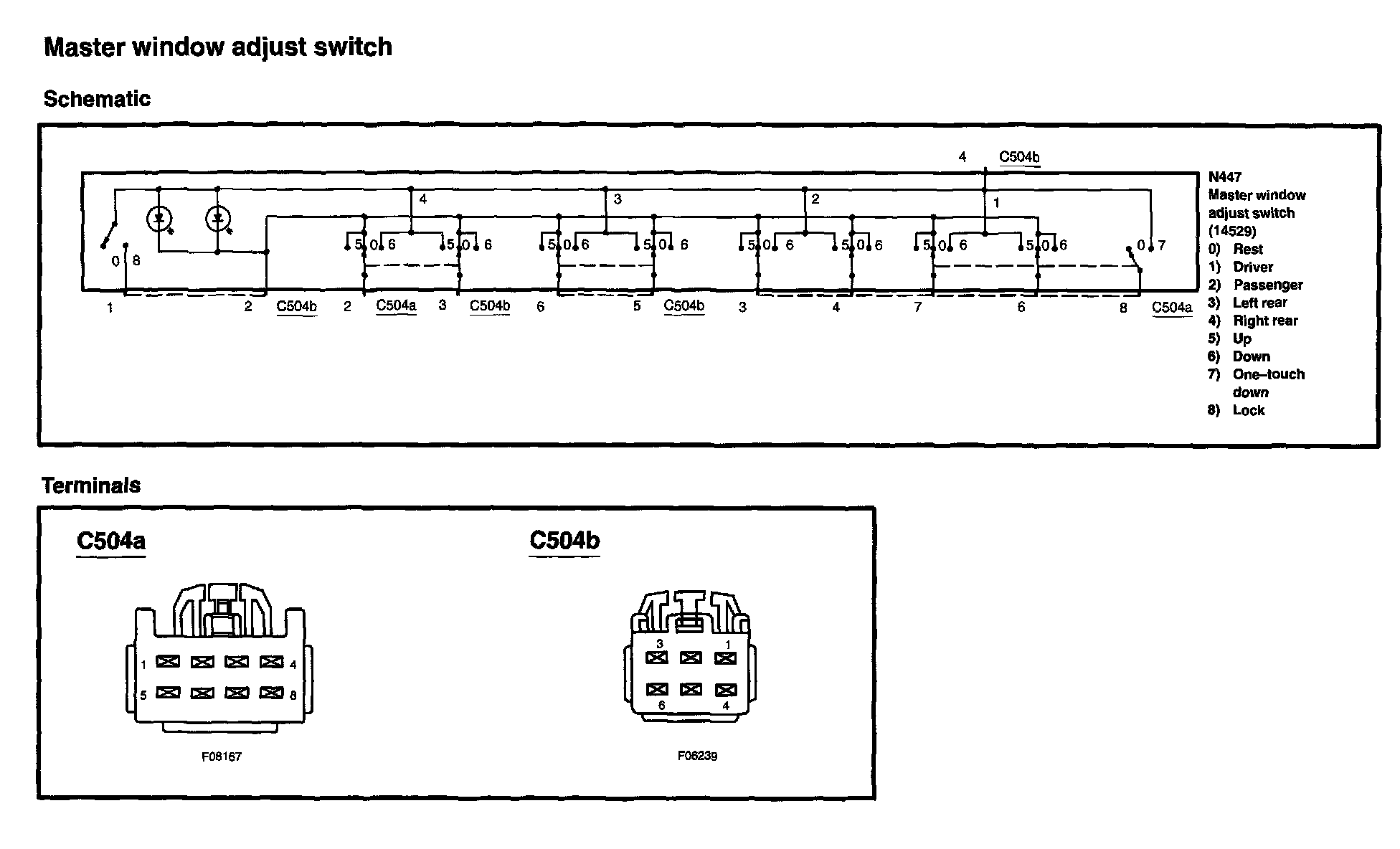

Master Window Adjust Switch:






Master Window Adjust Switch:
