Test O: LFC 51/DTC B2691 - Driver Seat Belt Buckle Switch Fault

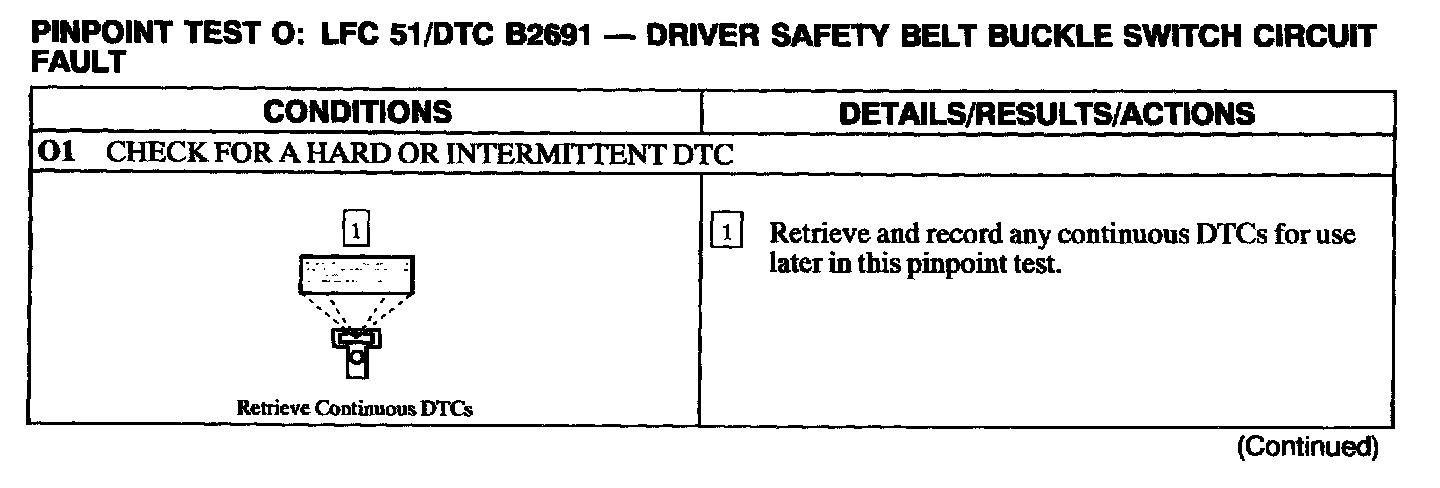

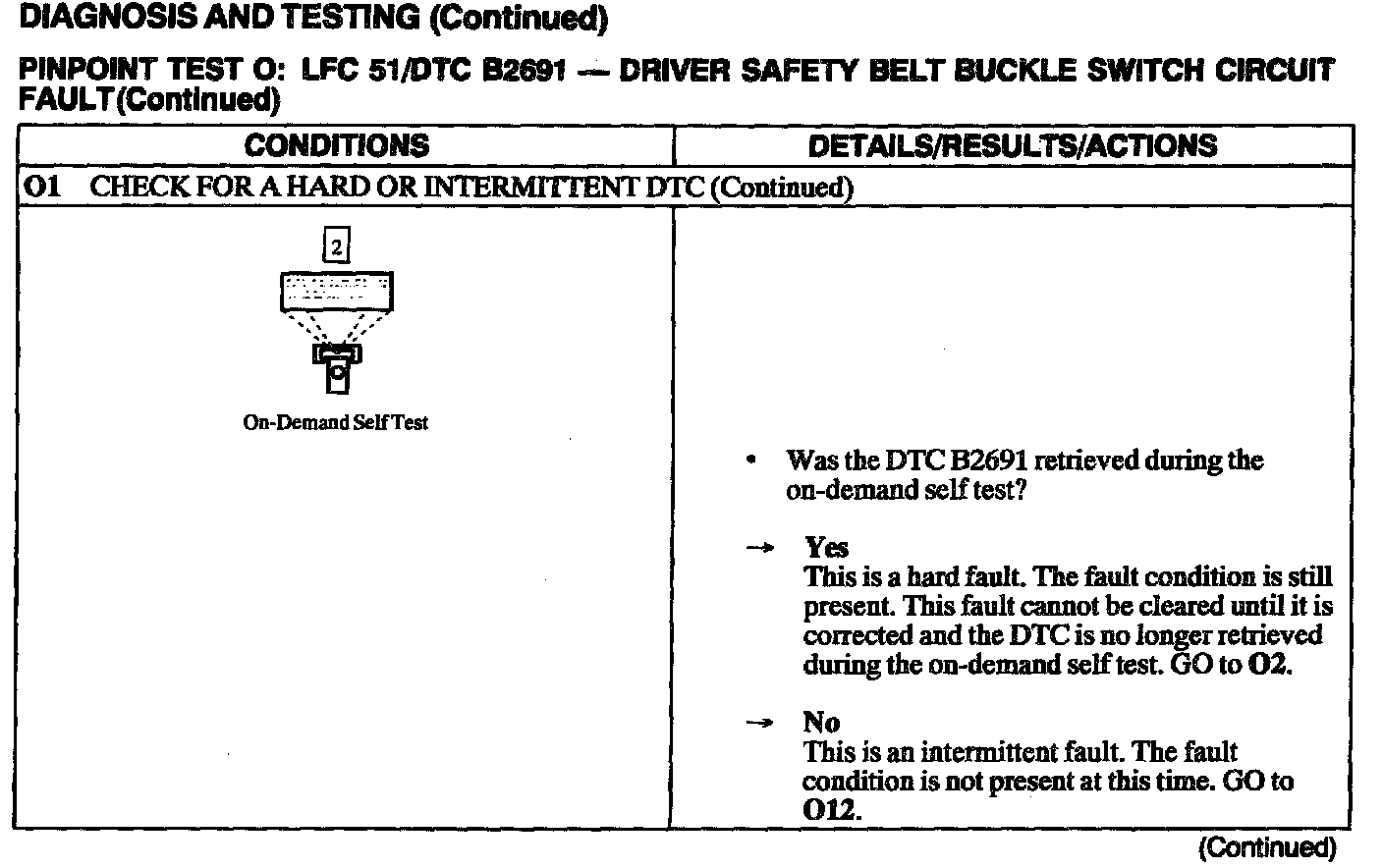

O1:

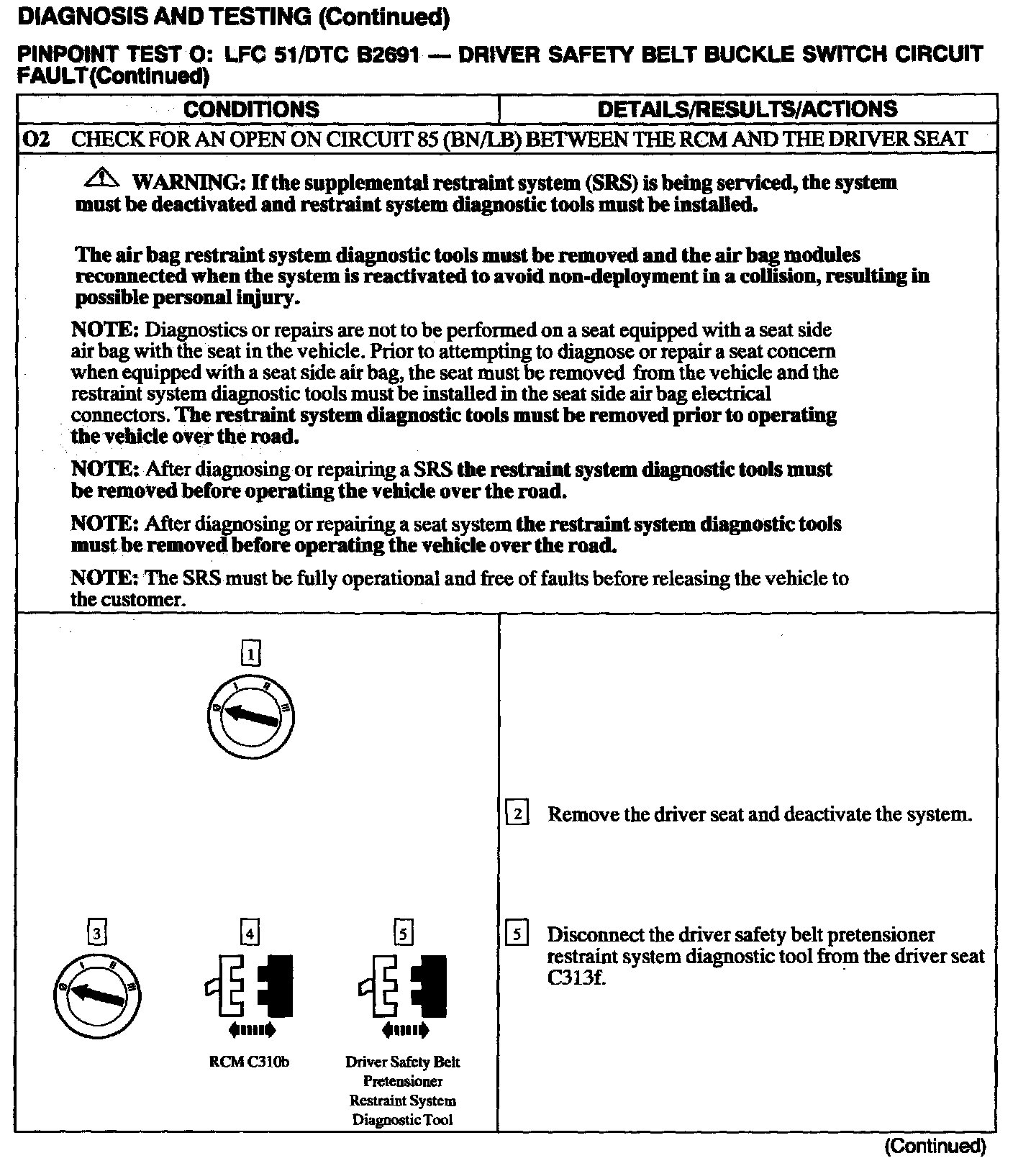

O2:

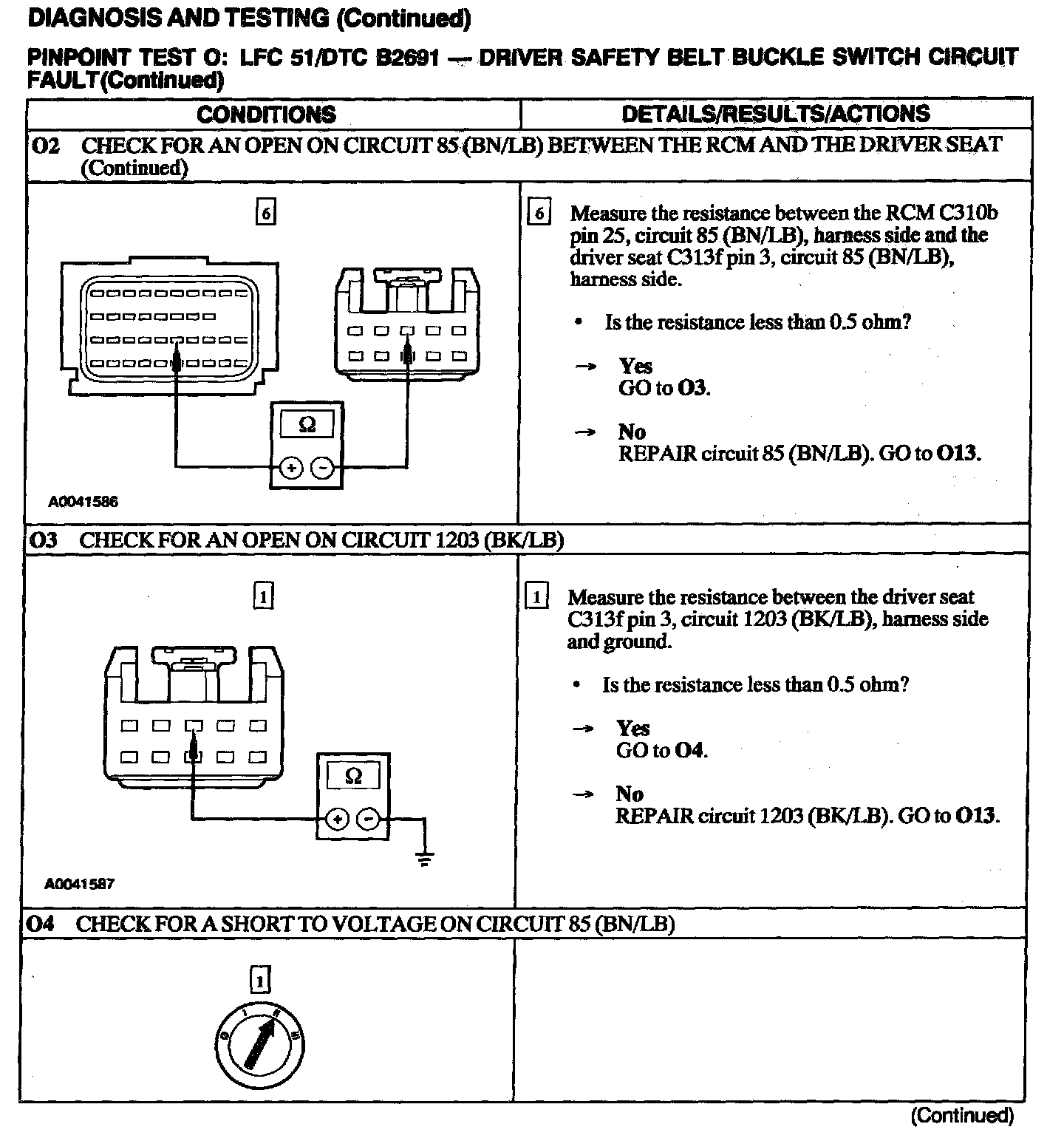

O2 - O4:

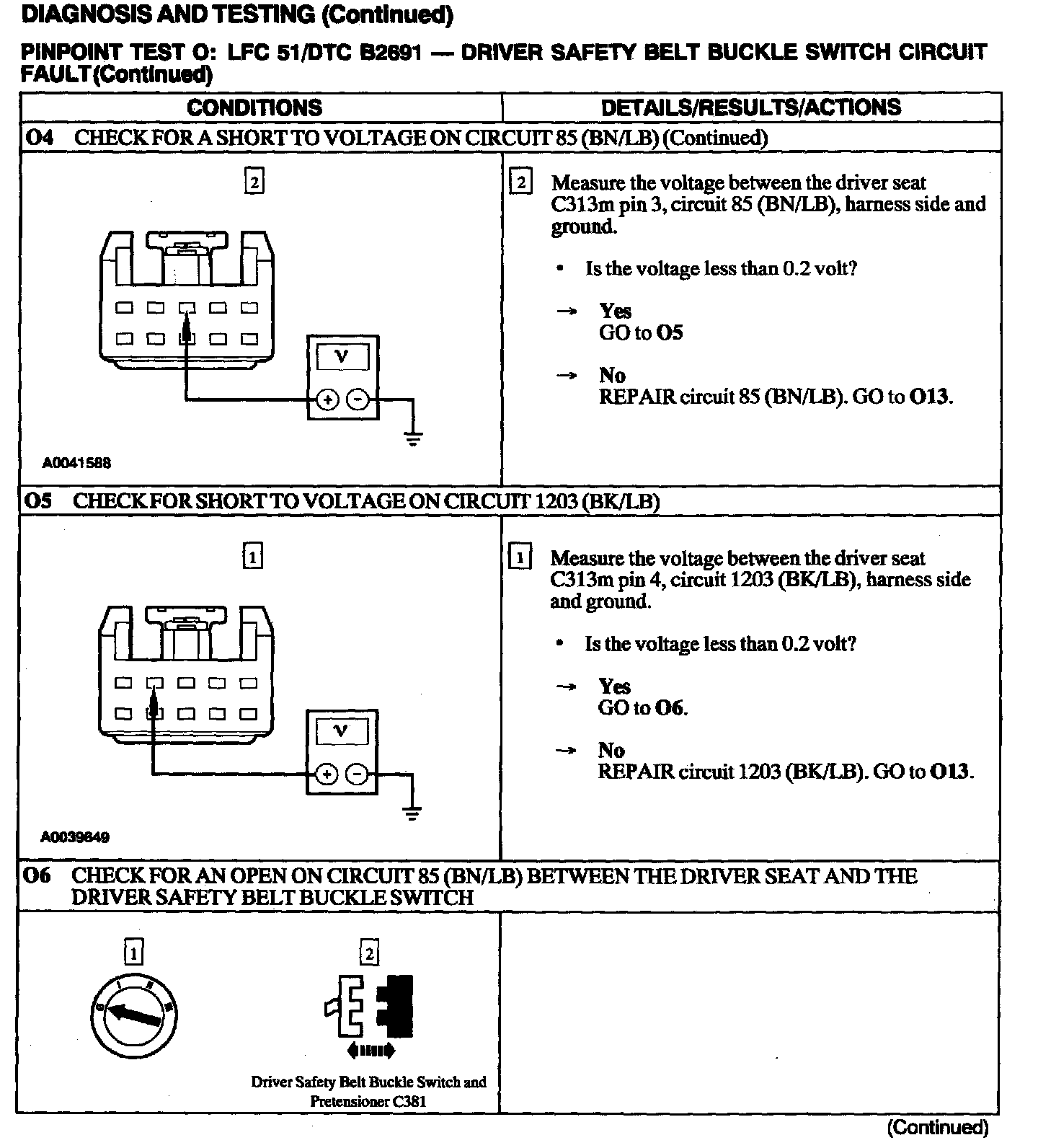

O4 - O6:

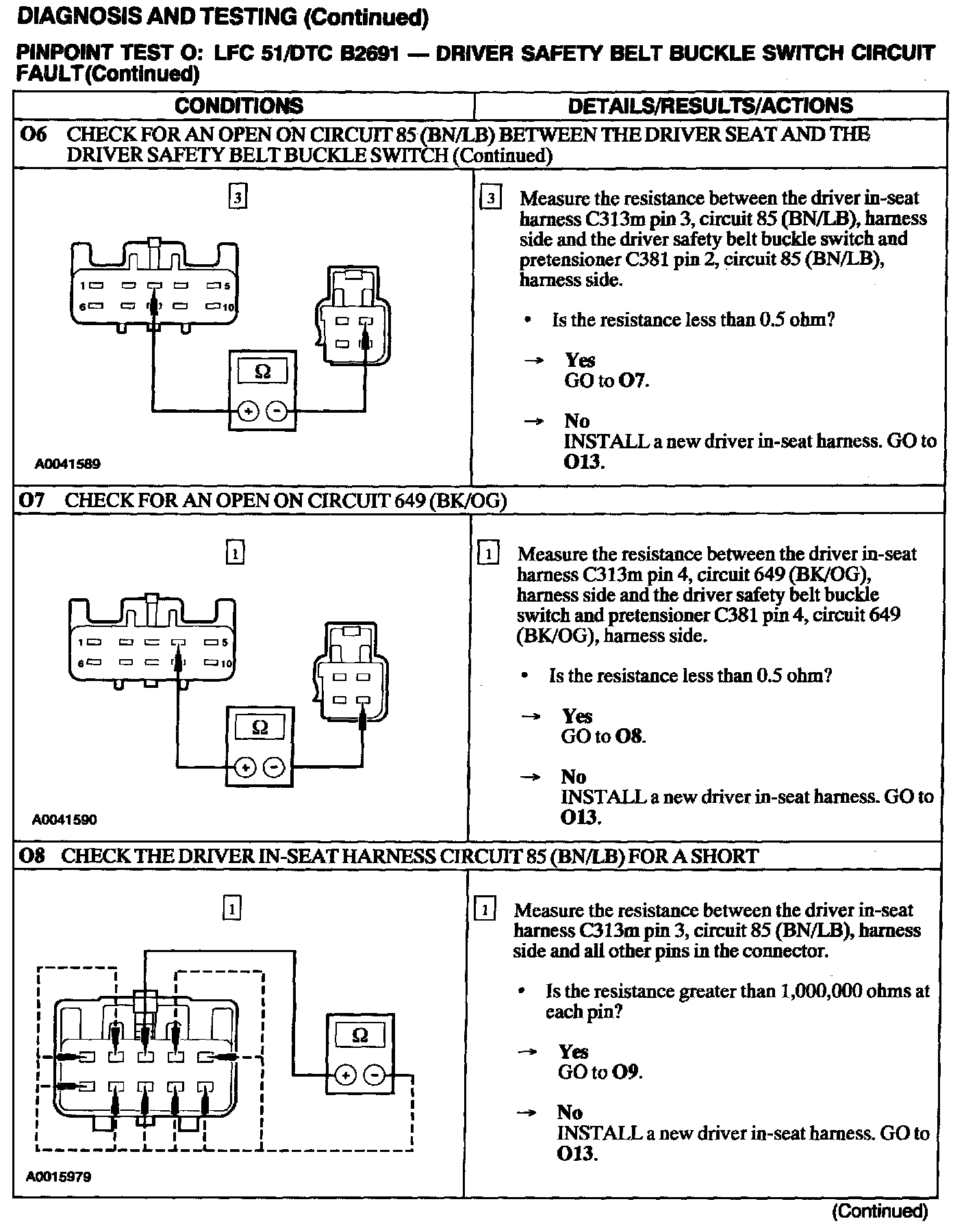

O6 - O8:

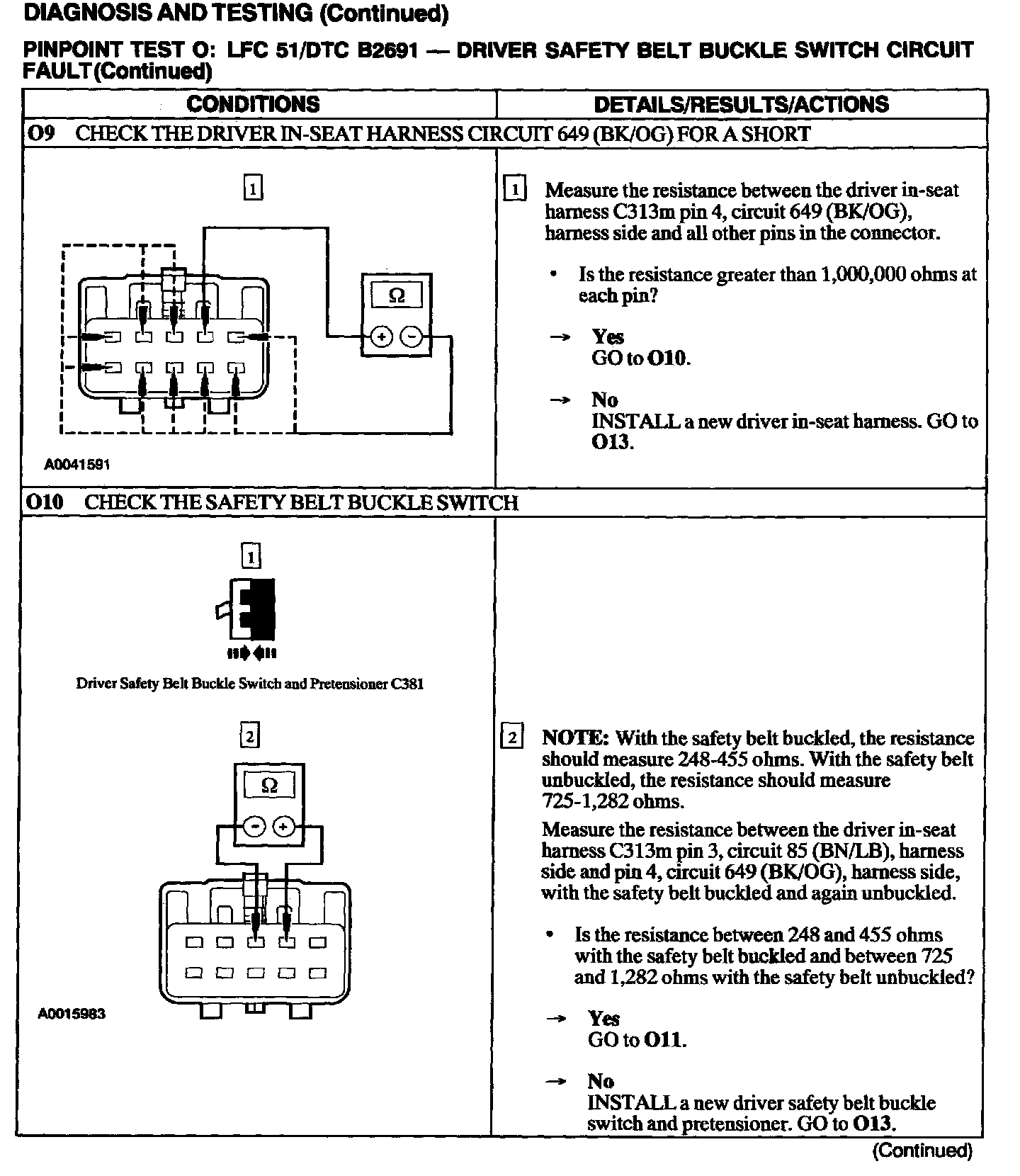

O9 - O10:

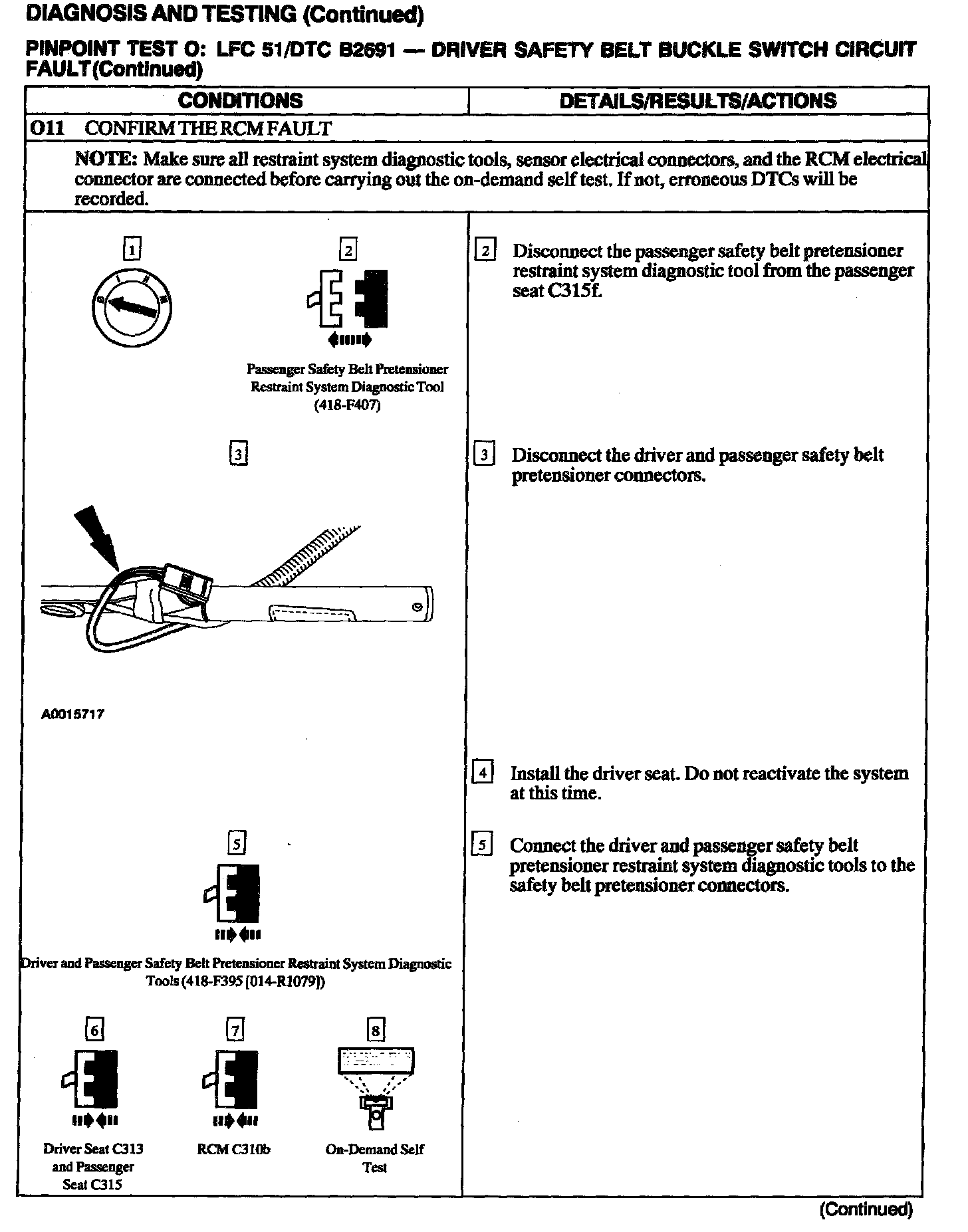

O11:

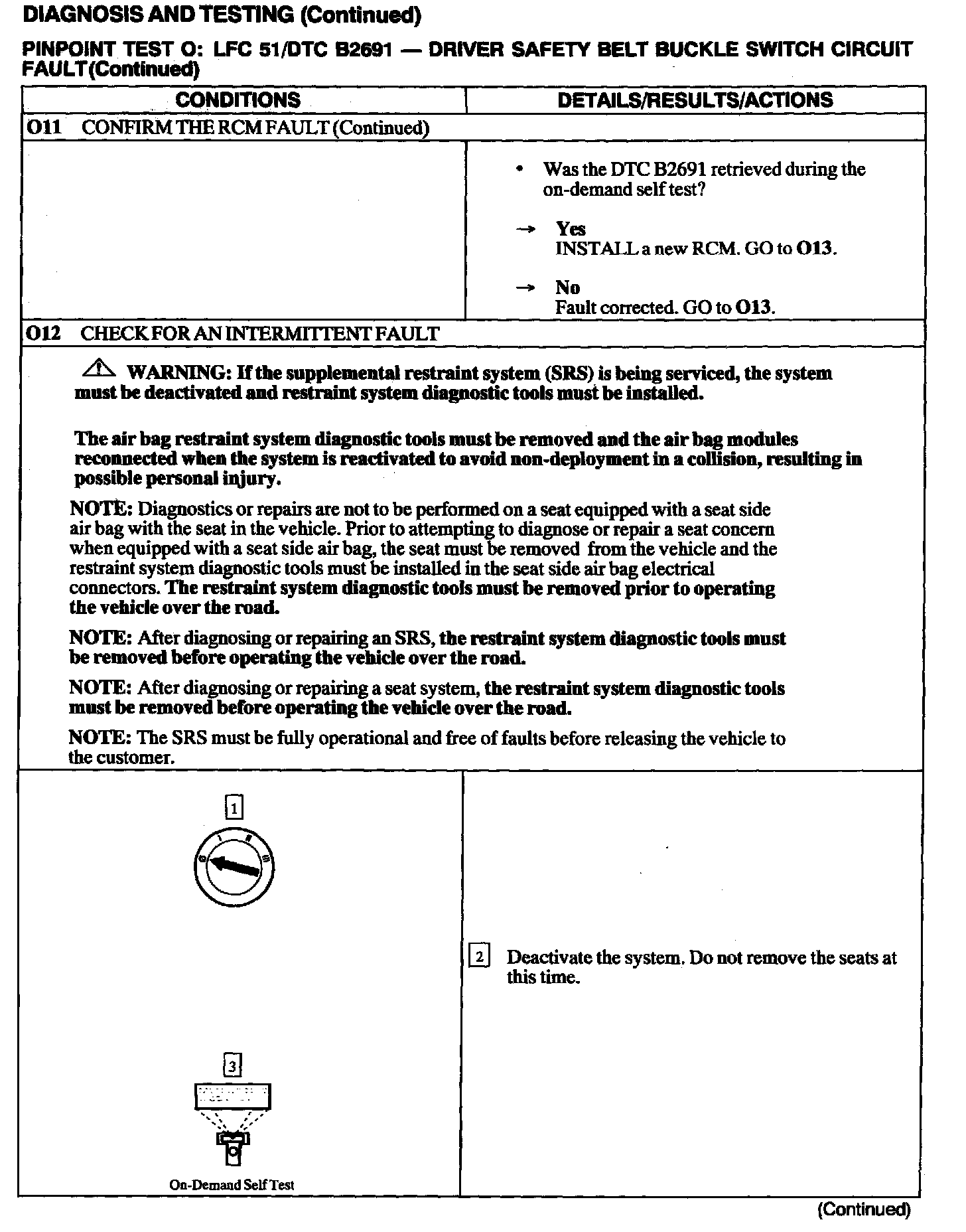

O11 - O12:

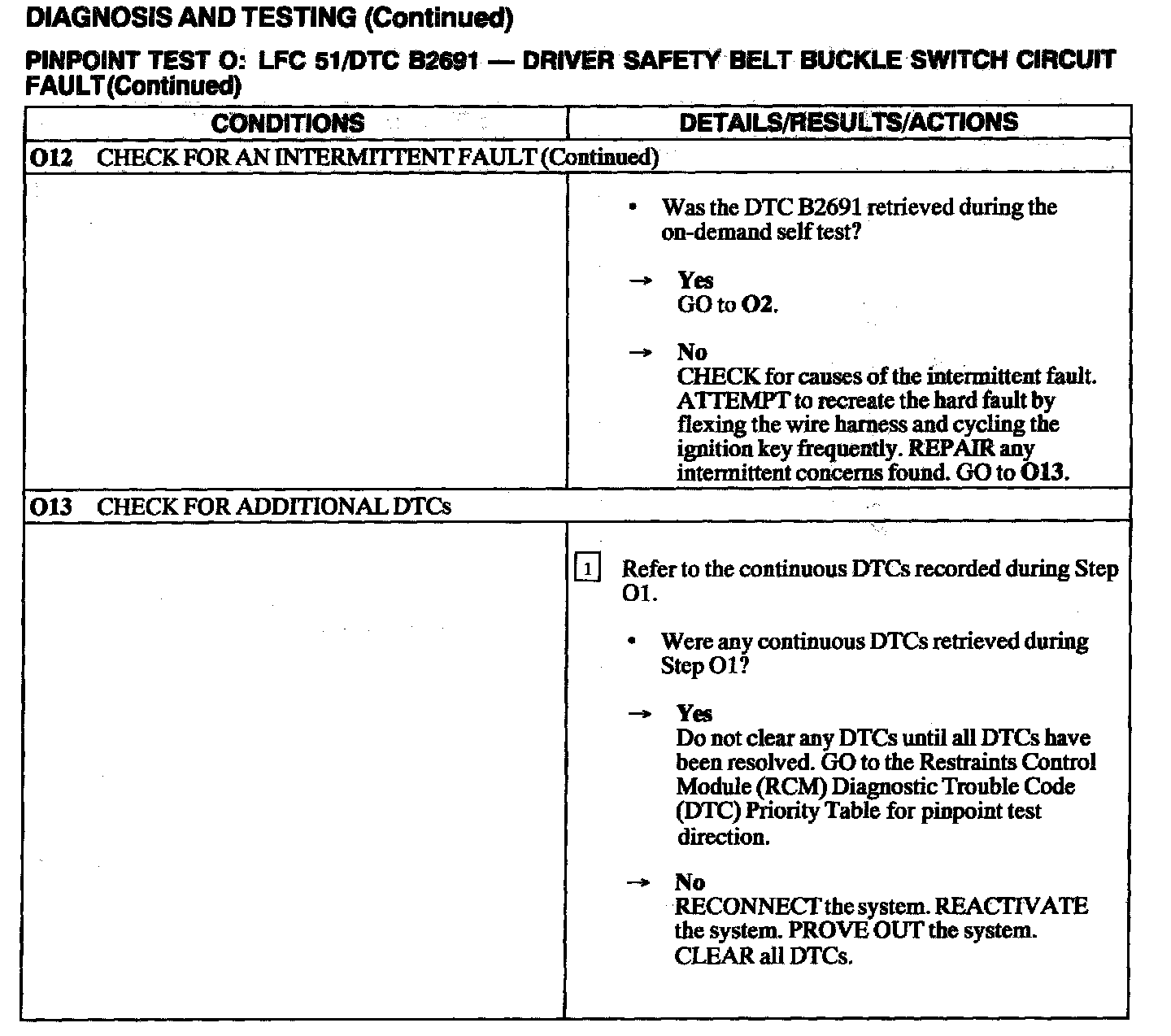

O12 - O13:

Normal Operation
The Restraints Control Module (RCM) checks the driver safety belt buckle switch circuits for faults. If the RCM detects an open circuit or short to voltage fault, it will store Diagnostic Trouble Code (DTC) B2691 in memory and flash Lamp Fault Code (LFC) 51 (or higher priority code if one exists) on the air bag indicator.

Possible Causes
A driver safety belt buckle switch open circuit or short to voltage fault can be caused by:
^ Wiring, terminals, or connectors.
^ A faulty driver safety belt buckle switch.
^ RCM is faulted.
