Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

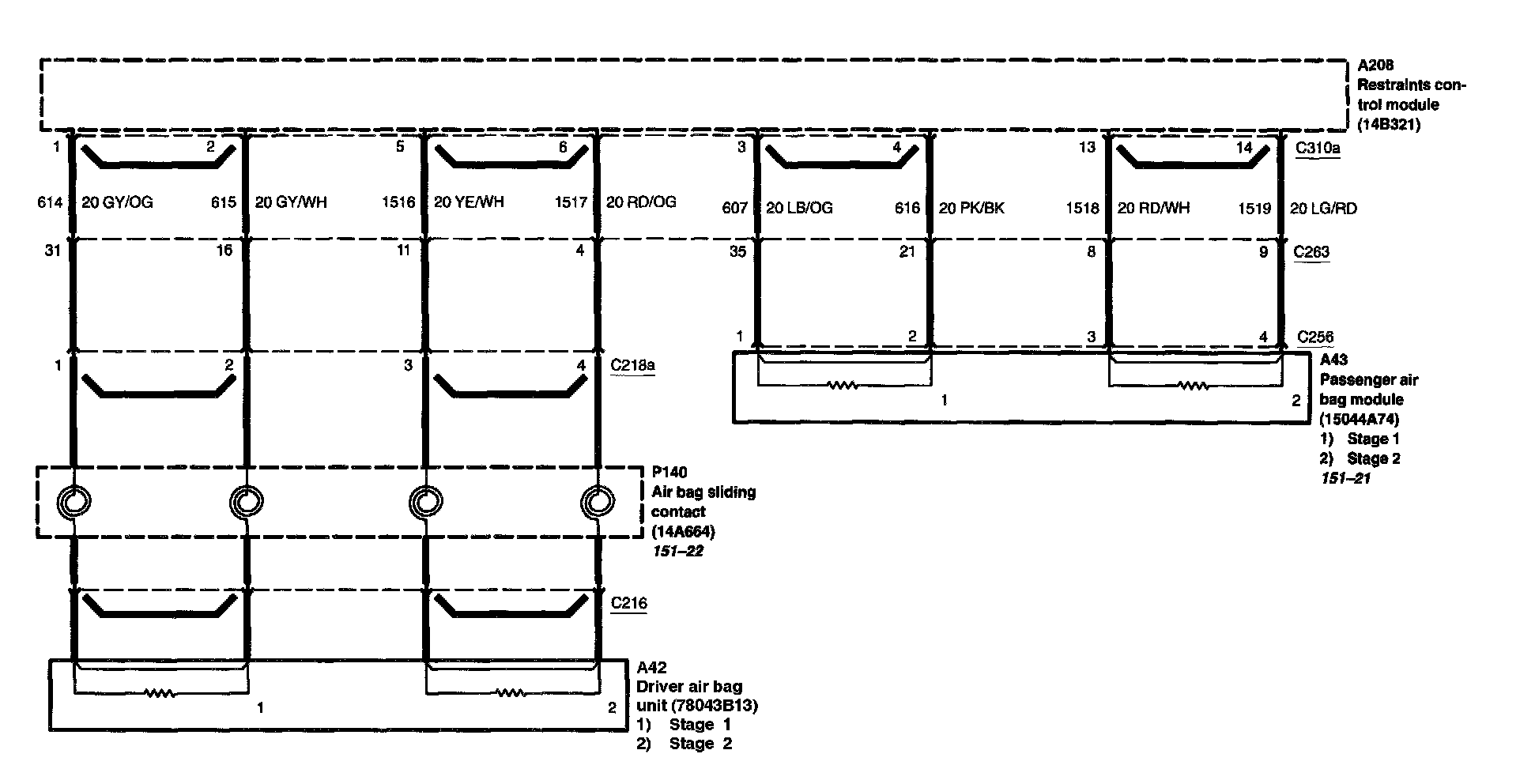

Diagram 46-1:

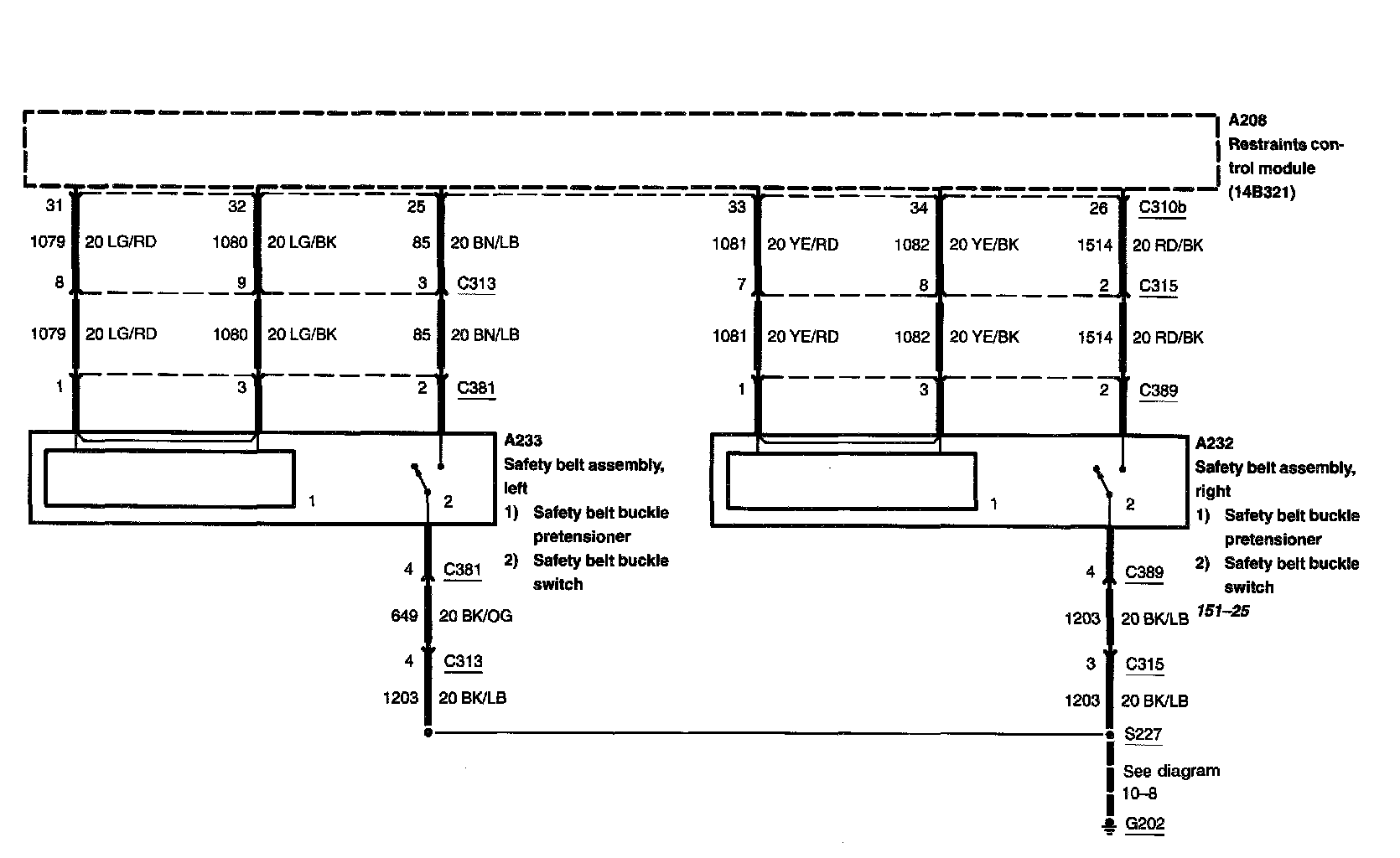

Diagram 46-2:

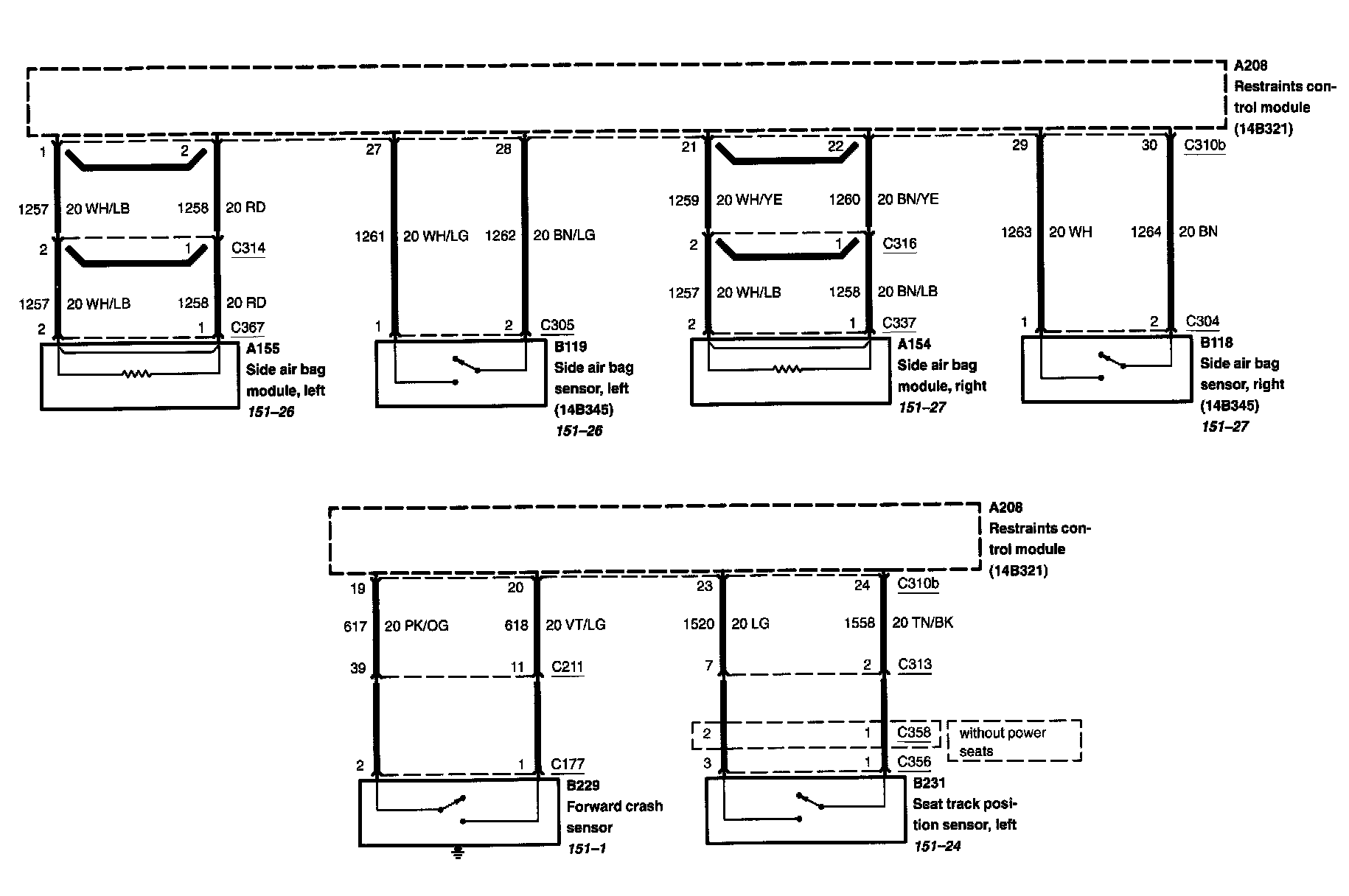

Diagram 46-3:

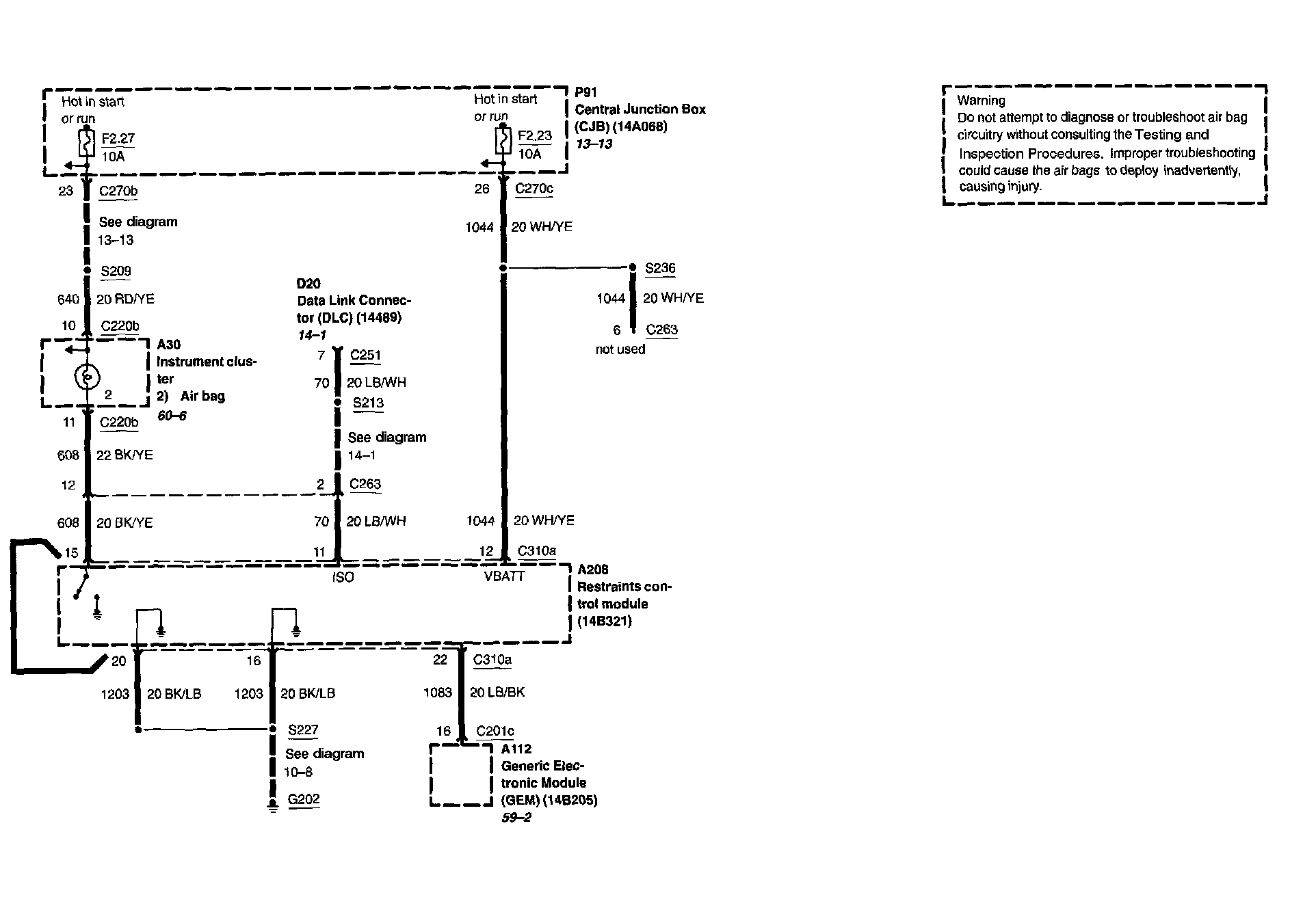

Diagram 46-4:

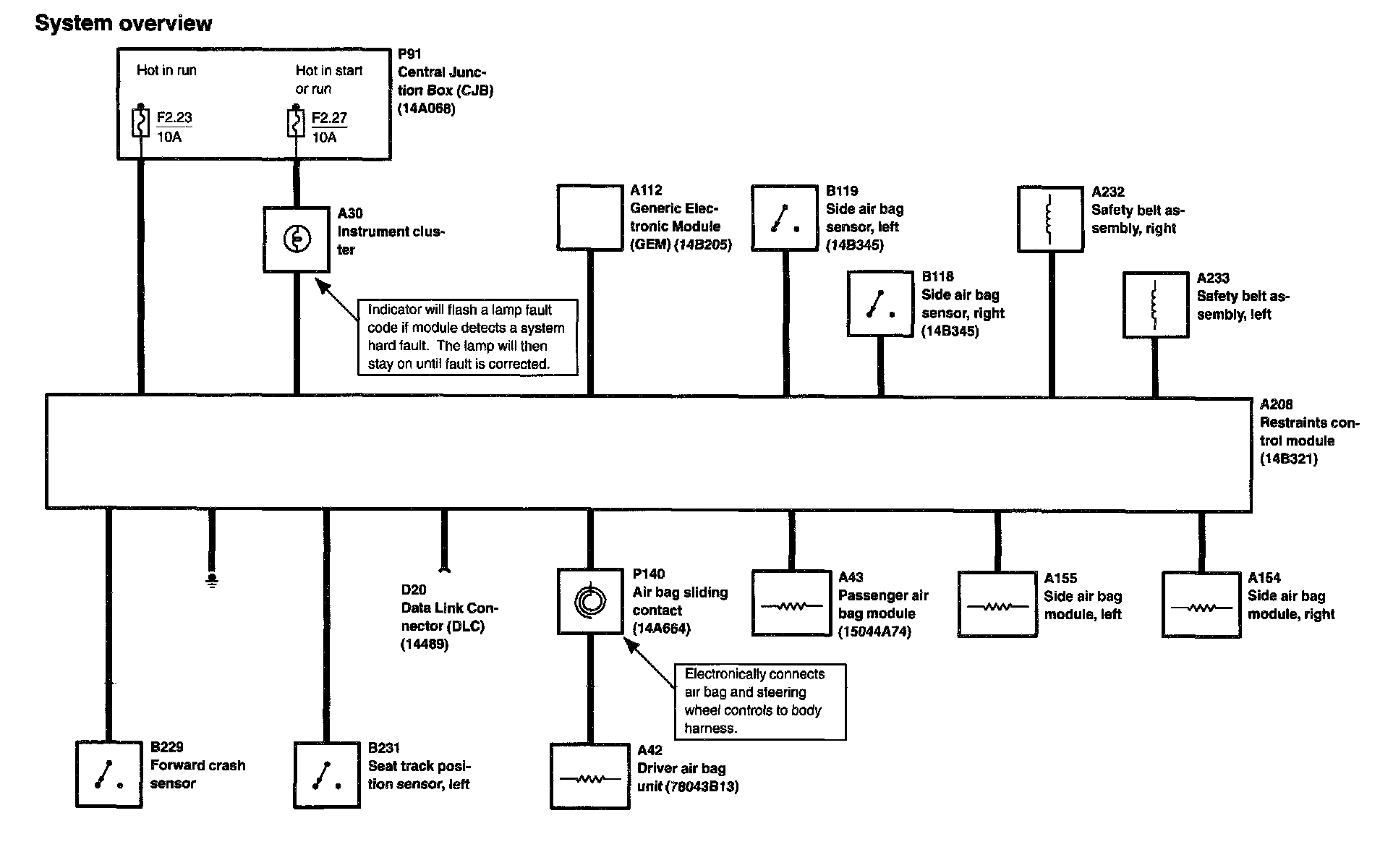

Diagram 46-5:
