Spark Plug: Service and Repair

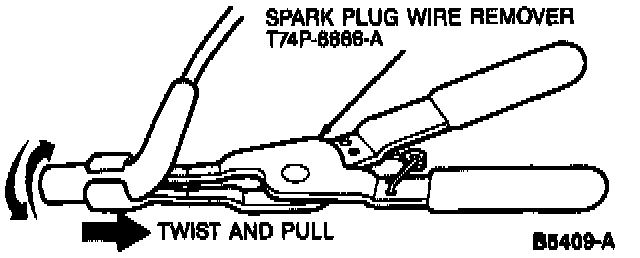

Spark Plug Wire Remover:

SPECIAL TOOL(S)

REMOVAL

Spark Plug Wire Remover:

1. Using the special tool, with a twisting motion pull the spark plug wire off the spark plug.

CAUTION: It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.







2. Remove the spark plug.

NOTE: Loosen the spark plug one quarter turn then use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.

3. Inspect the spark plug firing tip.

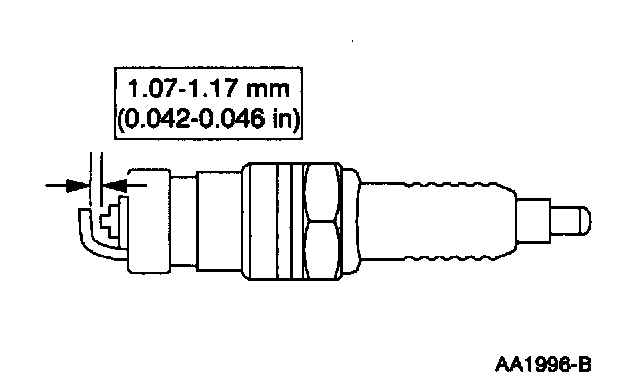

4. Adjust the spark plug gap as necessary.

INSTALLATION

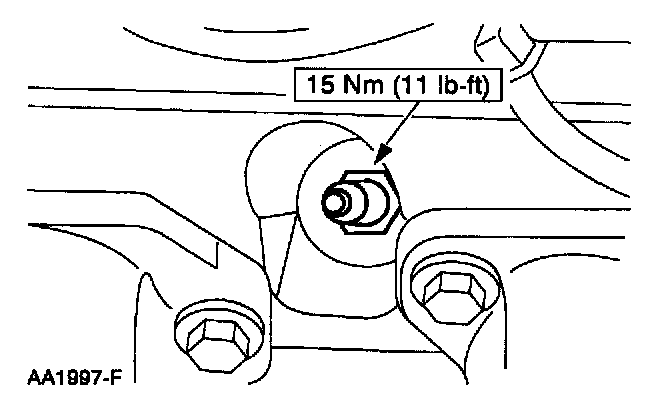

1. To install, reverse the removal procedure.

CAUTION: Spark plug wires must be connected correctly.
