Resonator: Service and Repair

REMOVAL
1. Raise and support the vehicle.
2. Remove the LH front wheel and tire assembly.

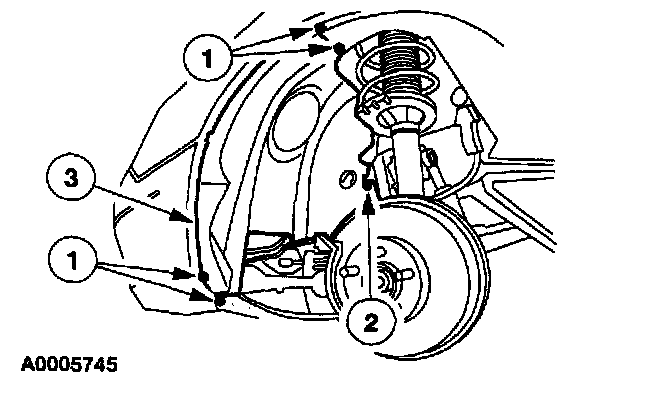

3. Remove the LH front fender splash shield.
1 Remove the four screws.
2 Remove the pin-type retainer.
3 Remove the front inner splash shield.

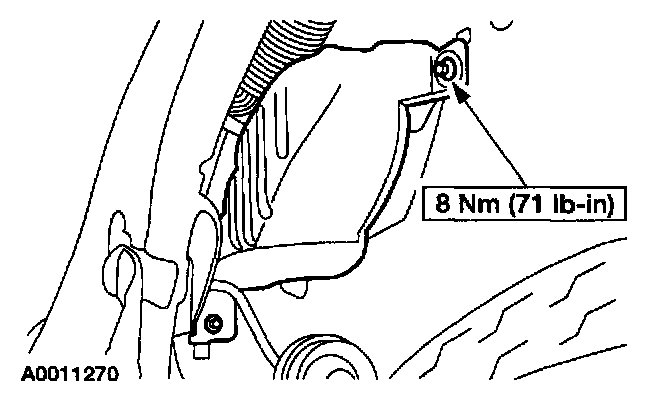

4. Remove the two bolts and the engine intake air resonator from the vehicle.

INSTALLATION
1. To install, reverse the removal procedure.
