Tests TB: Trans Control Switch/Trans Control Indicator Lamp

Note, Schematics and Connectors:

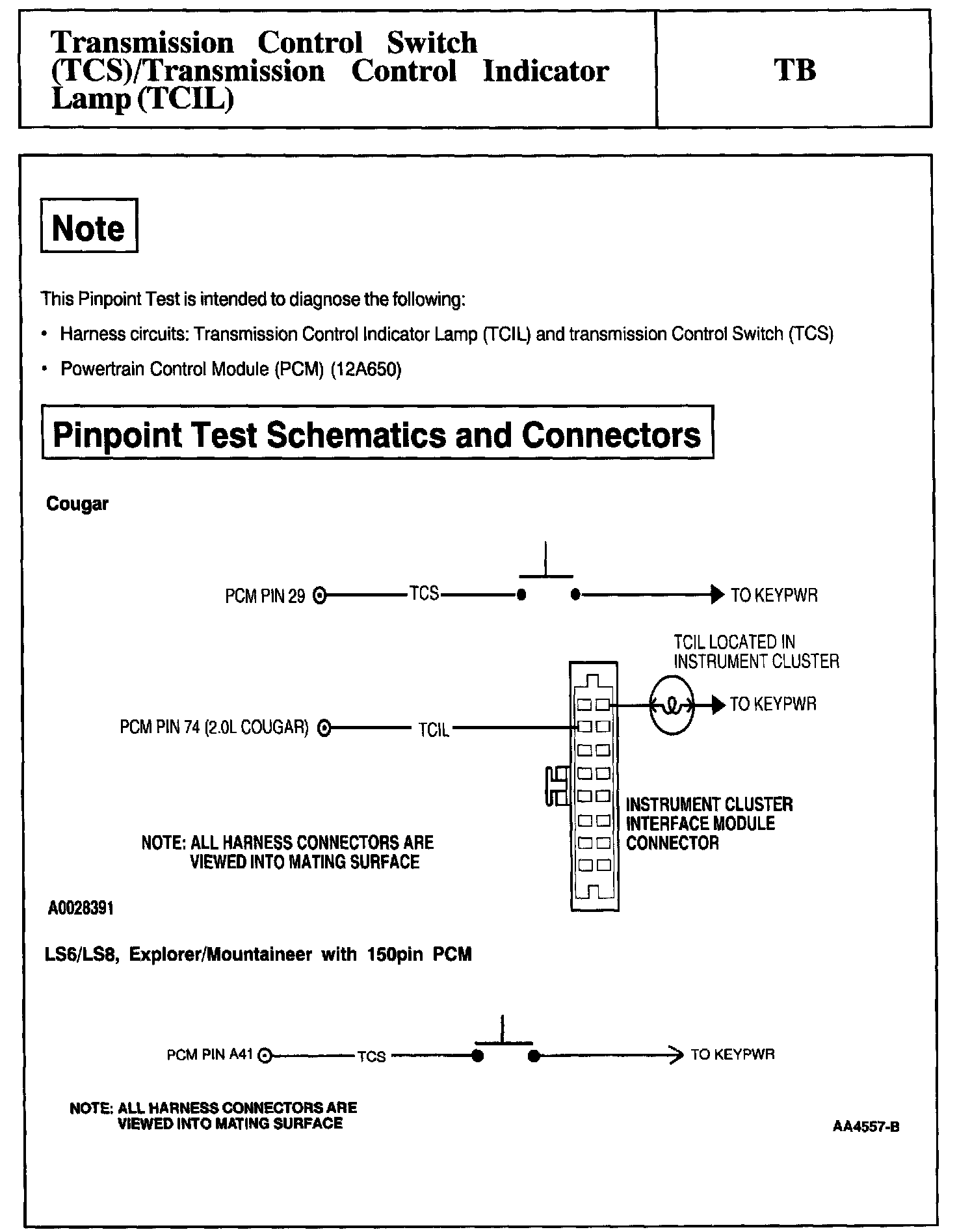

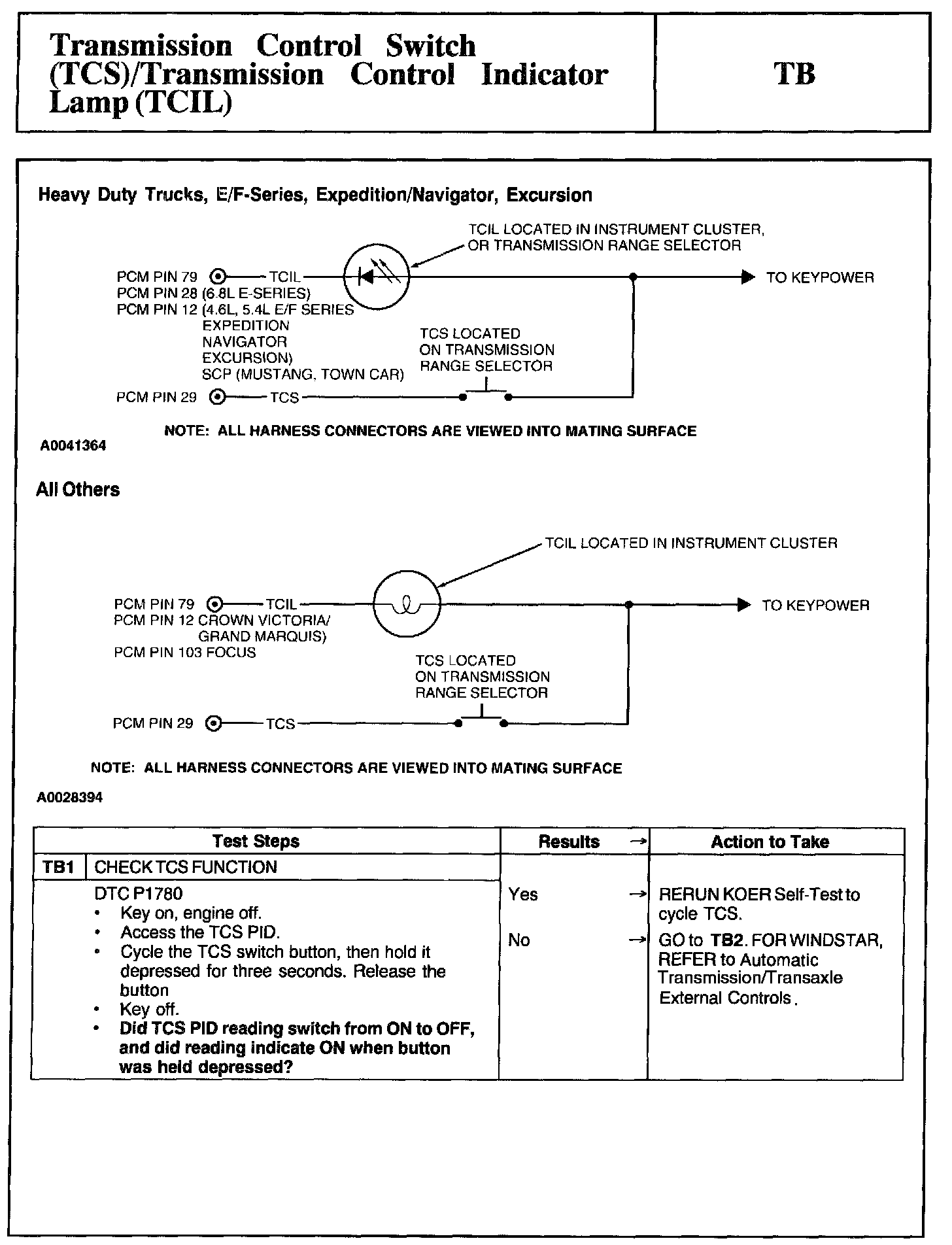

Schematic, Test TB1:

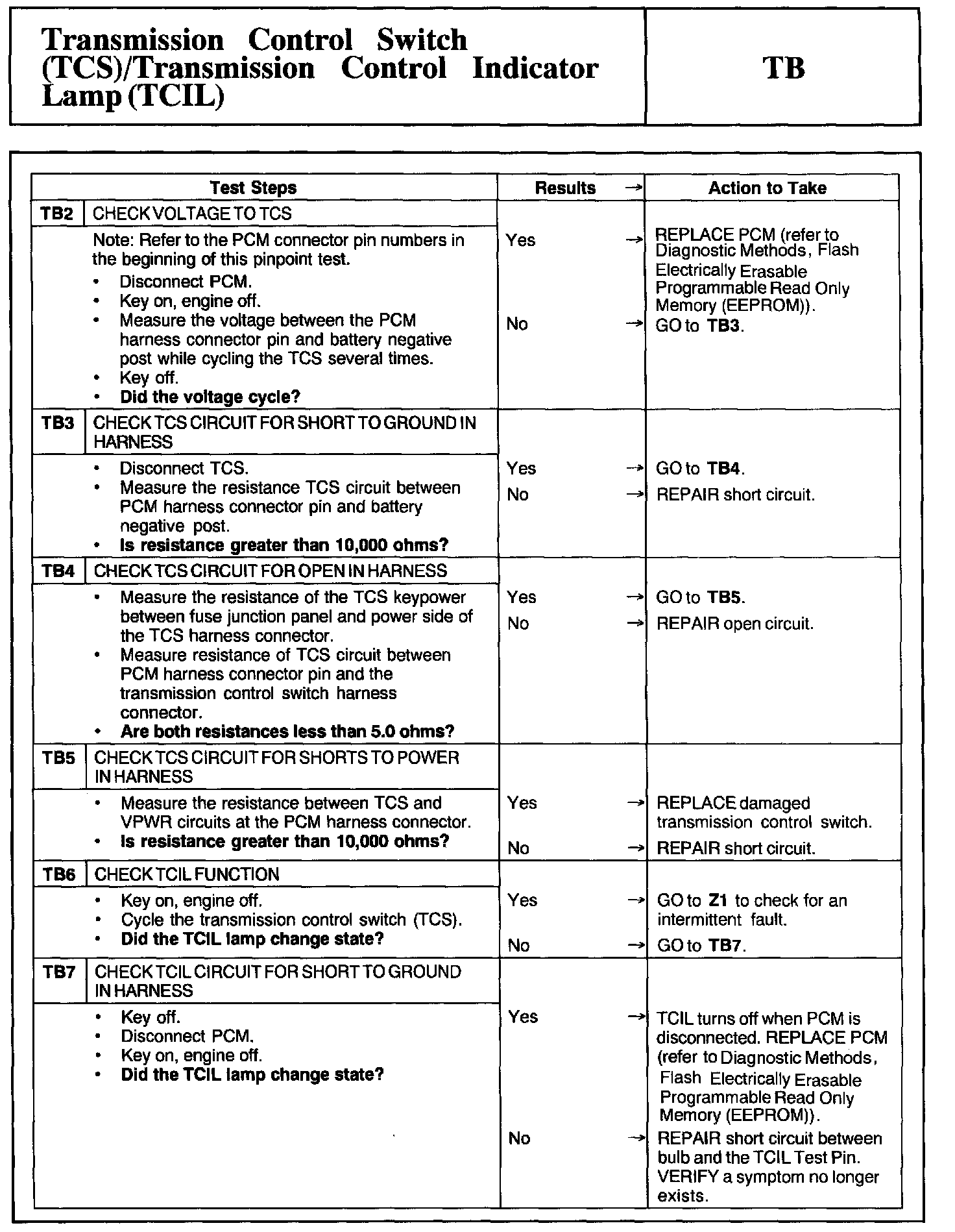

TB2 - TB7:

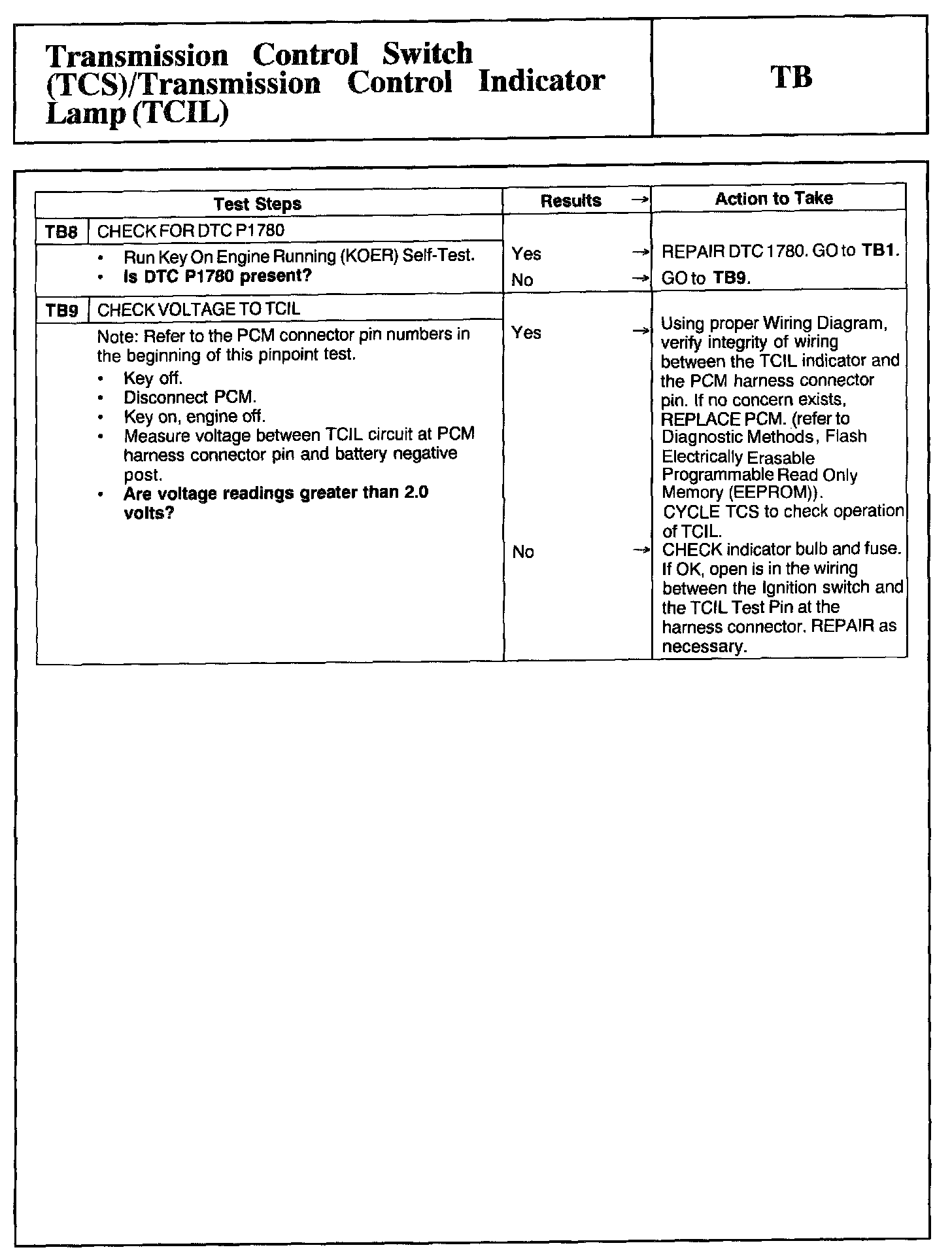

TB8 - TB9:
