Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests NB: Malfunction Indicator Lamp (MIL)

Tests NB: Malfunction Indicator Lamp (MIL)

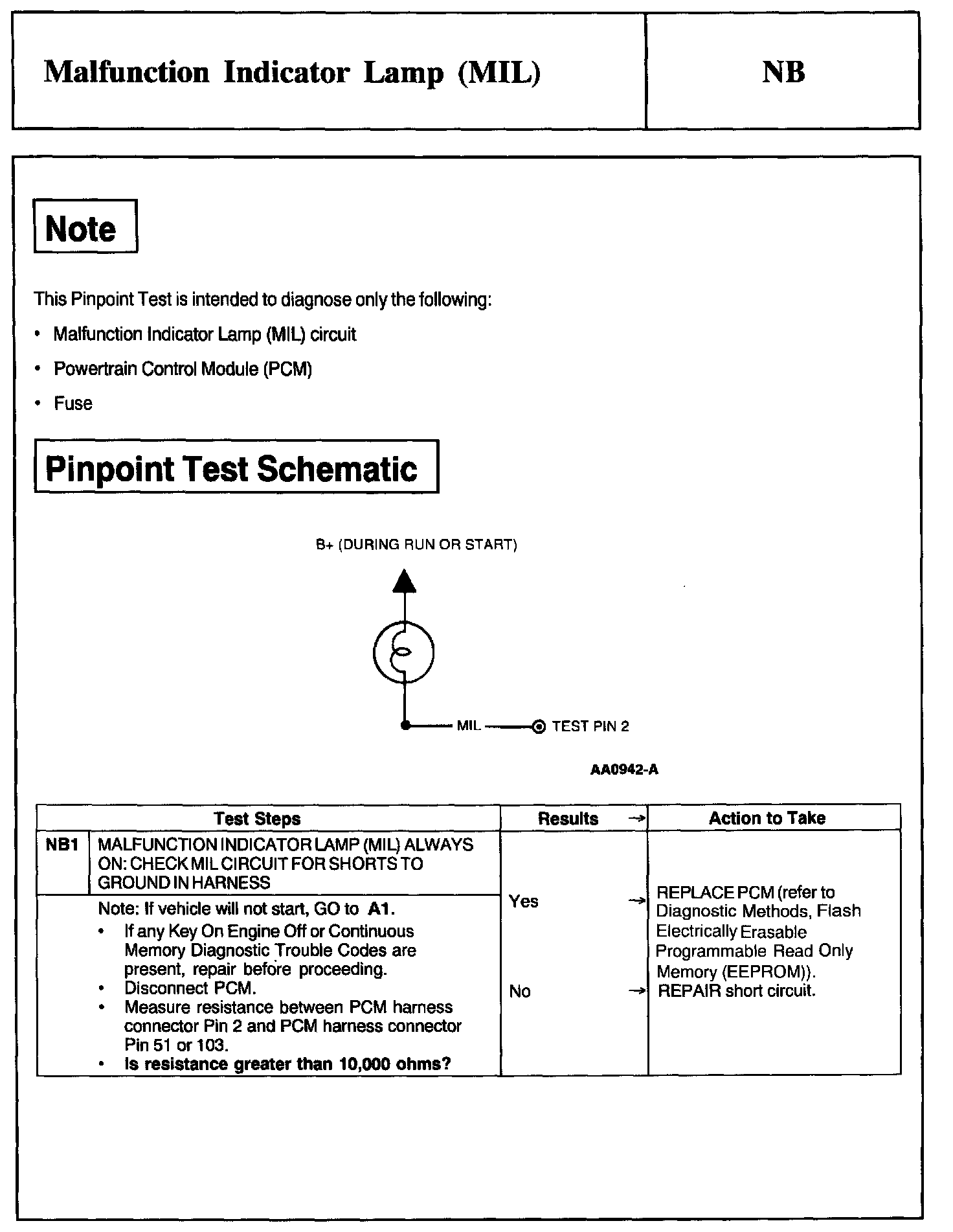

Note, Schematic and Test NB1:

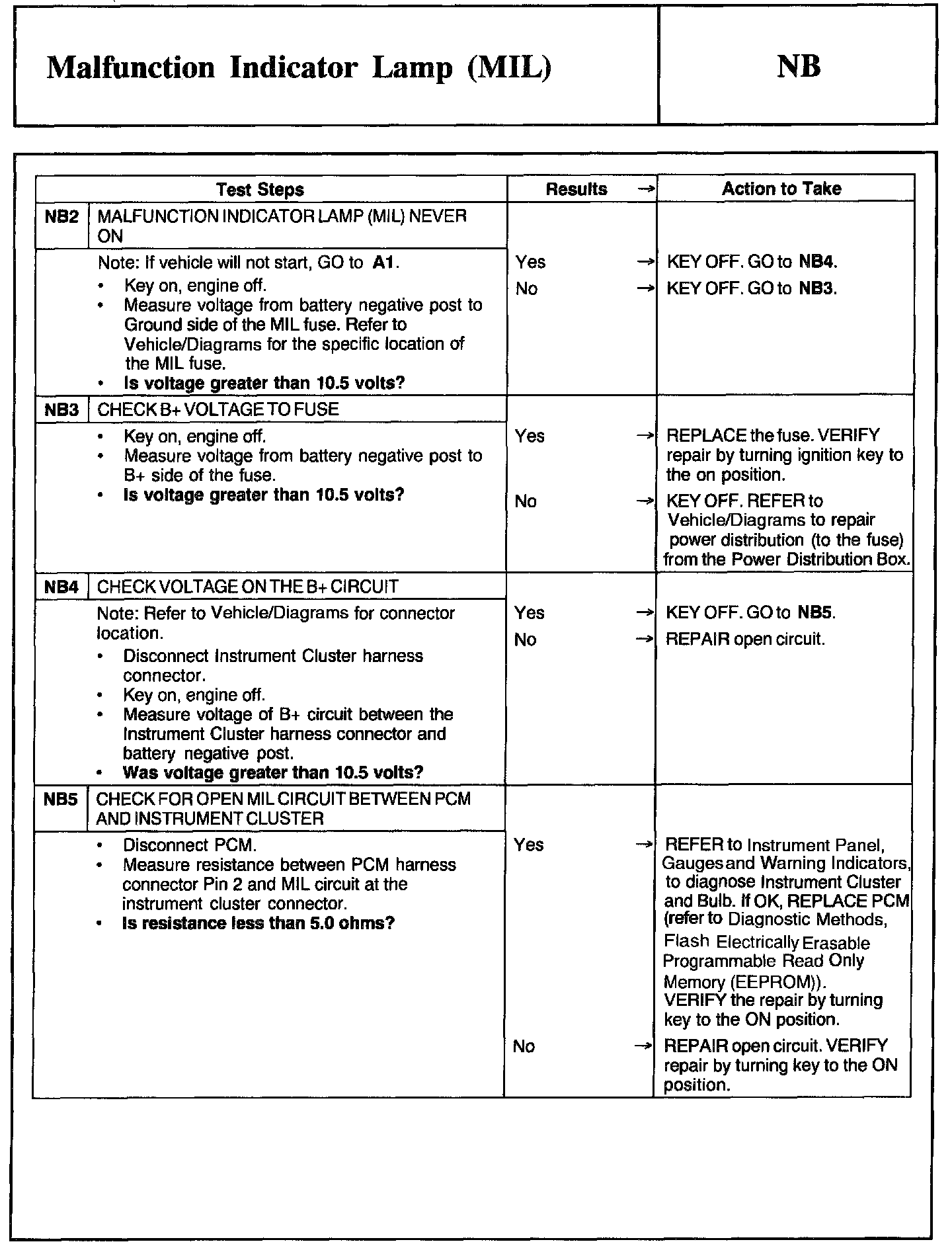

NB2 - NB5:
