Tests KC: Fuel Shutoff Valve Relay
Tests KC: Fuel Shutoff Valve Relay

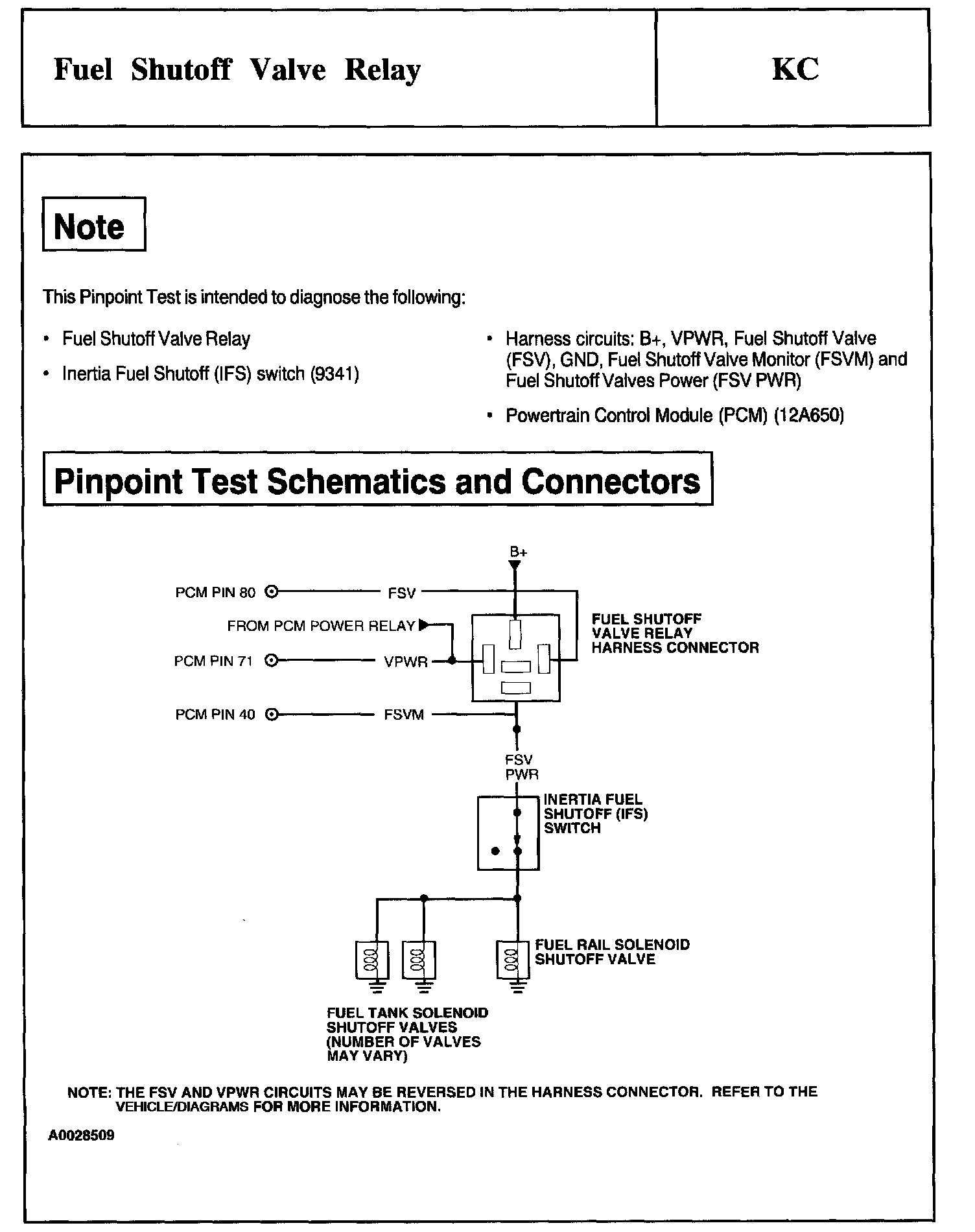

Note, Schematics and Connectors:
KC1 - KC5:

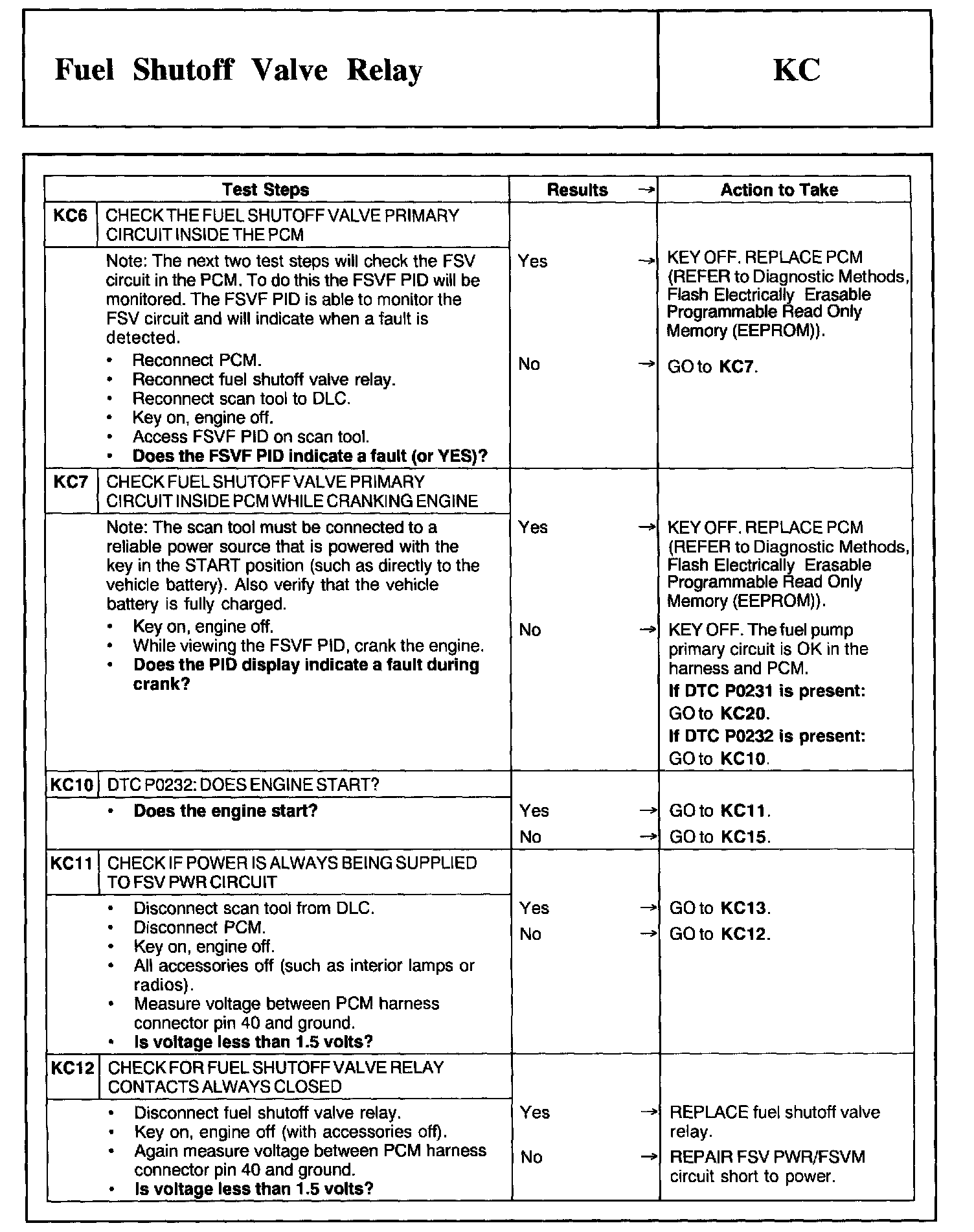

KC6 - KC12:

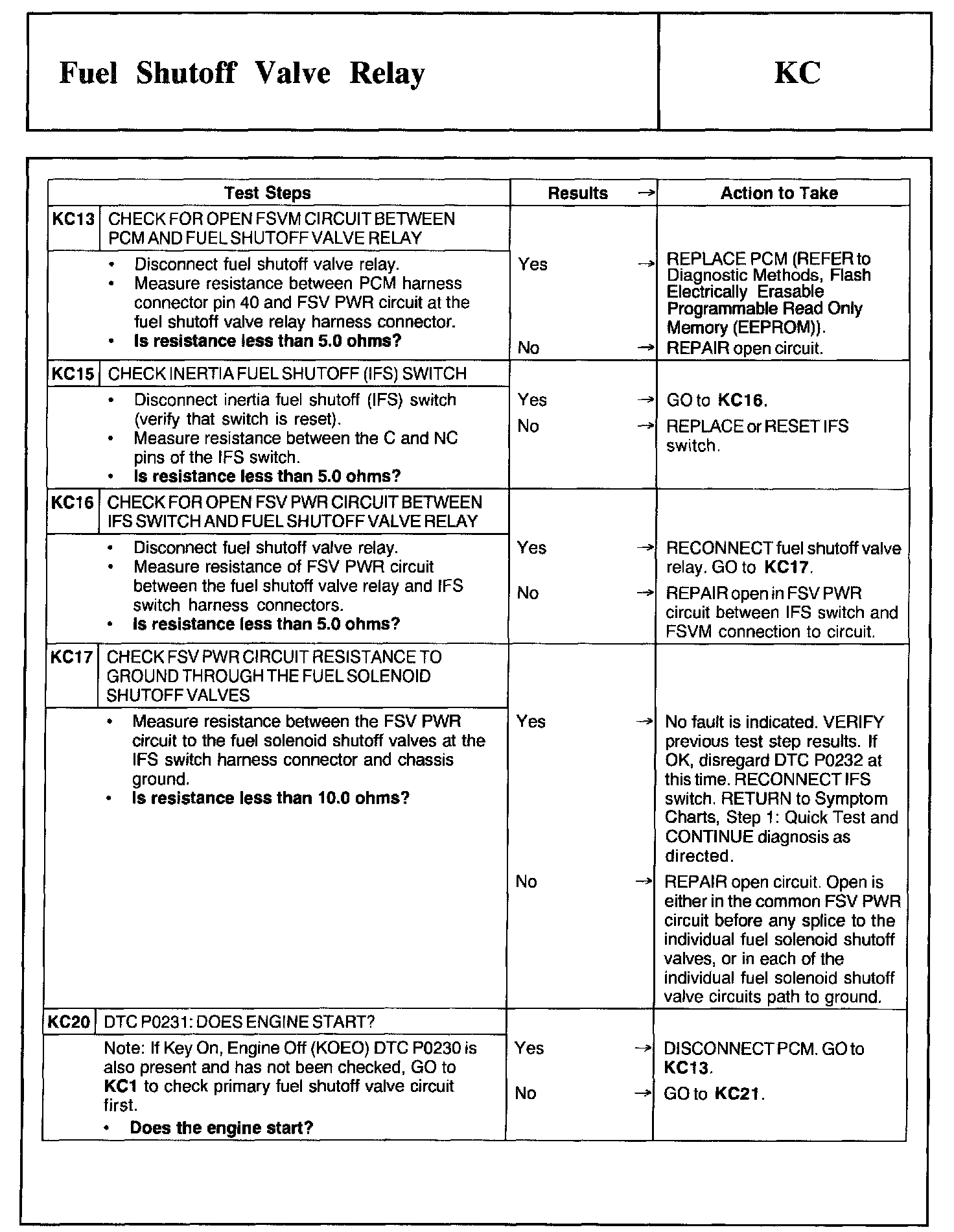

KC13 - KC20:

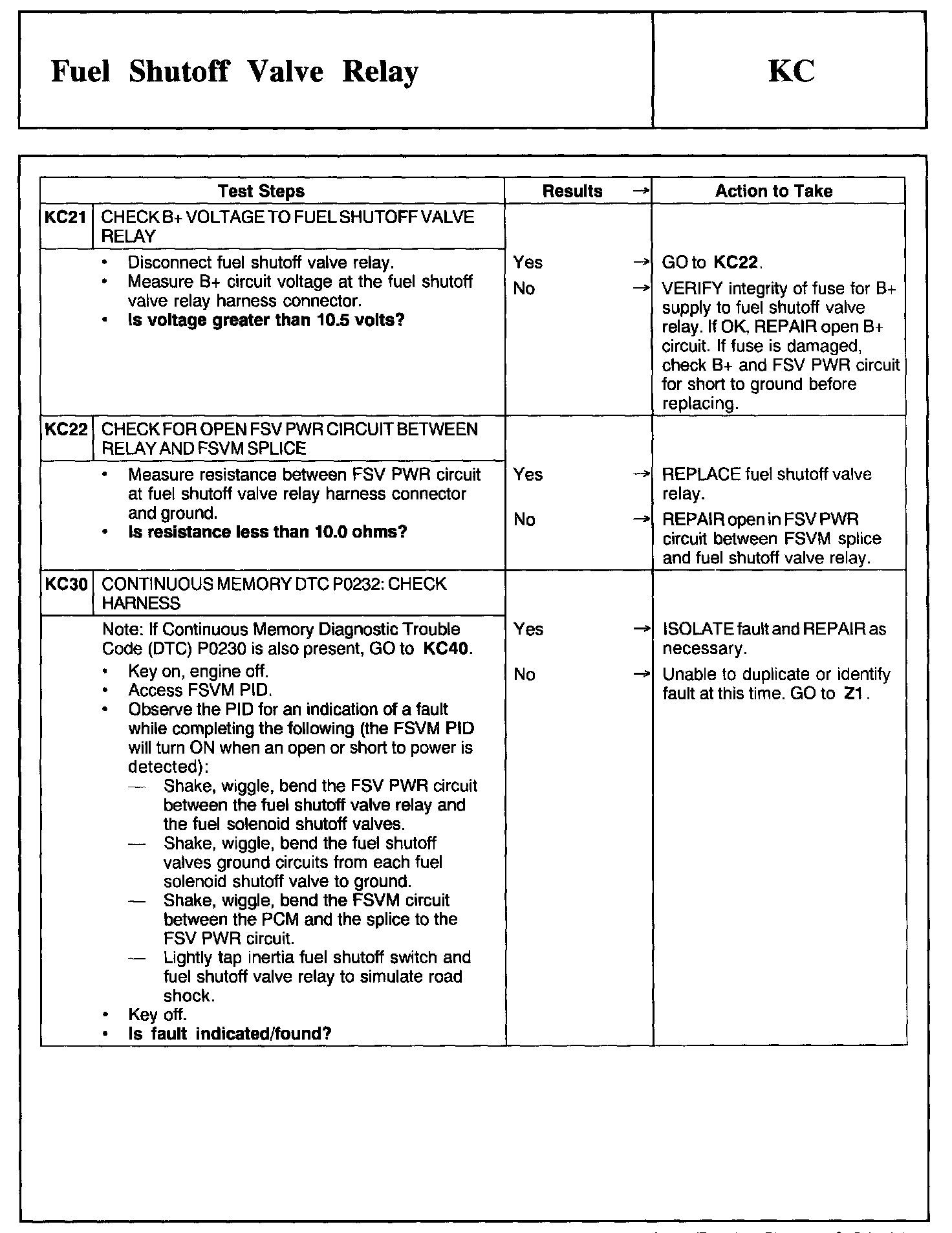

KC21 - KC30:

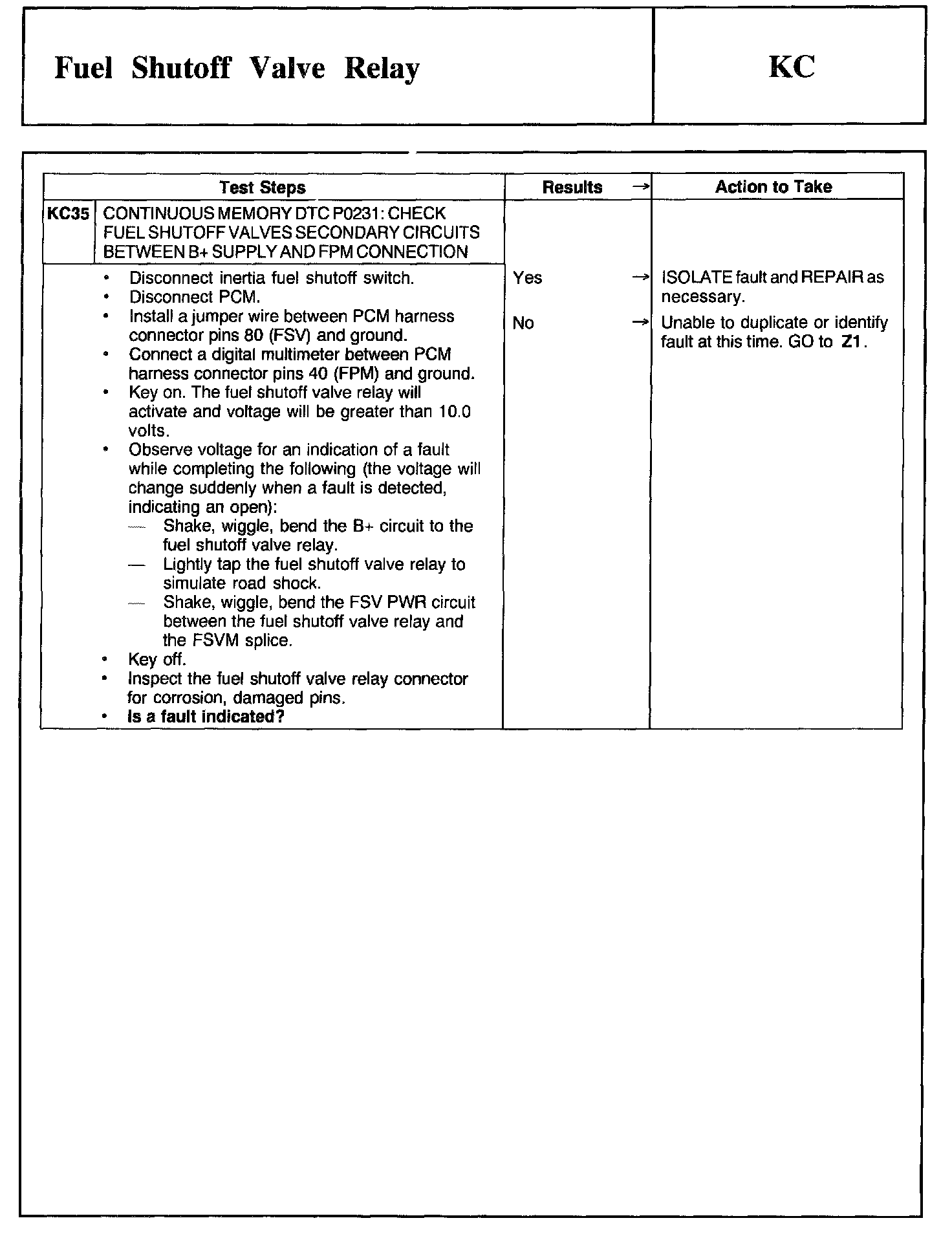

KC35:

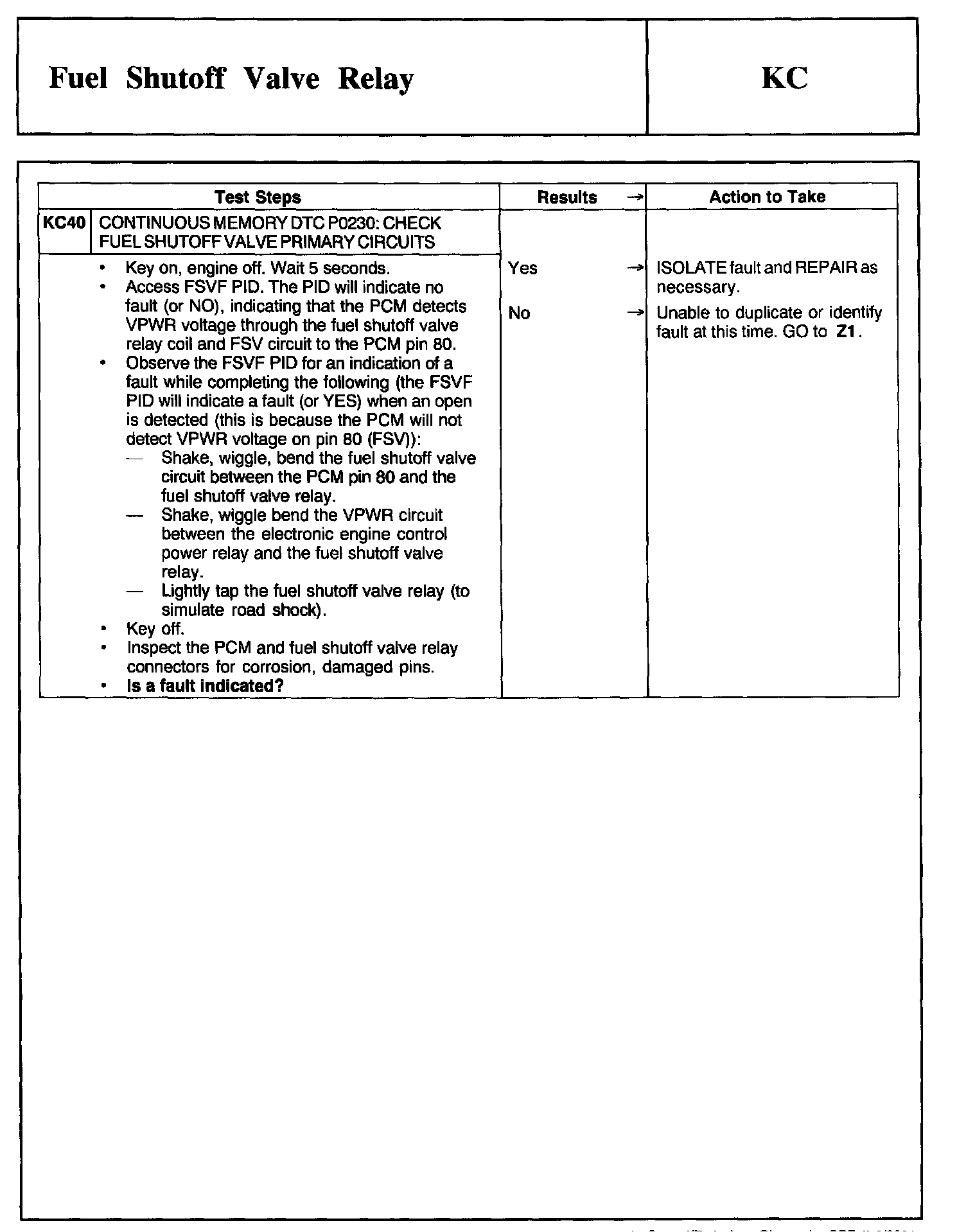

KC40:
