Tests KA: Fuel Pump Relay

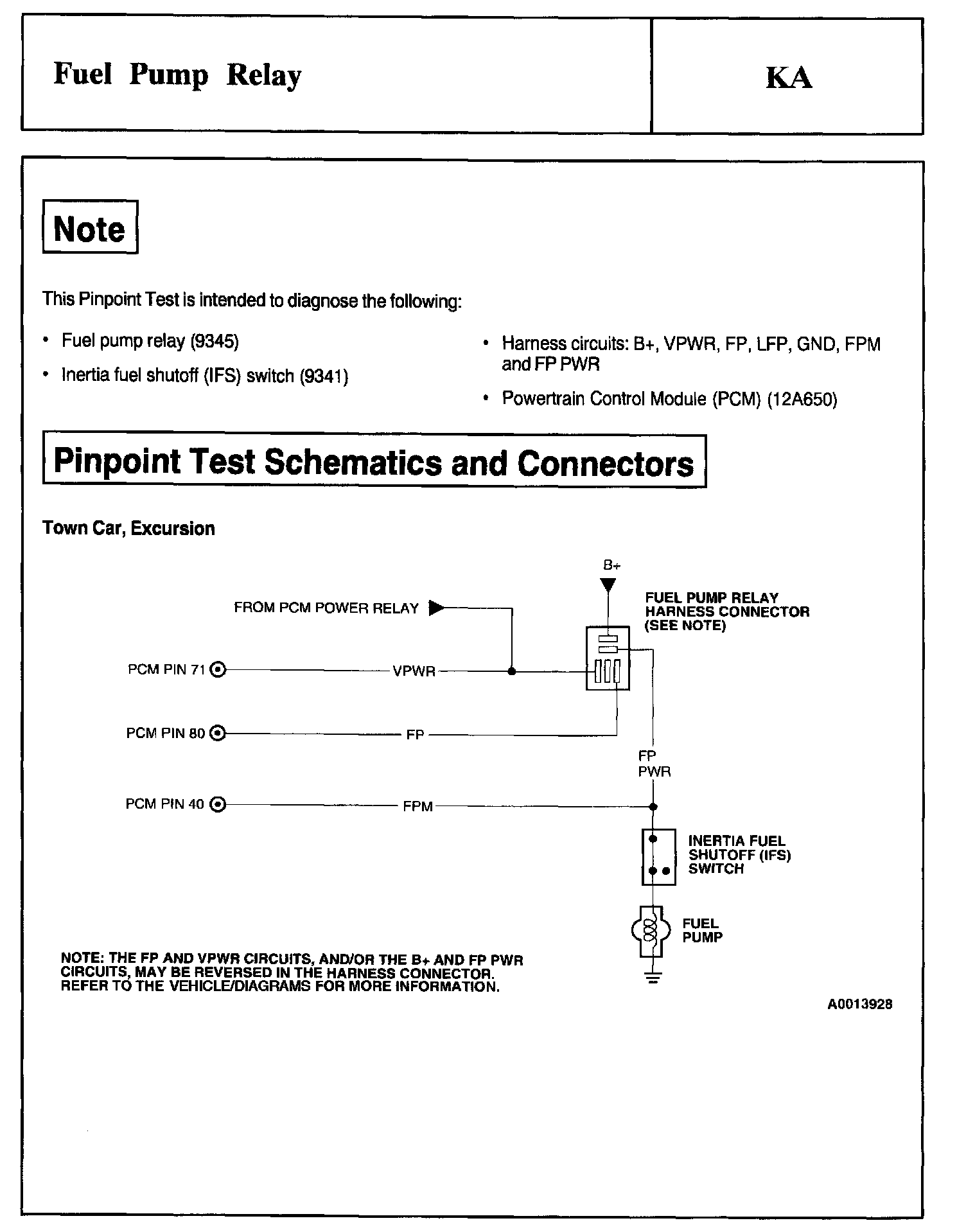

Note, Schematics and Connectors:

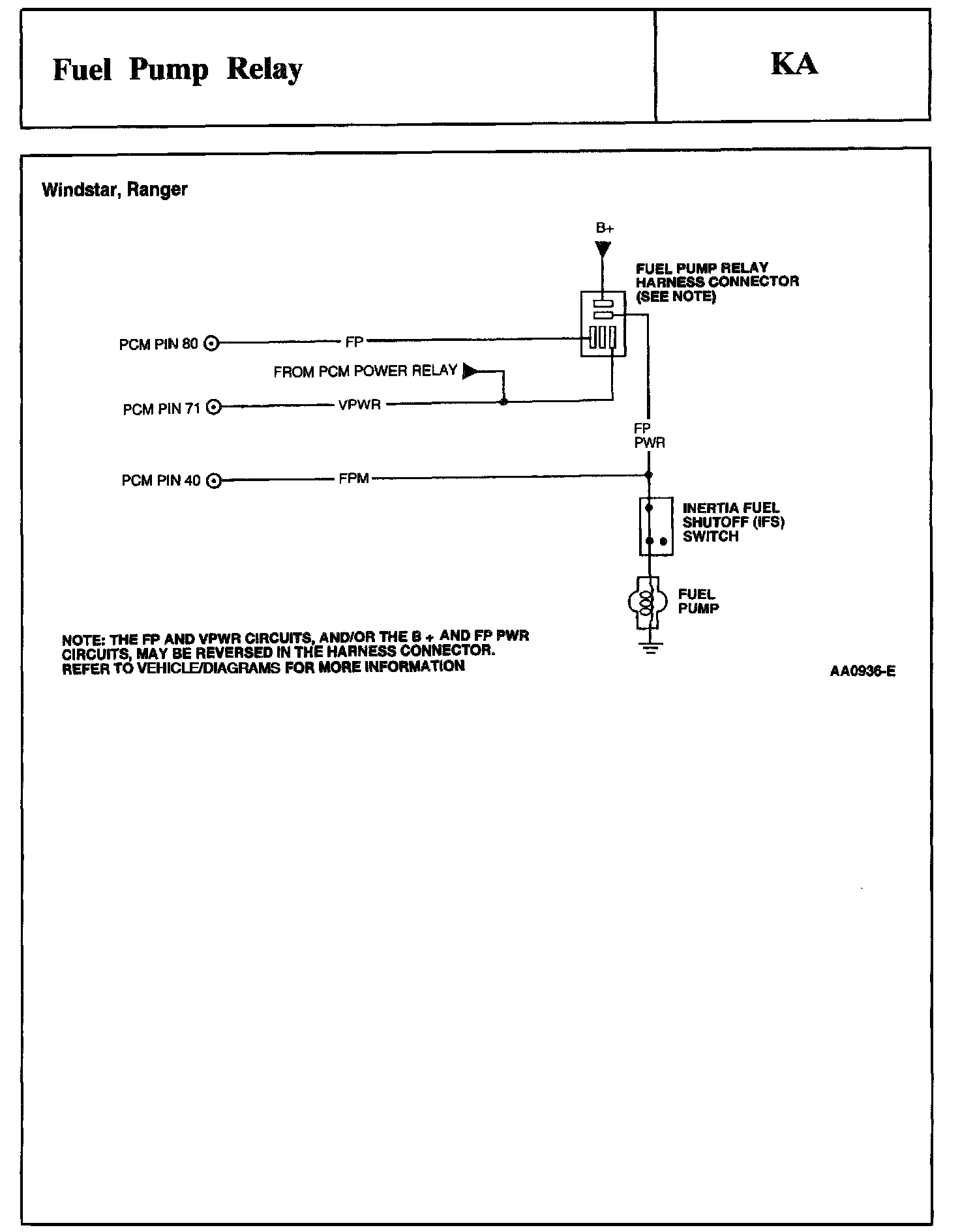

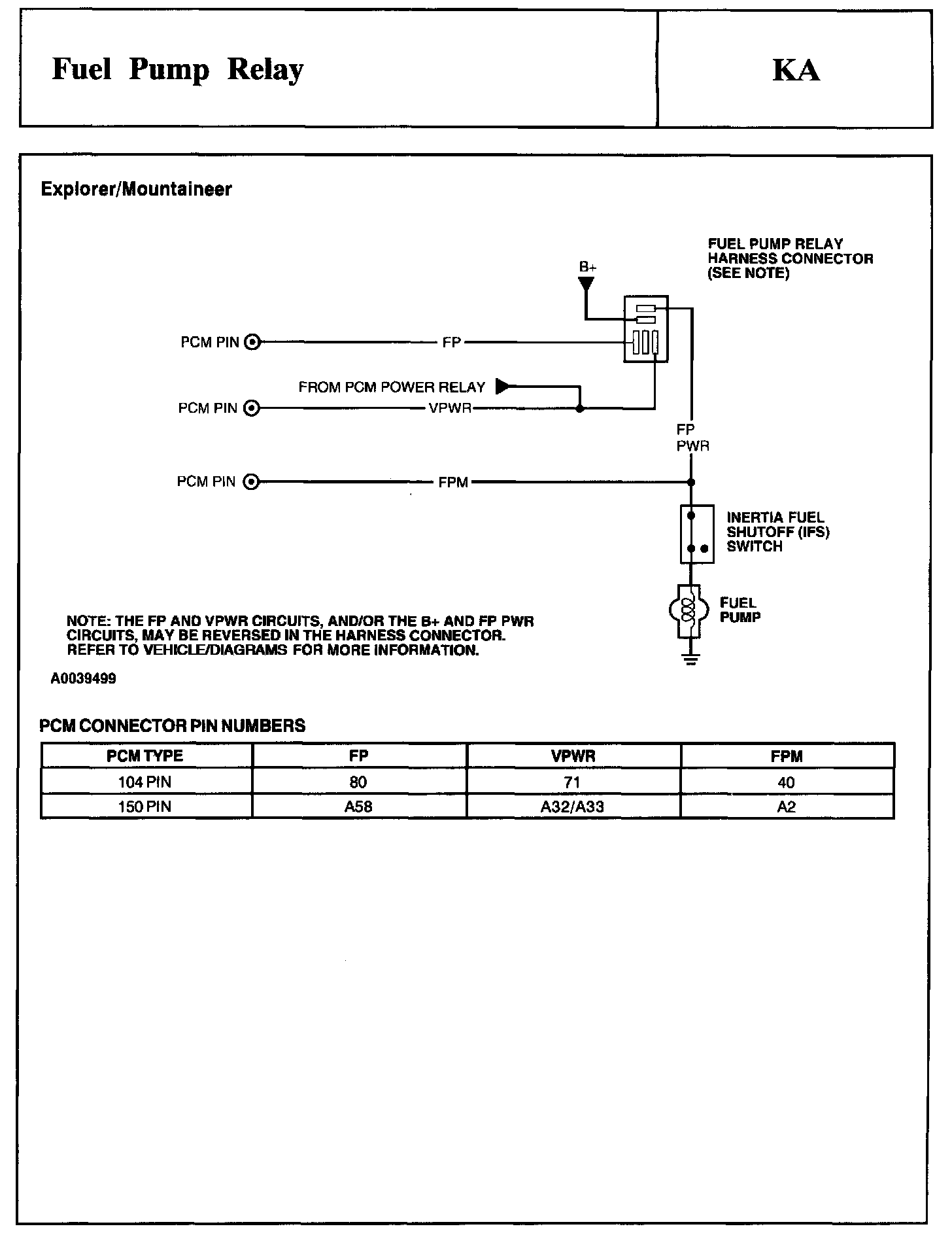

Test Schematic:

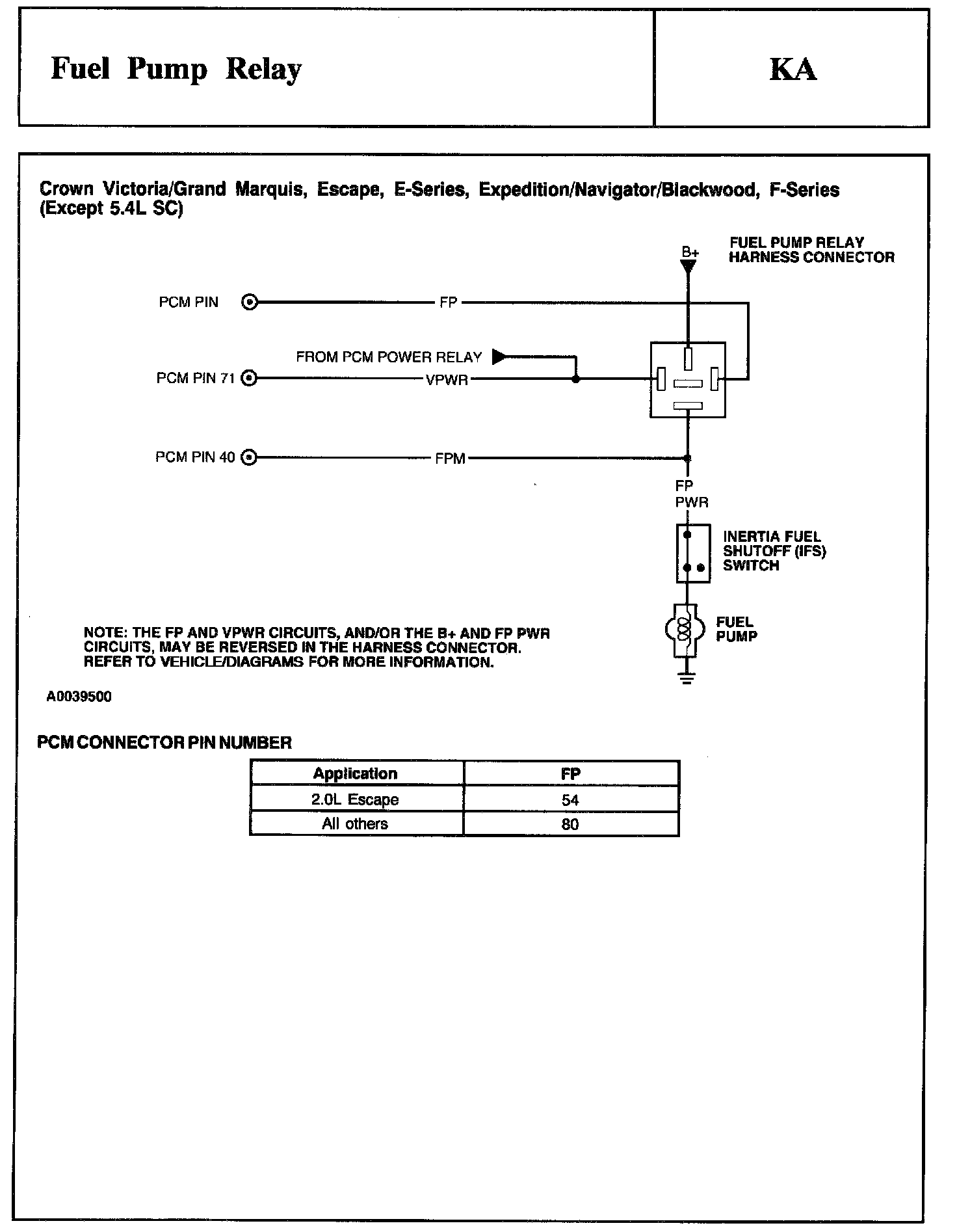

Test Schematic:

Test Schematic:

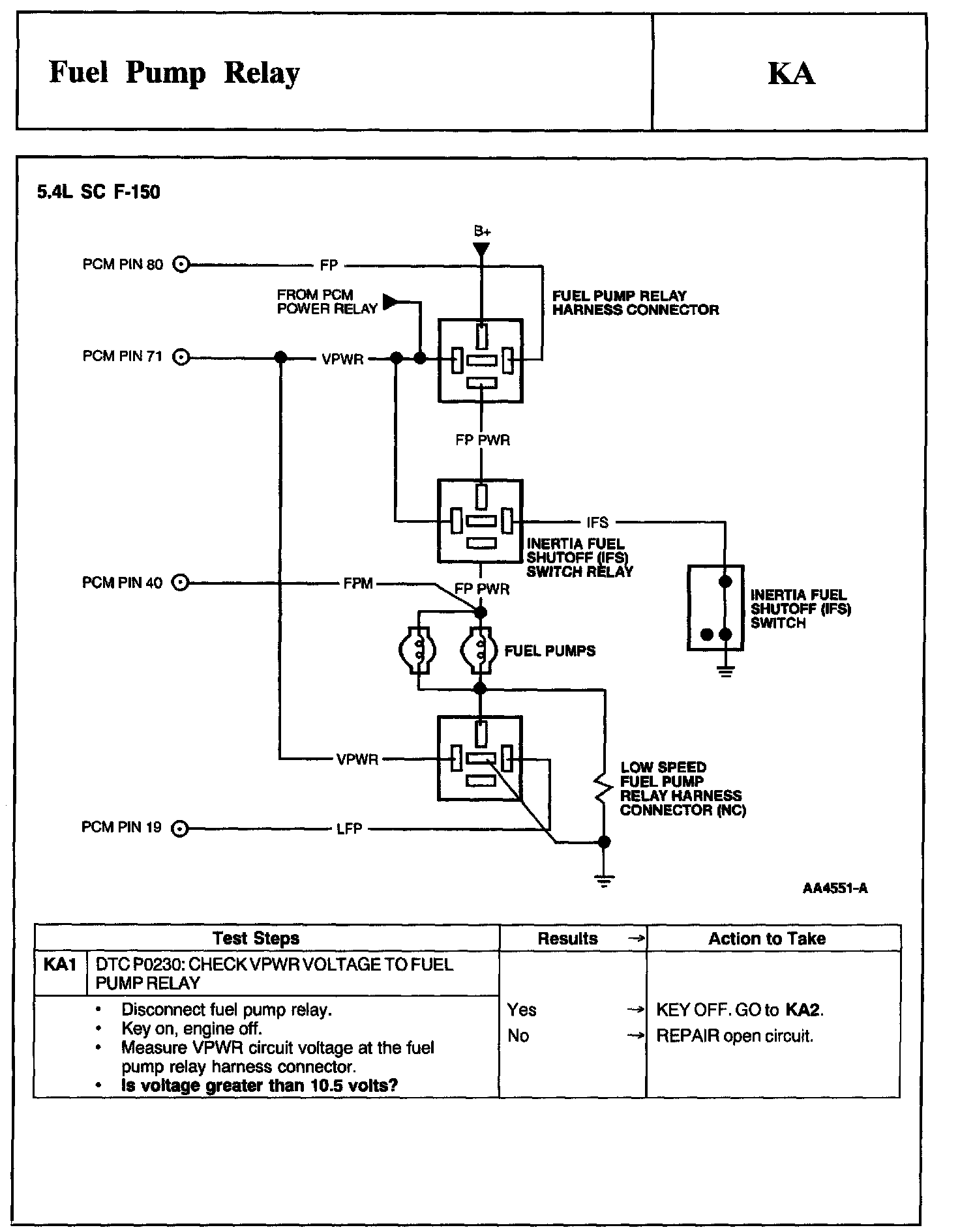

Schematic, Test KA1:

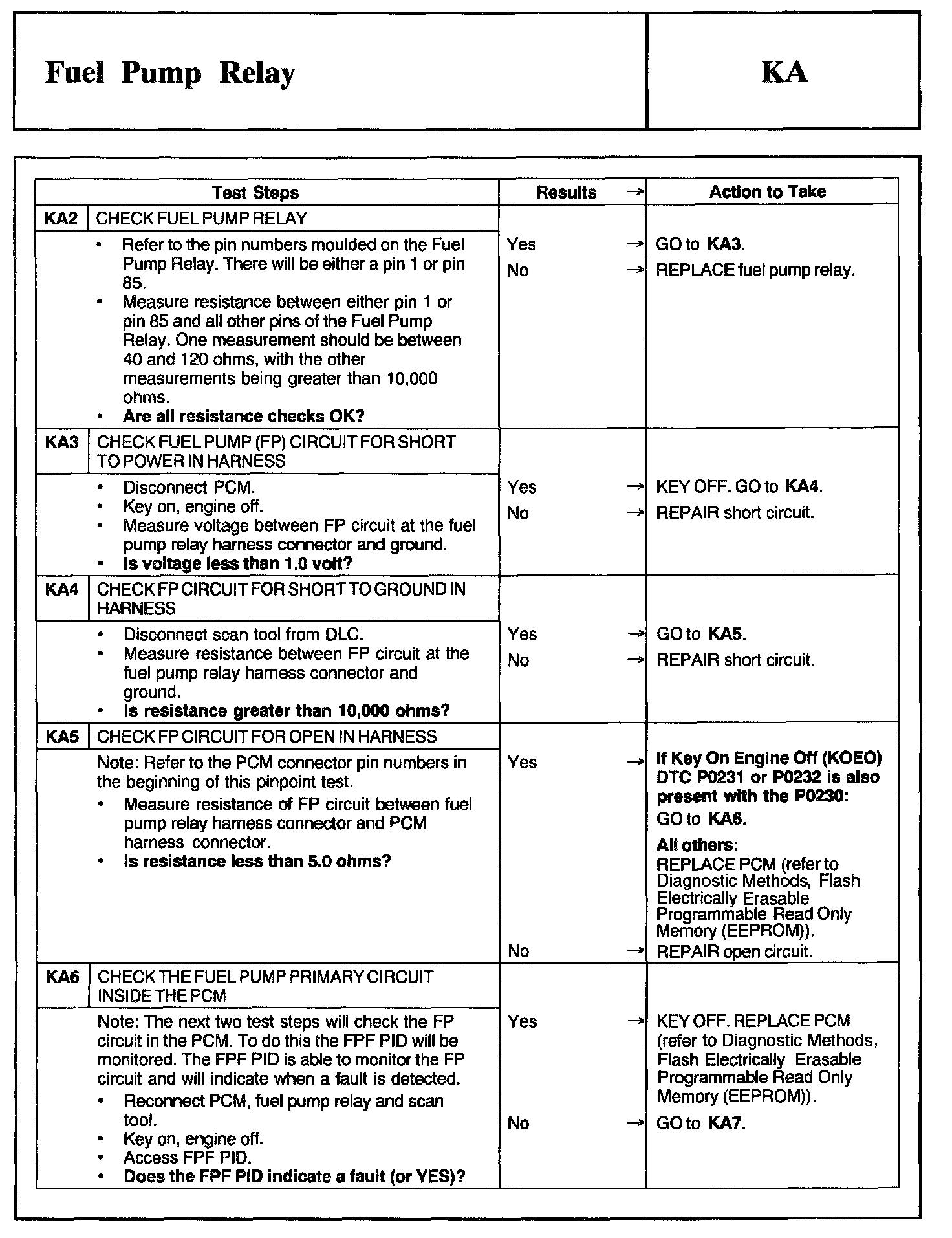

KA2 - KA6:

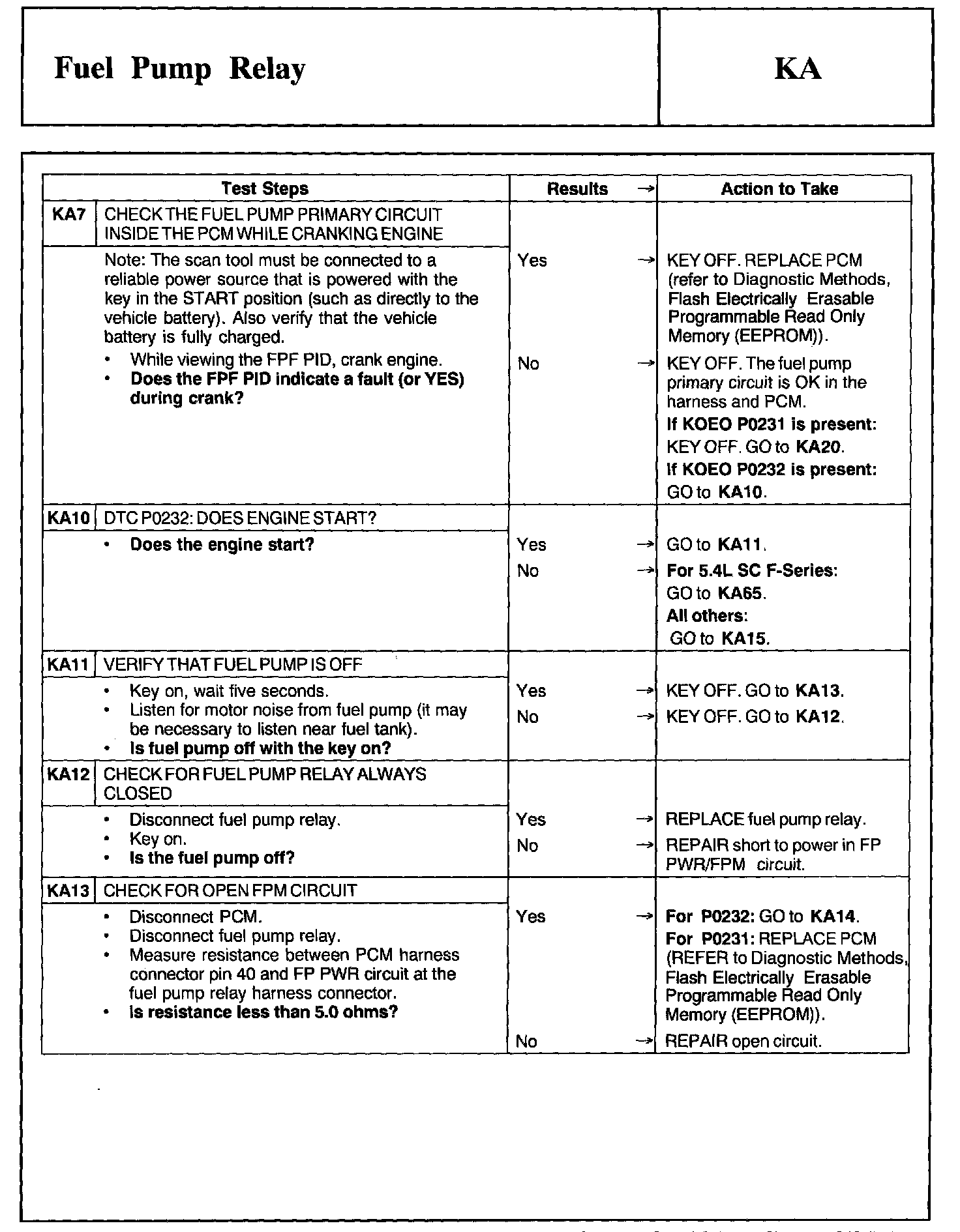

KA7 - KA13:

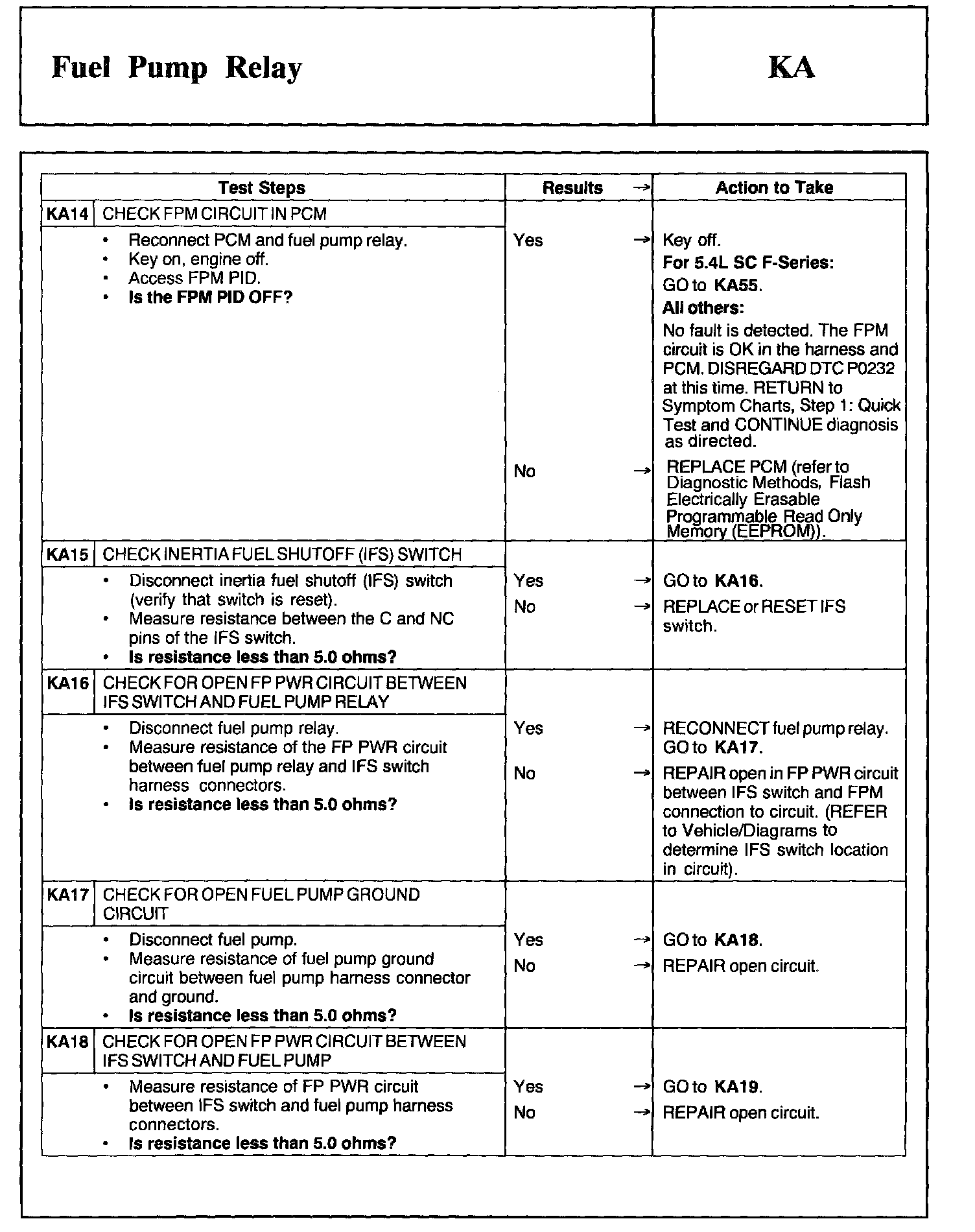

KA14 - KA18:

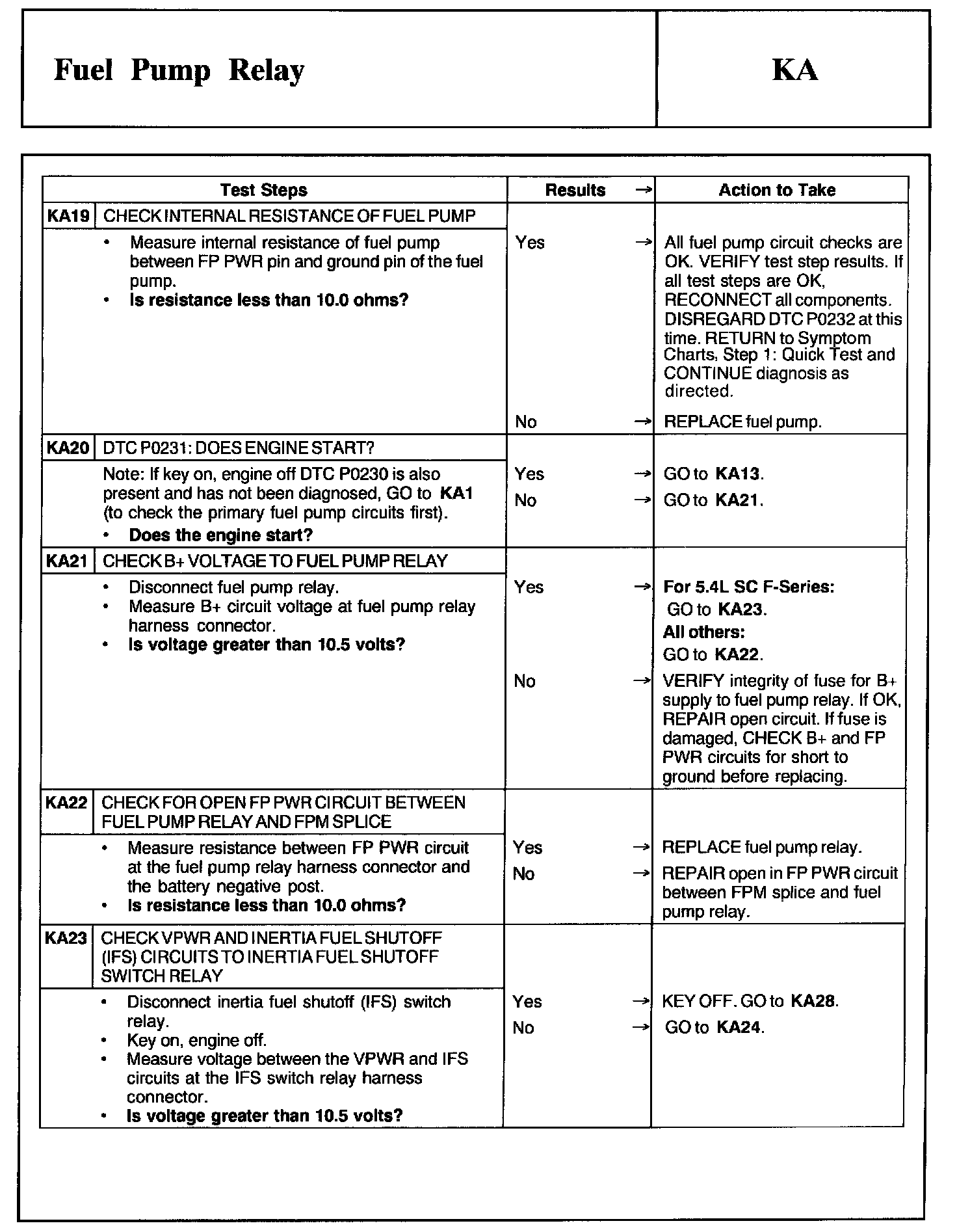

KA19 - KA23:

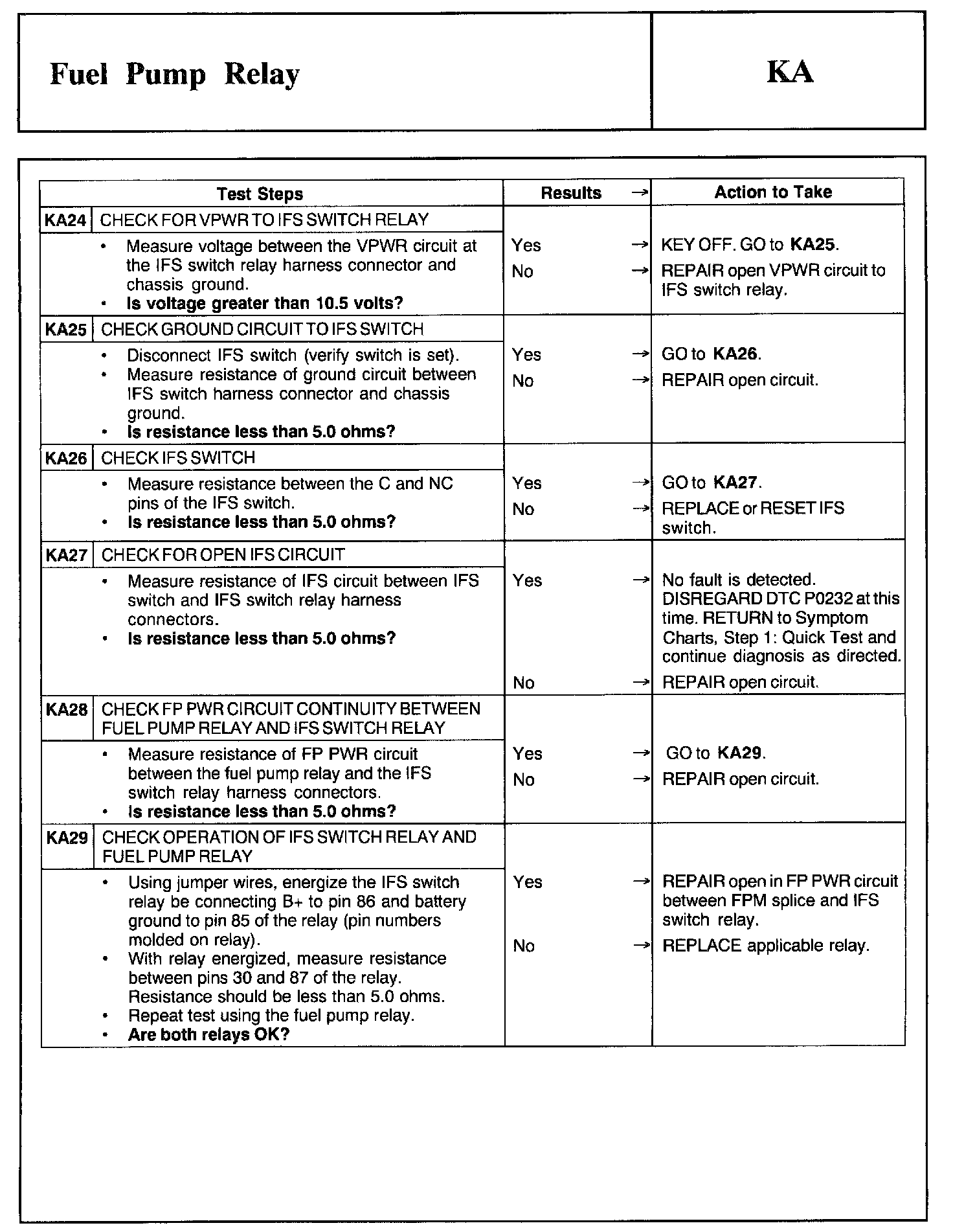

KA24 - KA29:

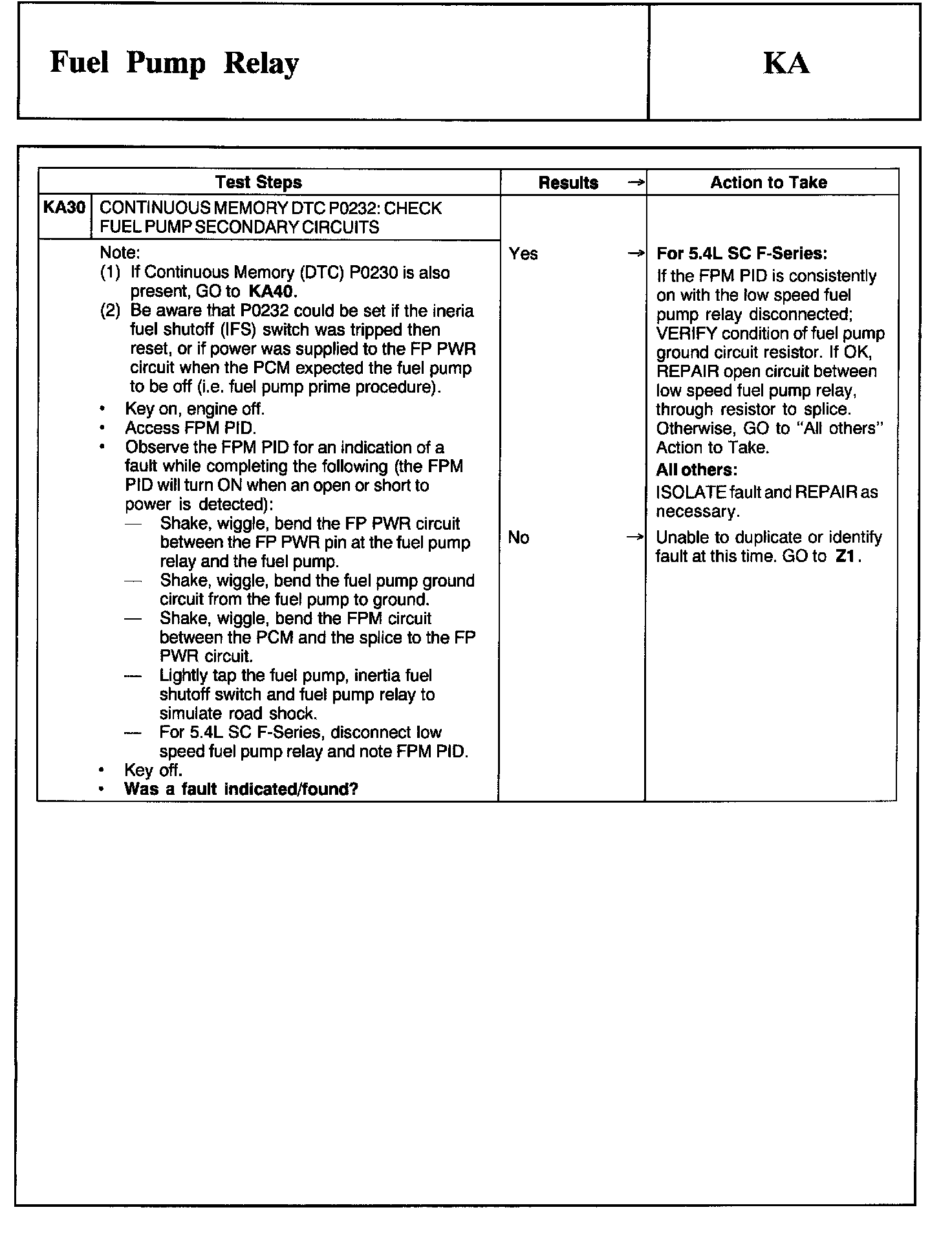

KA30:

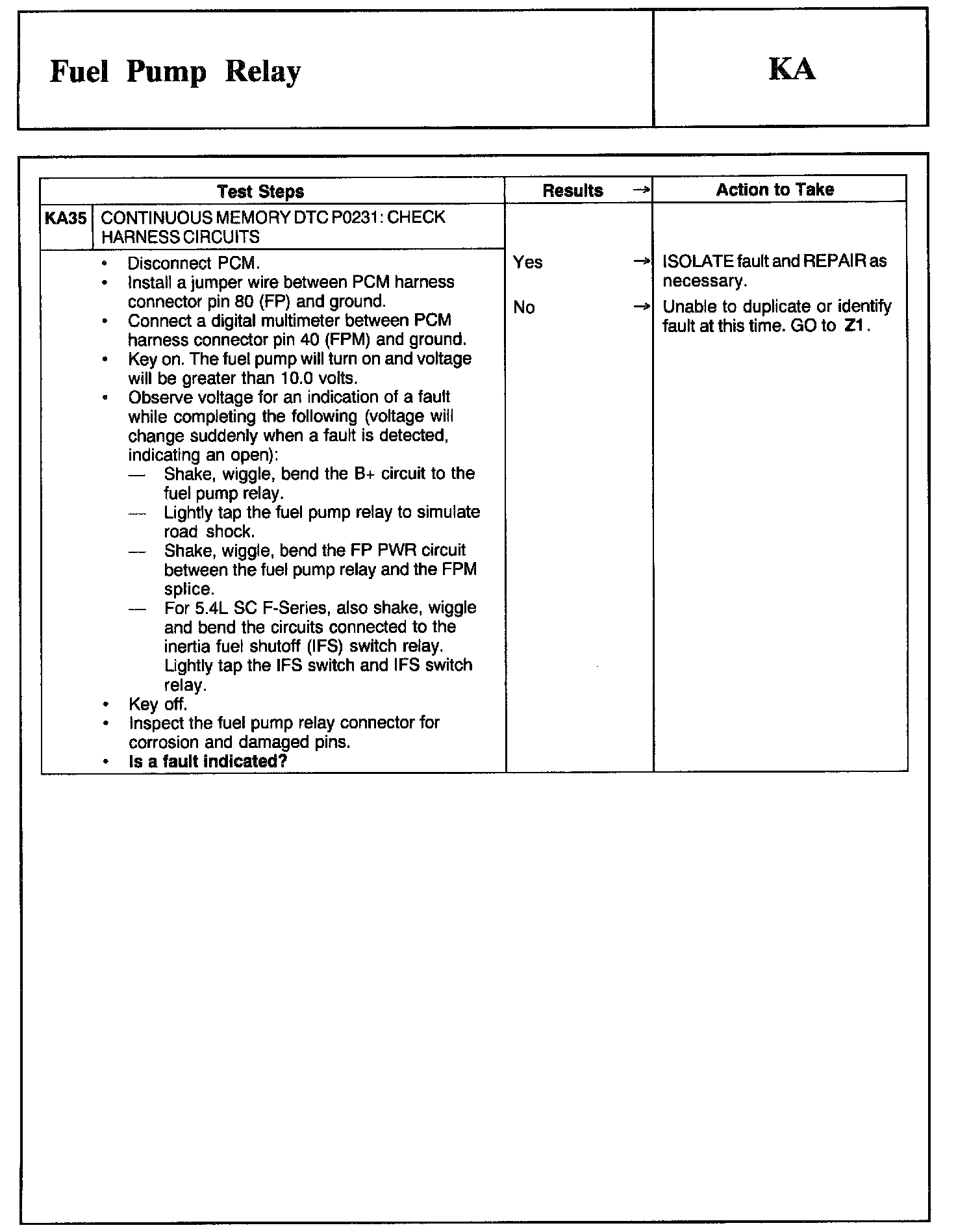

KA35:

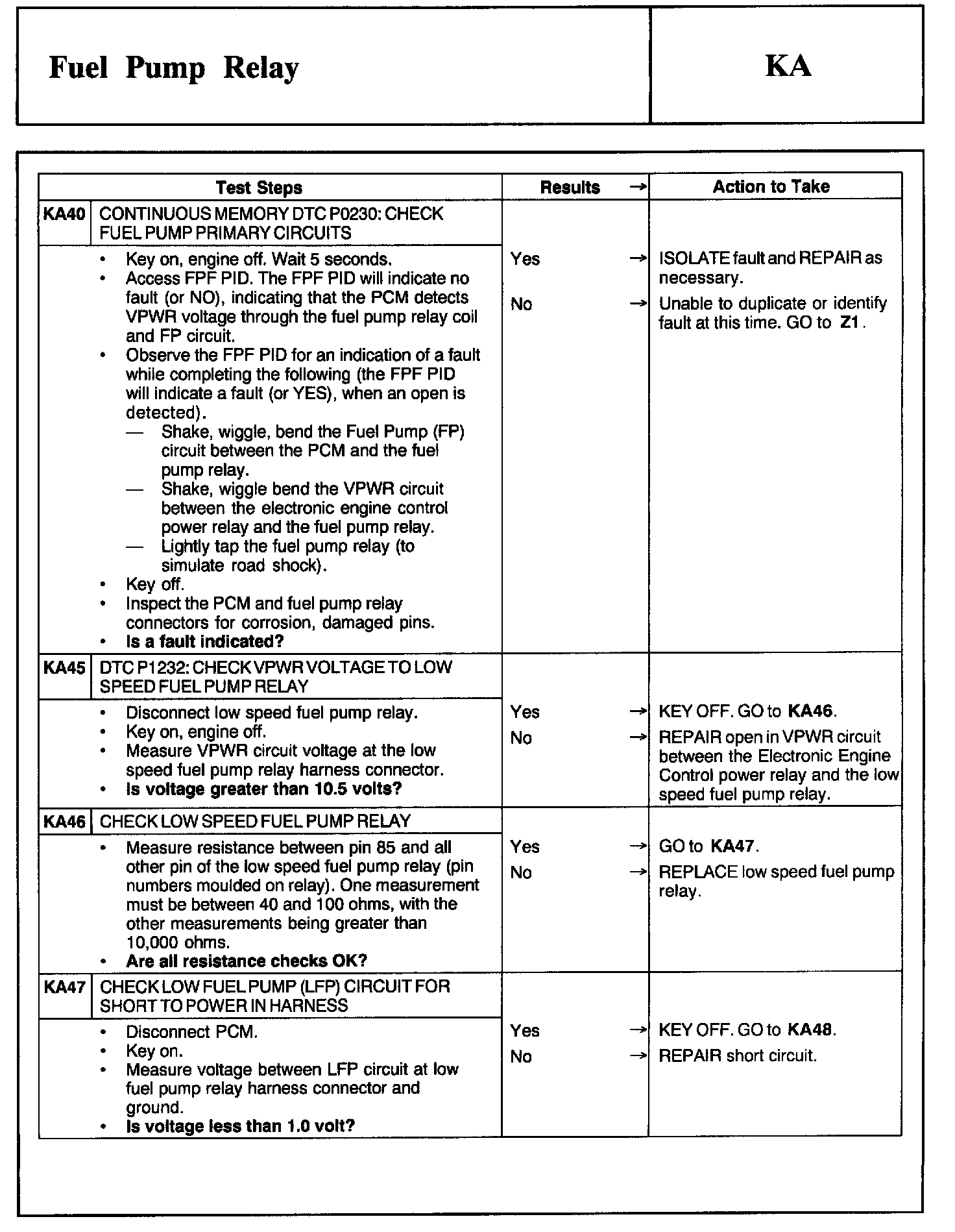

KA40 - KA47:

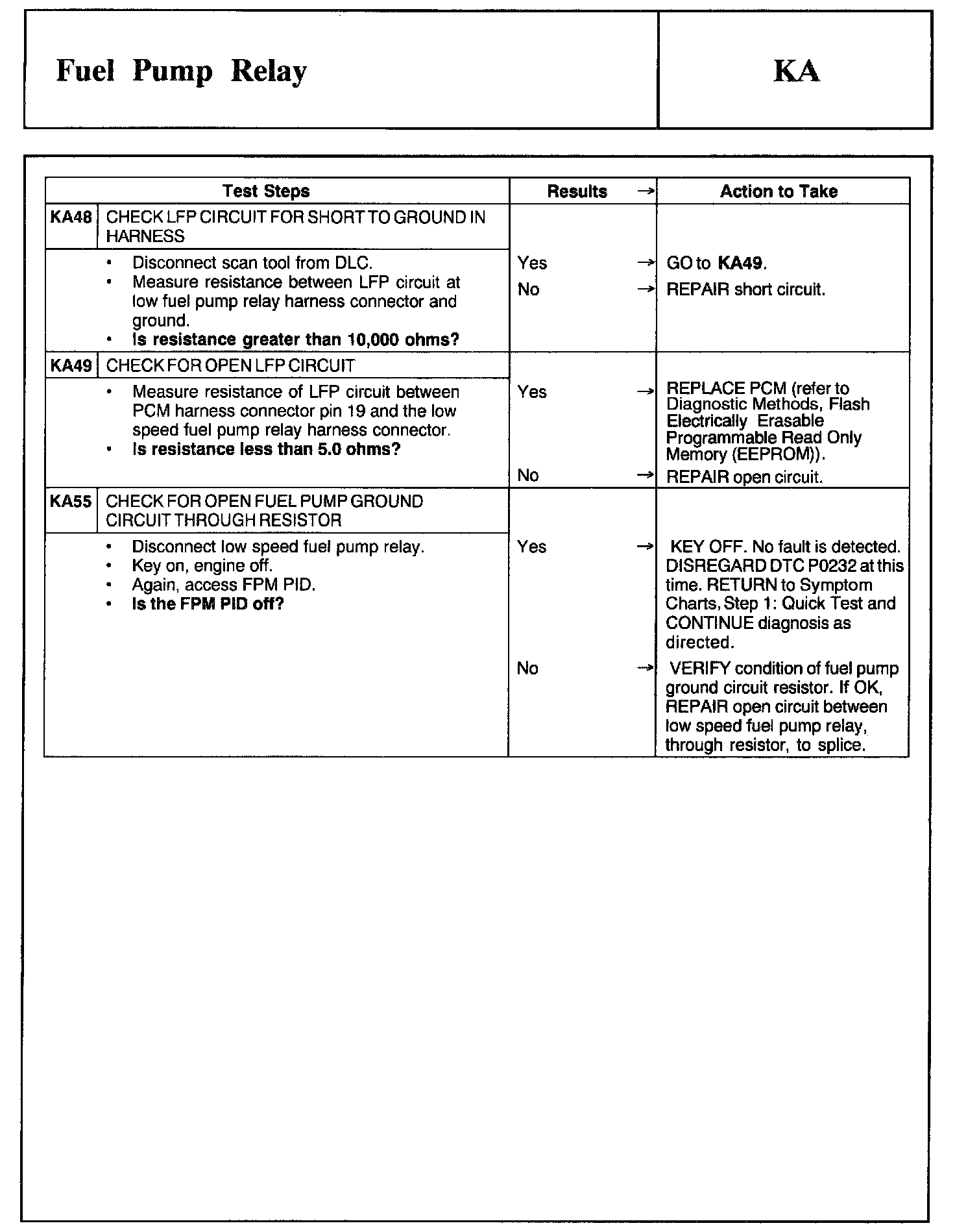

KA48 - KA55:

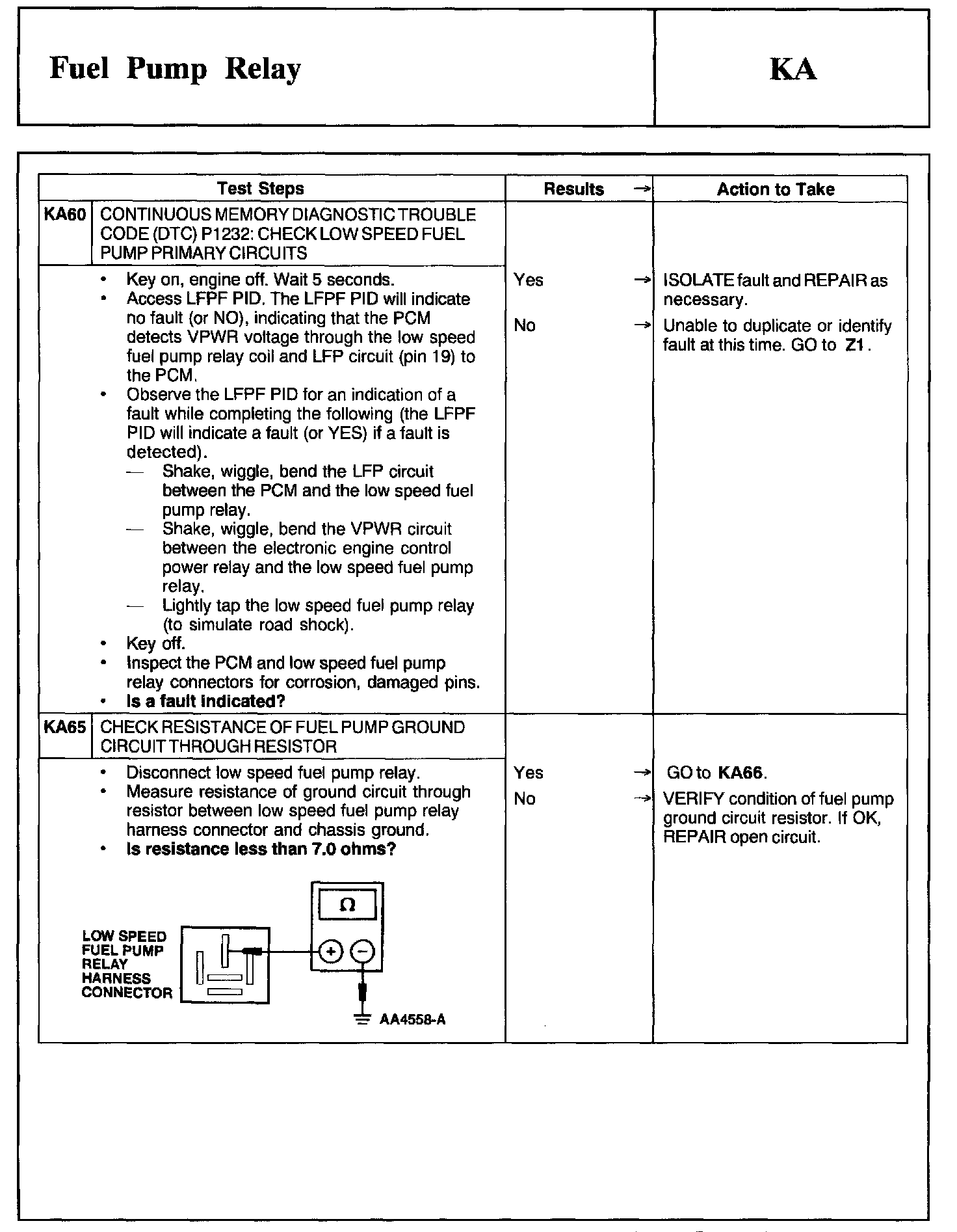

KA60 - KA65:

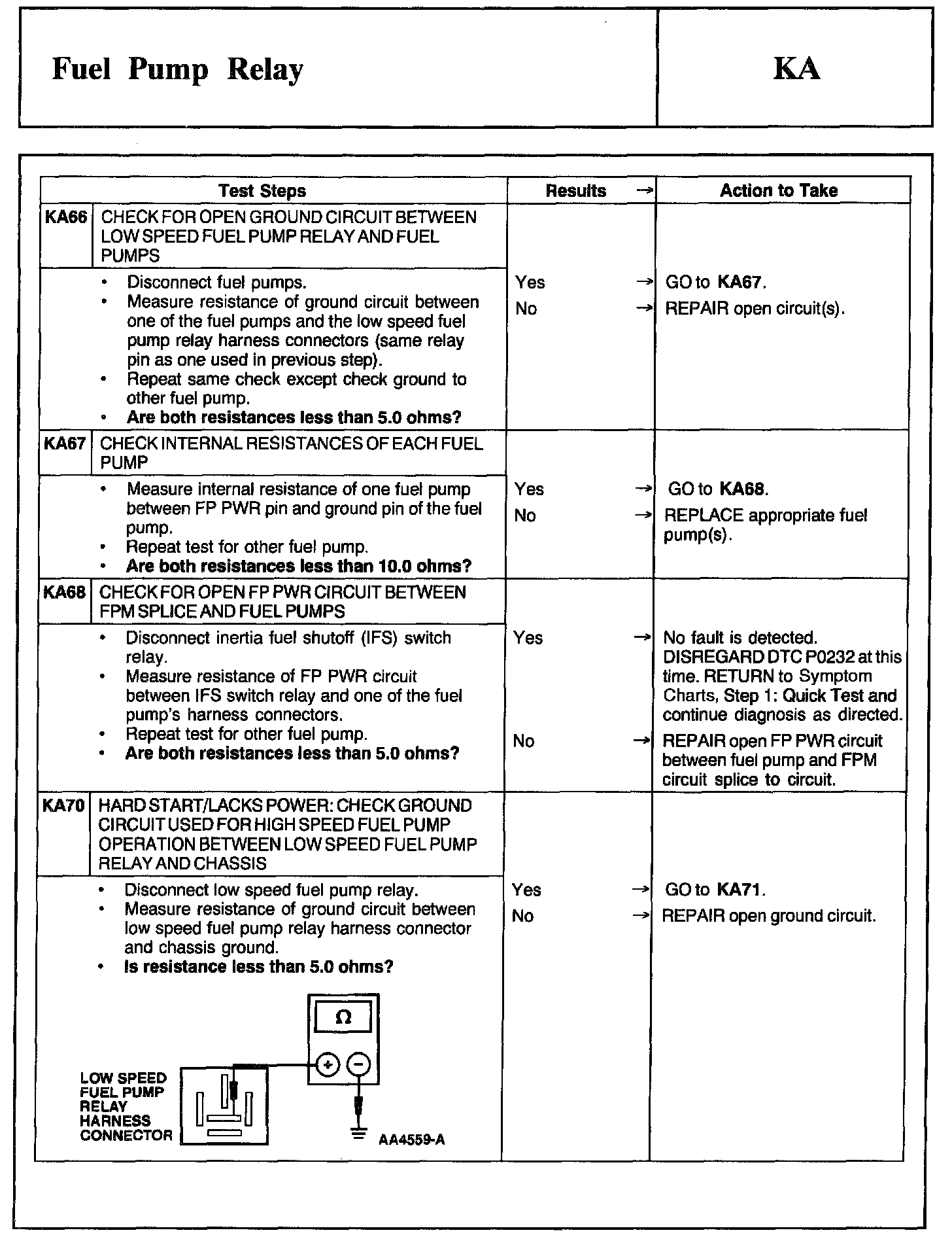

KA66 - KA70:

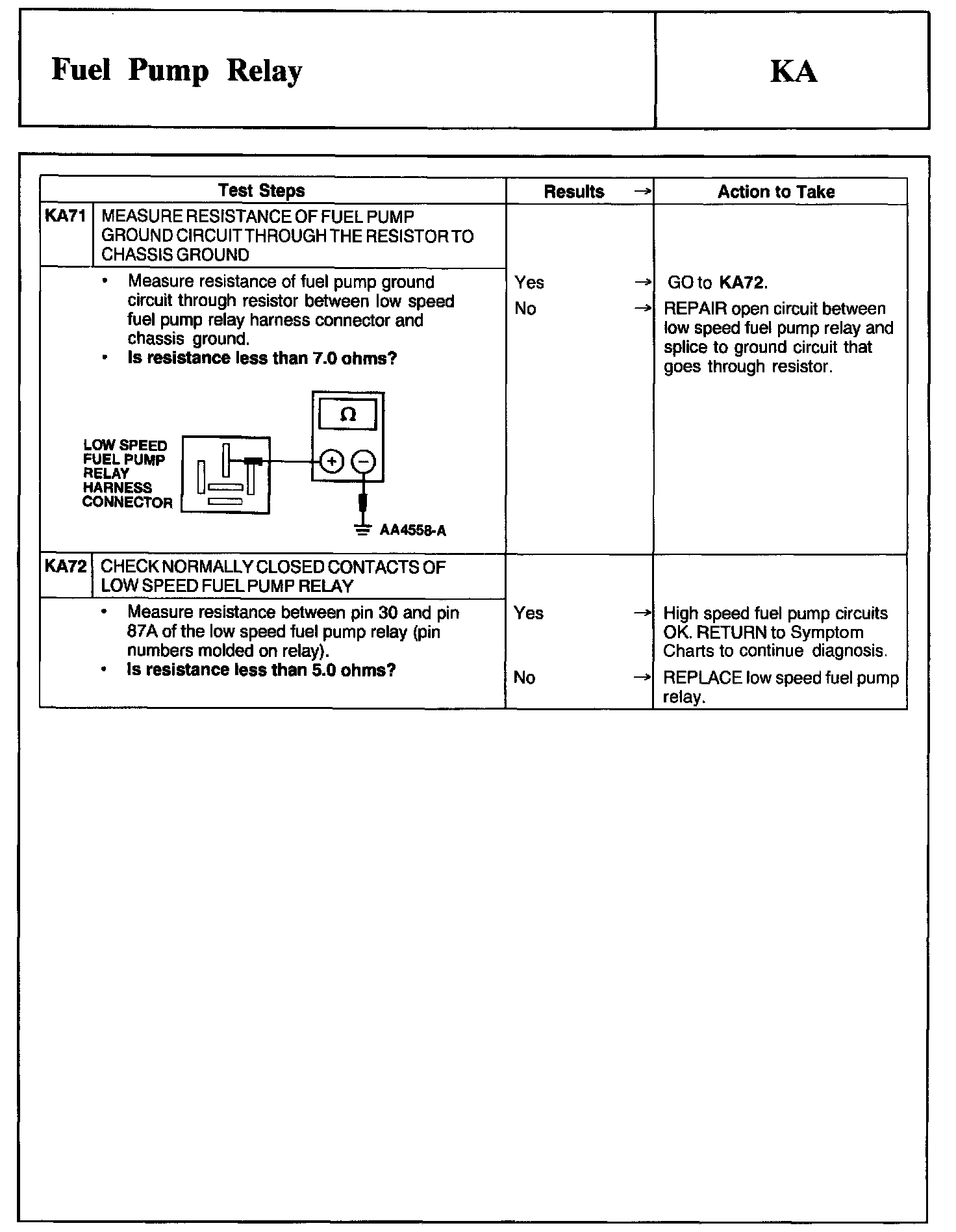

KA71 - KA72:
