Tests HM: Secondary Air Injection (AIR) System
Tests HM: Secondary Air Injection (AIR) System

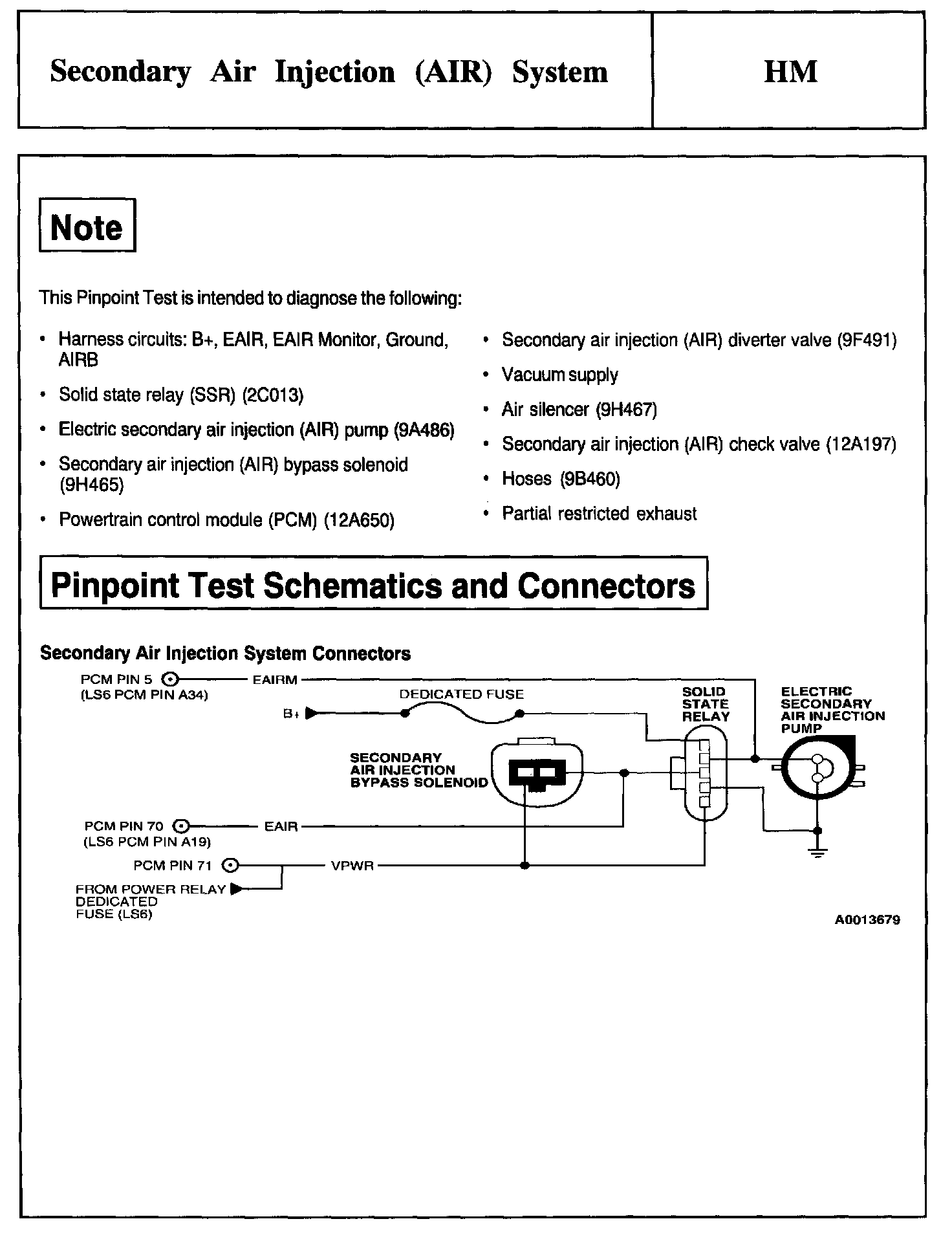

Note, Schematics and Connectors:

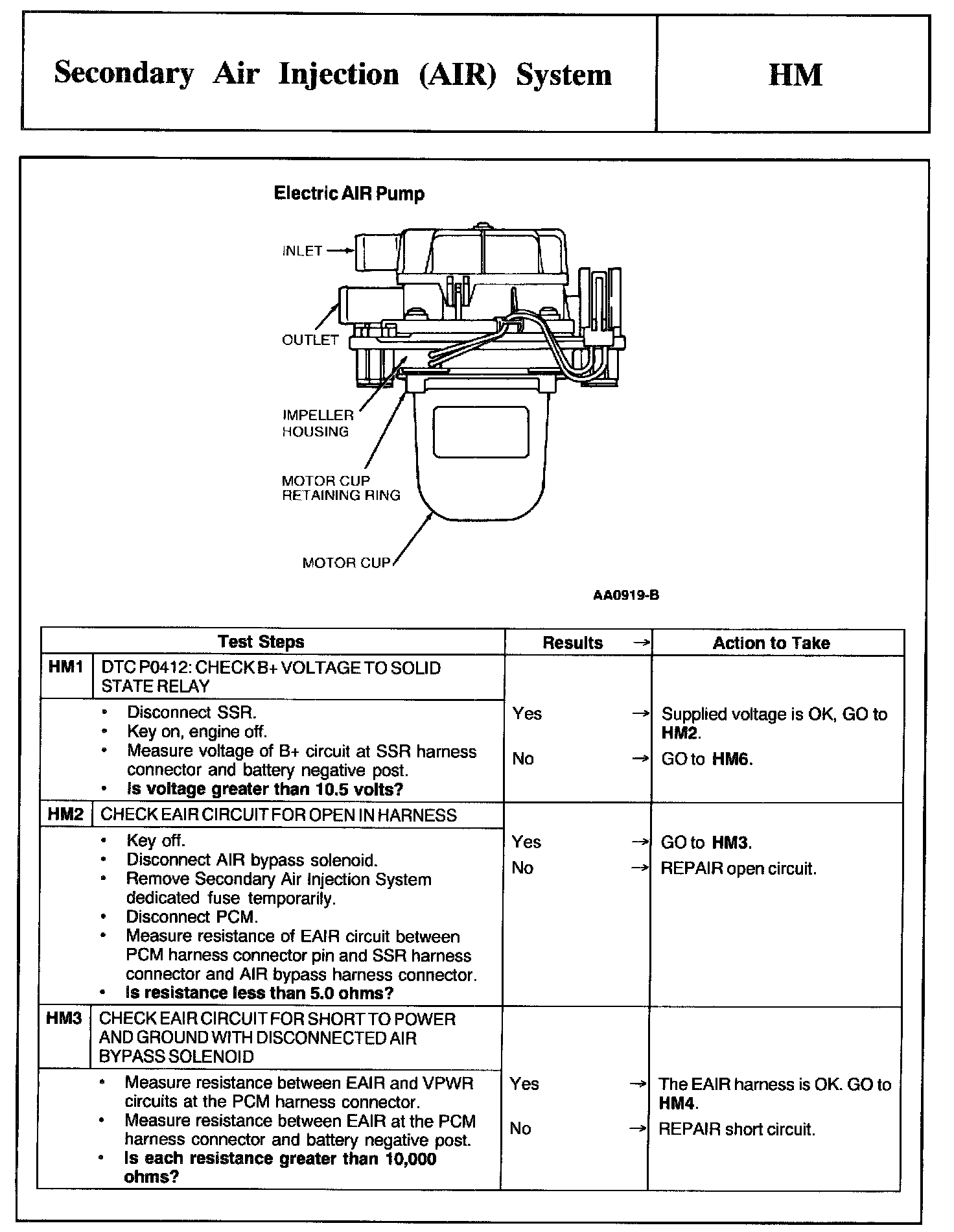

Schematic, Test HM1 - HM3:

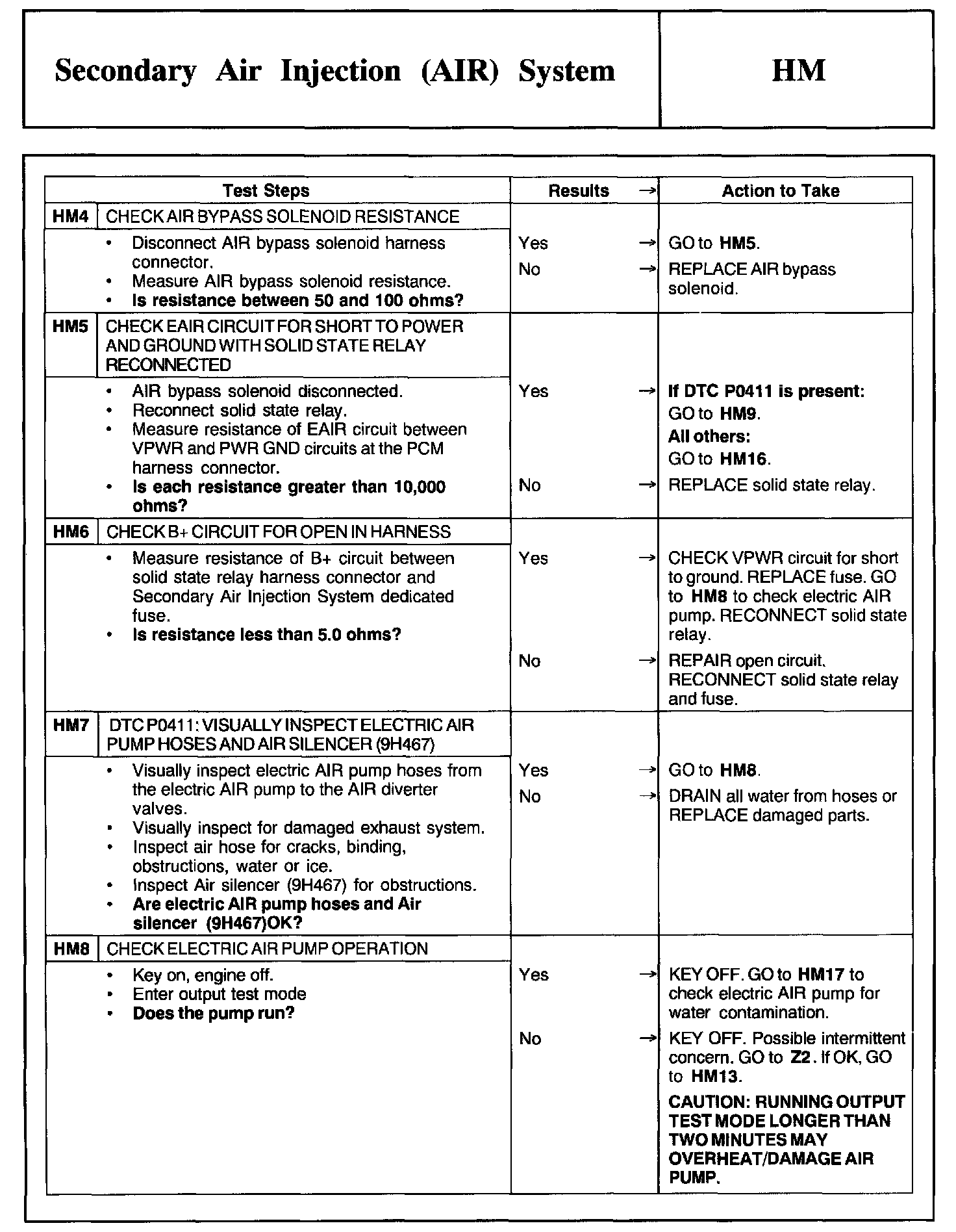

HM4 - HM8:

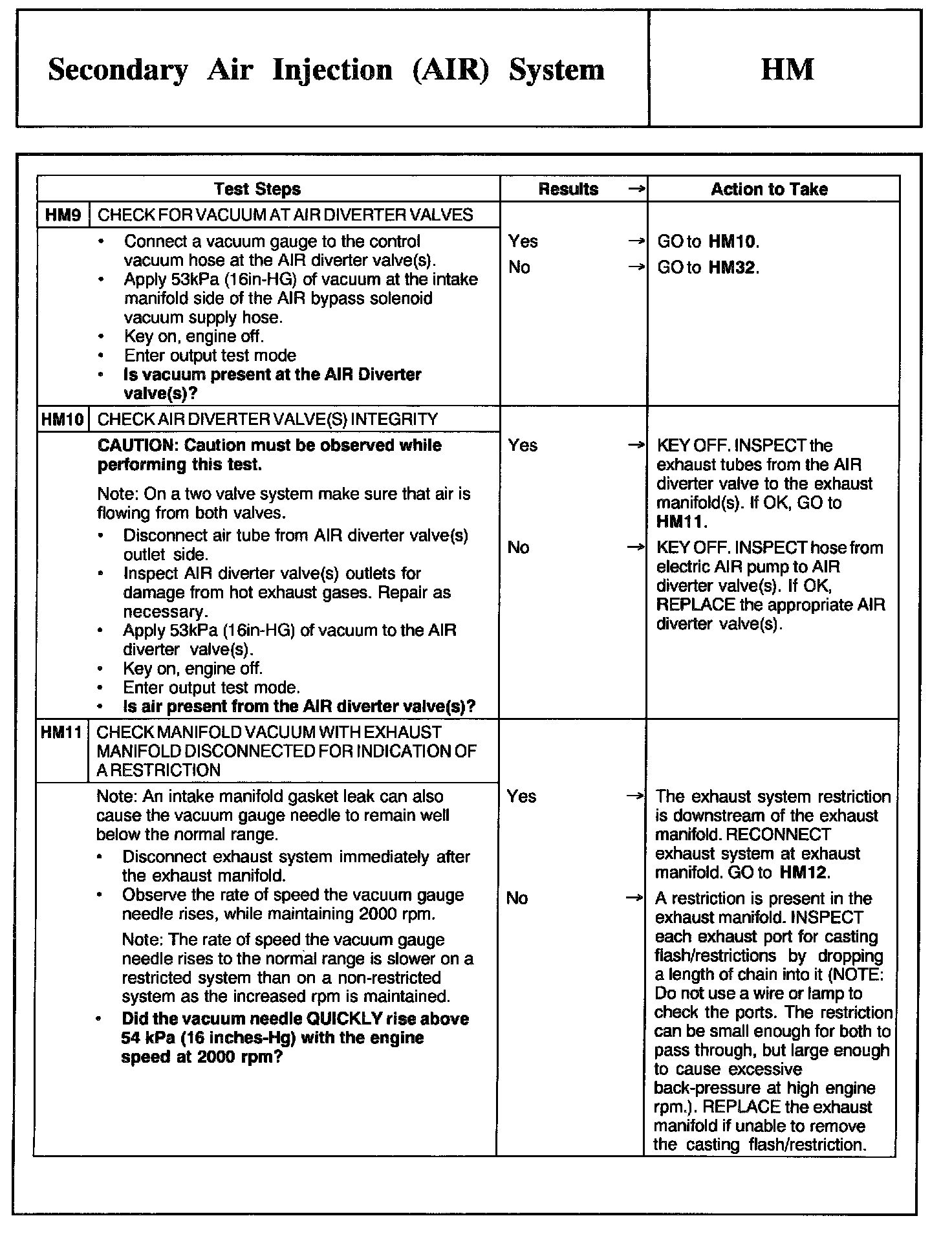

HM9 - HM11:

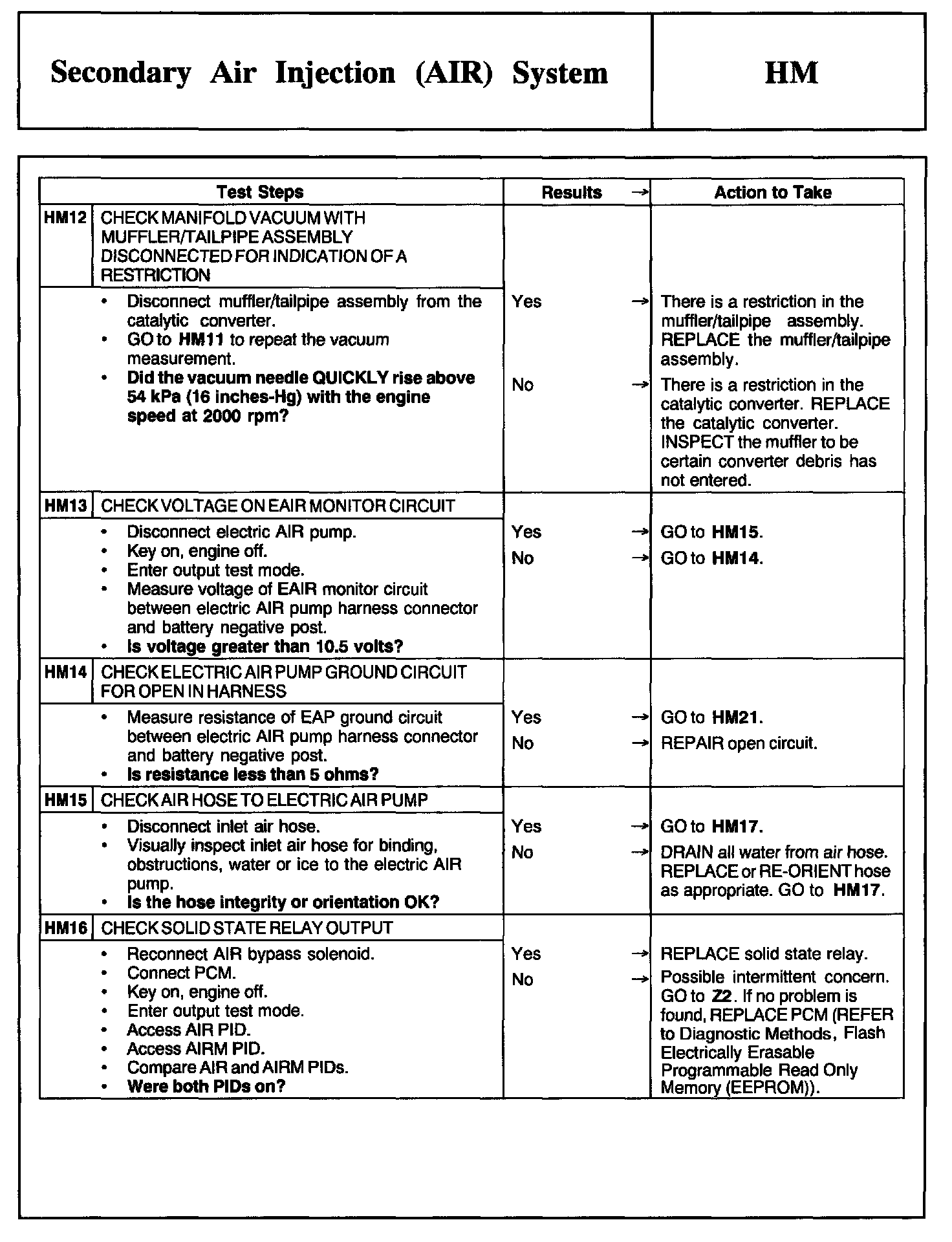

HM12 - HM16:

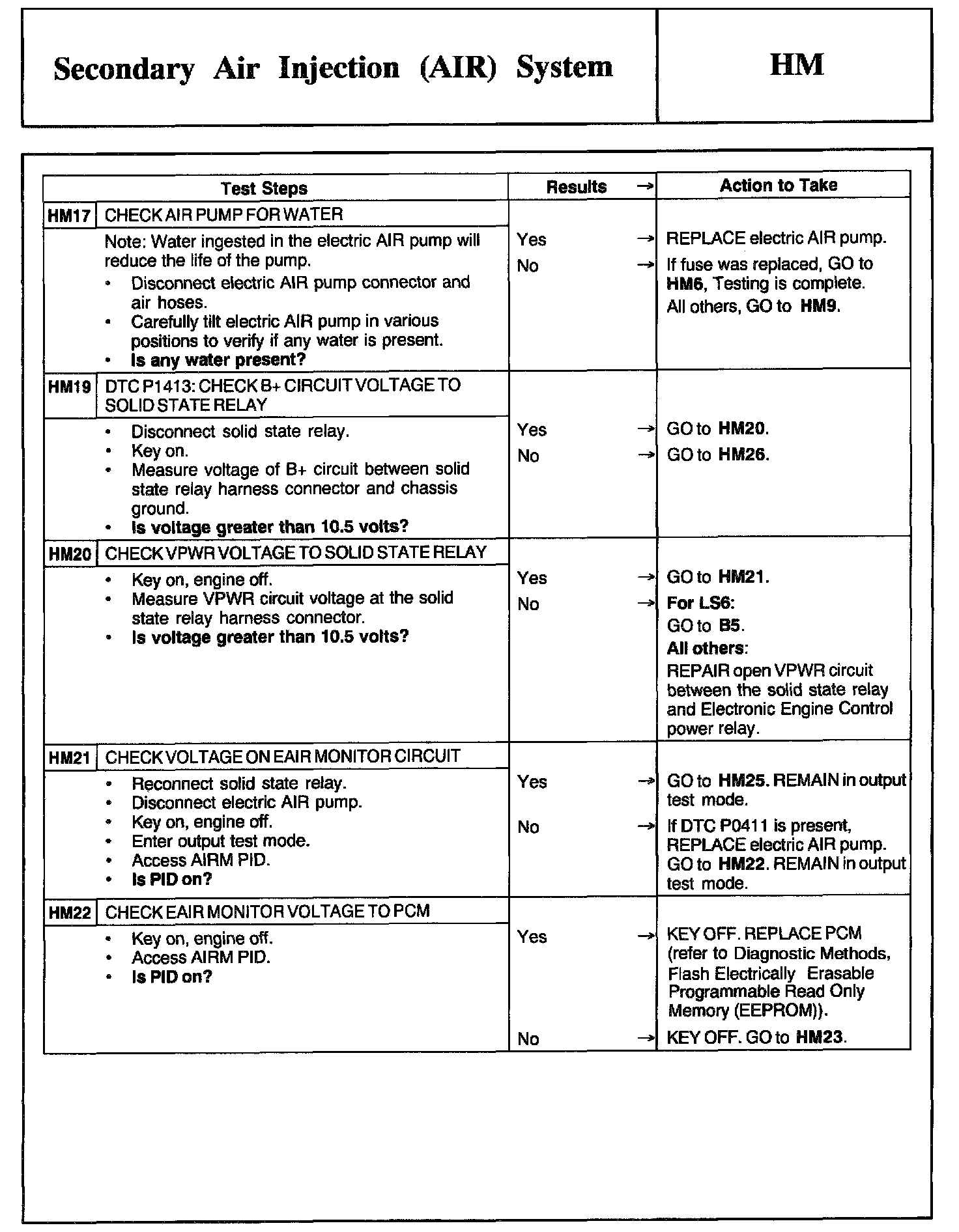

HM17 - HM22:

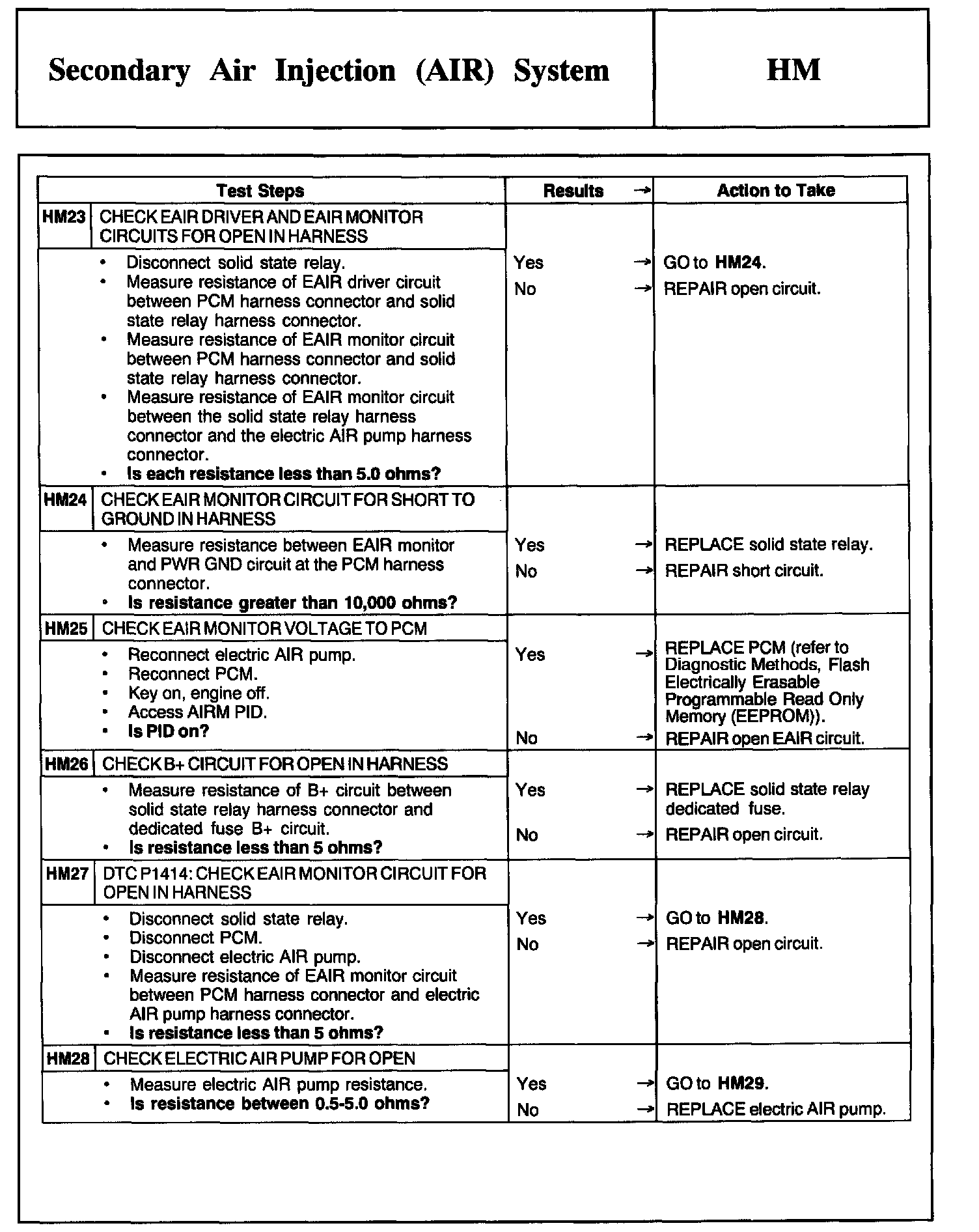

HM23 - HM28:

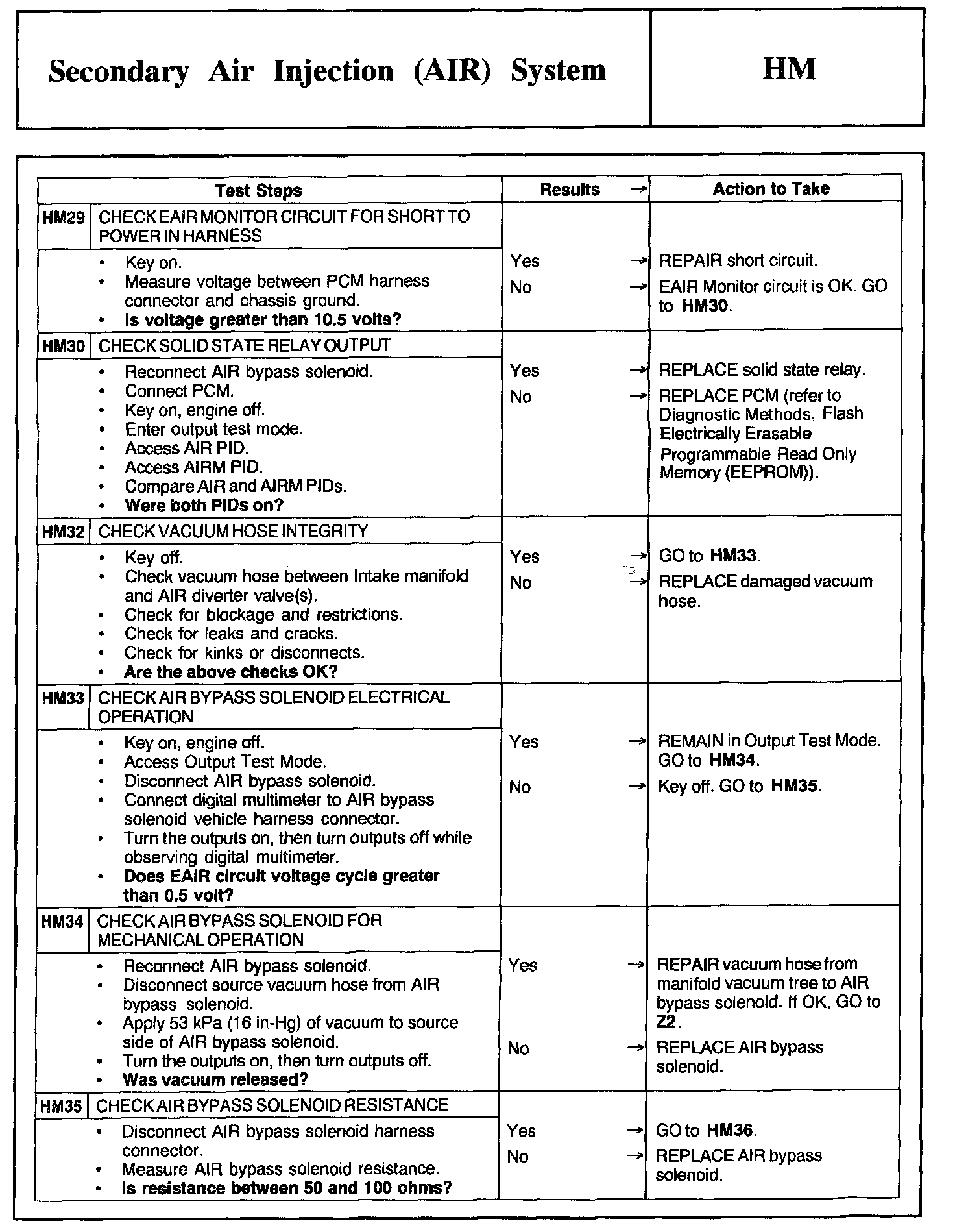

HM29 - HM35:

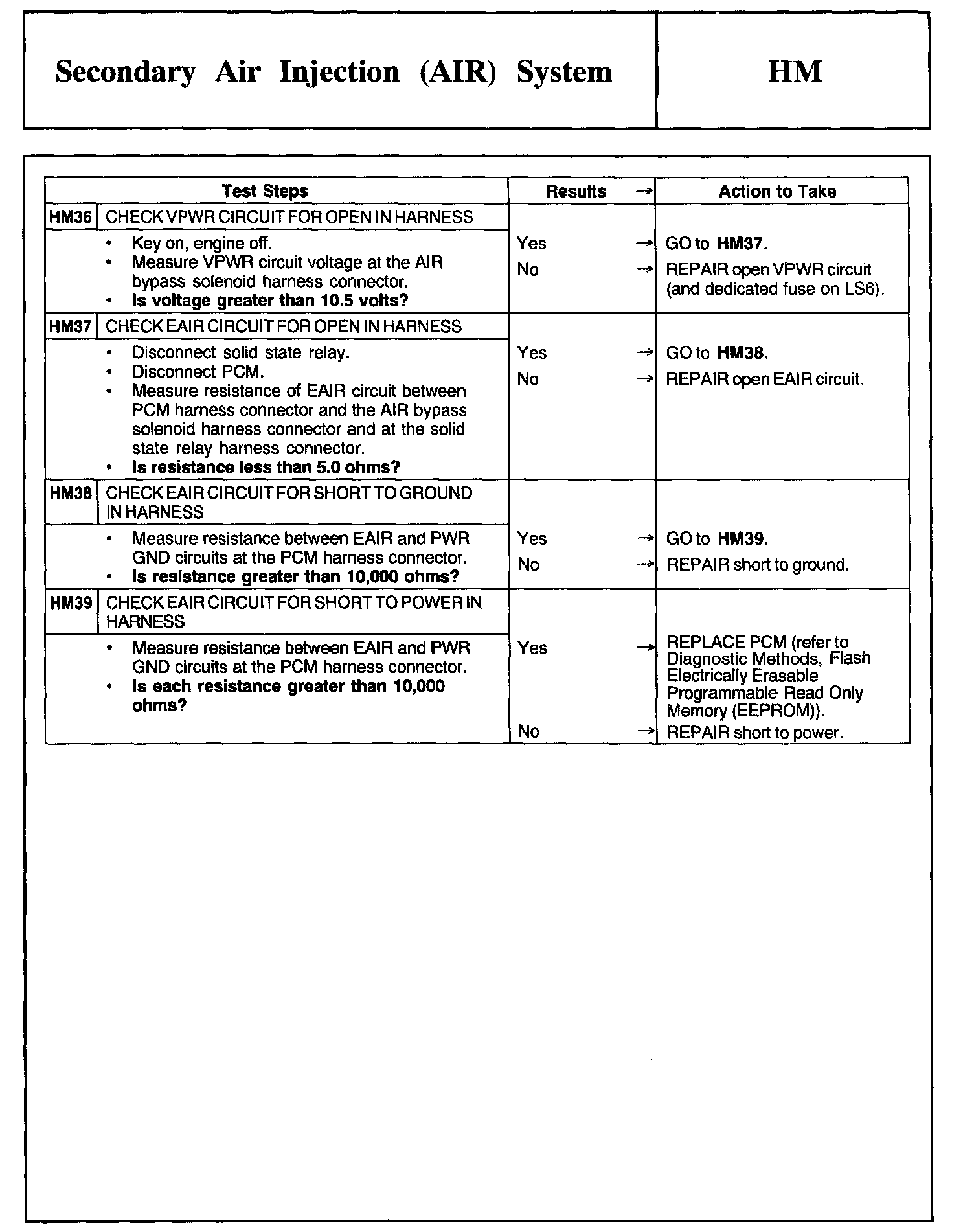

HM36 - HM39:
