Tests DT: Power Steering Pressure (PSP) Sensor

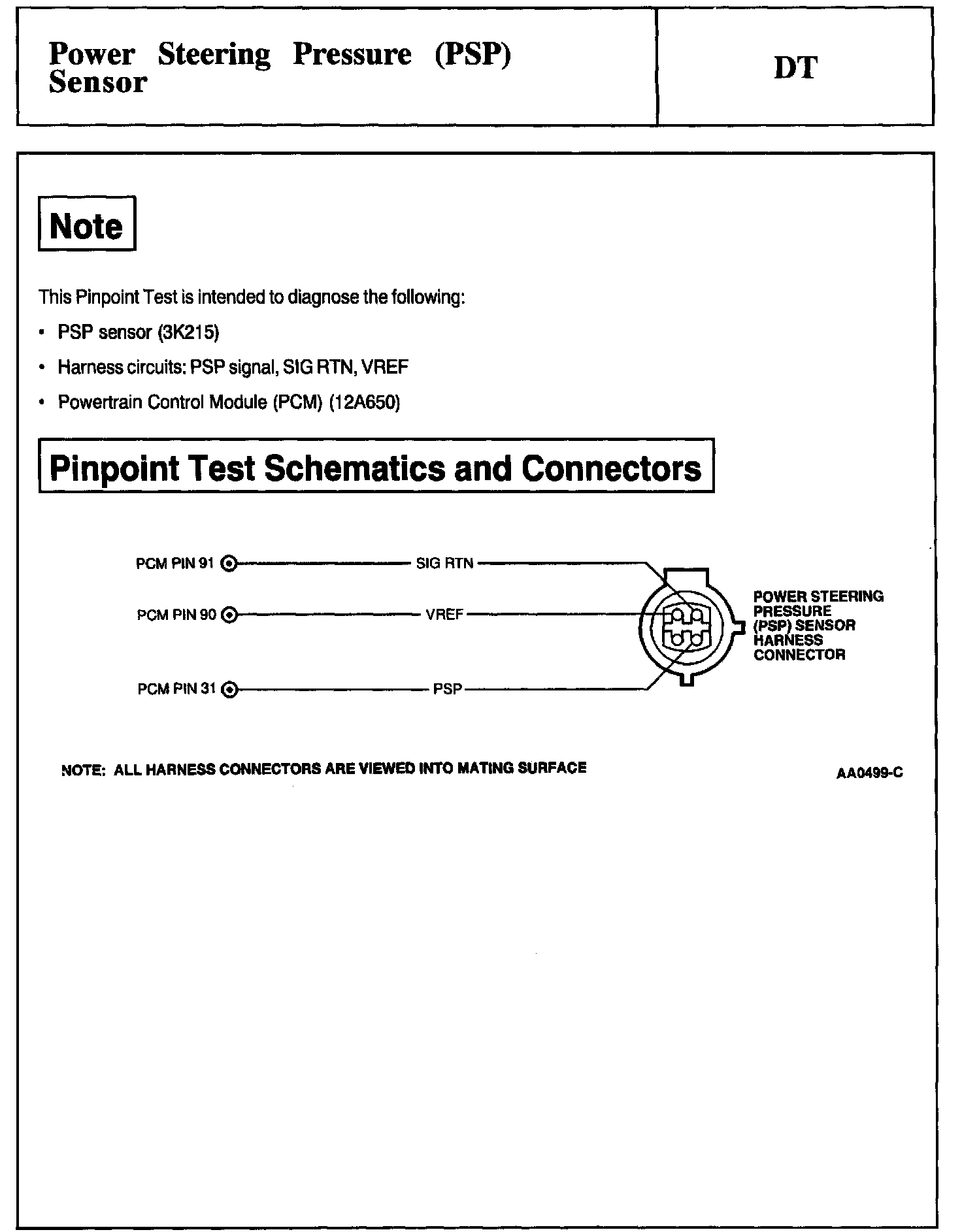

Note, Schematics and Connectors:

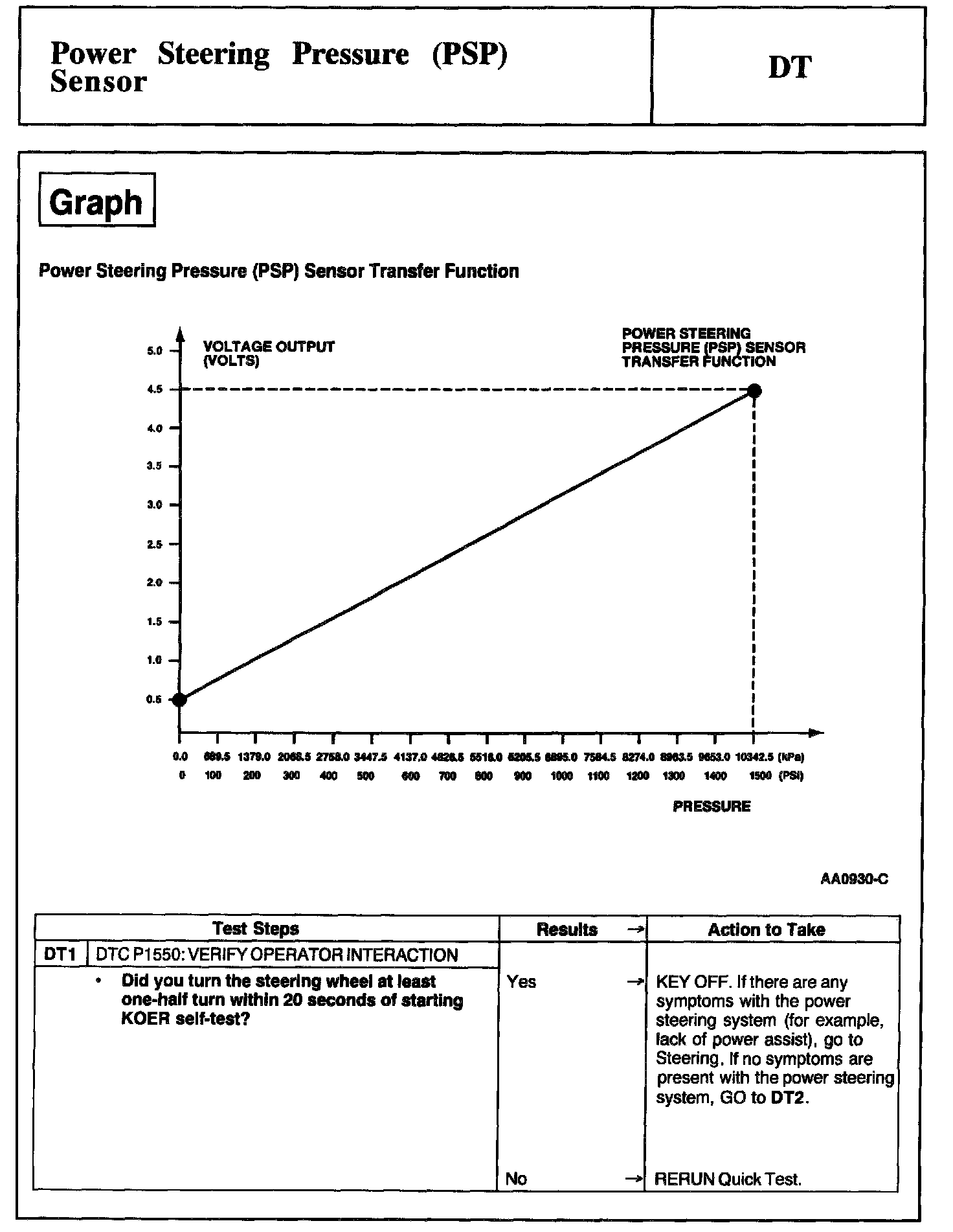

Graph, Test DT1:

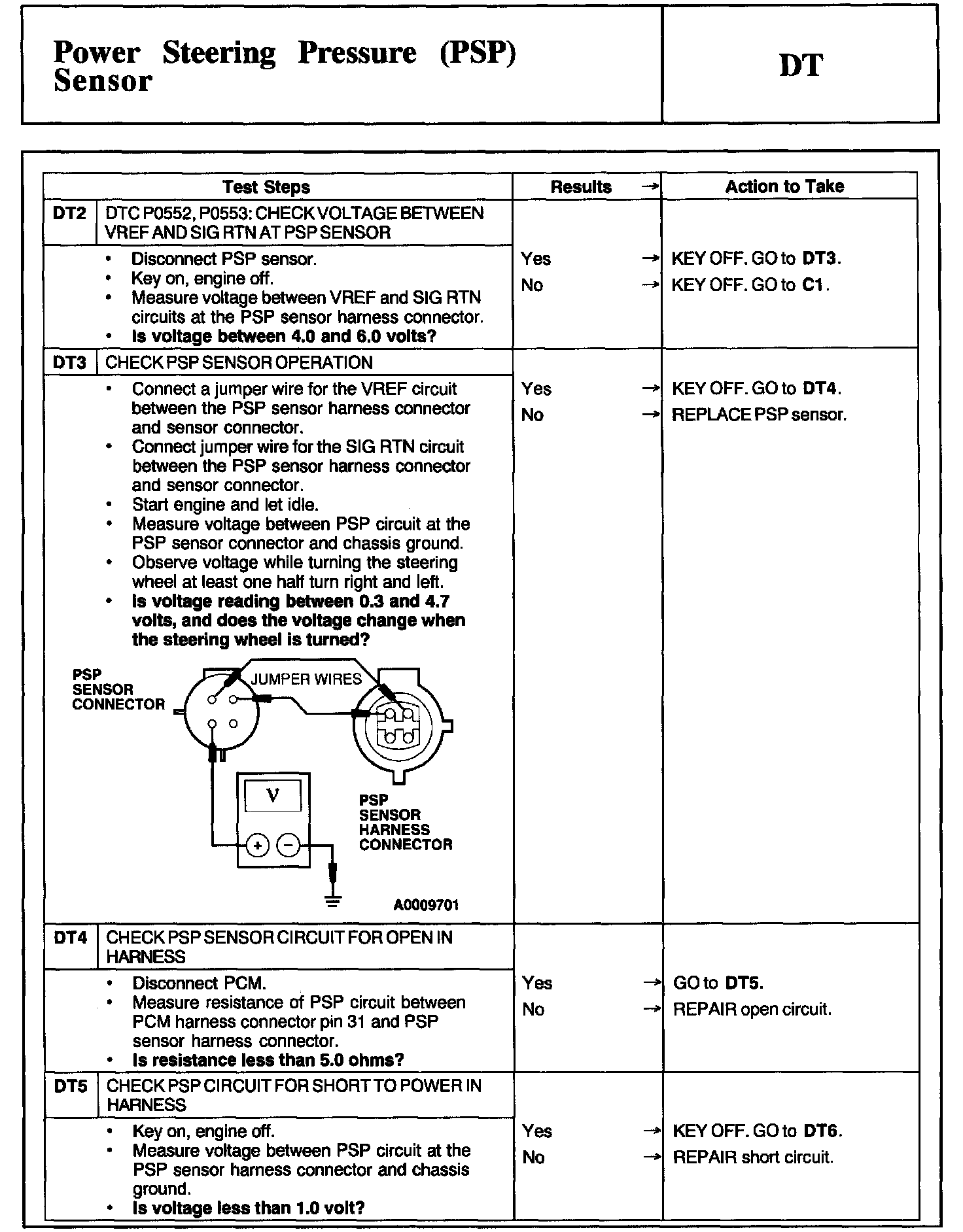

DT2 - DT5:

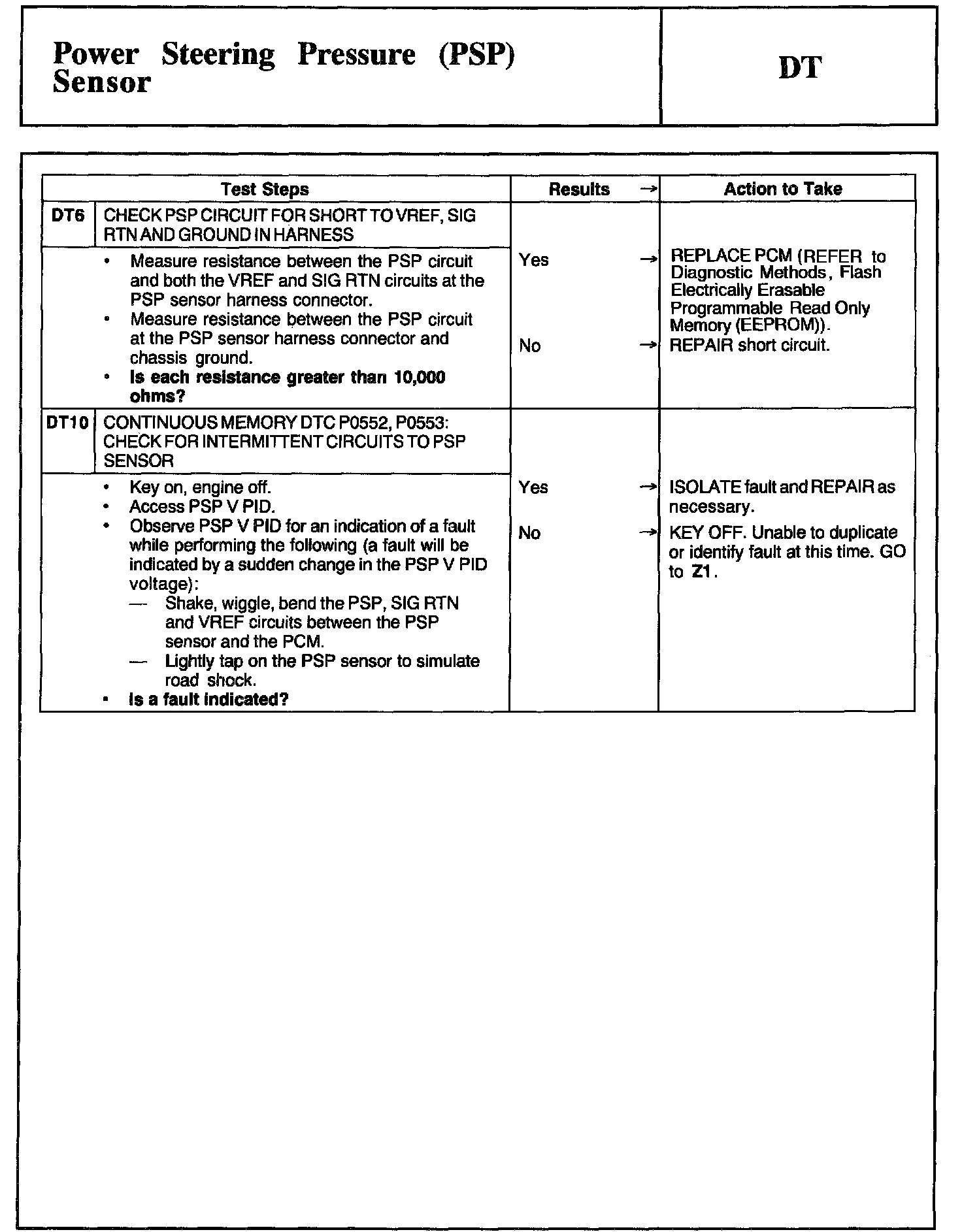

DT6 - DT10:
