Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Test H: No Module/Network Communication

Test H: No Module/Network Communication

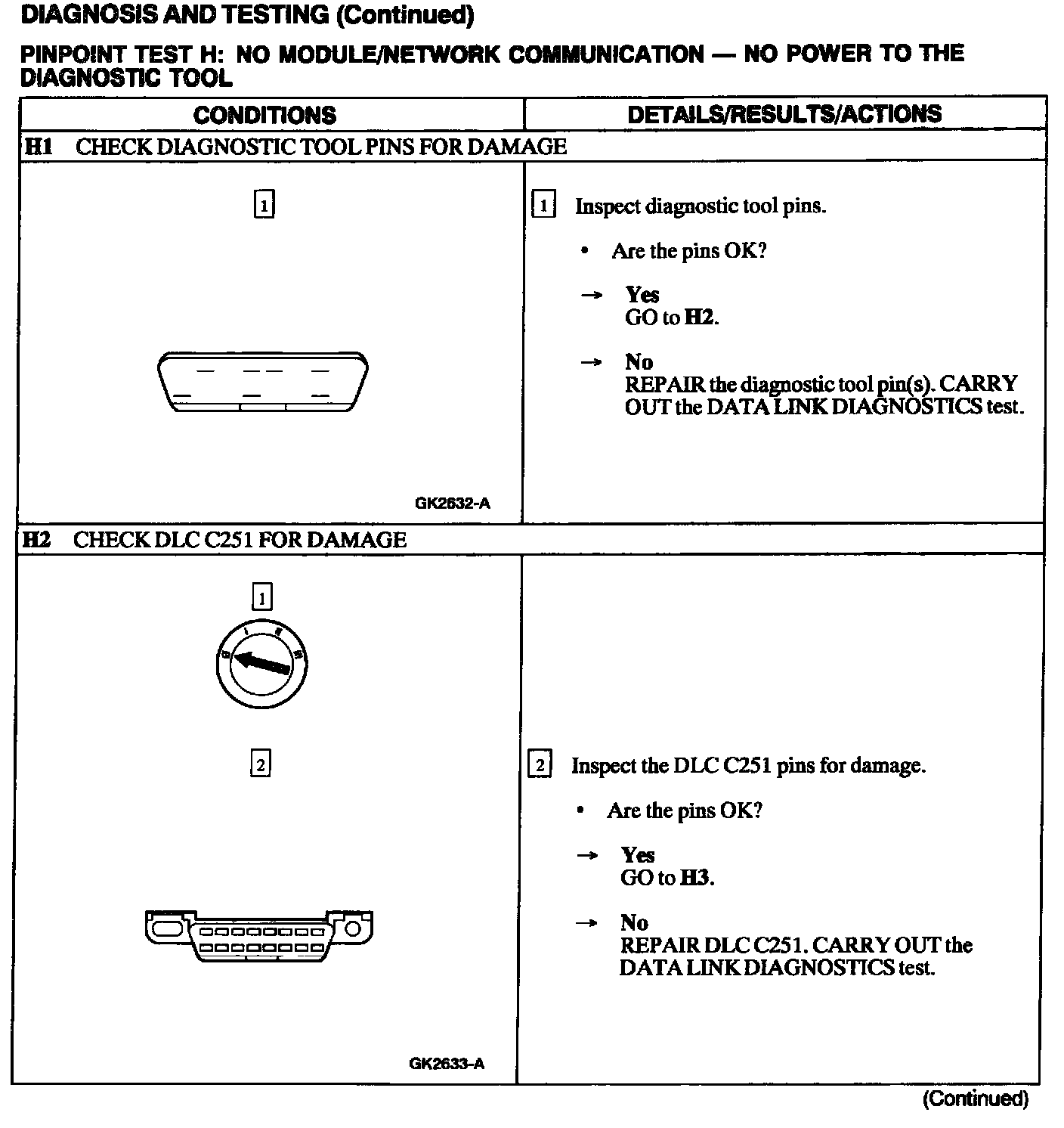

H1 - H2:

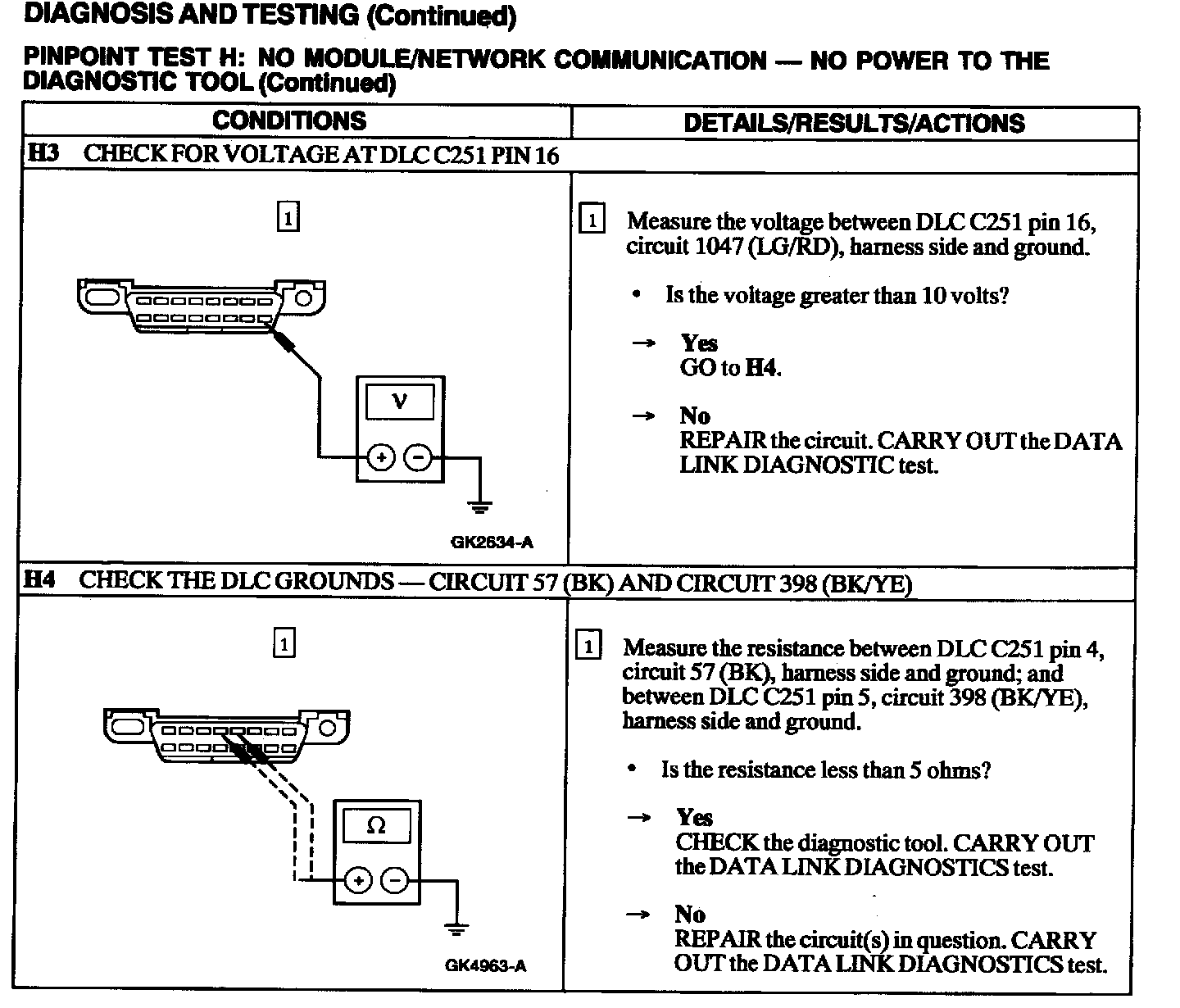

H3 - H4:
