Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Diagrams >> Electrical Diagrams

Electrical Diagrams

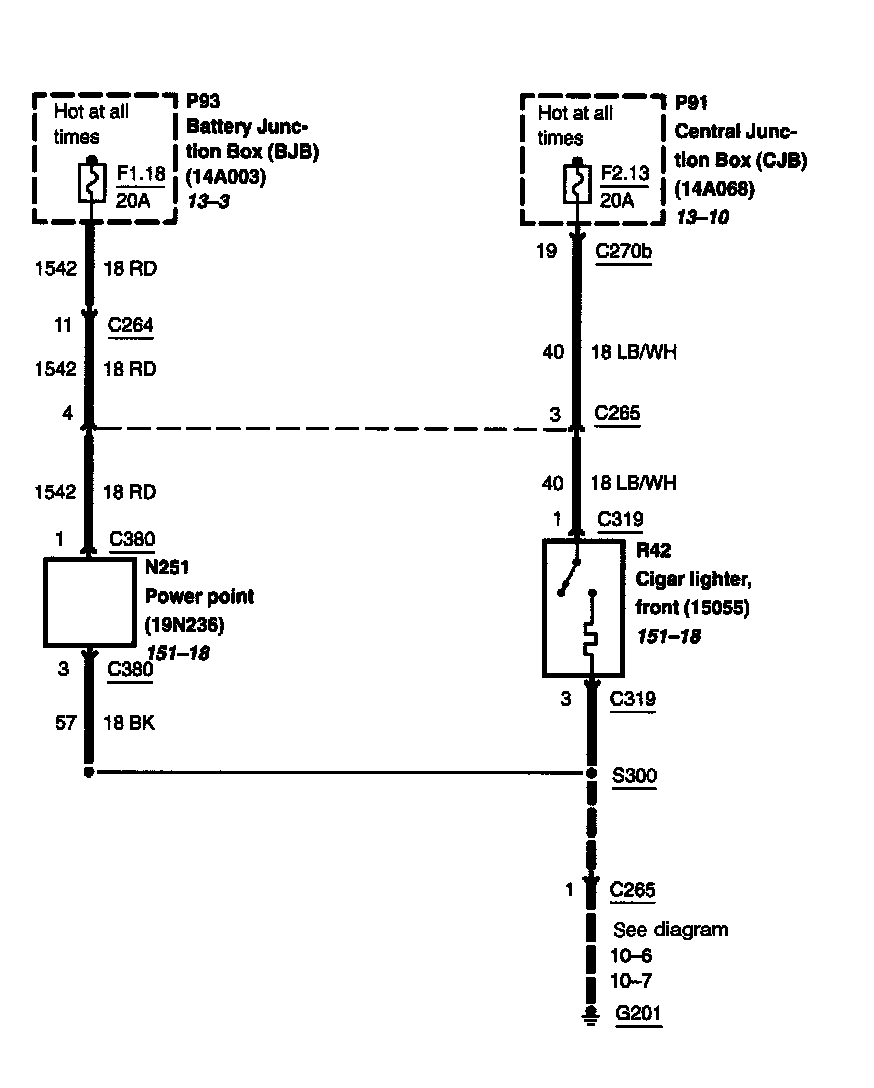

Diagram 44-1:

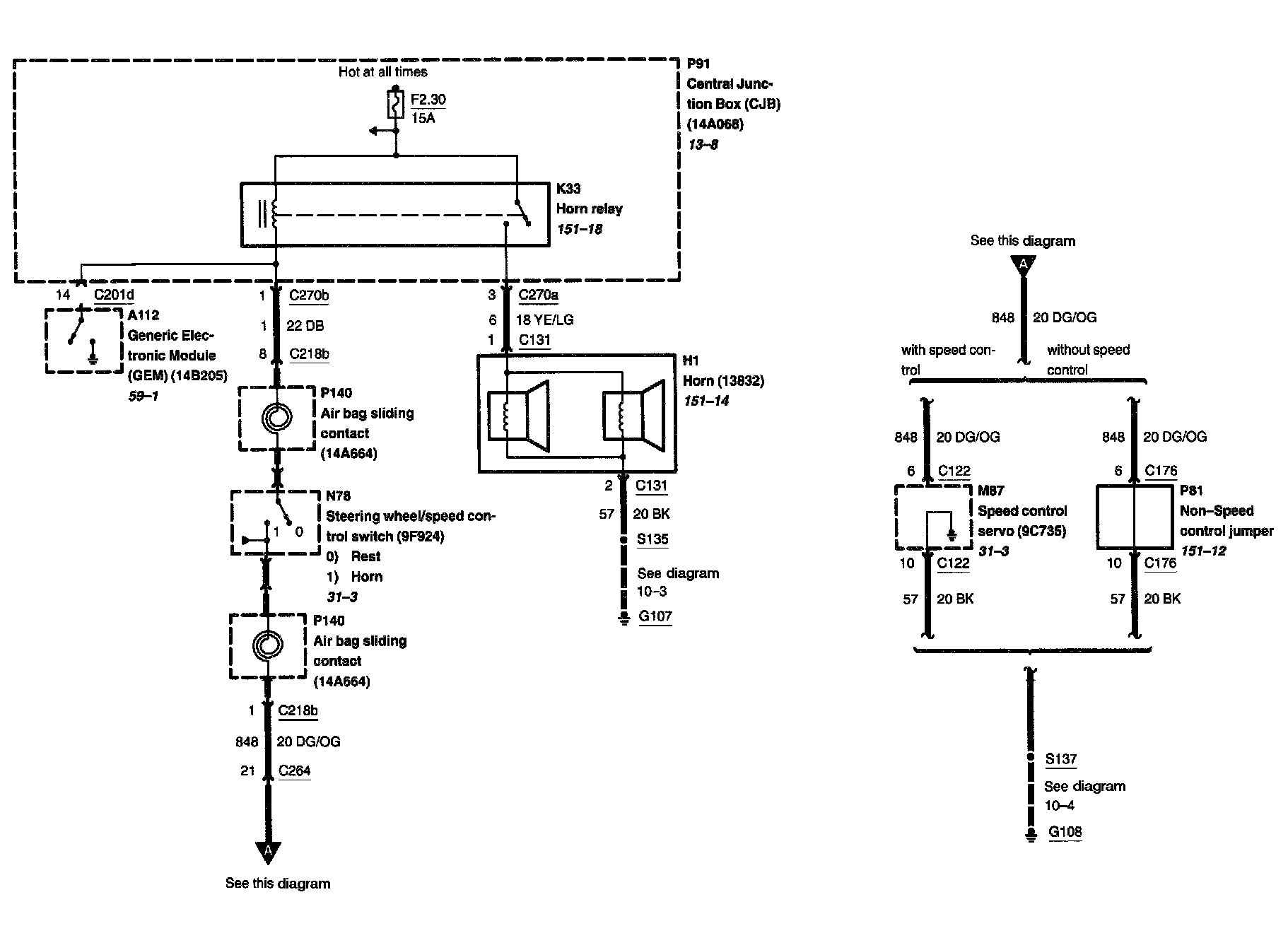

Diagram 44-2:

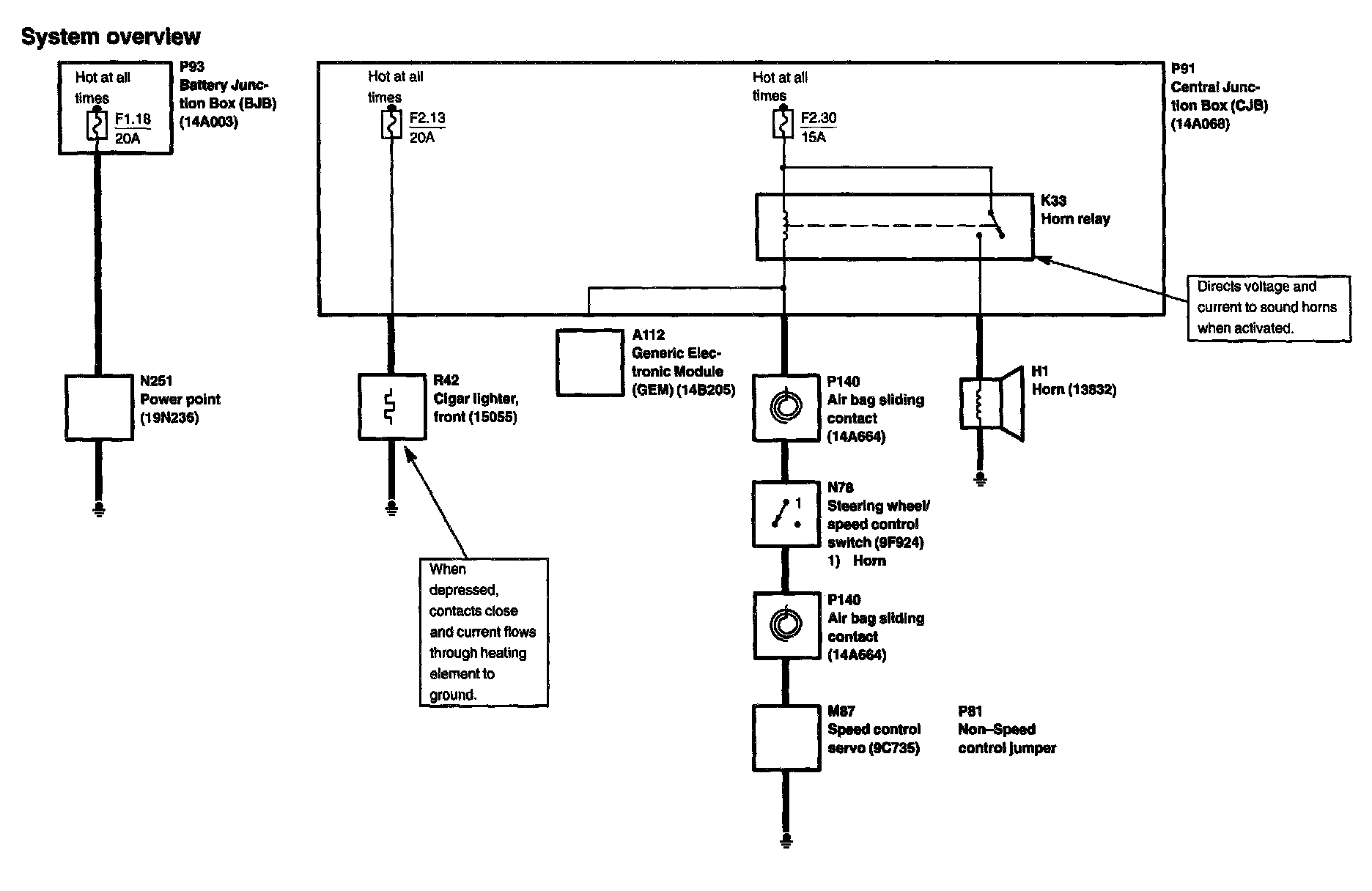

Diagram 44-3:
