Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test I: Illuminated Entry Is Inoperative When Using The Remote Transmitter

Test I: Illuminated Entry Is Inoperative When Using The Remote Transmitter

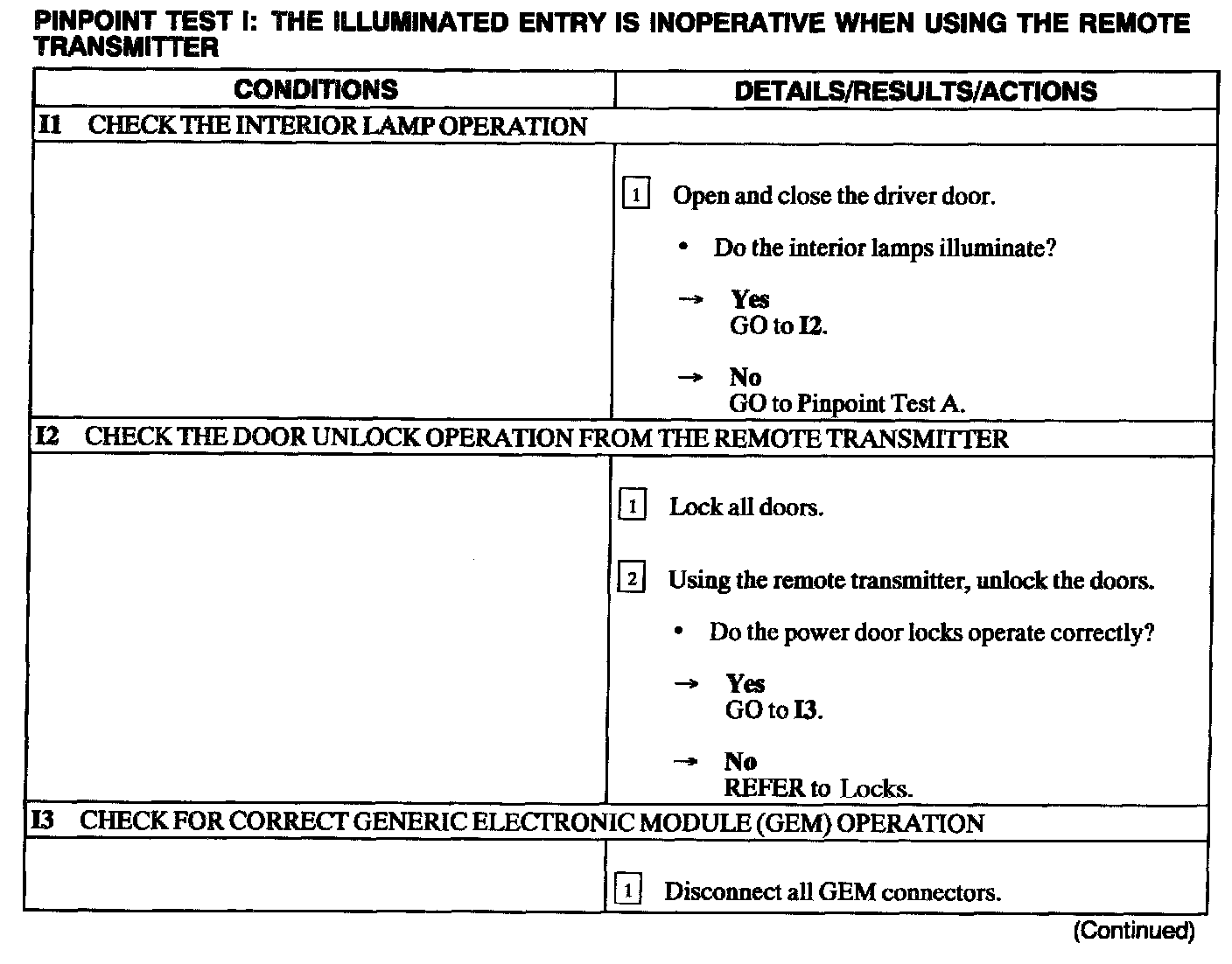

I1 - I3:

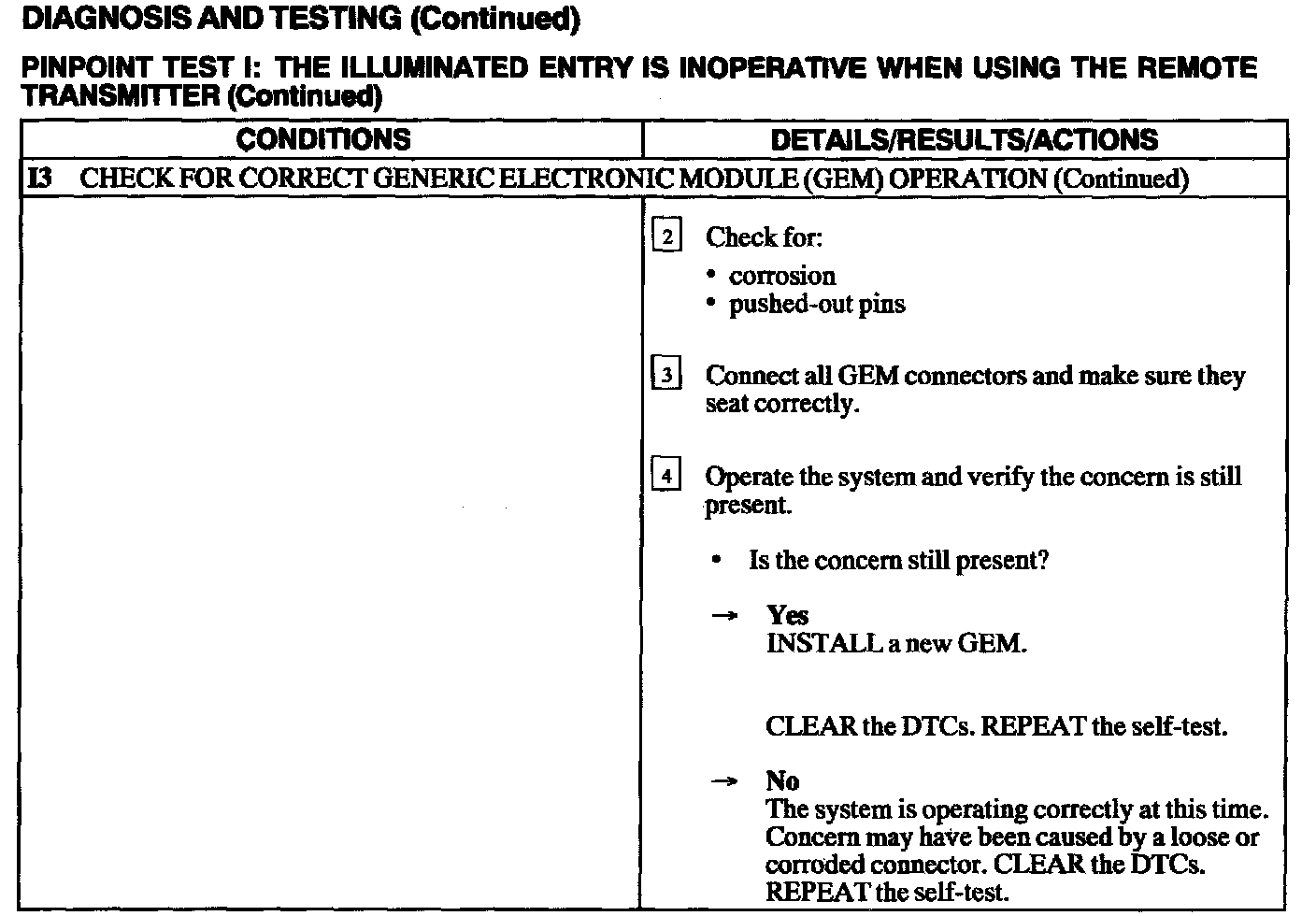

I3:
