Test H: Illuminated Entry Is Inoperative When Using The Keypad
Test H: Illuminated Entry Is Inoperative When Using The Keypad

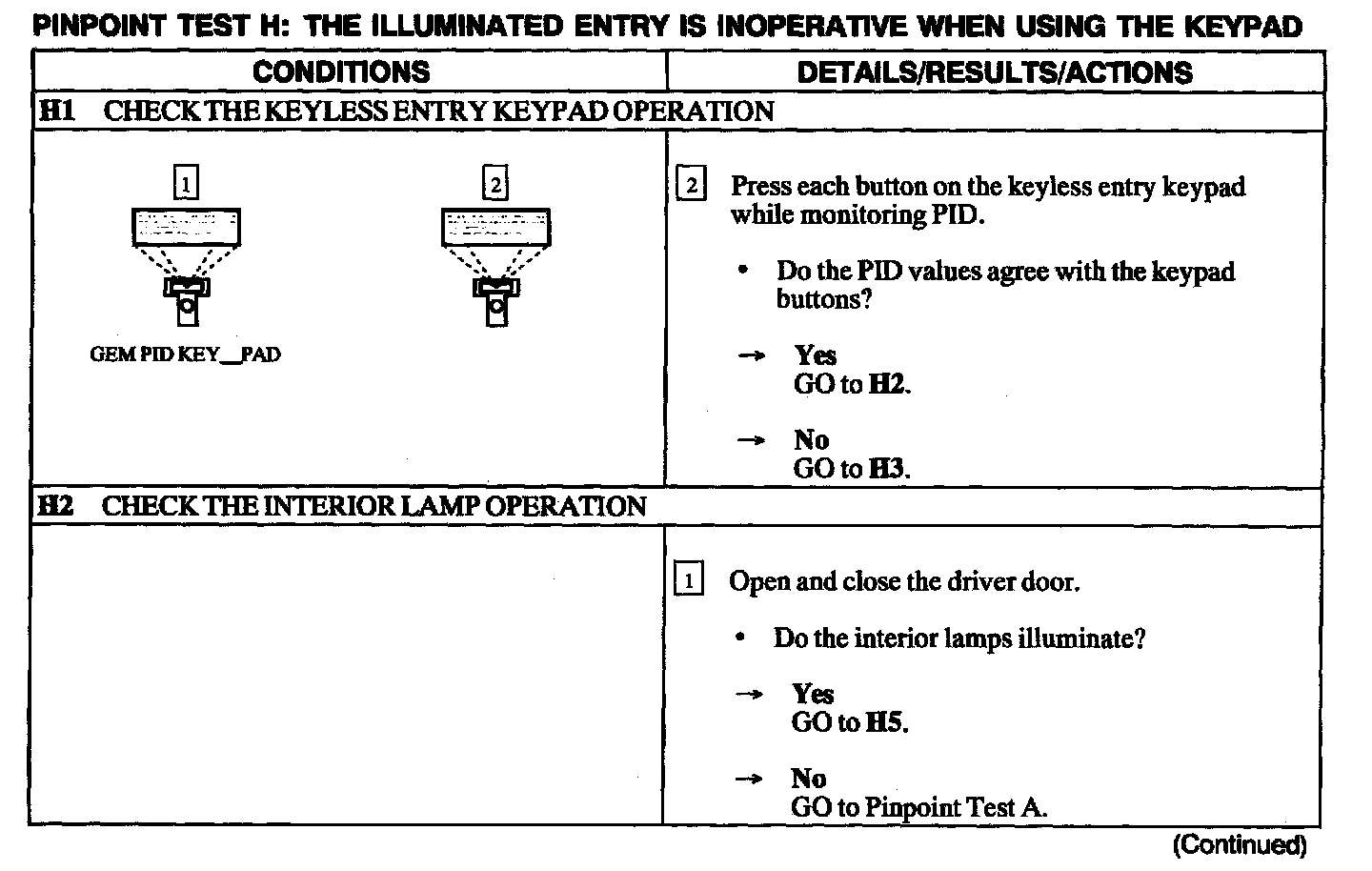

H1 - H2:

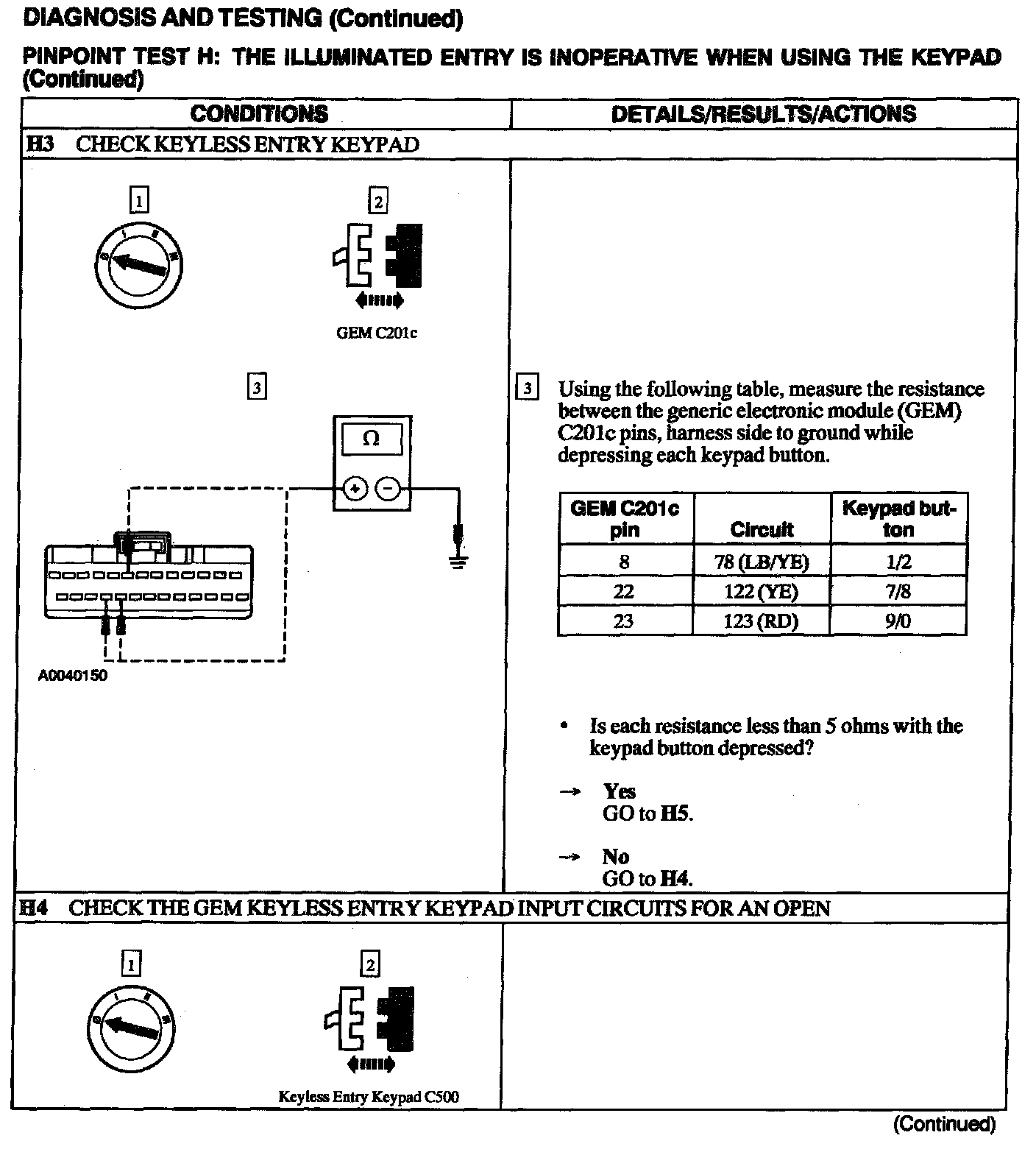

H3 - H4:

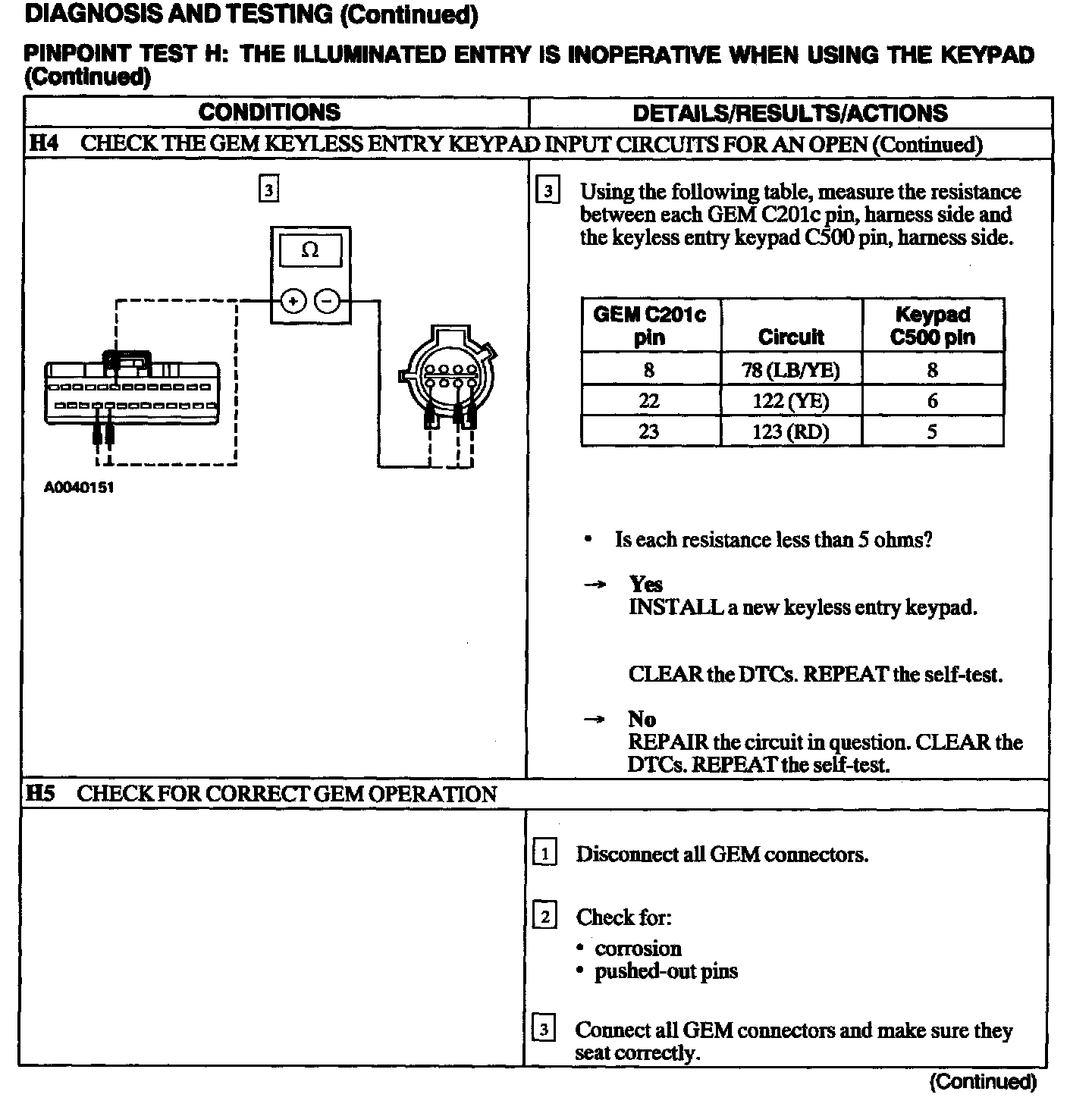

H4 - H5:

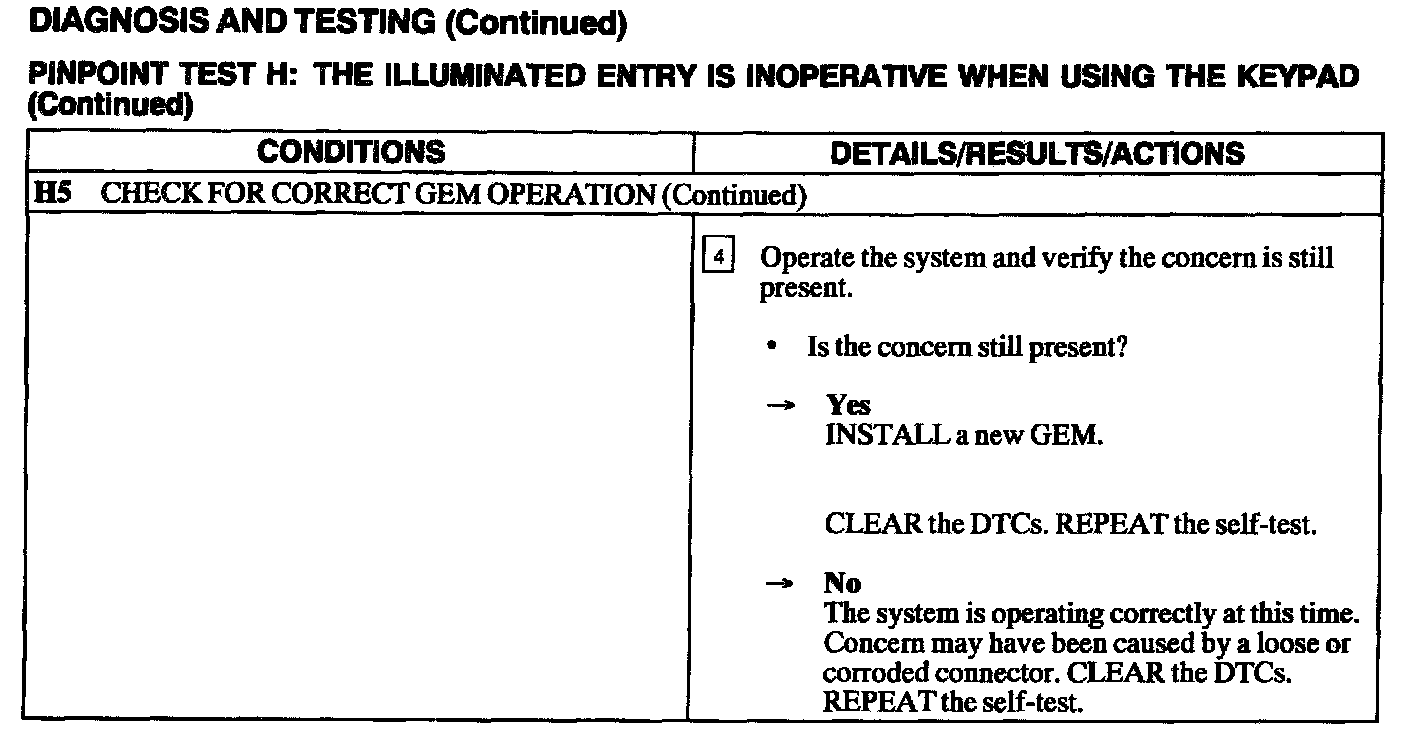

H5:
