Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Panel Illumination >> Test C: Integrated Control Panel Illumination Is Inoperative

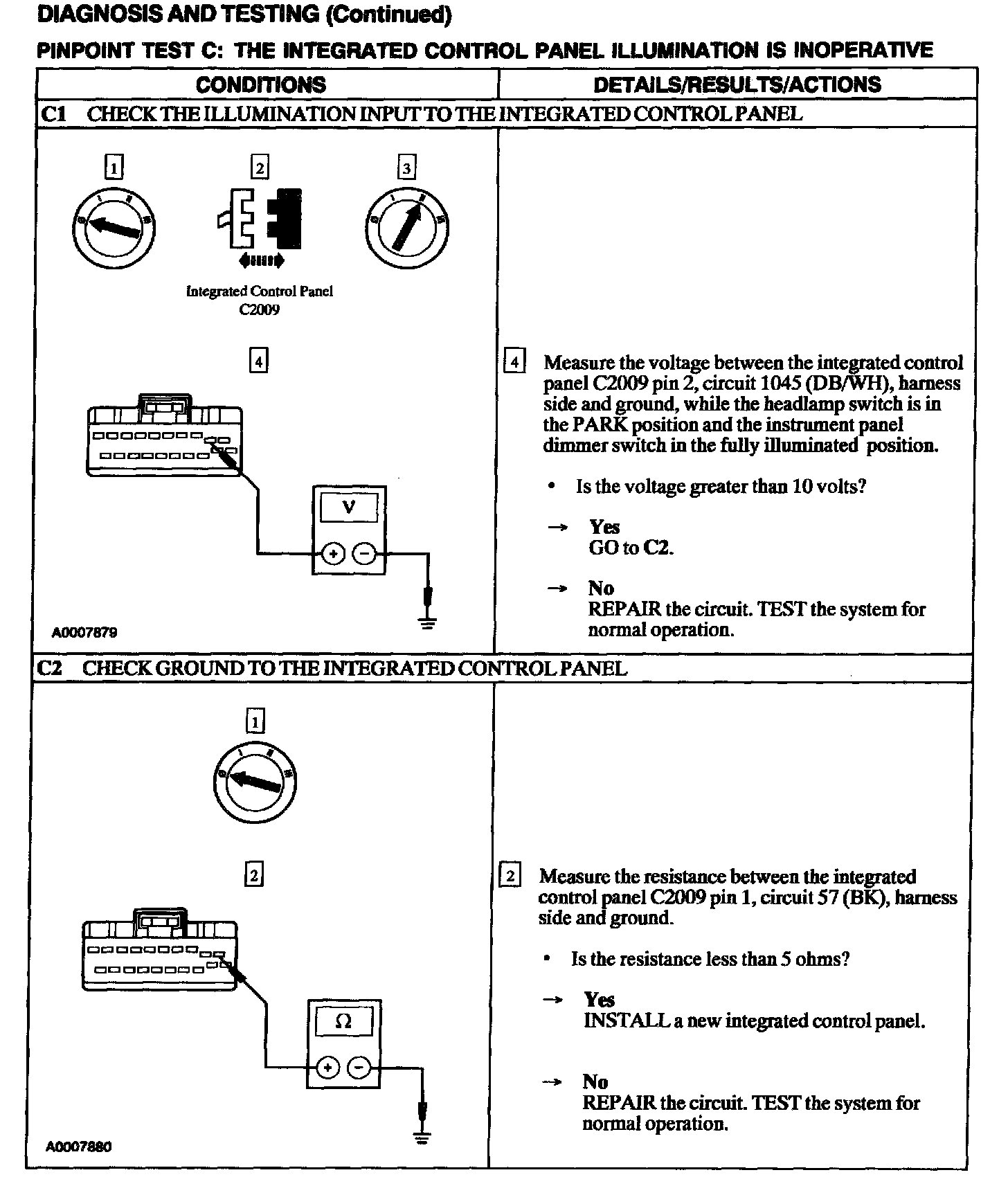

Test C: Integrated Control Panel Illumination Is Inoperative

C1 - C2:
