Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test T: ABS Indicator Is Inoperative

Test T: ABS Indicator Is Inoperative

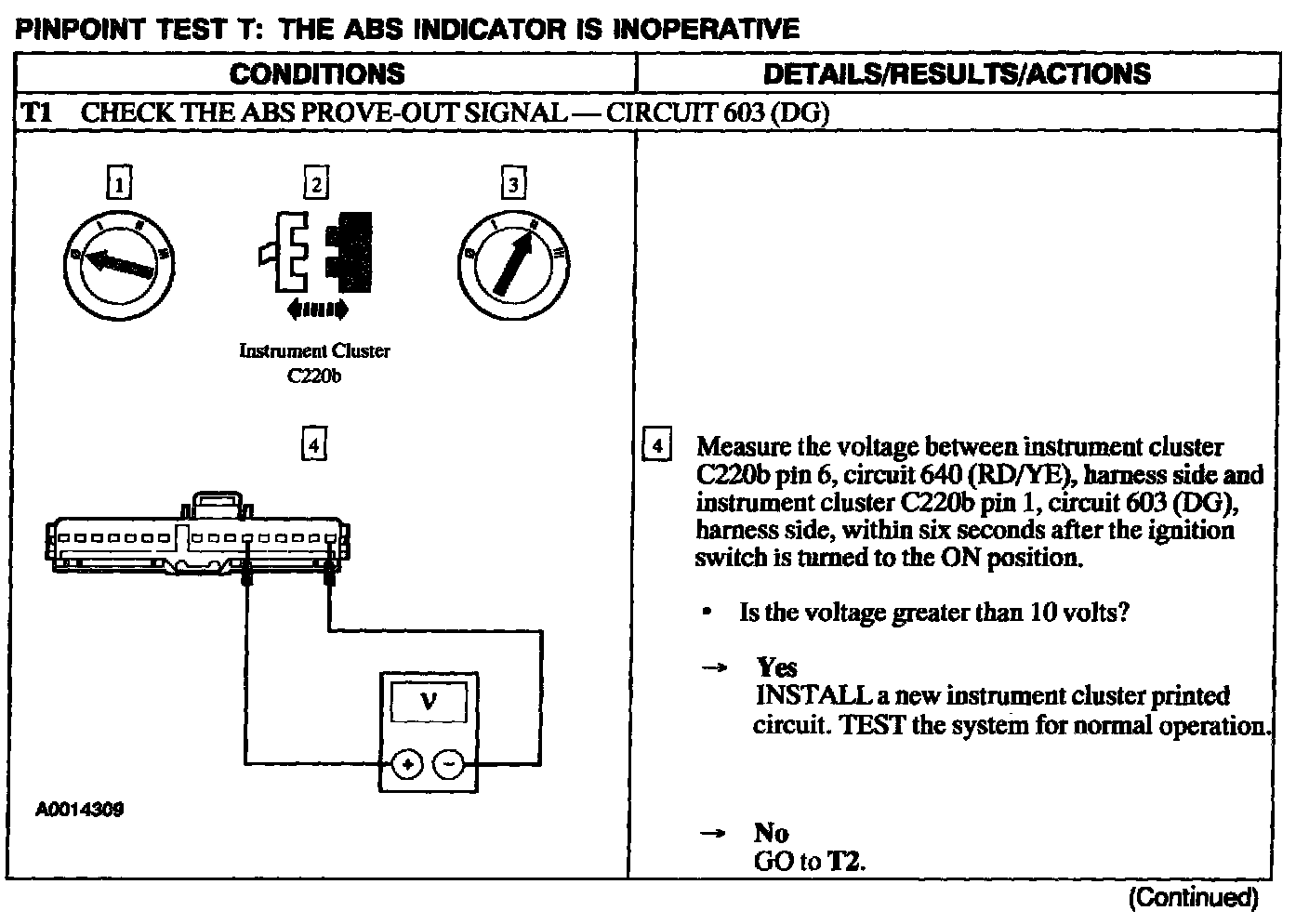

T1:

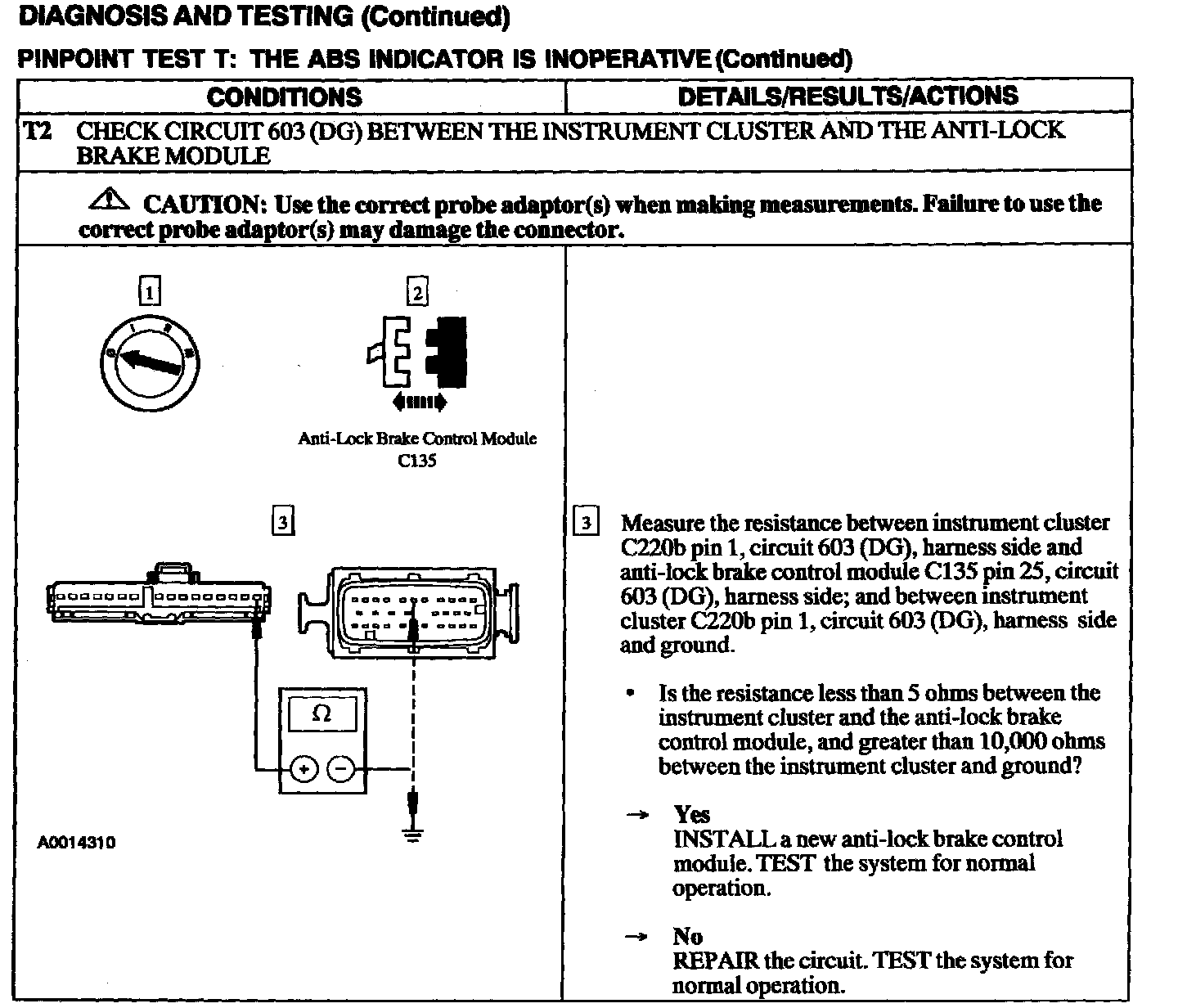

T2:
