Mercury
>>
2002
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster
>>
Test M: Safety Belt Warning Indicator Does Not Operate Correctly
Test M: Safety Belt Warning Indicator Does Not Operate Correctly
M1:

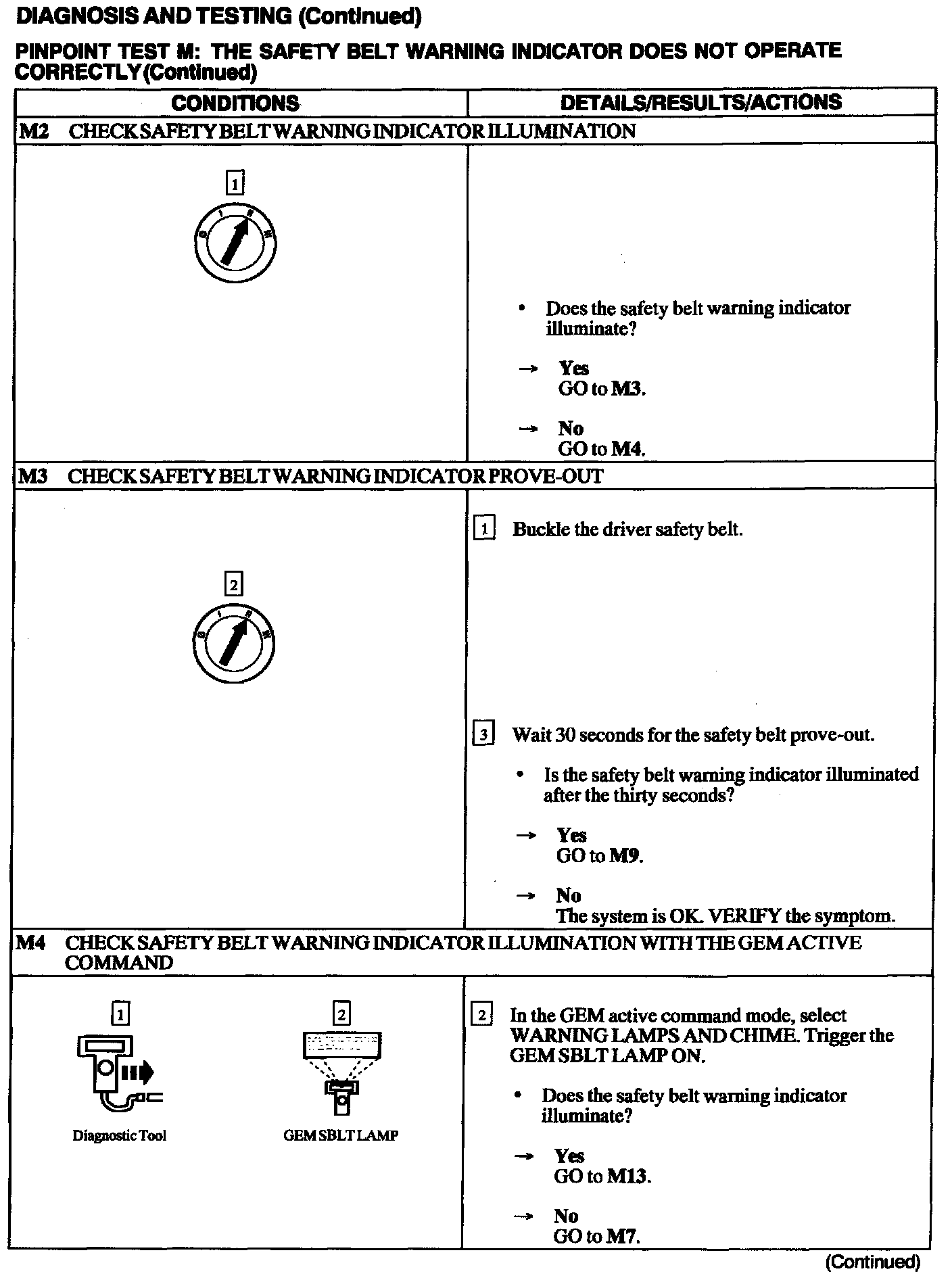

M2 - M4:

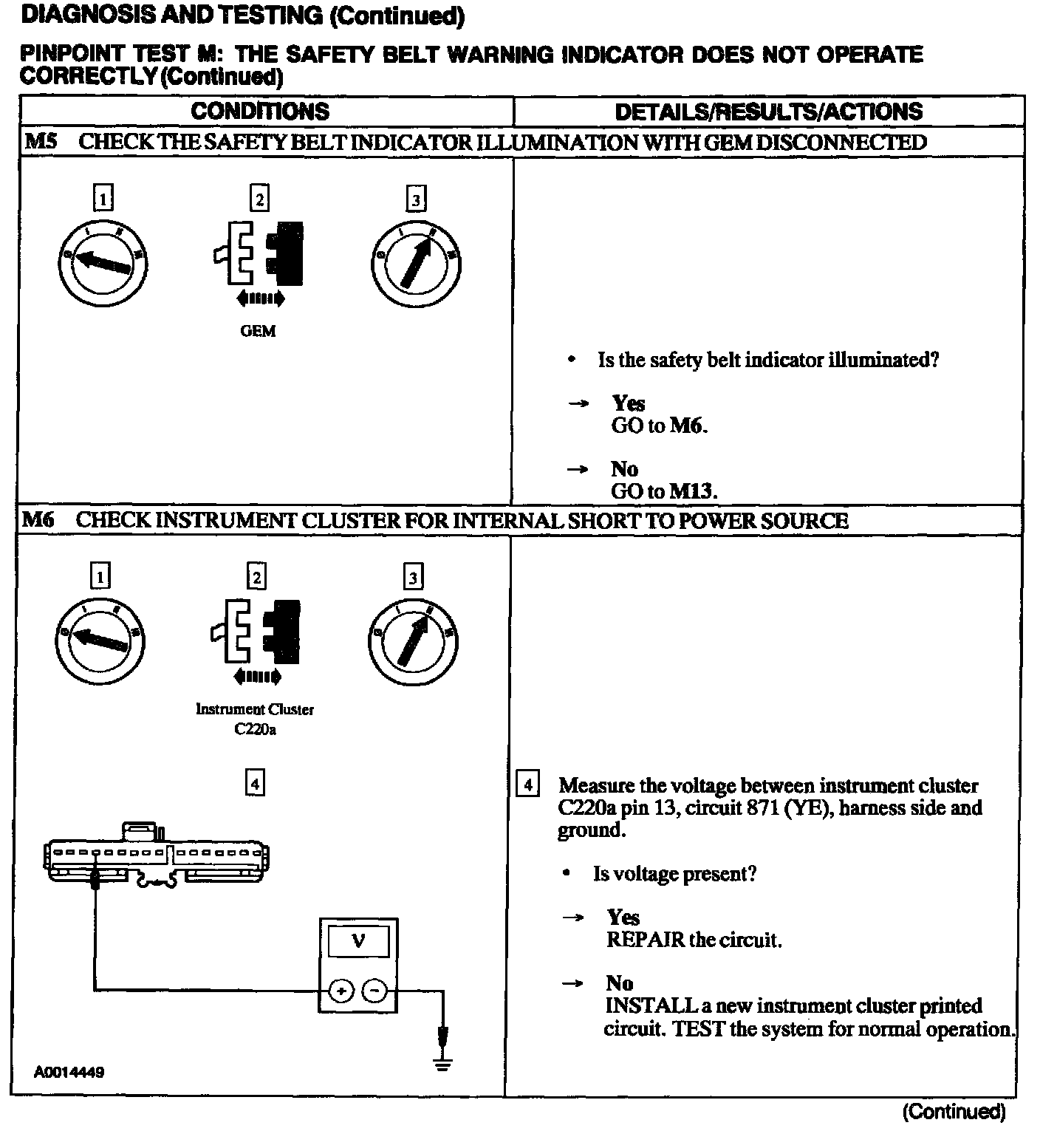

M5 - M6:

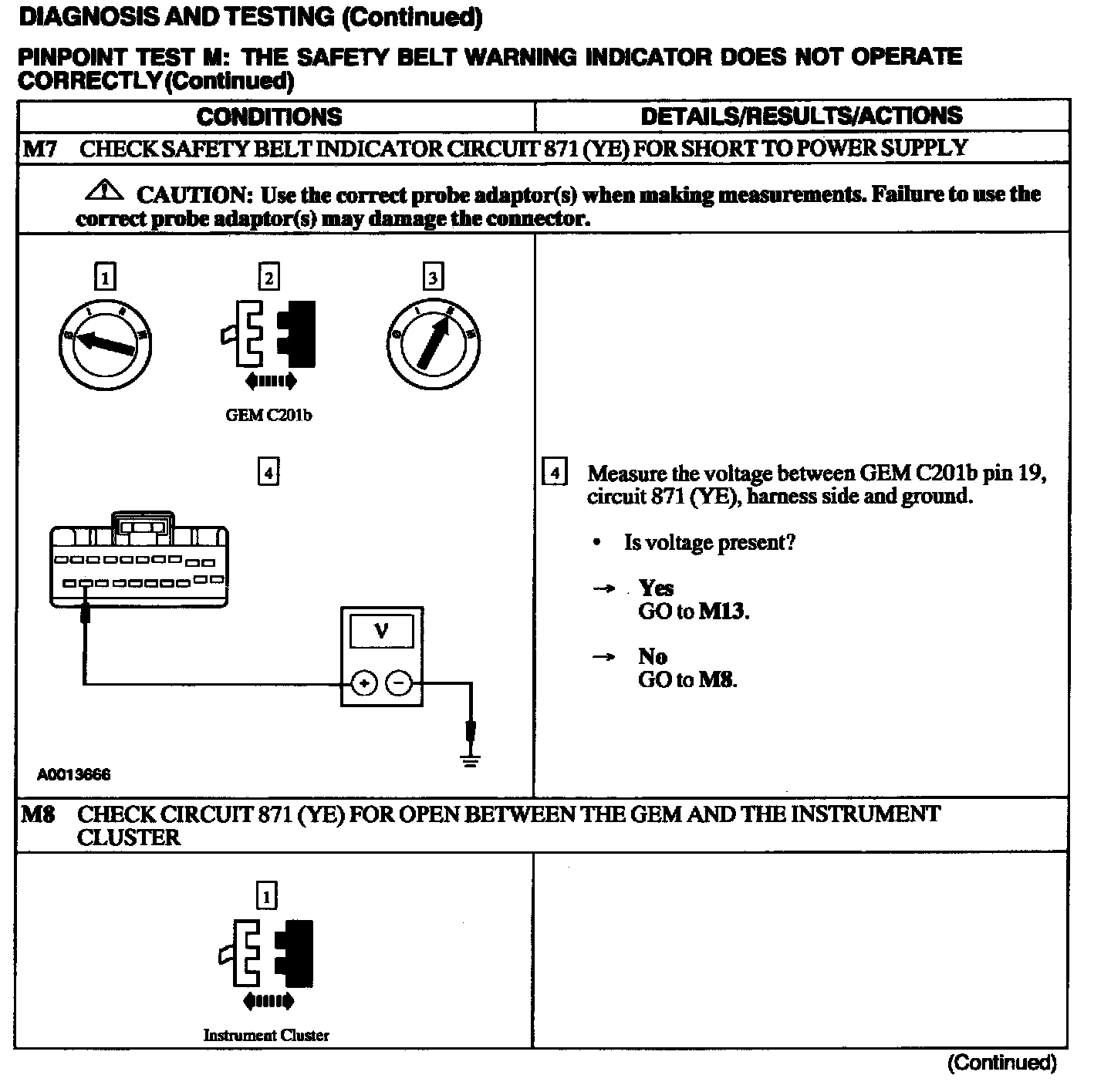

M7 - M8:

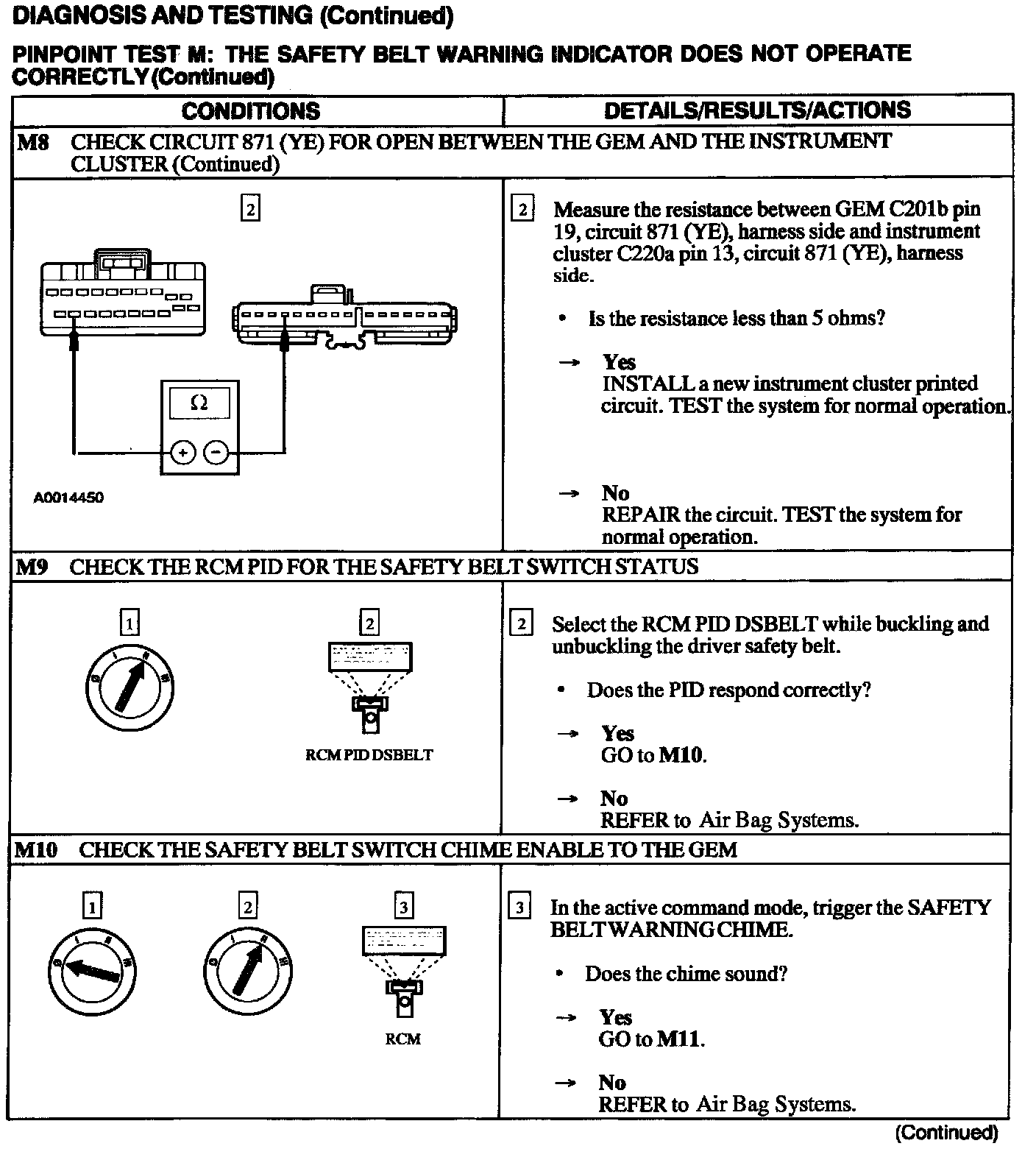

M8 - M10:

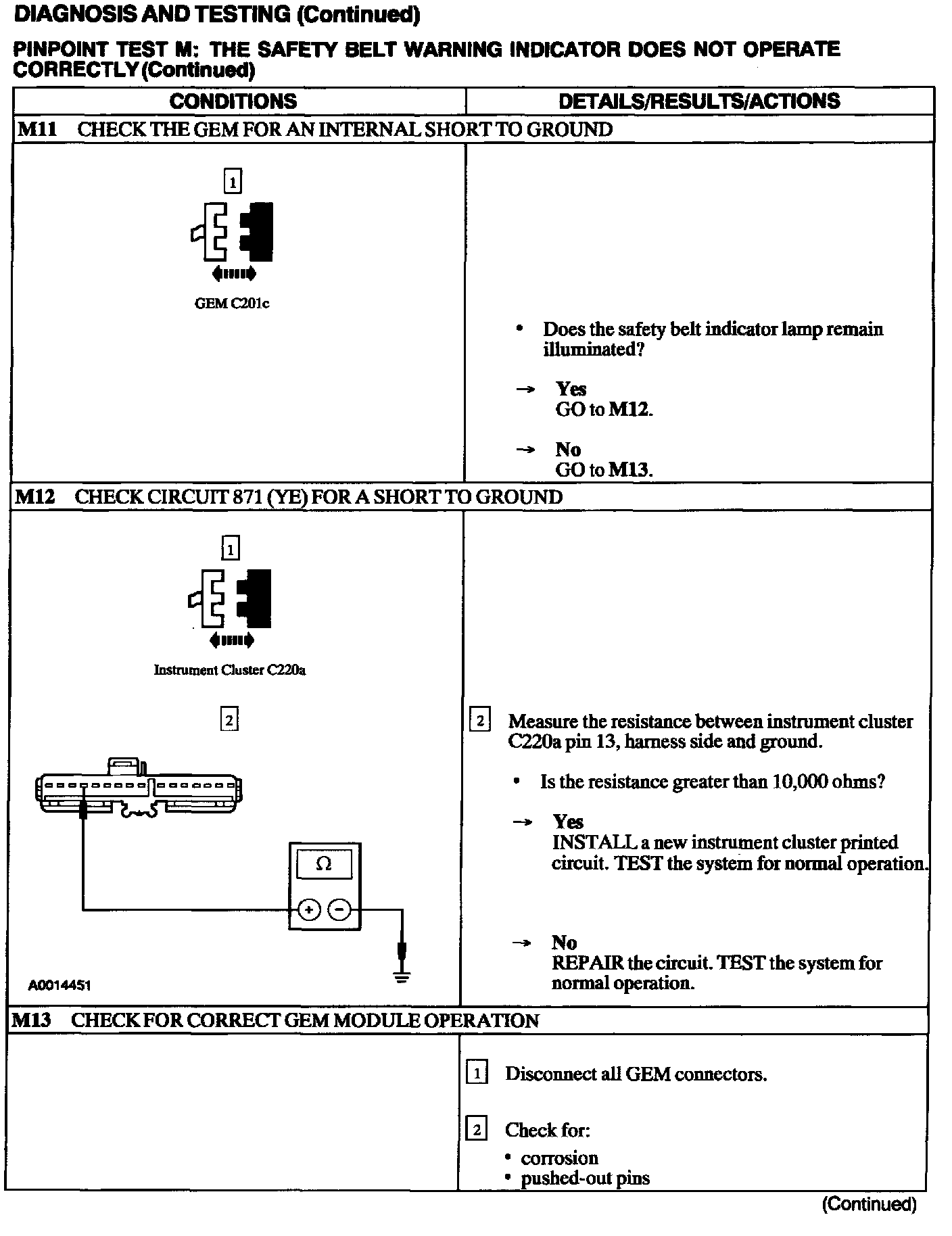

M11 - M13:

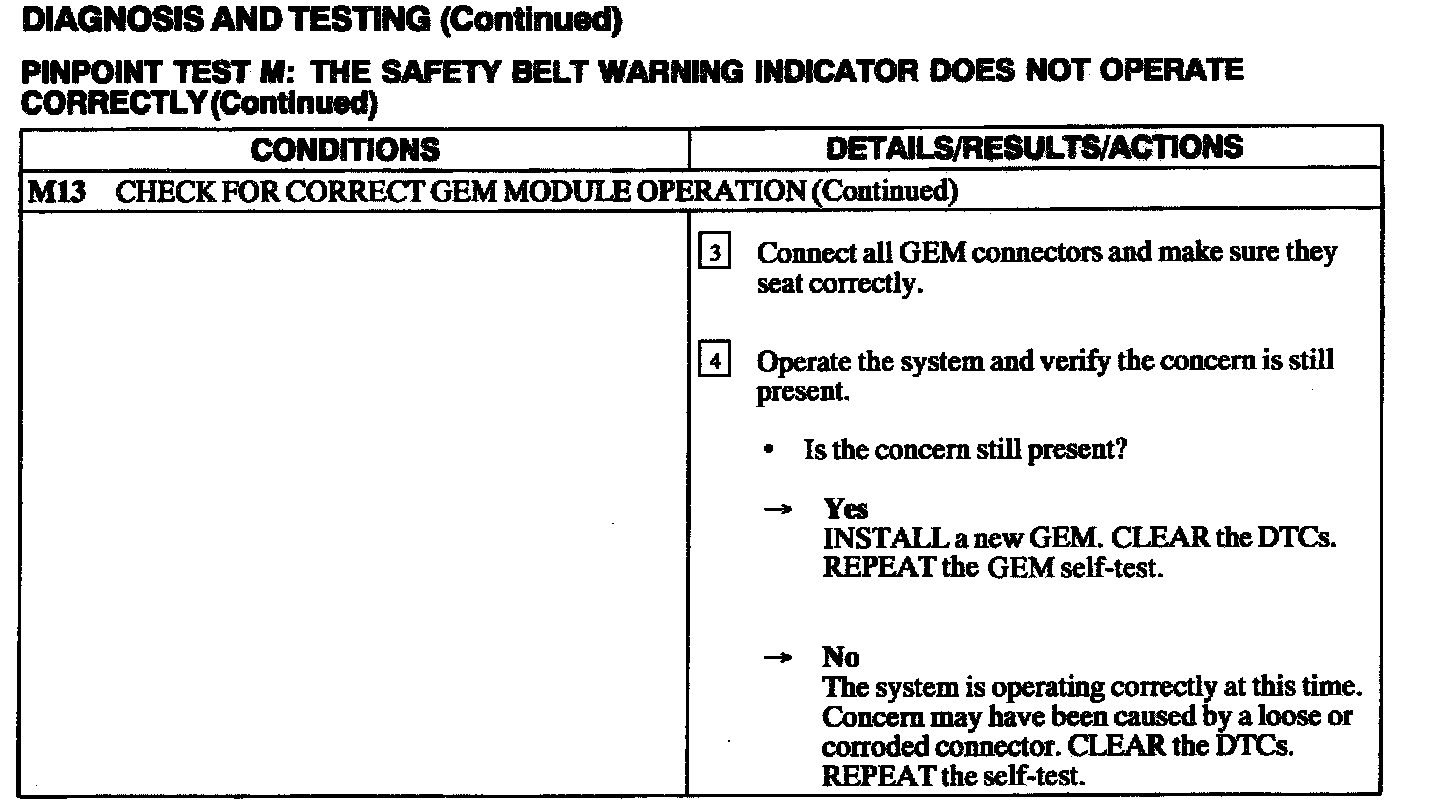

M13:
