Test C: Incorrect Fuel Gauge Indication - With Flex-Fuel
Test C: Incorrect Fuel Gauge Indication - With Flex-Fuel
C1:
C1:

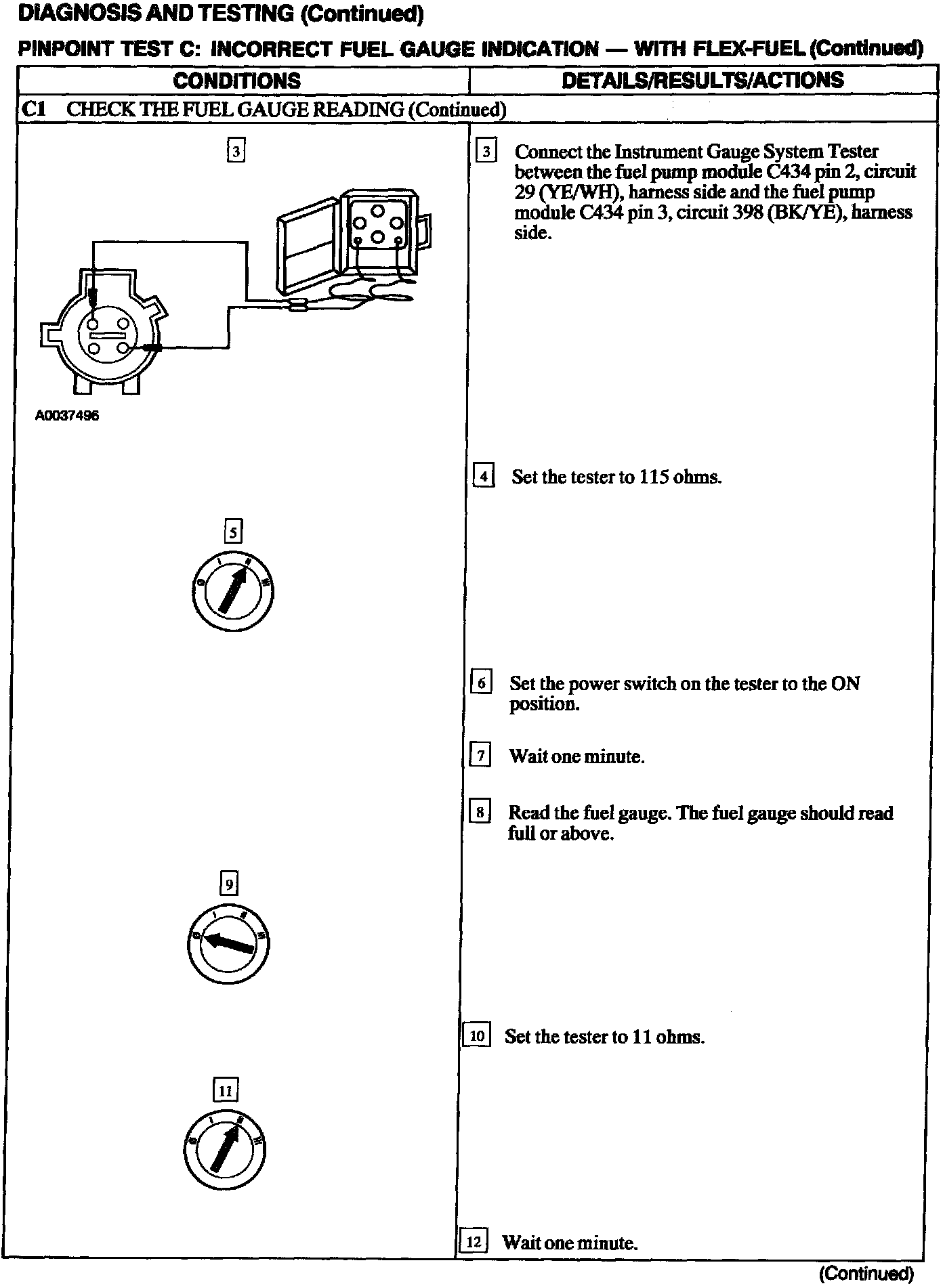

C1 - C3:

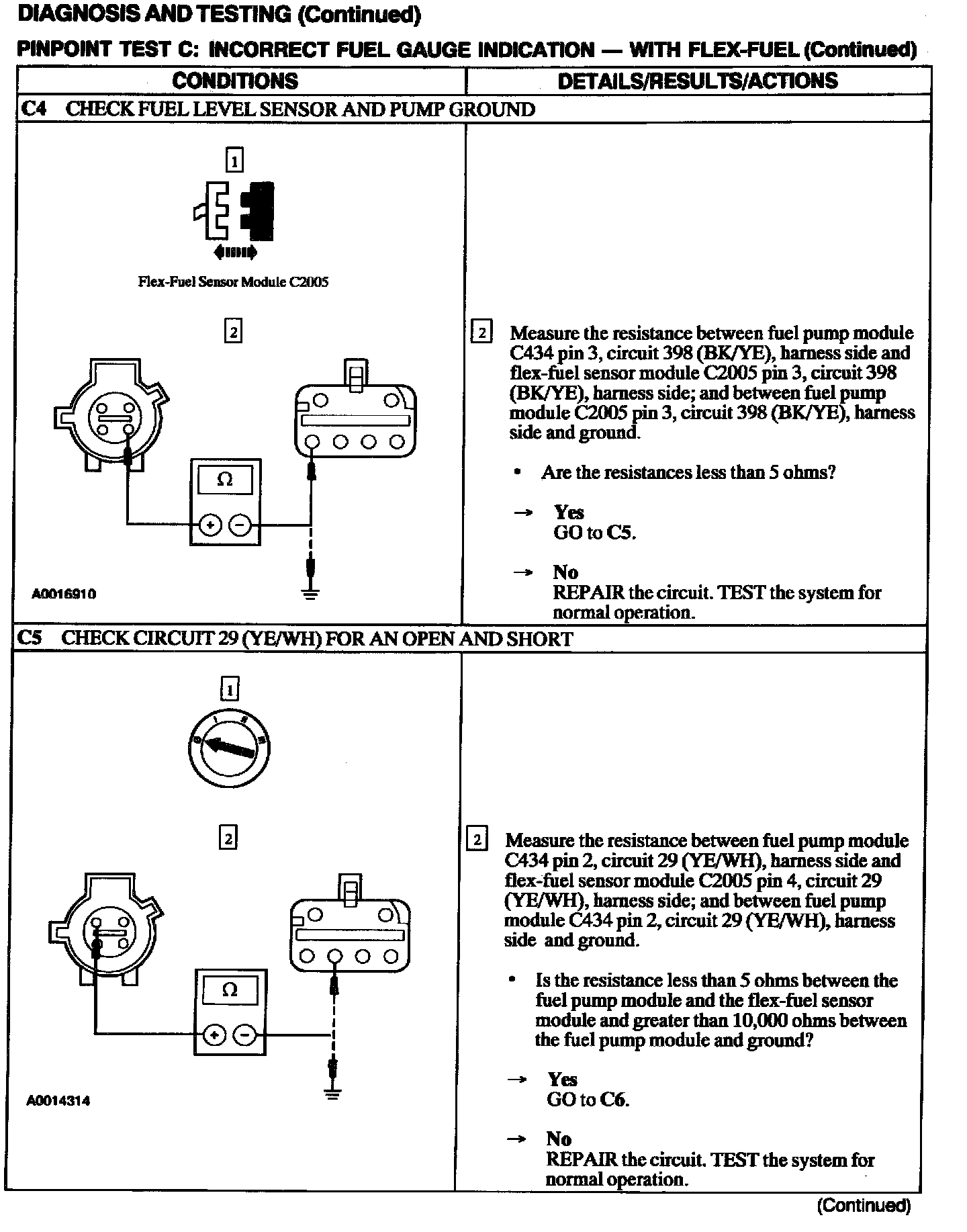

C4 - C5:
C6:

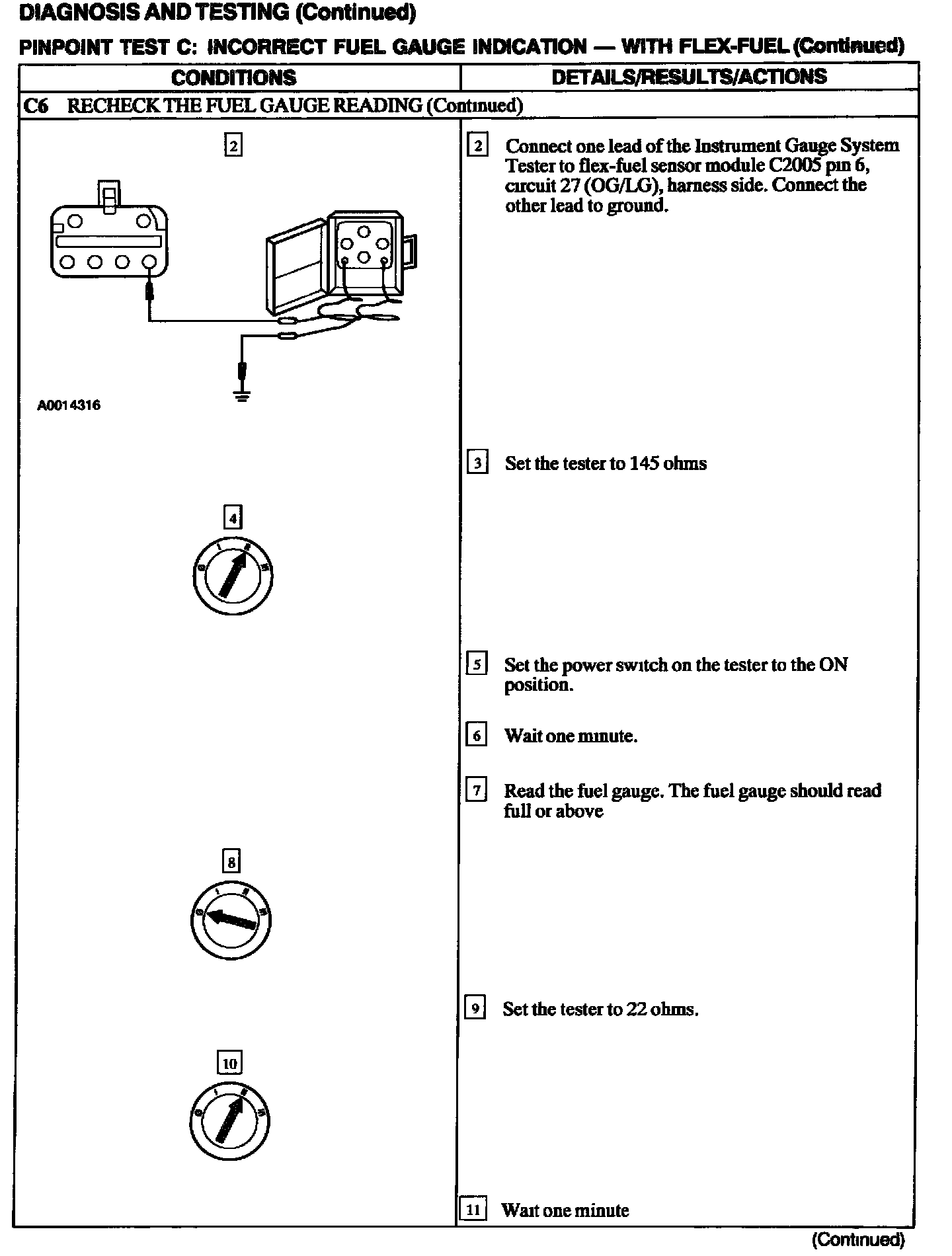

C6:

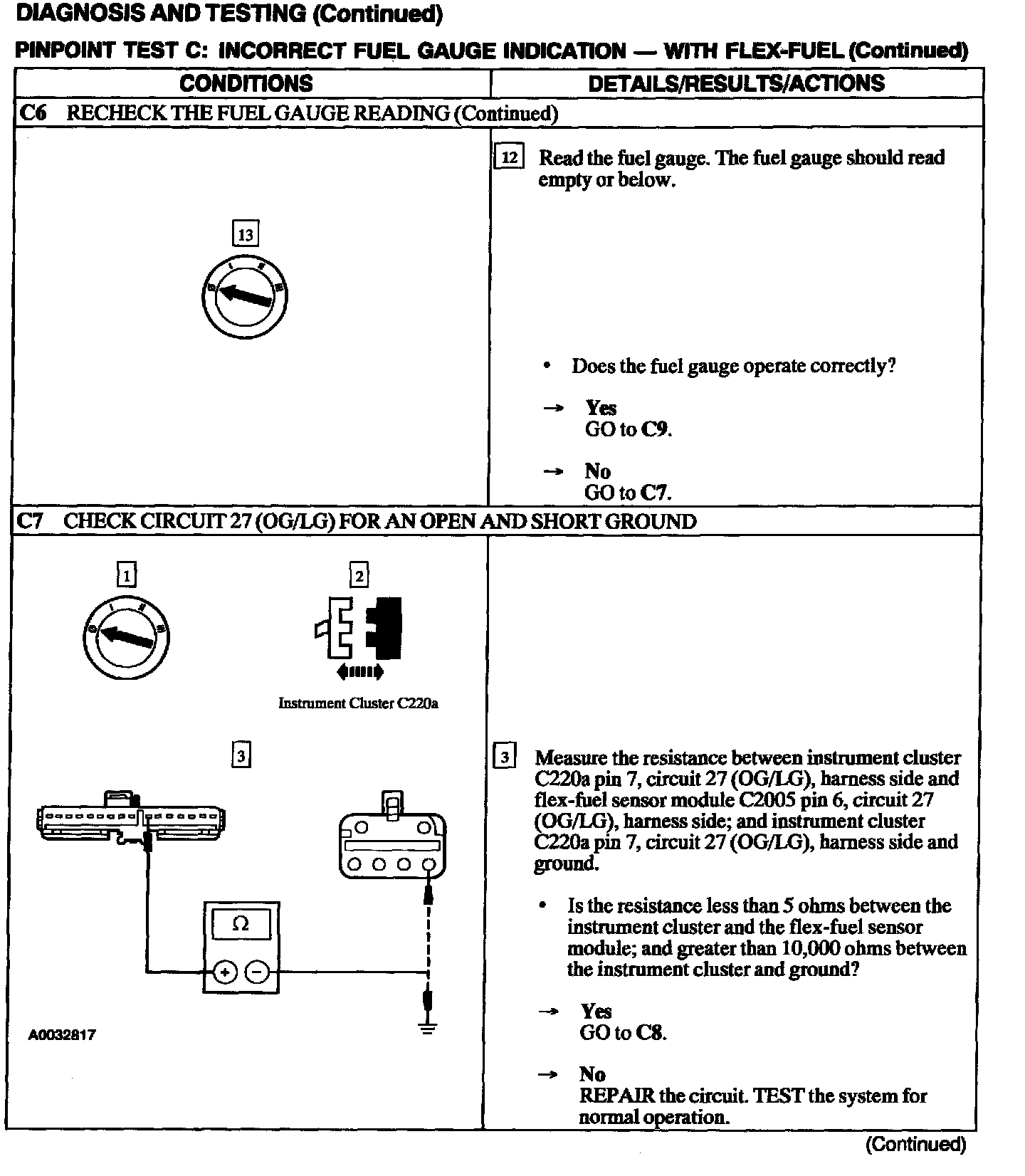

C6 - C7:

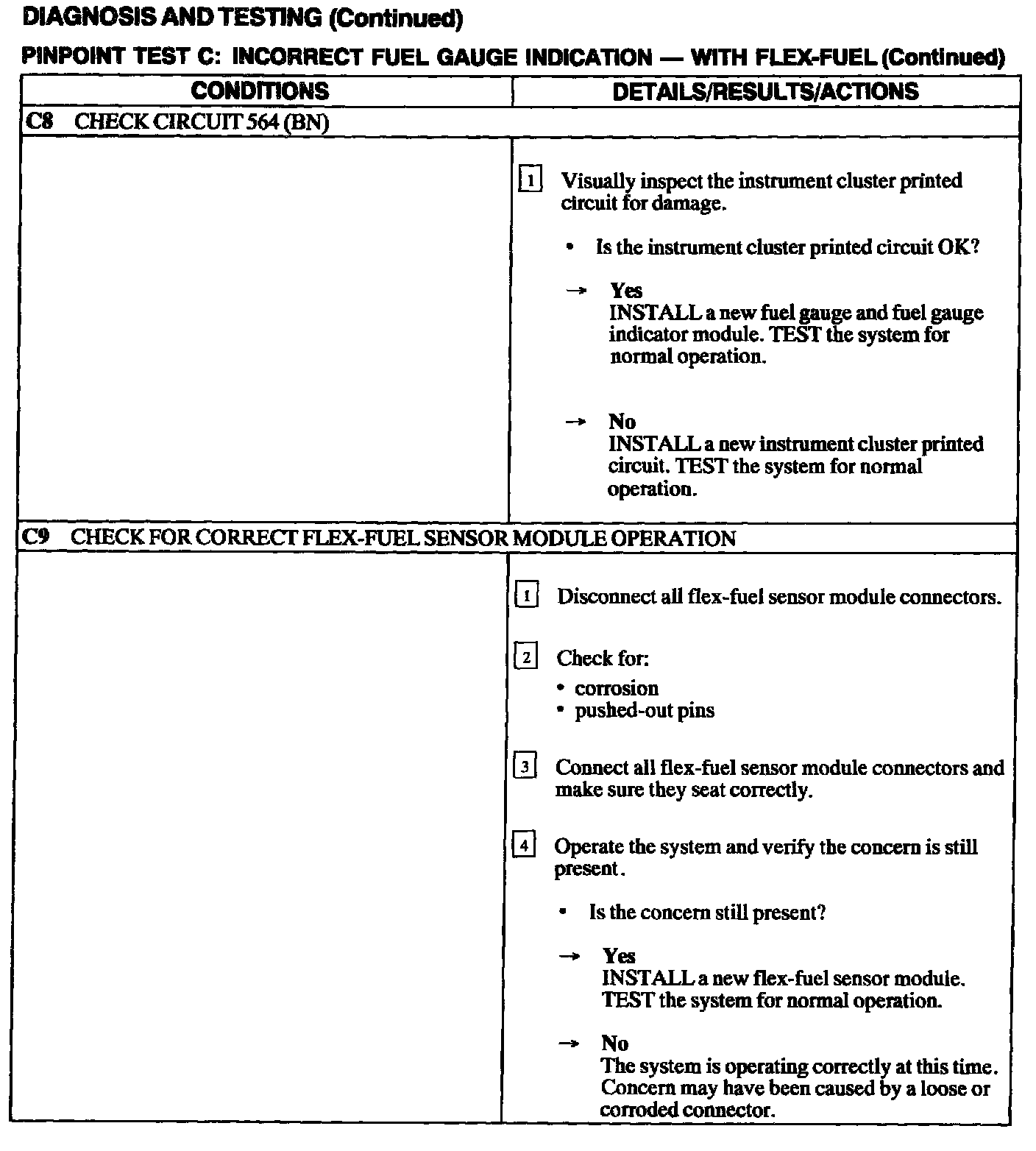

C8 - C9:
