Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test S: Blower Motor Operates Continuously In High Speed - EATC

Test S: Blower Motor Operates Continuously In High Speed - EATC

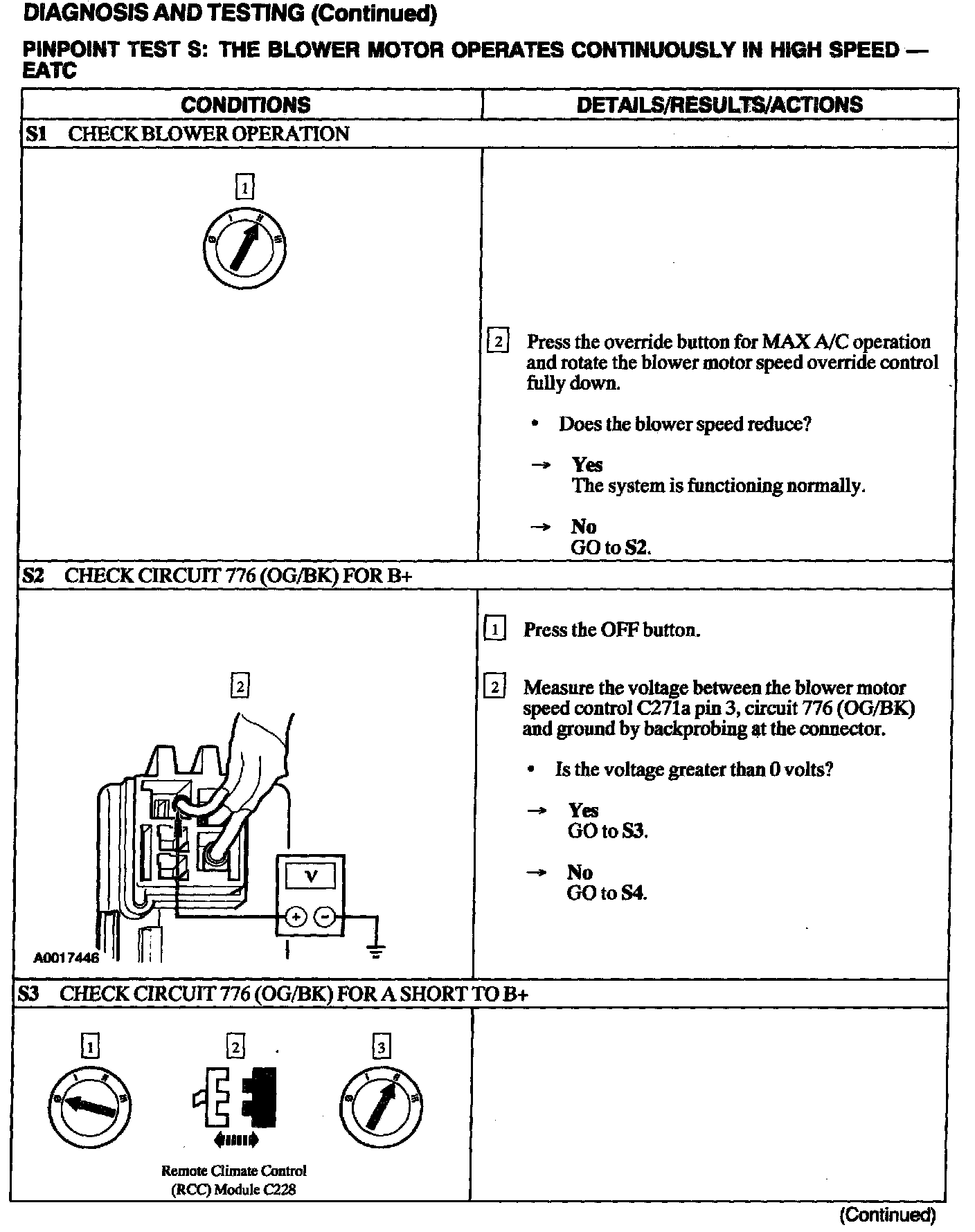

S1 - S3:

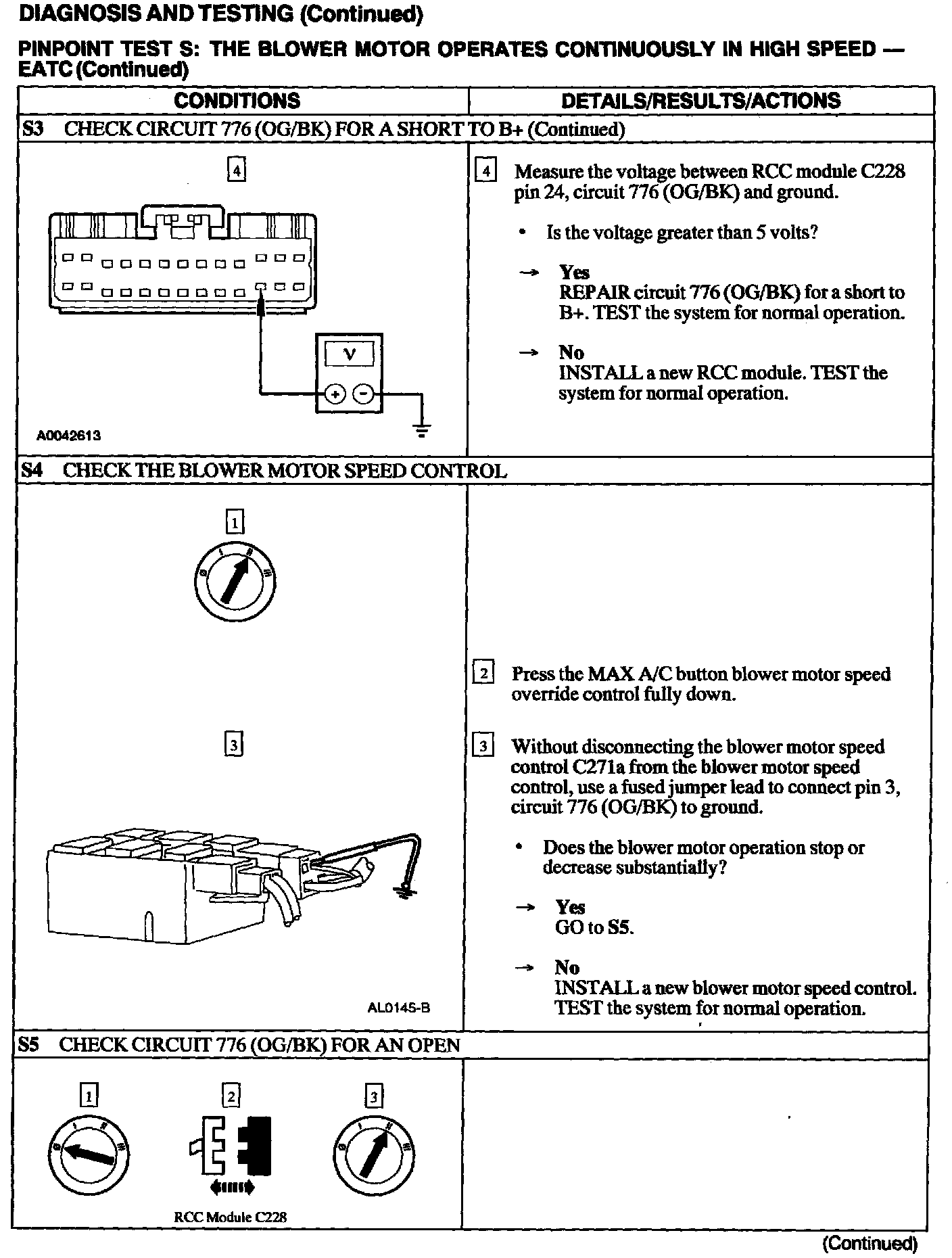

S3 - S5:

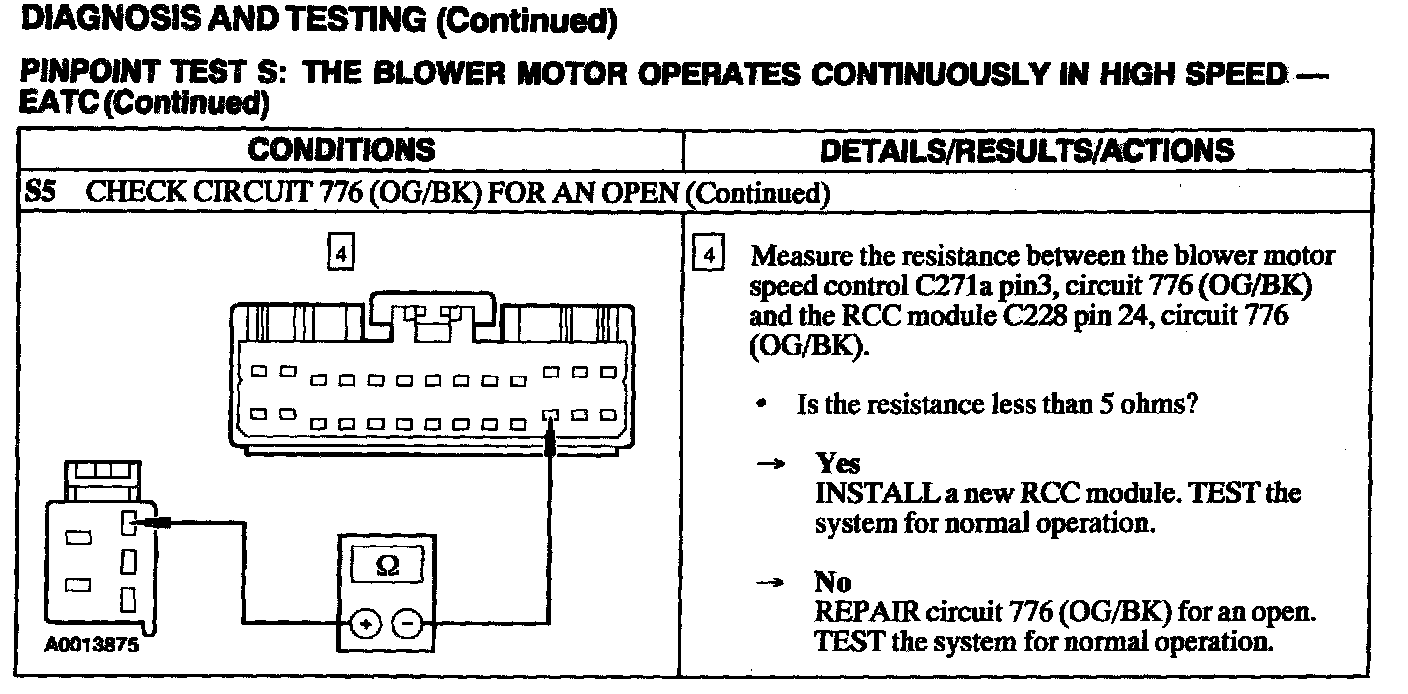

S5:
