Test P: Blower Motor Is Inoperative - EATC
Test P: Blower Motor Is Inoperative - EATC

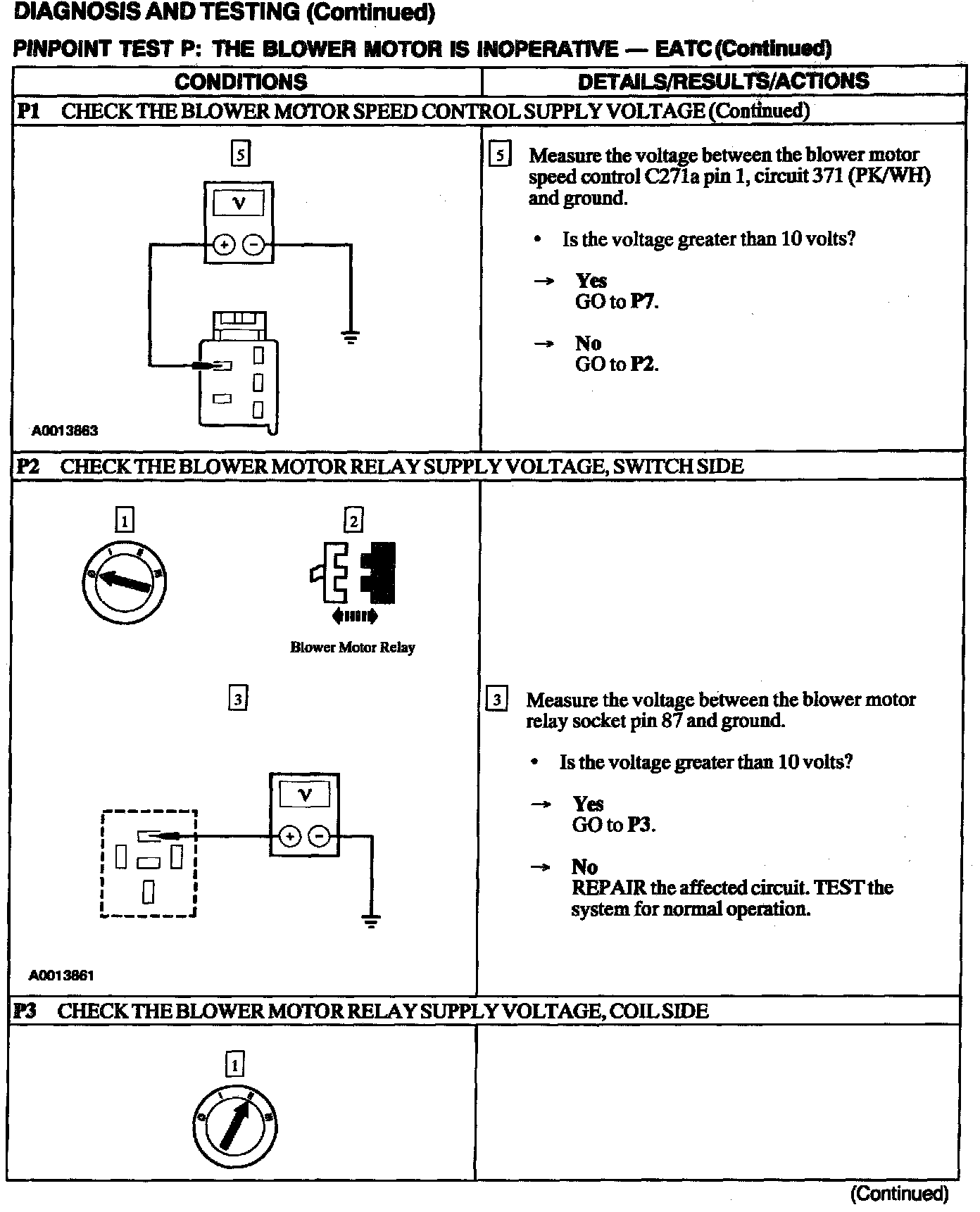

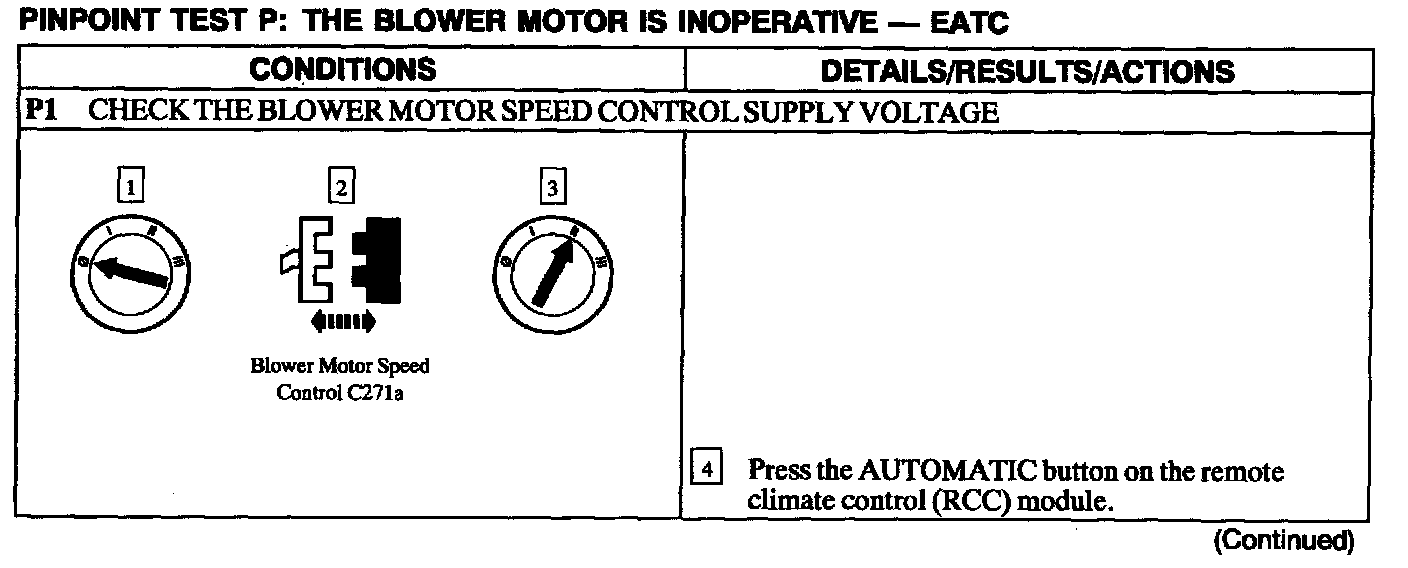

P1:
P1 - P3:

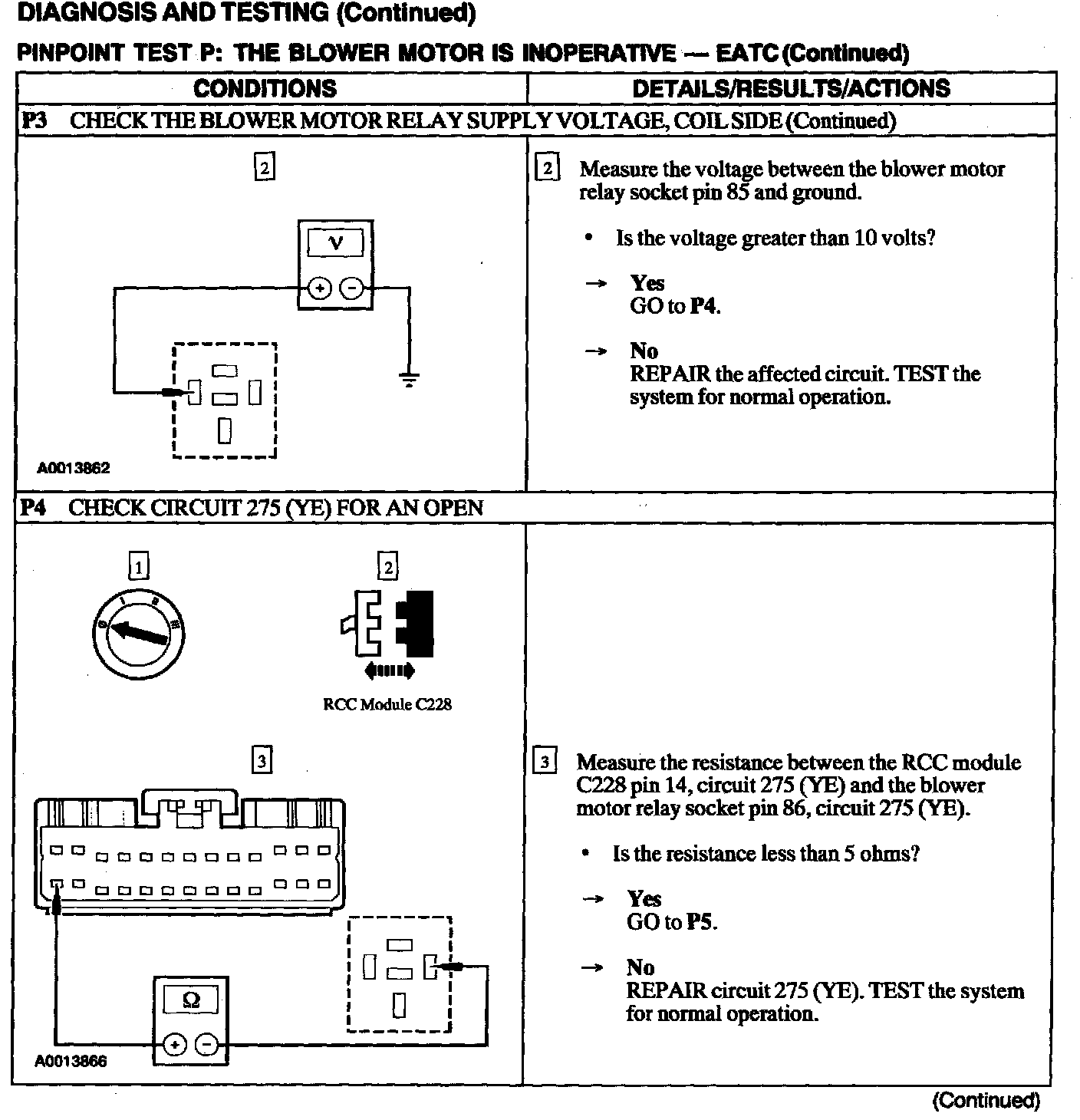

P3 - P4:

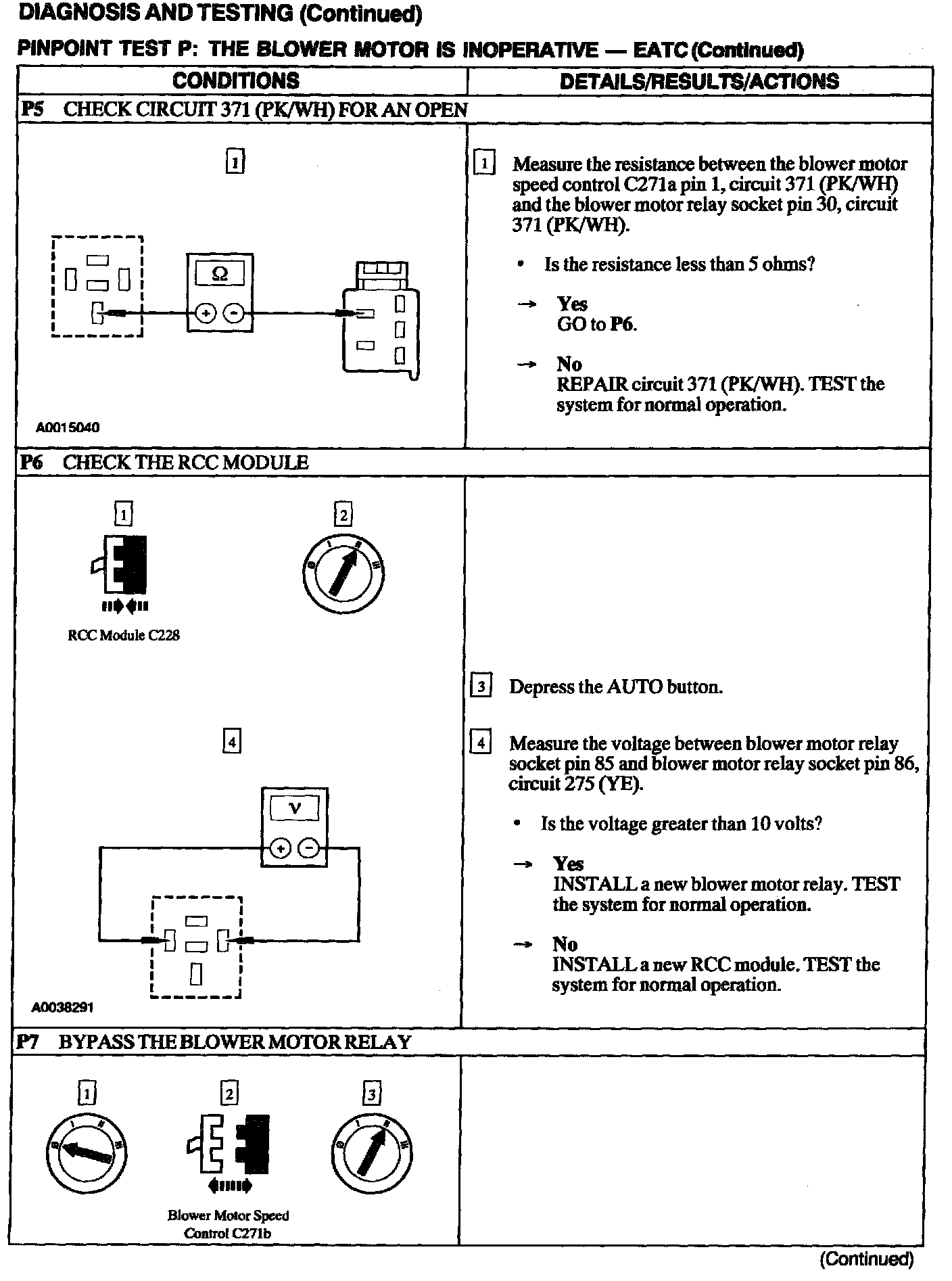

P5 - P7:

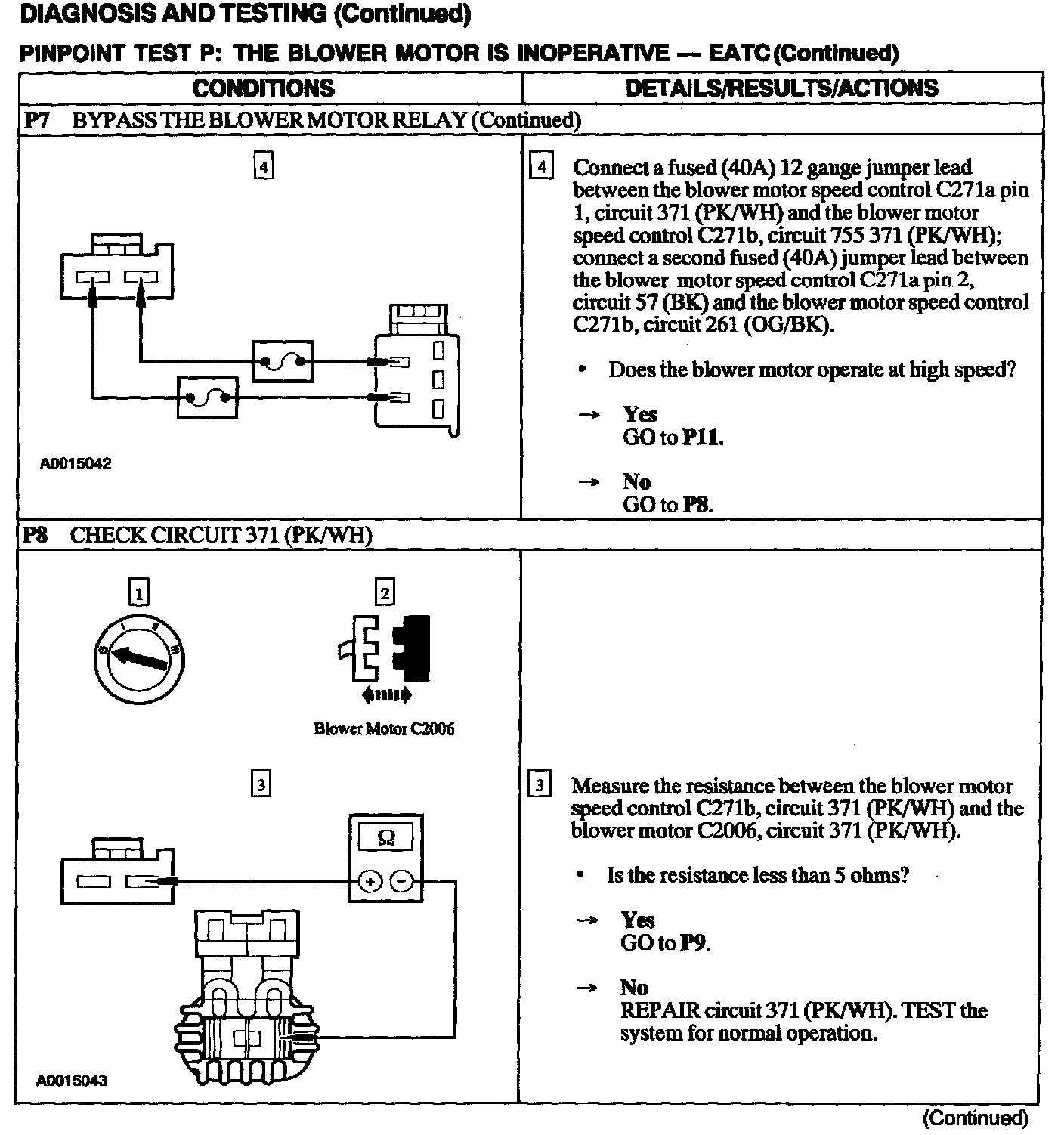

P7 - P8:
P9 - P11:

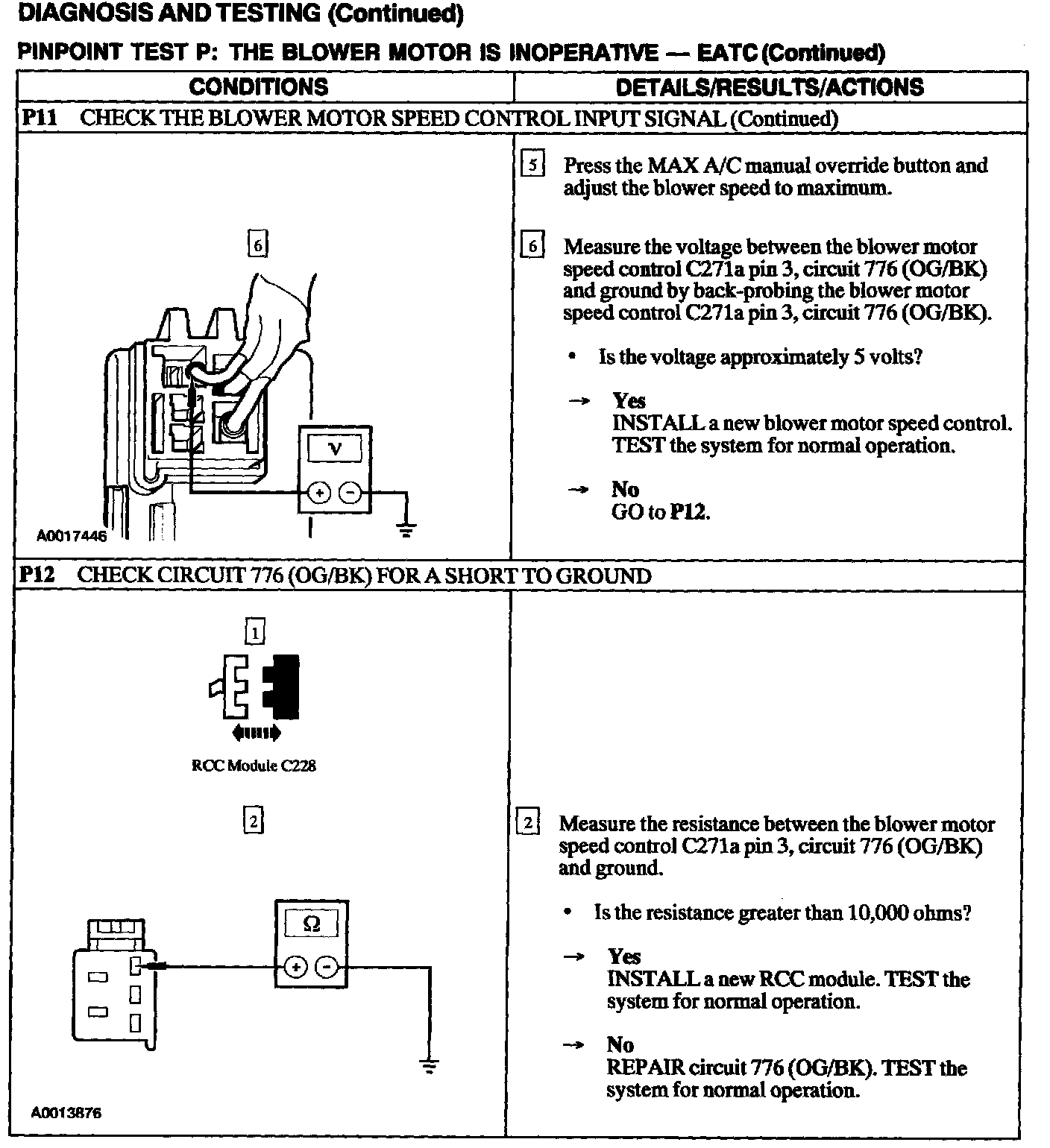

P11 - P12:
