FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2002
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test N: No Operation In All Temp Settings - Manual
Test N: No Operation In All Temp Settings - Manual

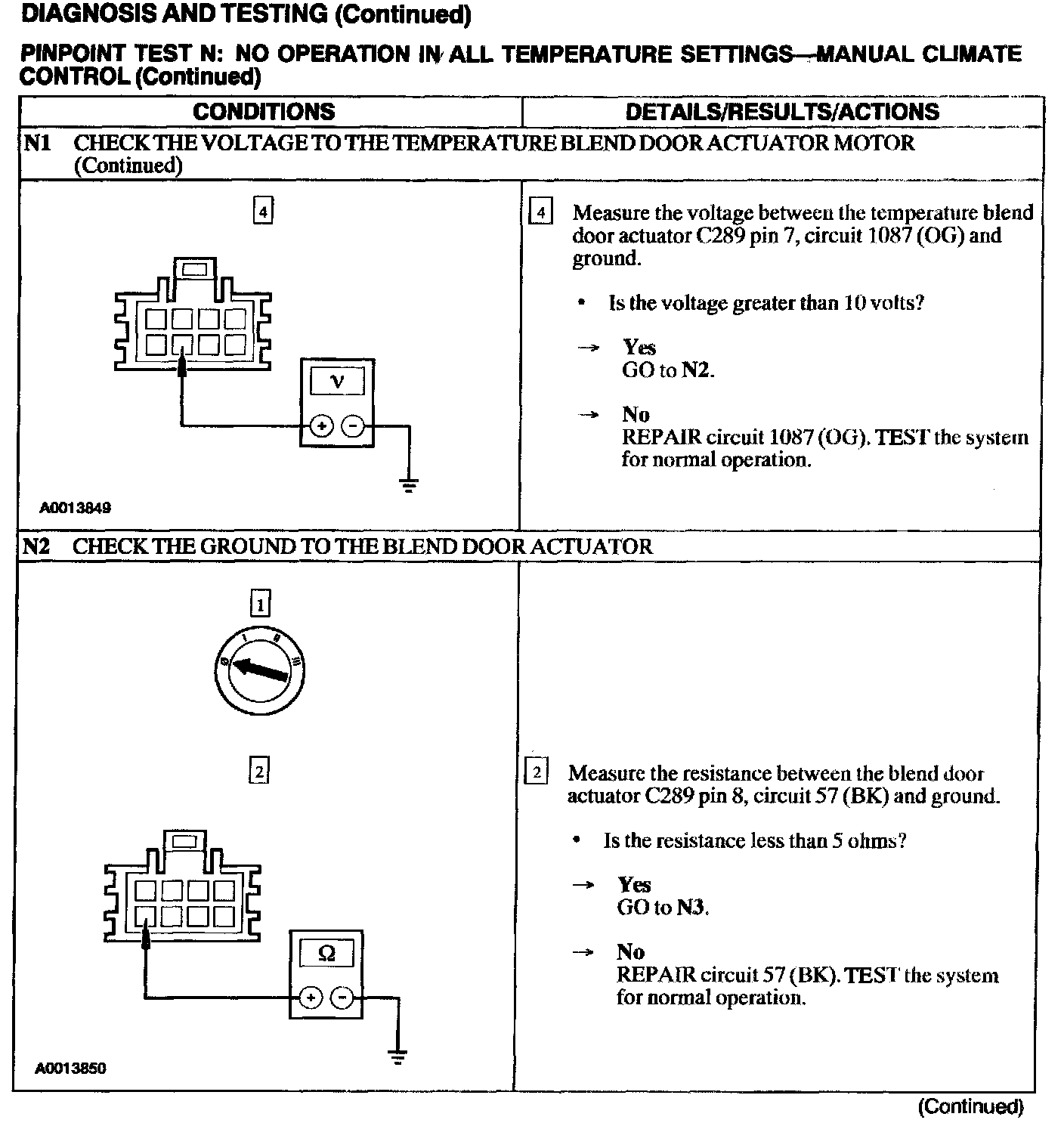

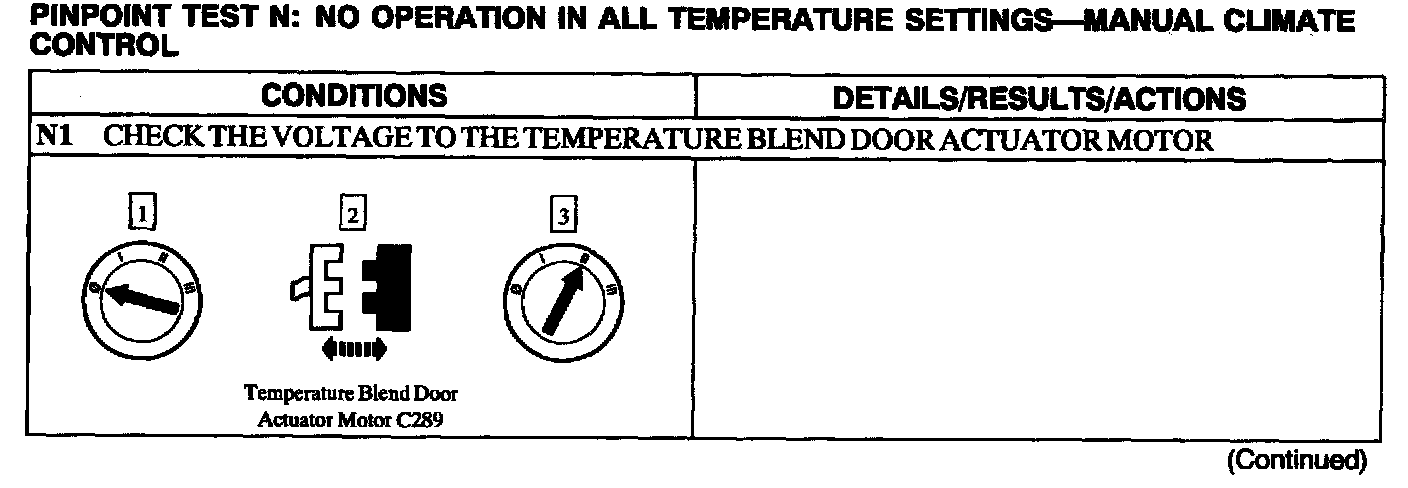

N1:
N1 - N2:

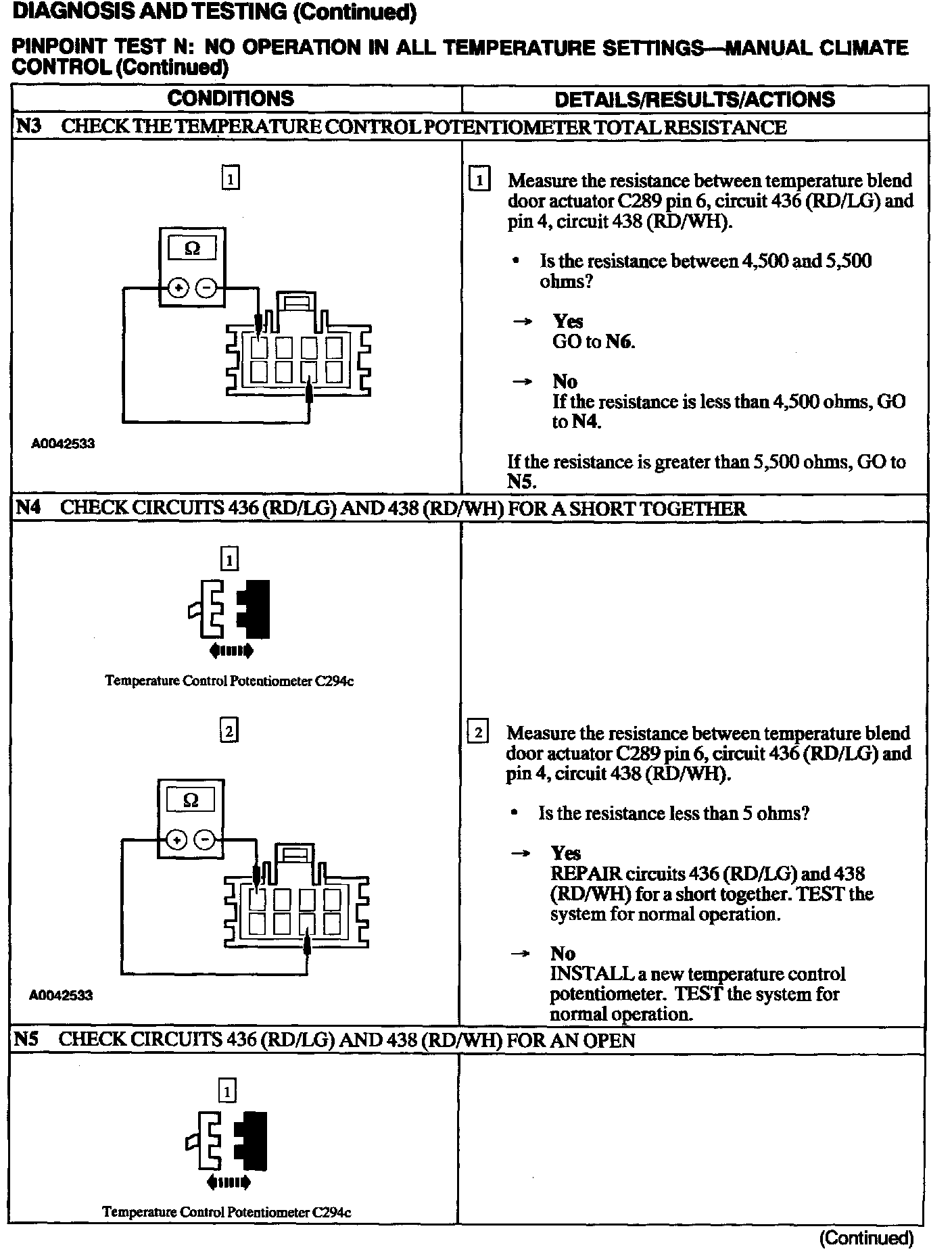

N3 - N5:

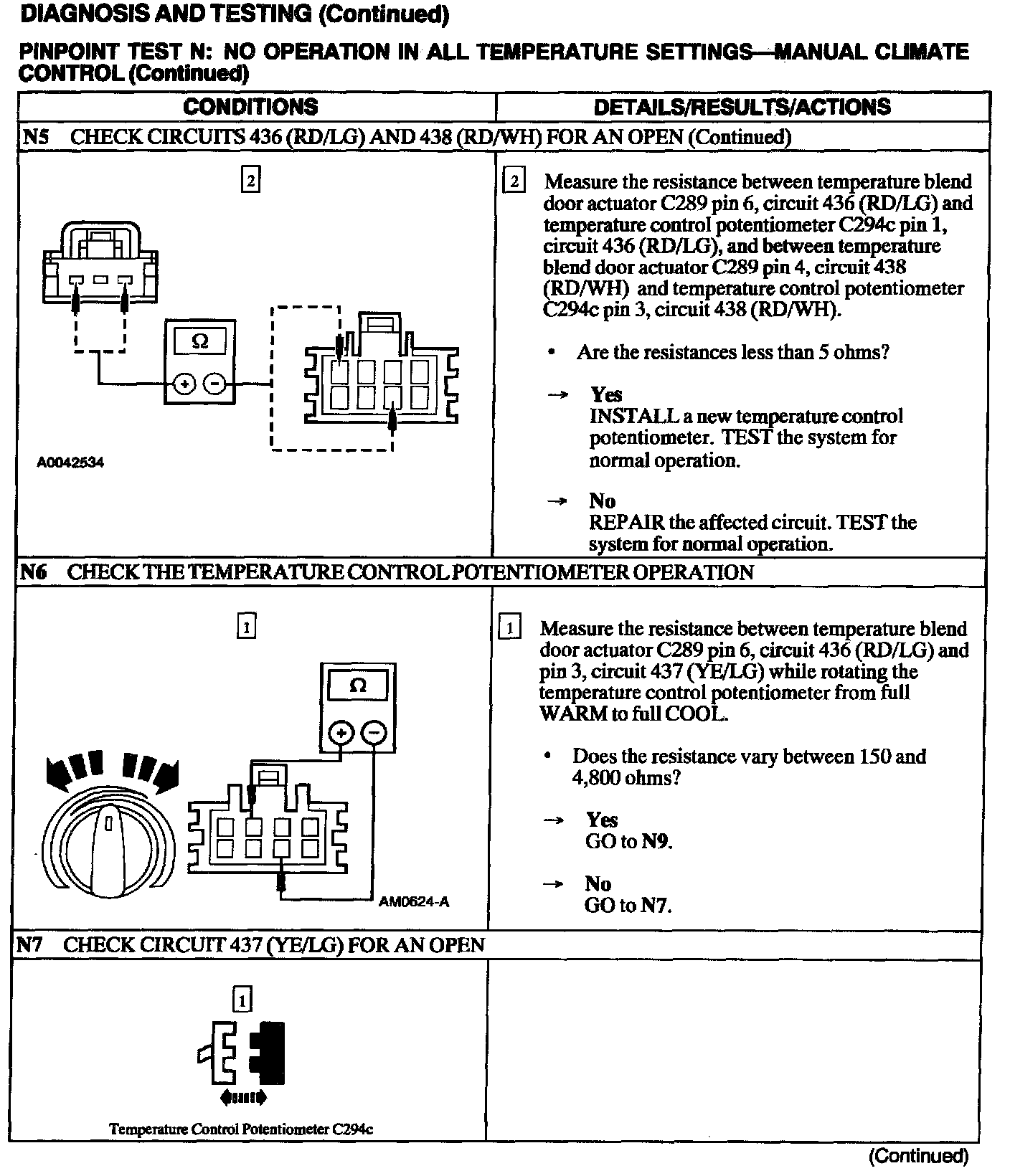

N5 - N7:

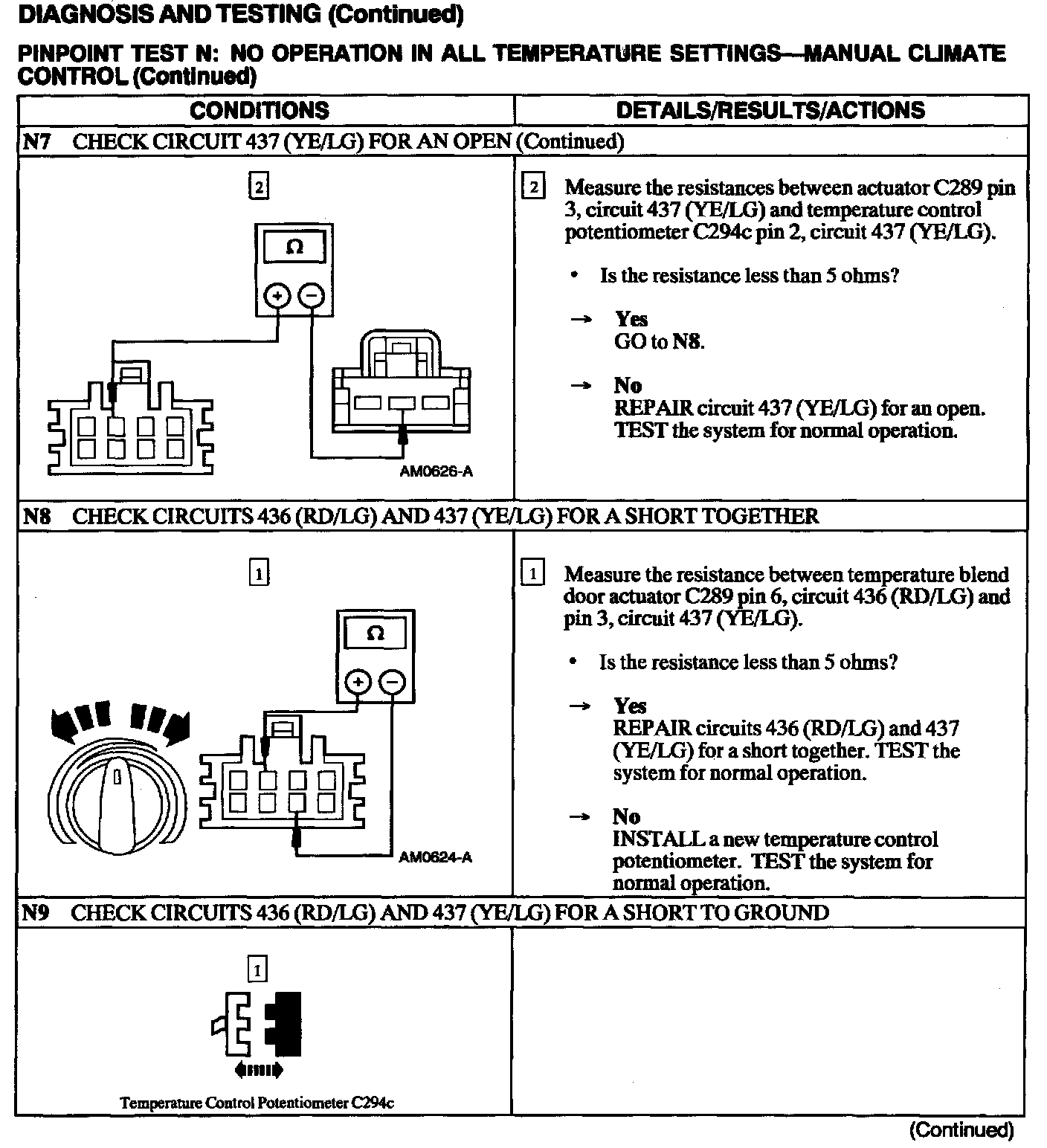

N7 - N9:

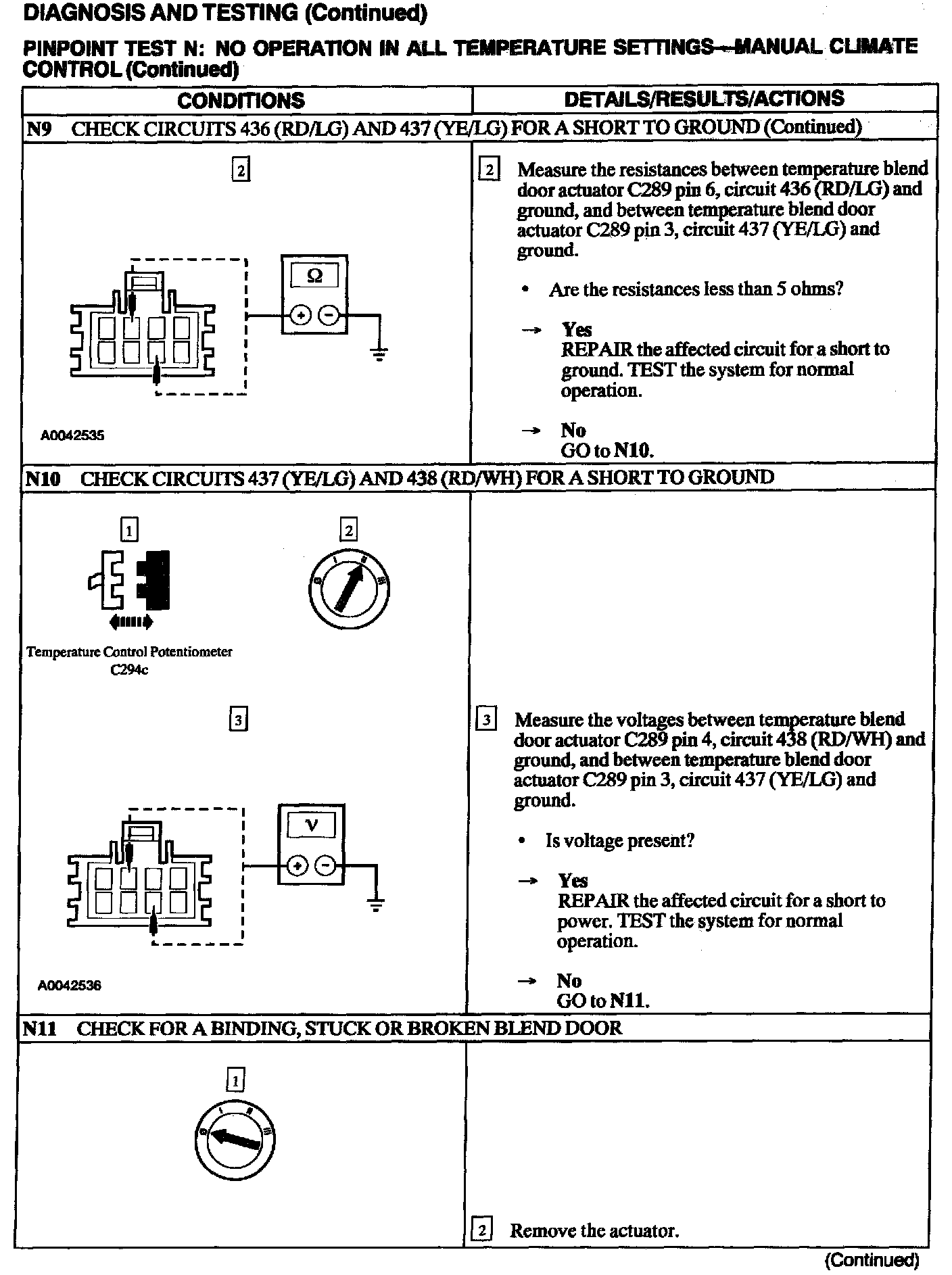

N9 - N11:

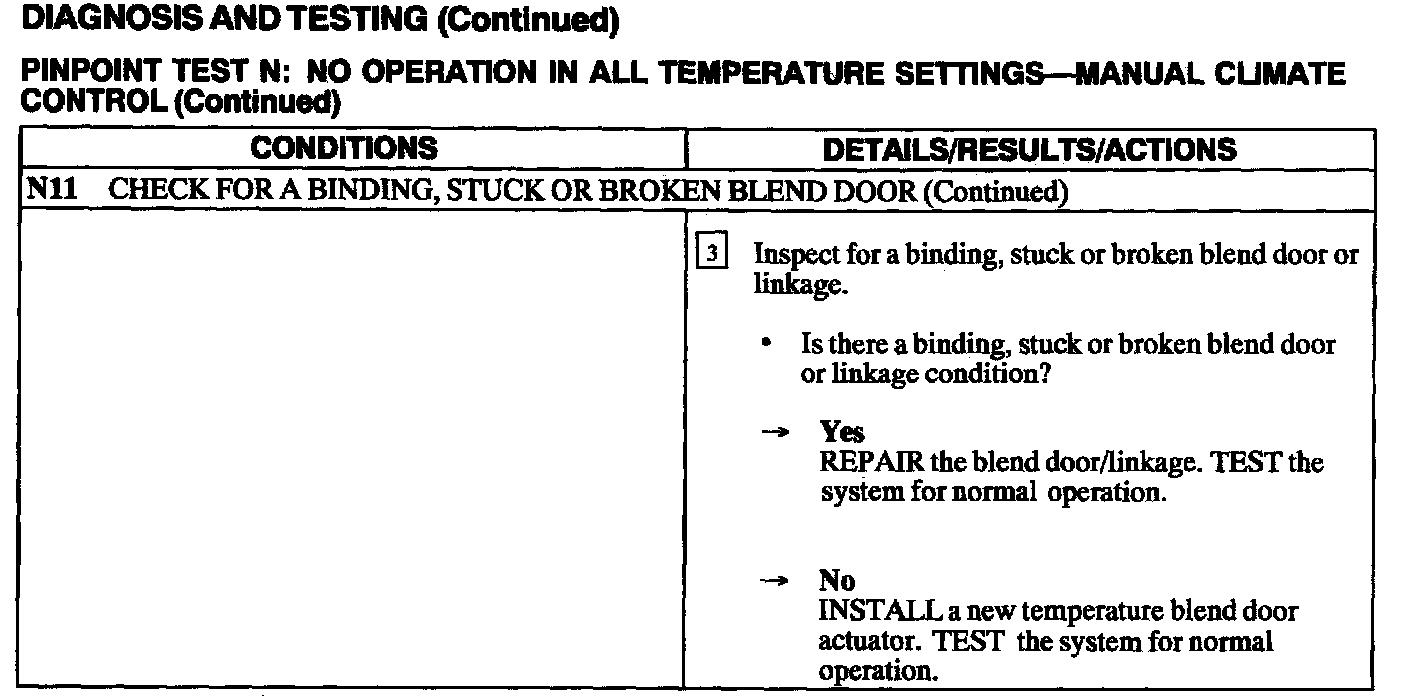

N11:
