Manual Automatic Temperature Control

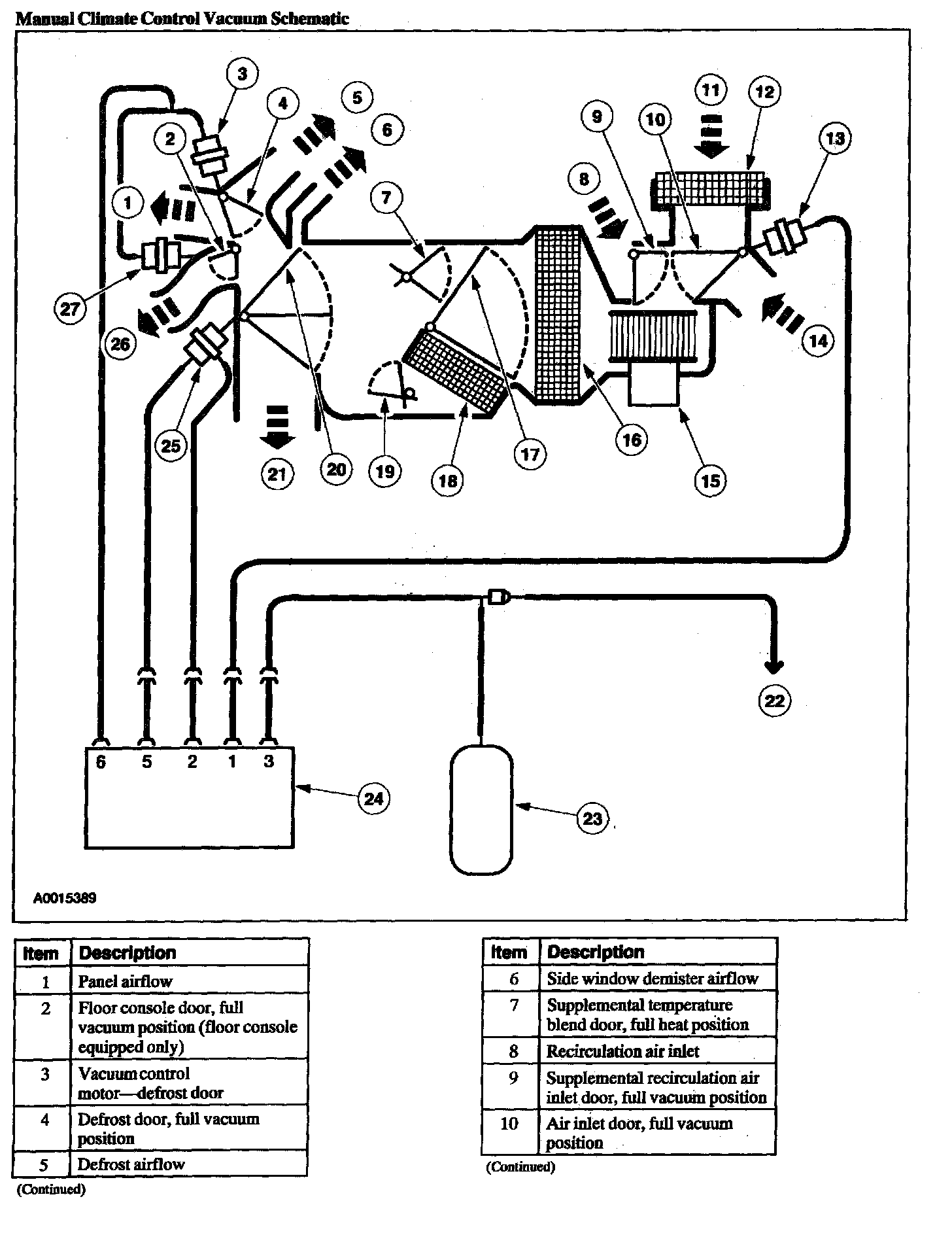

Manual Climate Control Vacuum Schematic, Part 1:

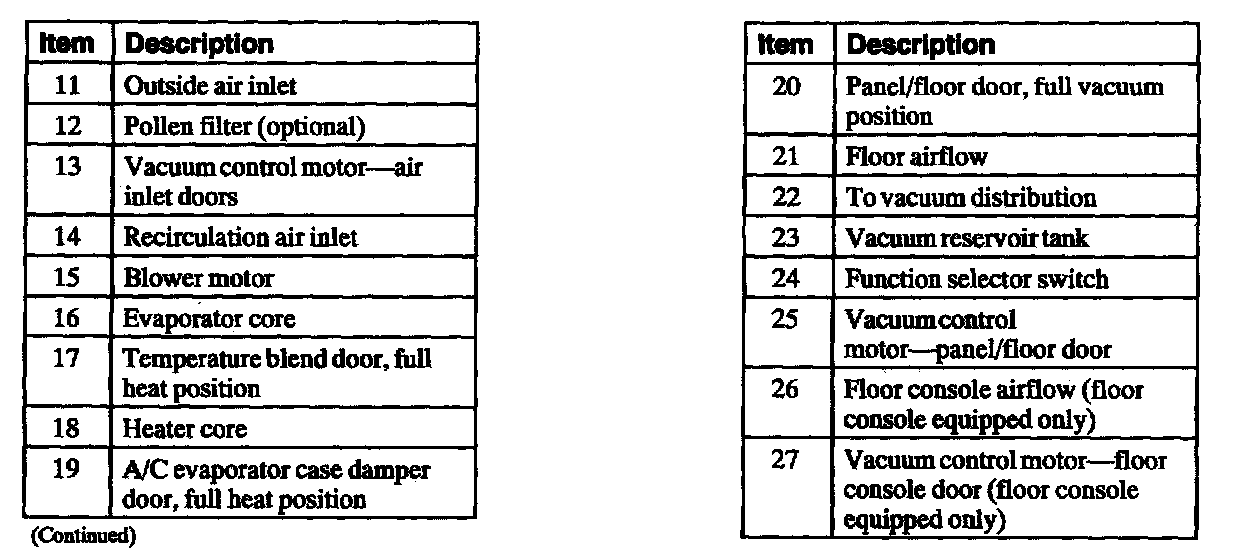

Manual Climate Control Vacuum Schematic, Part 2:

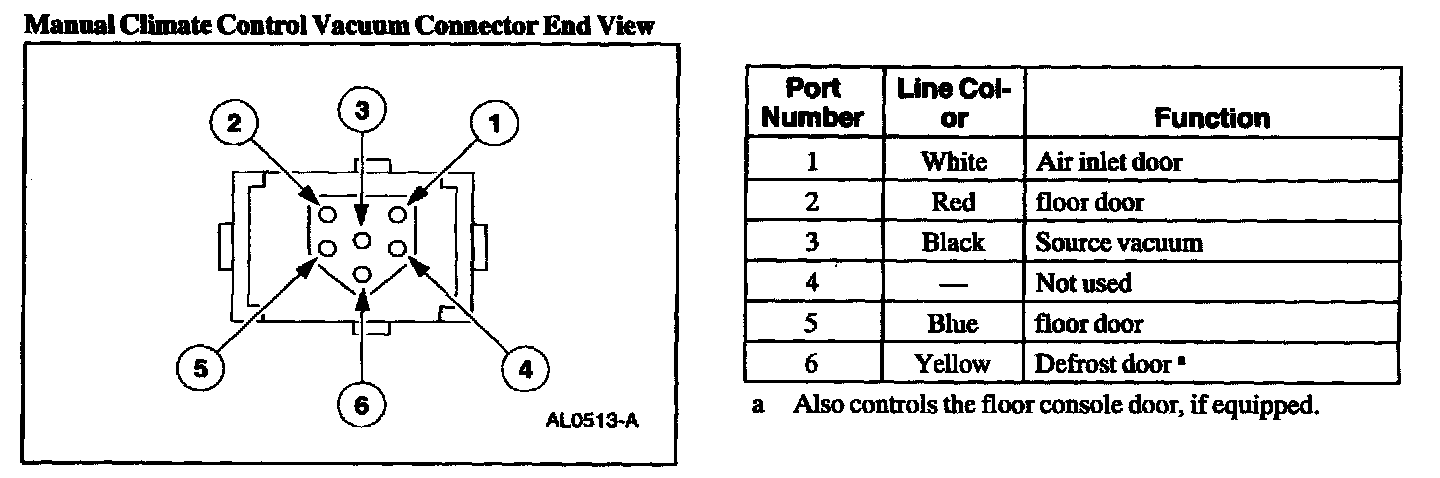

Manual Climate Control Vacuum Connector End View:

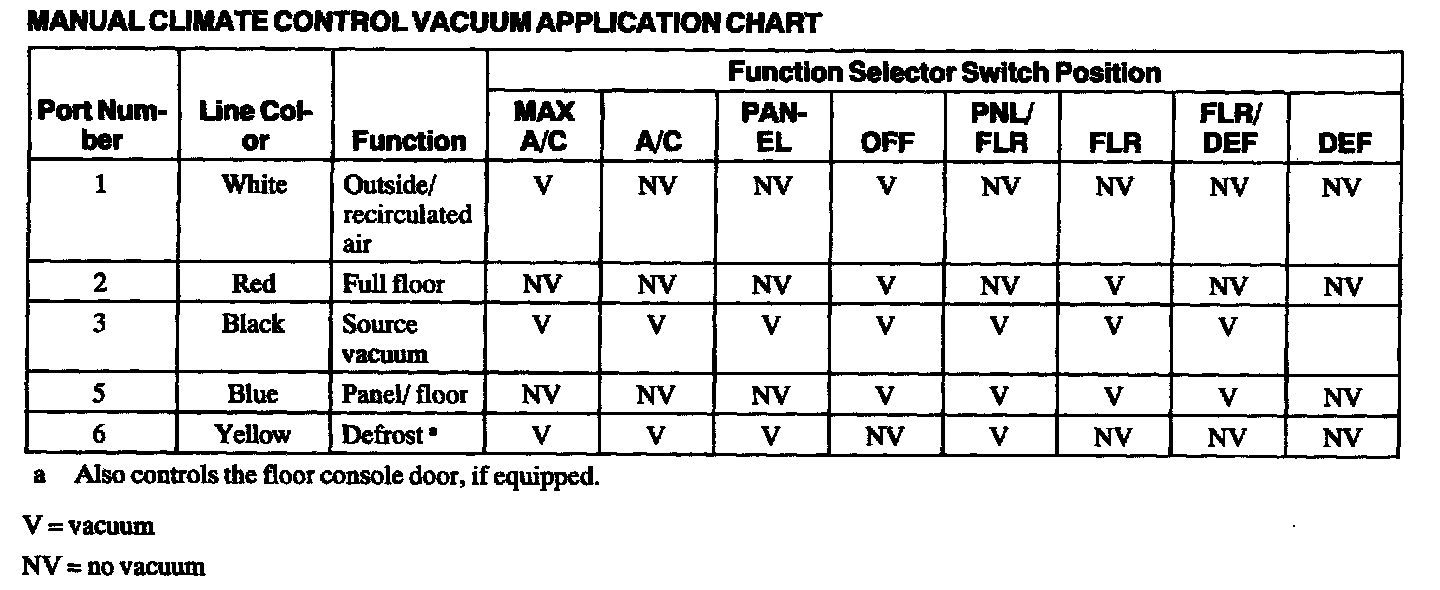

Manual Climate Control Vacuum Application Chart:
