Climate Control Assembly

Radio Removal Tool:

SPECIAL TOOL(S)

REMOVAL

All vehicles

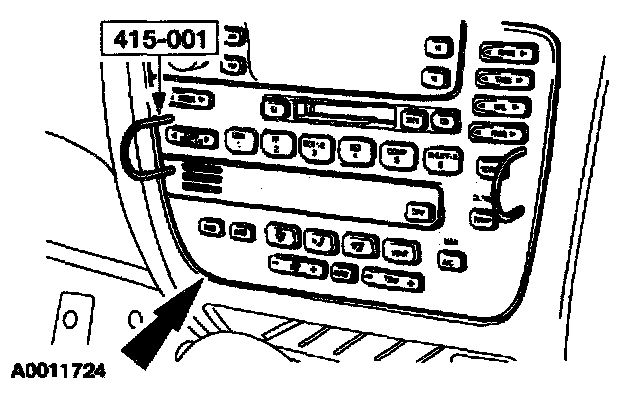

1. Using the special tool, pull out the integrated control panel.

Vehicles with Manual Climate Control

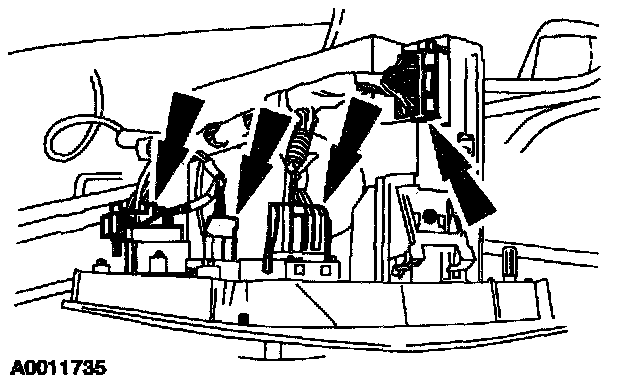

2. Label and disconnect the electrical connectors. Remove the integrated control panel.

Vehicles with Electronic Automatic Temperature Control (EATC)







3. Label and disconnect the electrical connectors and the in-car temperature sensor hose. Remove the integrated control panel.

INSTALLATION

All vehicles
1. To install, reverse the removal procedure.
