Fuel Pressure Test Port: Service and Repair

REMOVAL
1. Relieve the fuel pressure.

WARNING: FUEL IN THE FUEL SYSTEM REMAINS UNDER HIGH PRESSURE EVEN WHEN THE ENGINE IS NOT RUNNING. BEFORE WORKING ON OR DISCONNECTING ANY OF THE FUEL LINES OR FUEL SYSTEM COMPONENTS, THE FUEL SYSTEM PRESSURE MUST BE RELIEVED. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

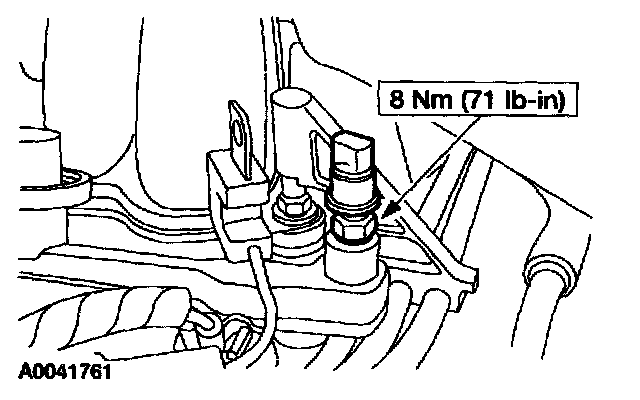

2. Remove the fuel pressure relief valve.

INSTALLATION
1. To install, reverse the removal procedure.
