Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

Symptom Chart

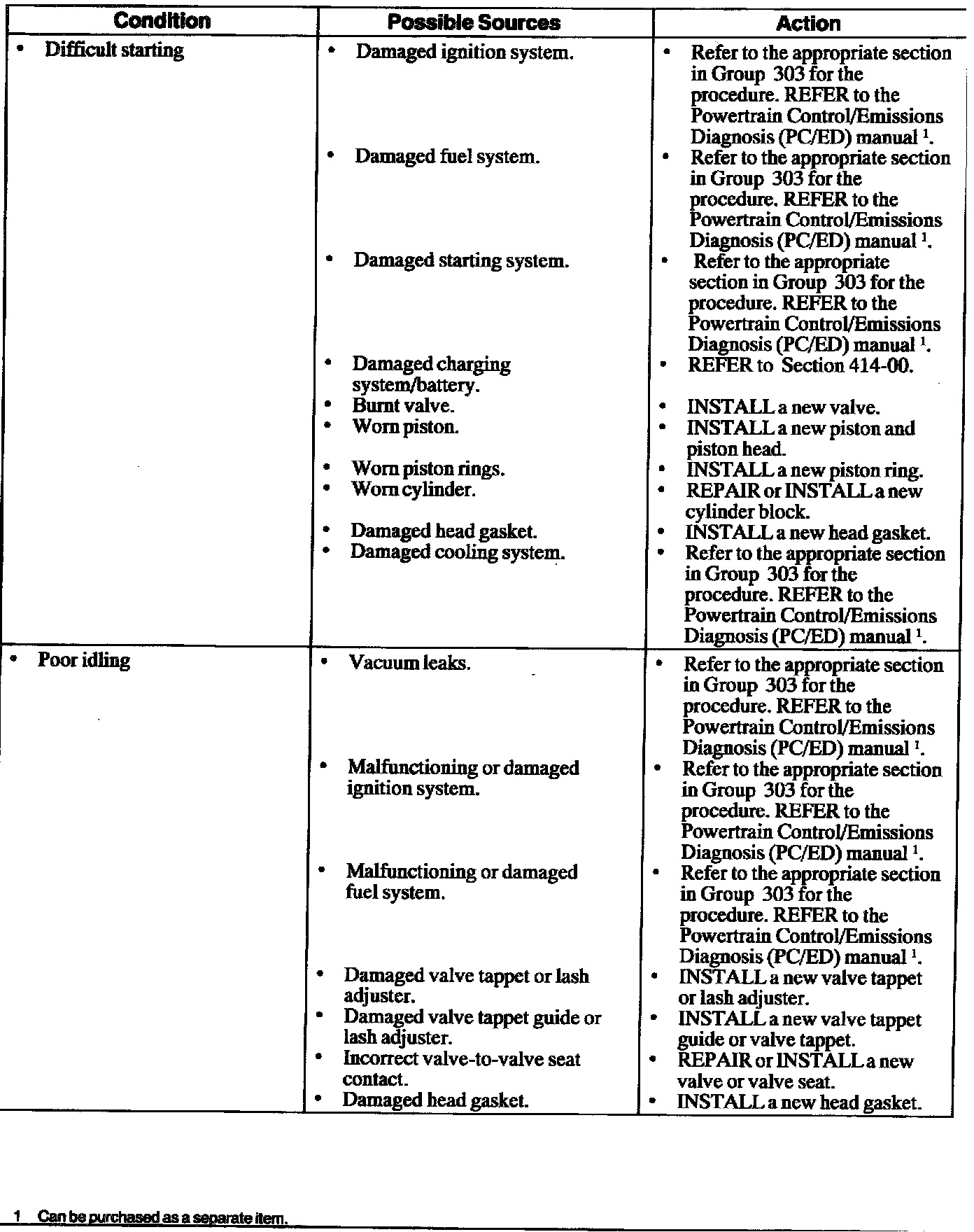

Part 1 of 4

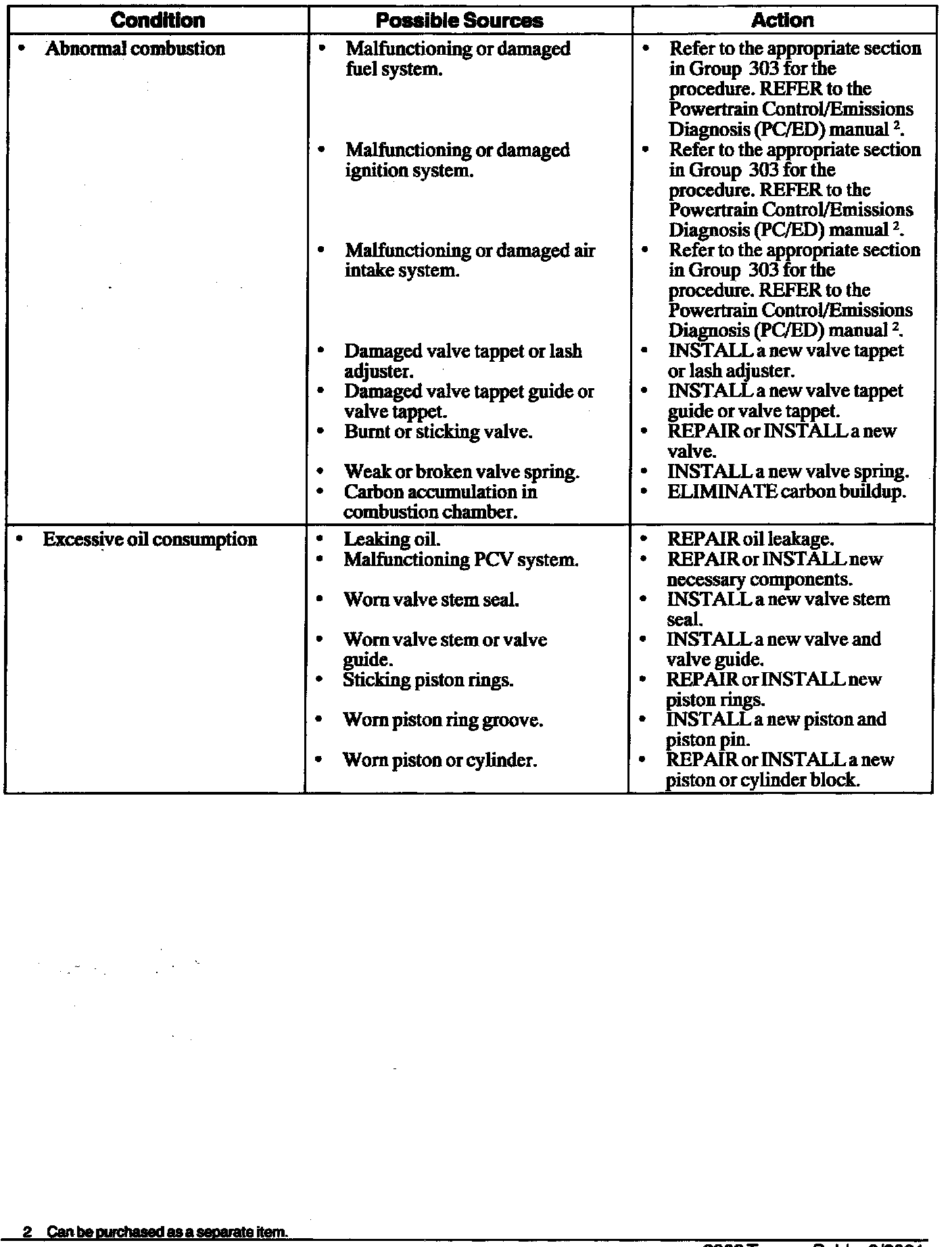

Part 2 of 4

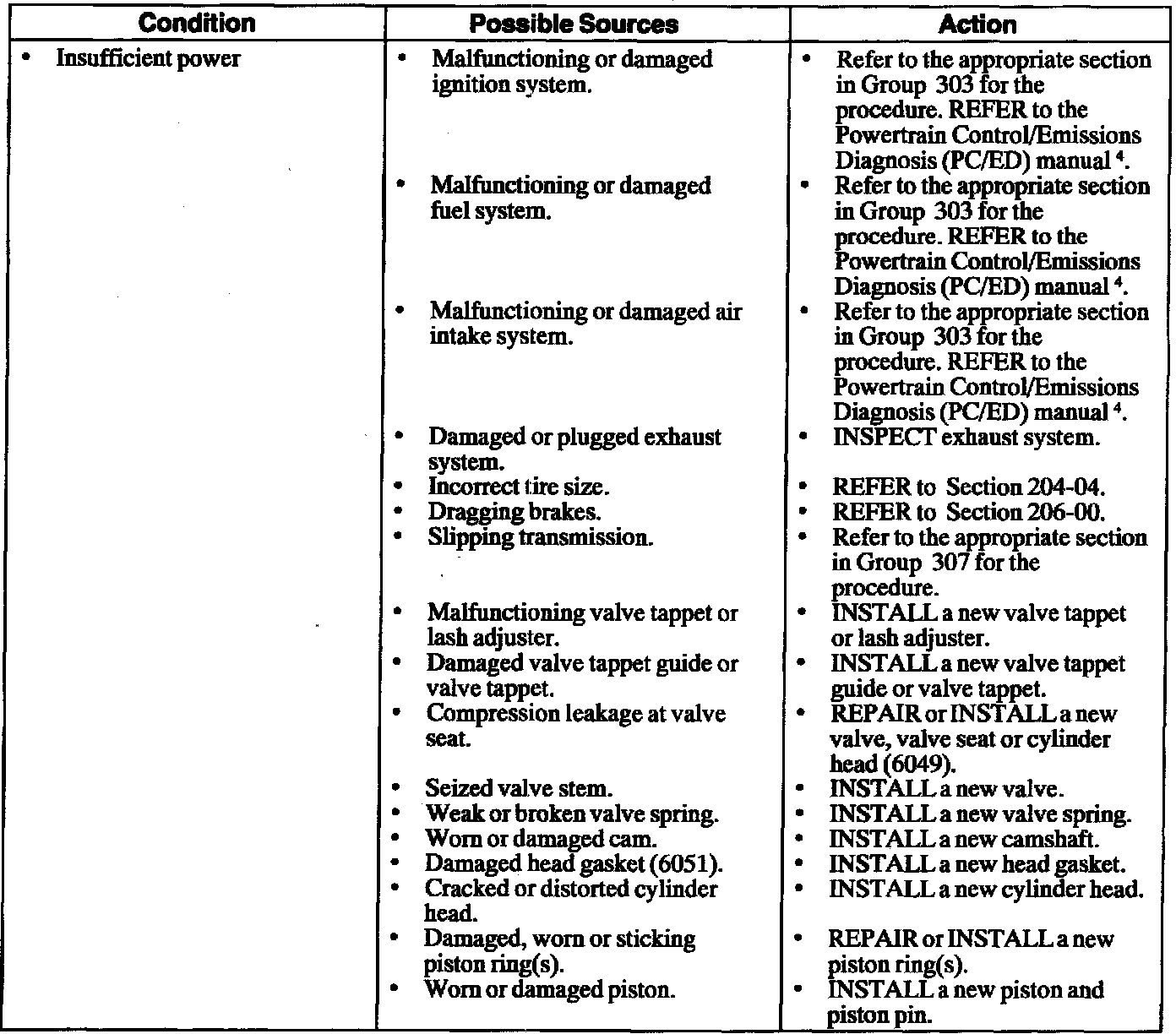

Part 3 of 4

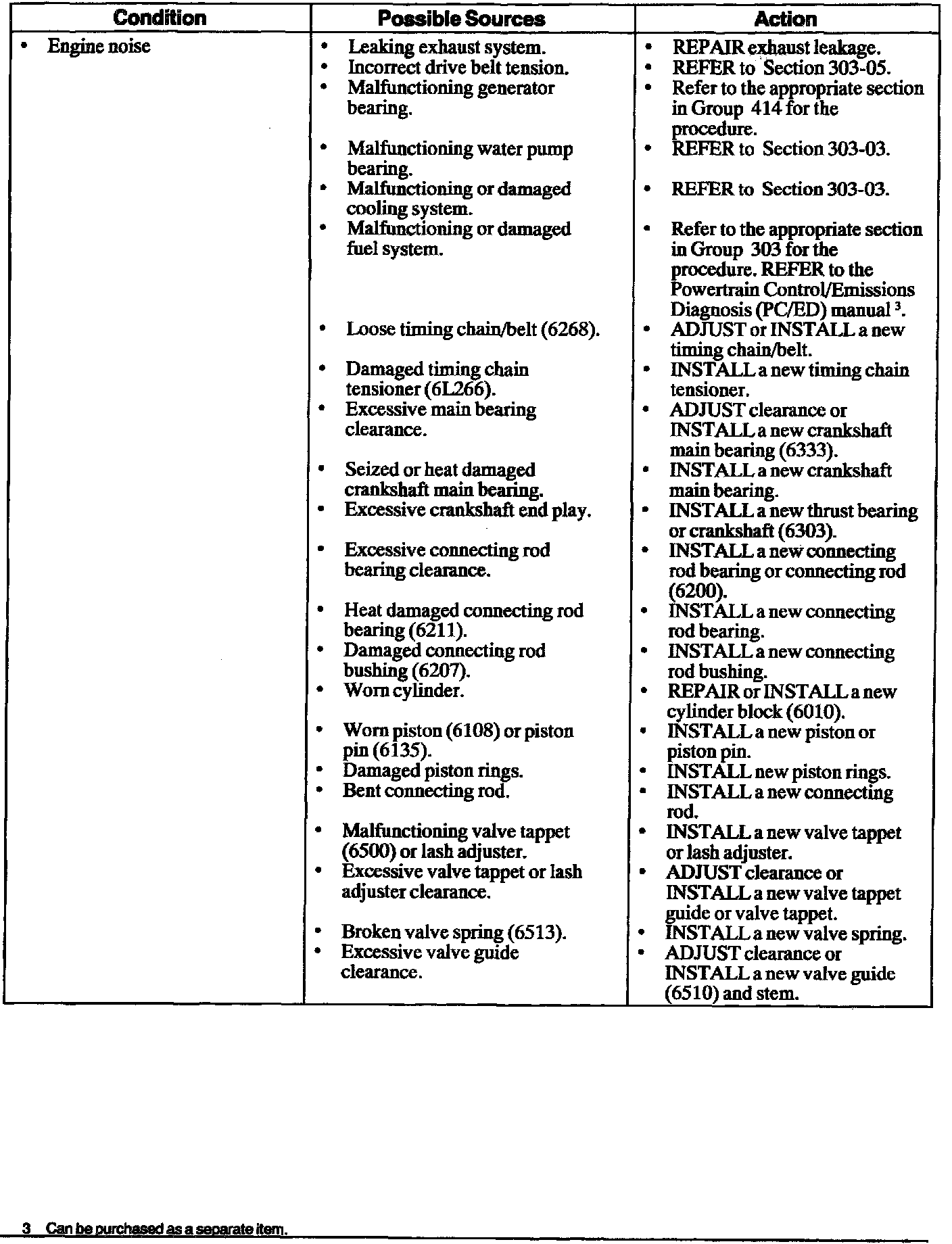

Part 4 of 4
