Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Locations >> View 151- 50 (Engine Compartment, Front, Center, Bottom)

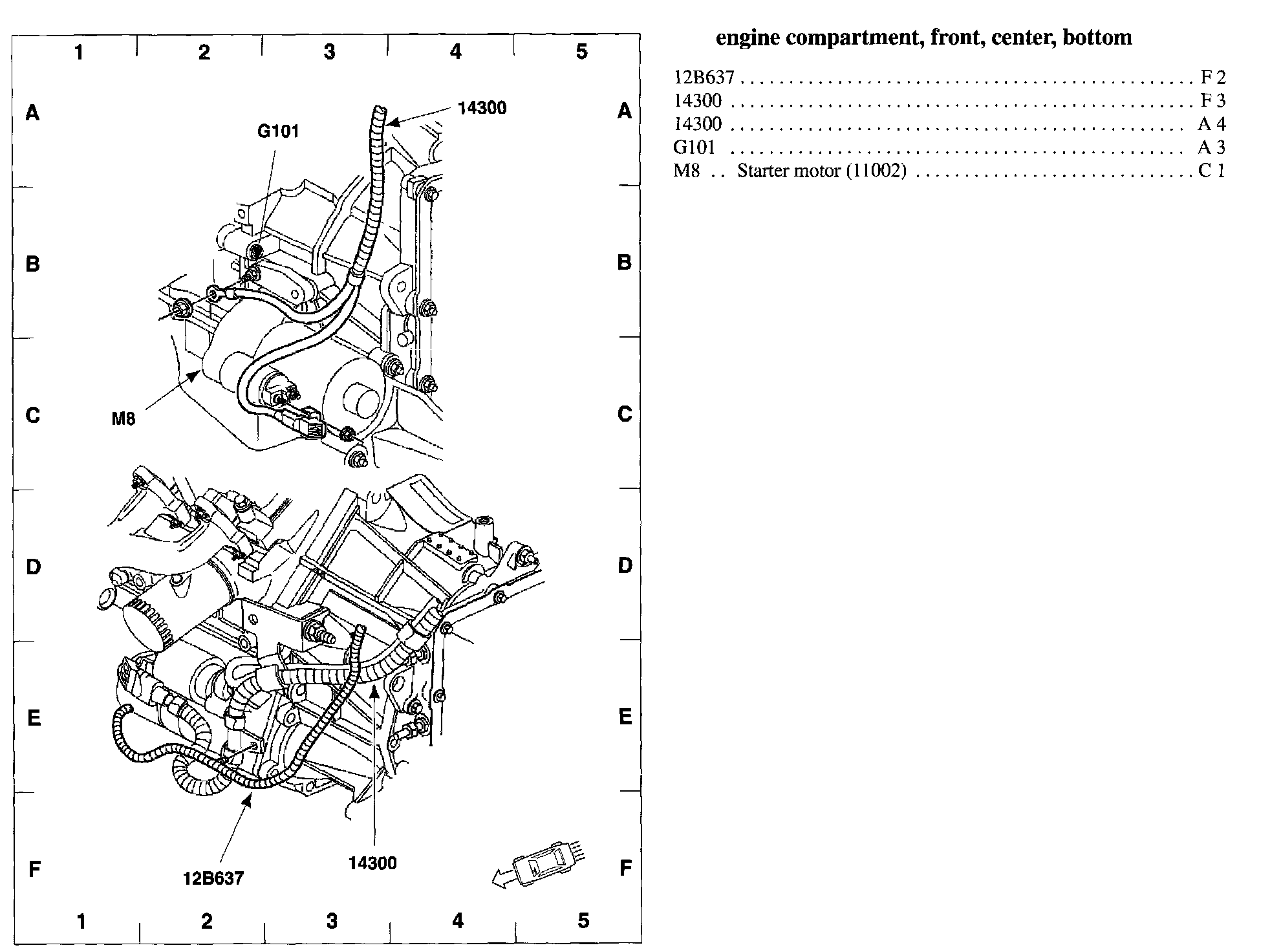

View 151- 50 (Engine Compartment, Front, Center, Bottom)

View 151-50:
