Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System

Ignition System

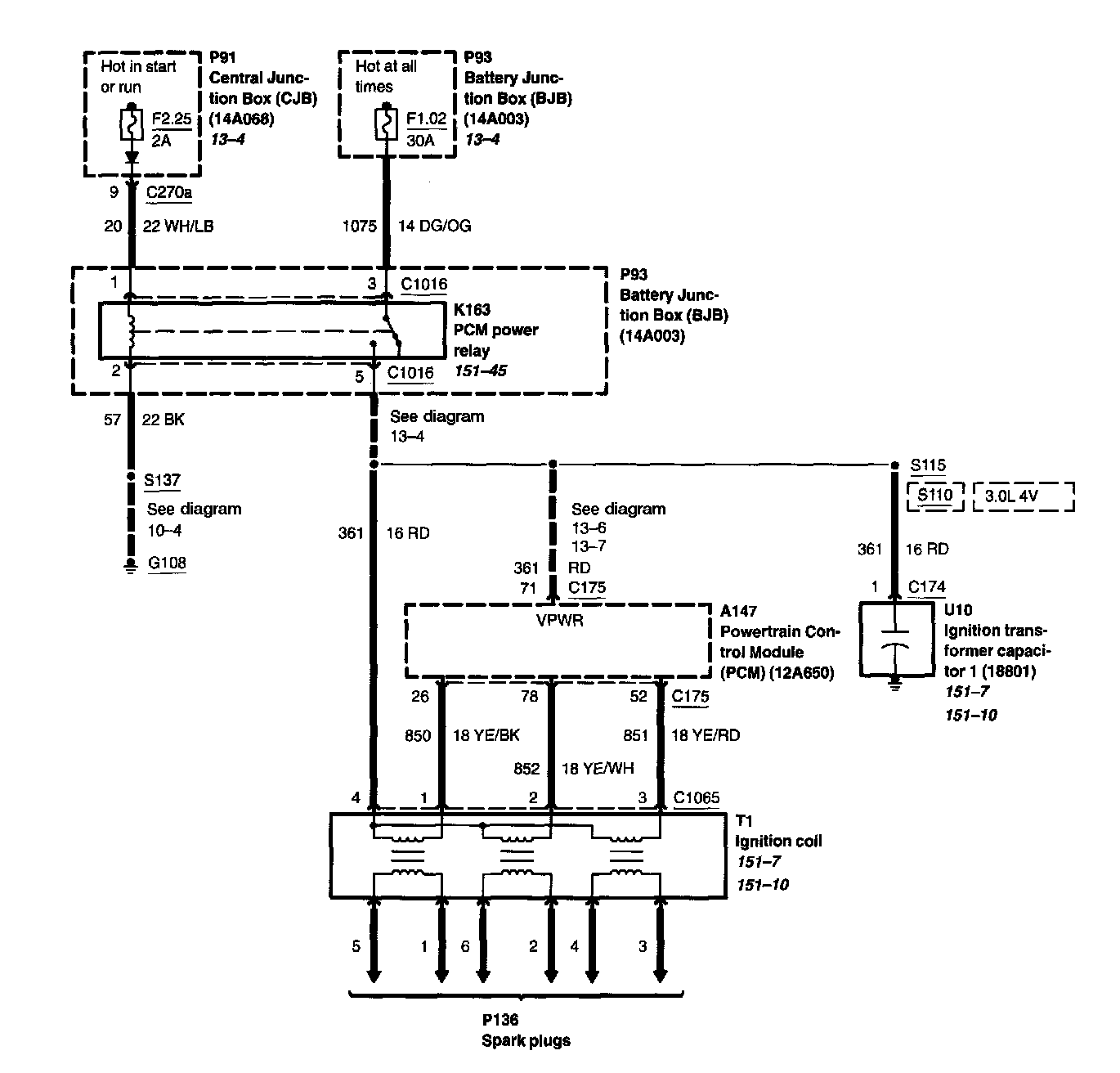

Diagram 21-1:

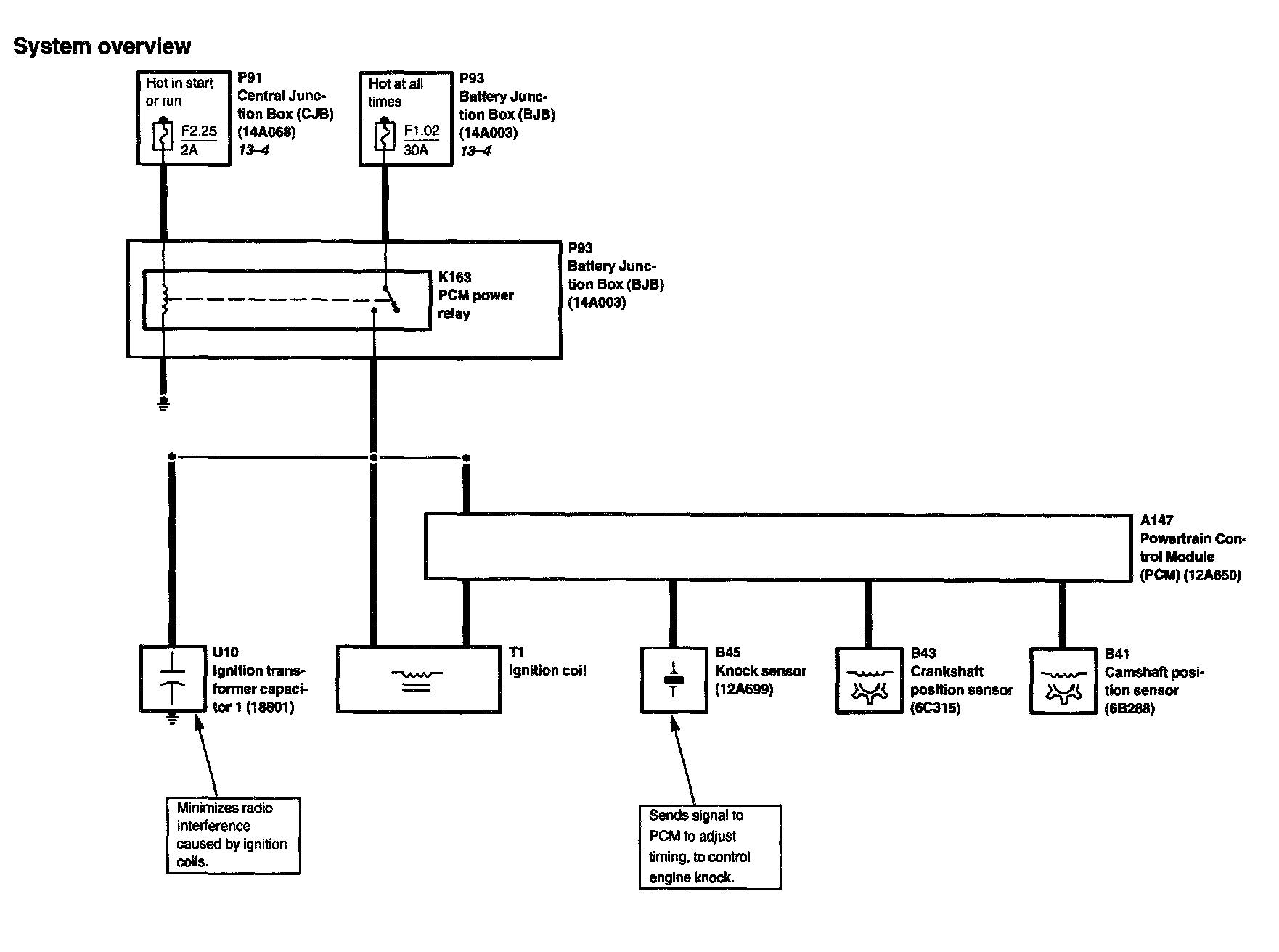

Diagram 21-2:






Diagram 21-3:
