Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> Sedan

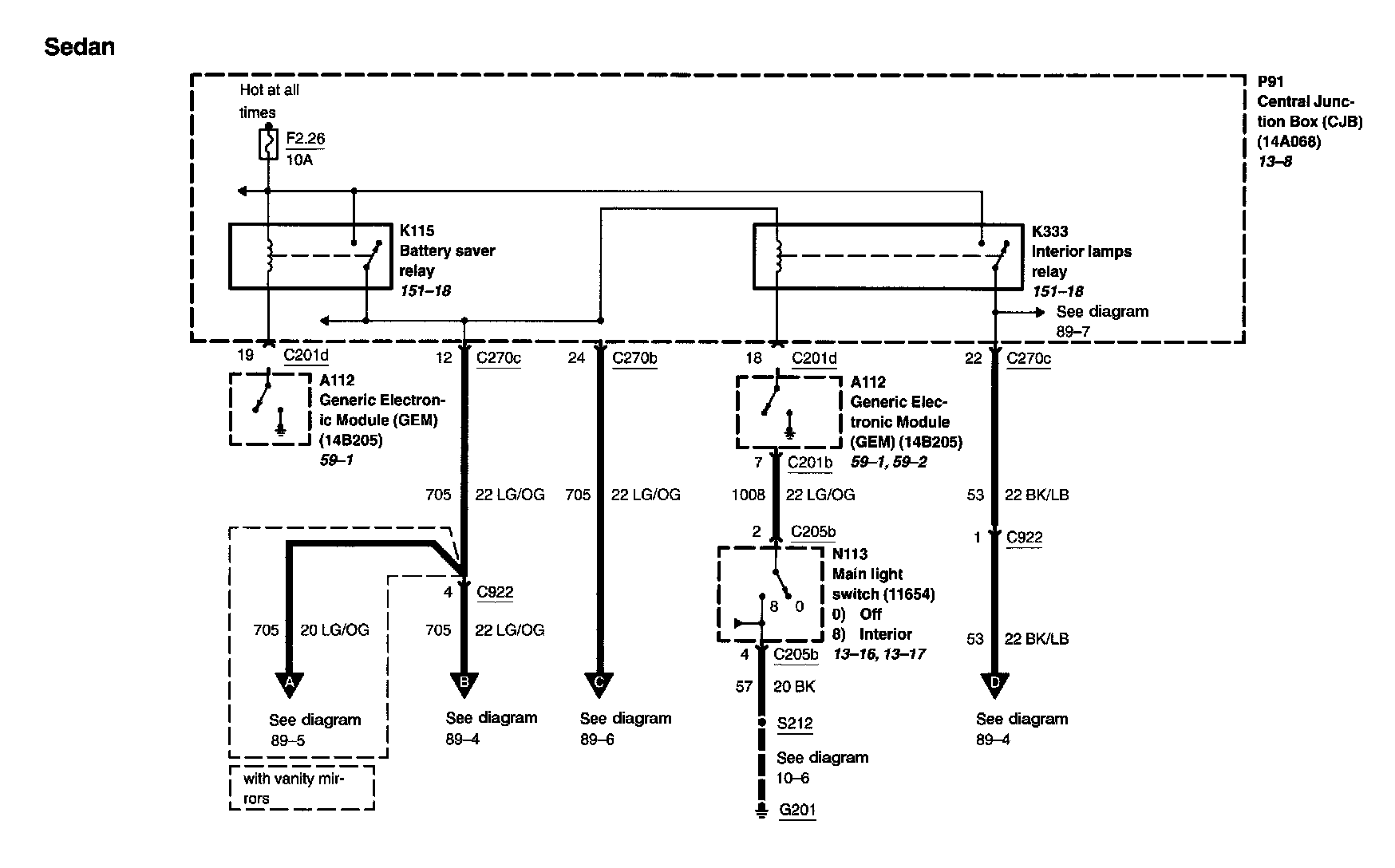

Sedan

Diagram 89-1:






Diagram 89-2:






Diagram 89-4:






Diagram 89-5:






Diagram 89-6:






Diagram 89-7:
