Instrument Cluster Diagrams

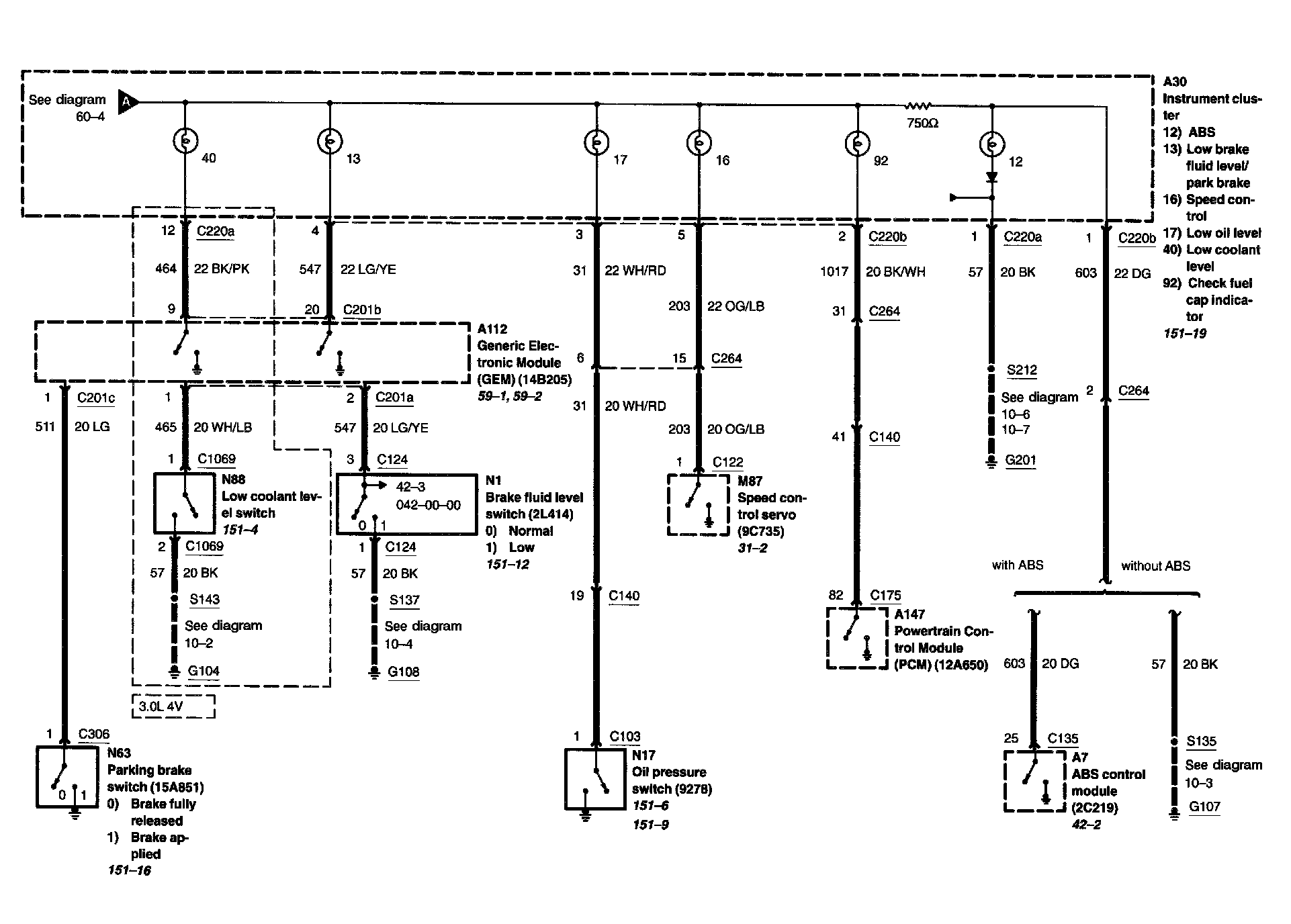

Diagram 60-1:

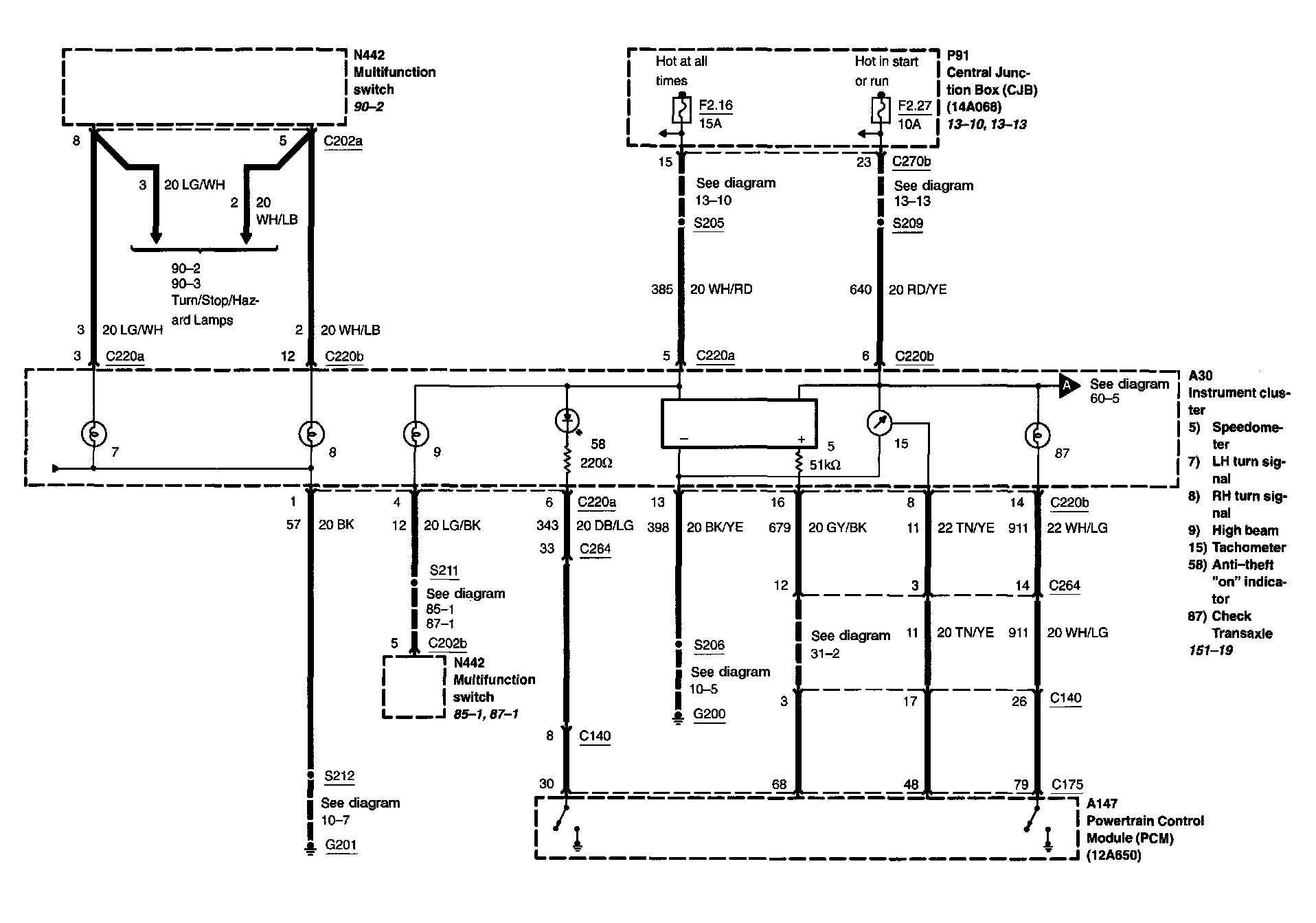

Diagram 60-2:

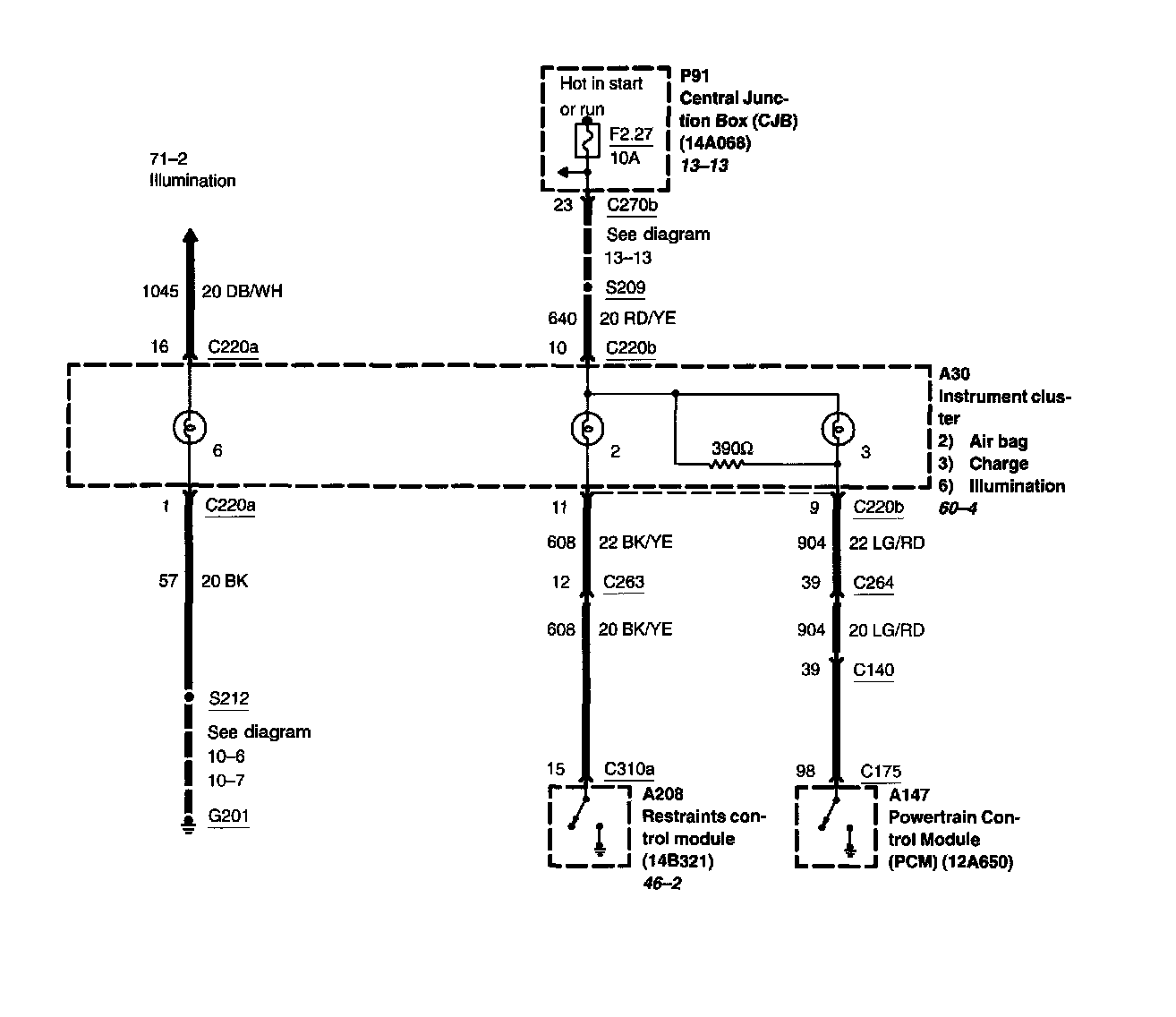

Diagram 60-4:

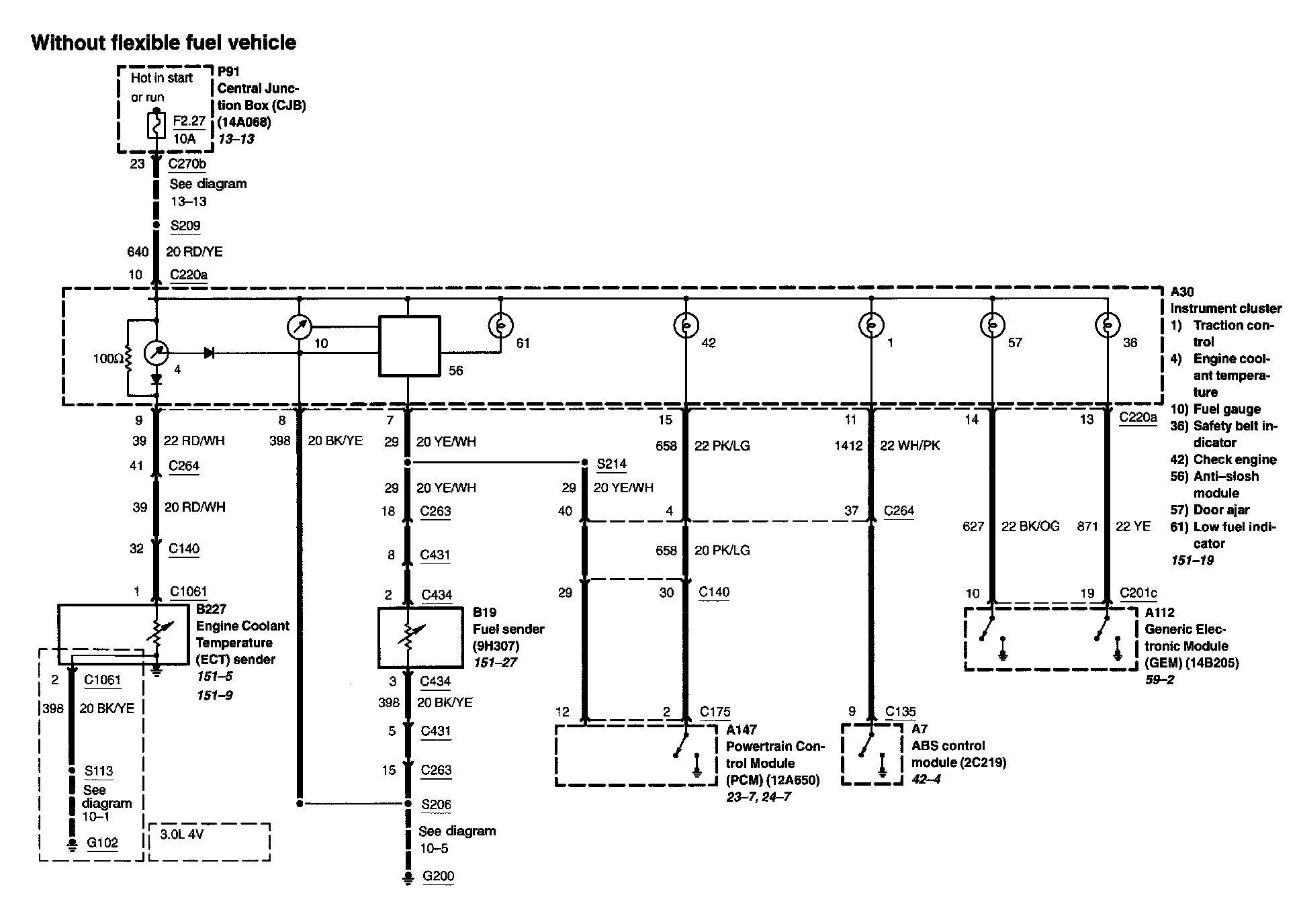

Diagram 60-5:






Diagram 60-6:
