Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cellular Phone

Cellular Phone

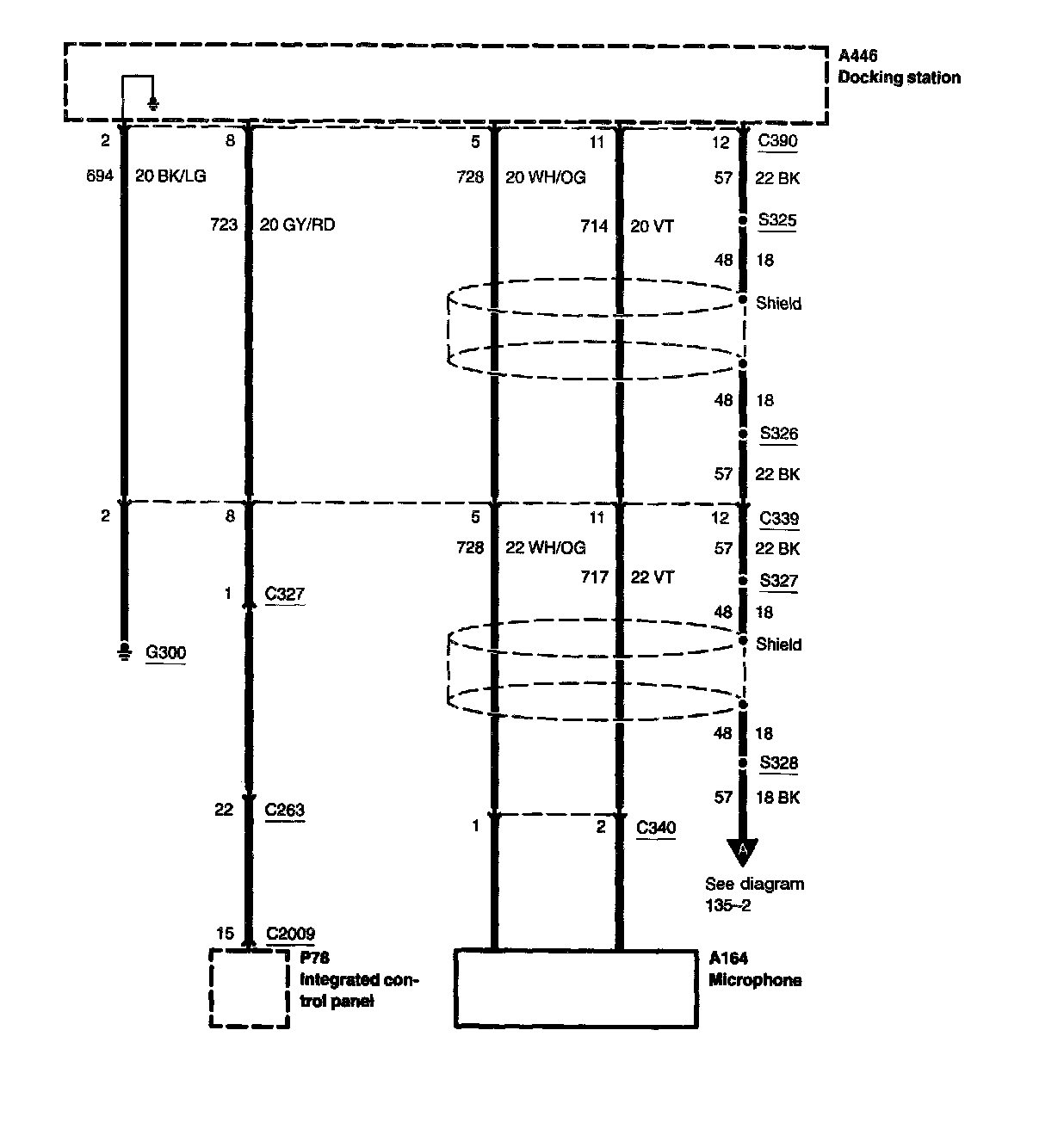

Diagram 135-1:

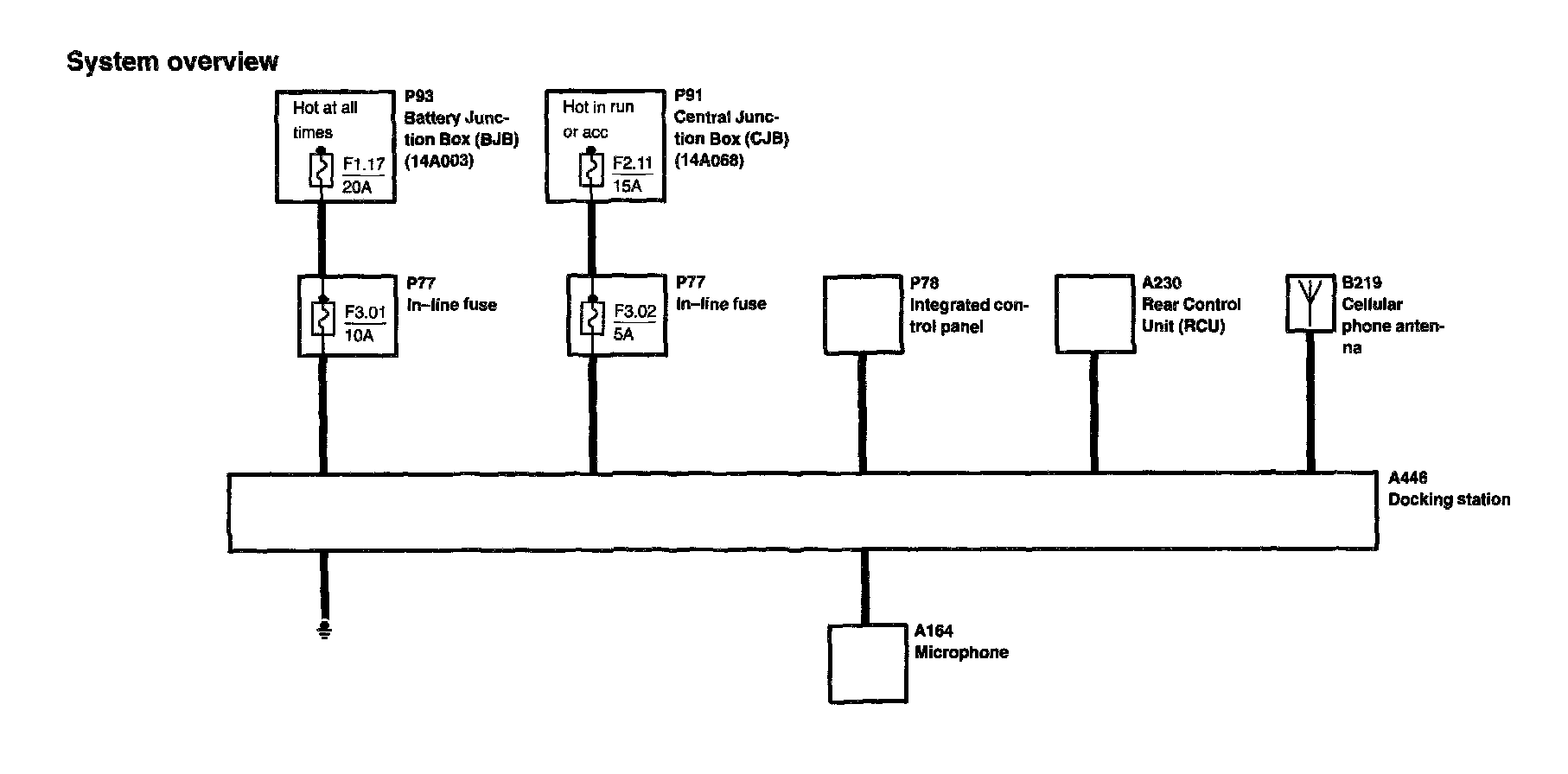

Diagram 135-2:

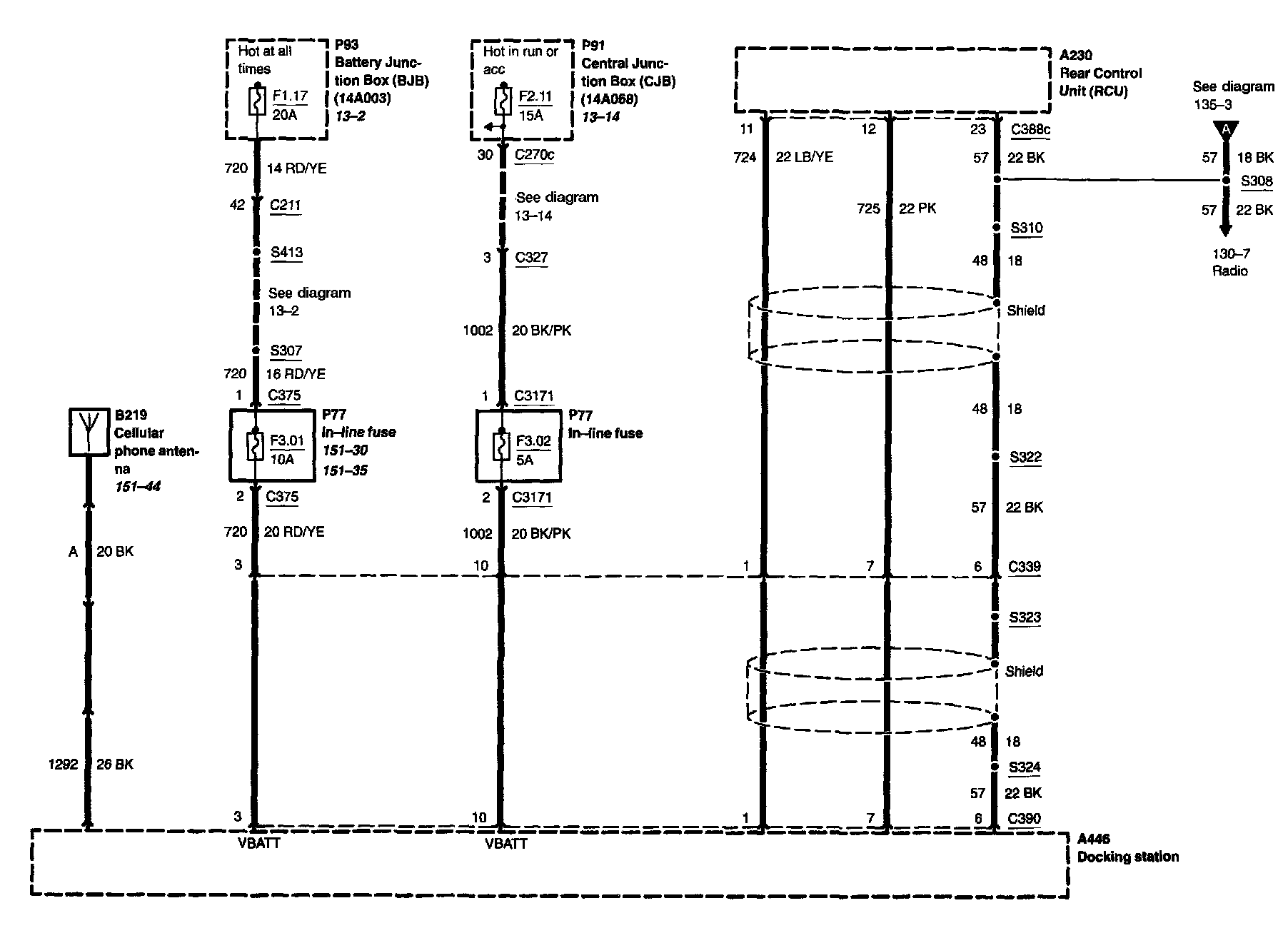

Diagram 135-3:
