Initial Inspection and Diagnostic Overview

Inspection and Verification
1. Verify the customer's concern by operating the parking brake system to duplicate the condition.

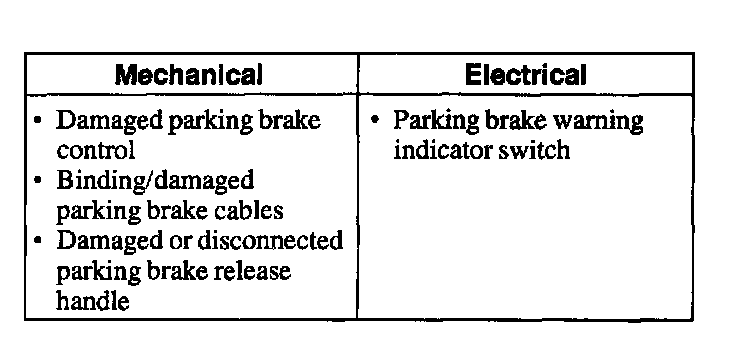

Visual Inspection Chart:

2. Inspect to determine if one of the following mechanical or electrical concerns applies.
3. If inspection reveals obvious concern(s) that can be readily identified, repair as necessary.
4. If the concerns remain after the inspection, go to the Symptom Chart. Symptom Related Diagnostic Procedures
