Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> J

J

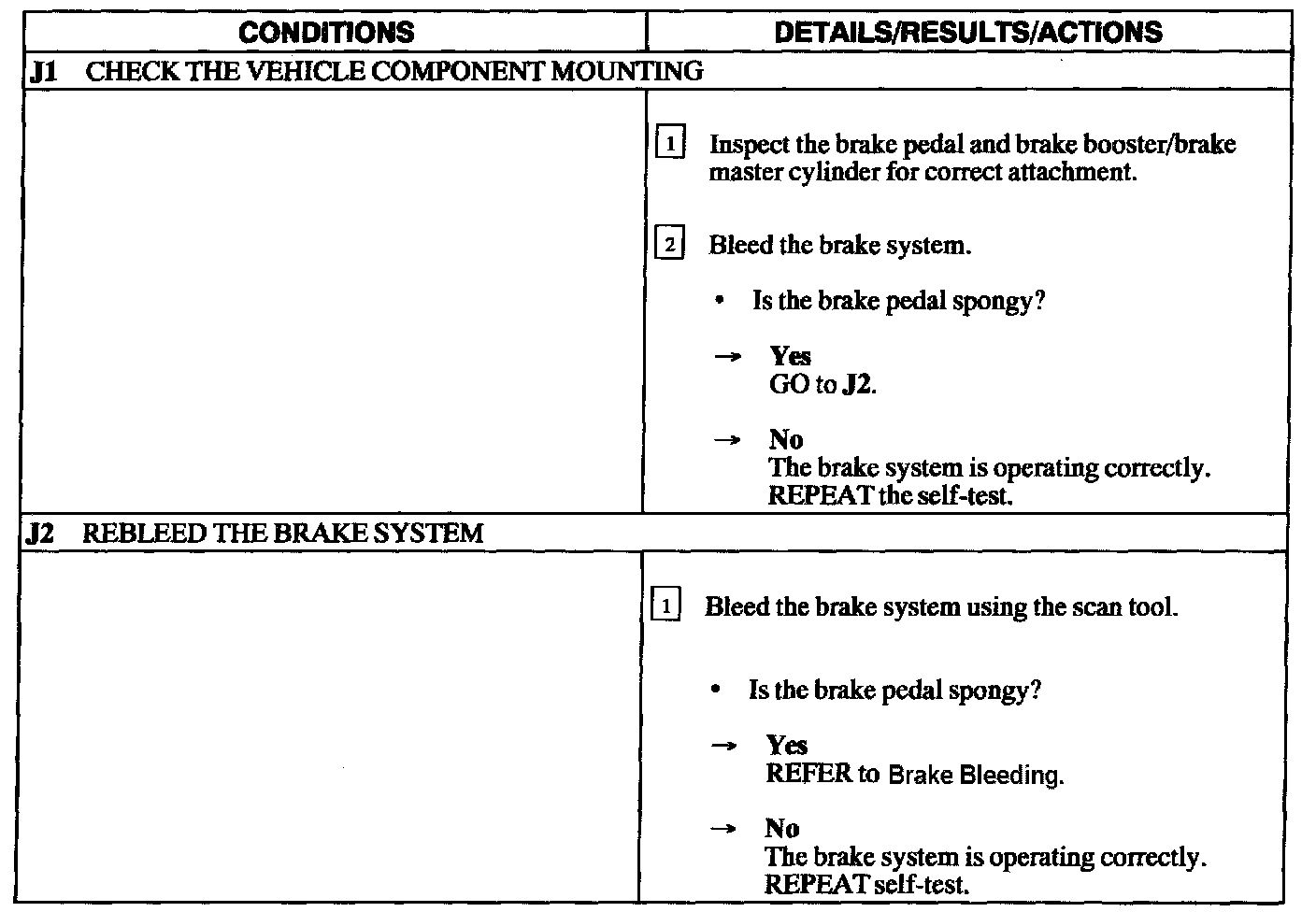

PINPOINT TEST J: SPONGY BRAKE PEDAL WITH NO WARNING INDICATOR


Test J1-J2:
