Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> C

C

PINPOINT TEST C: DTC B1318, BATTERY VOLTAGE LOW

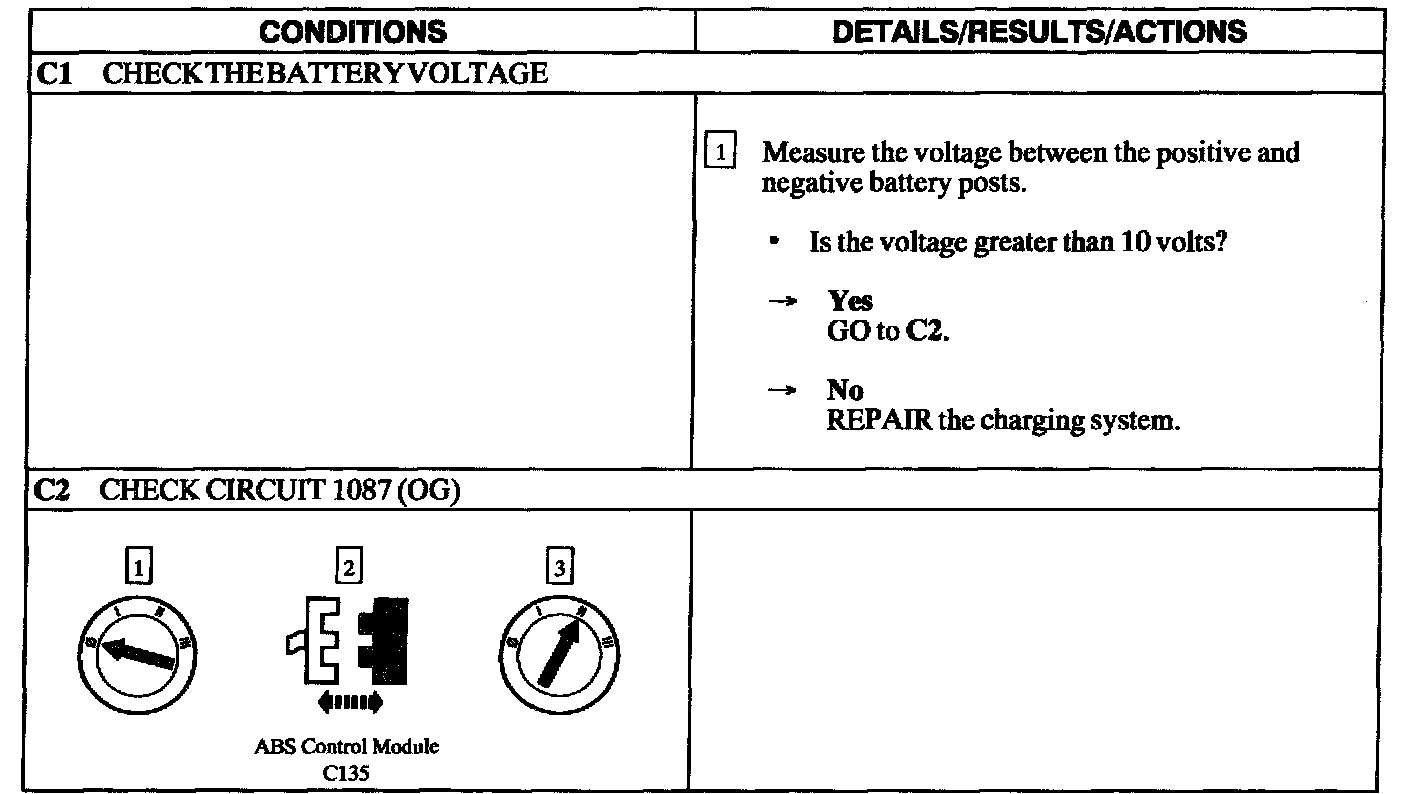

Test C1-C2:

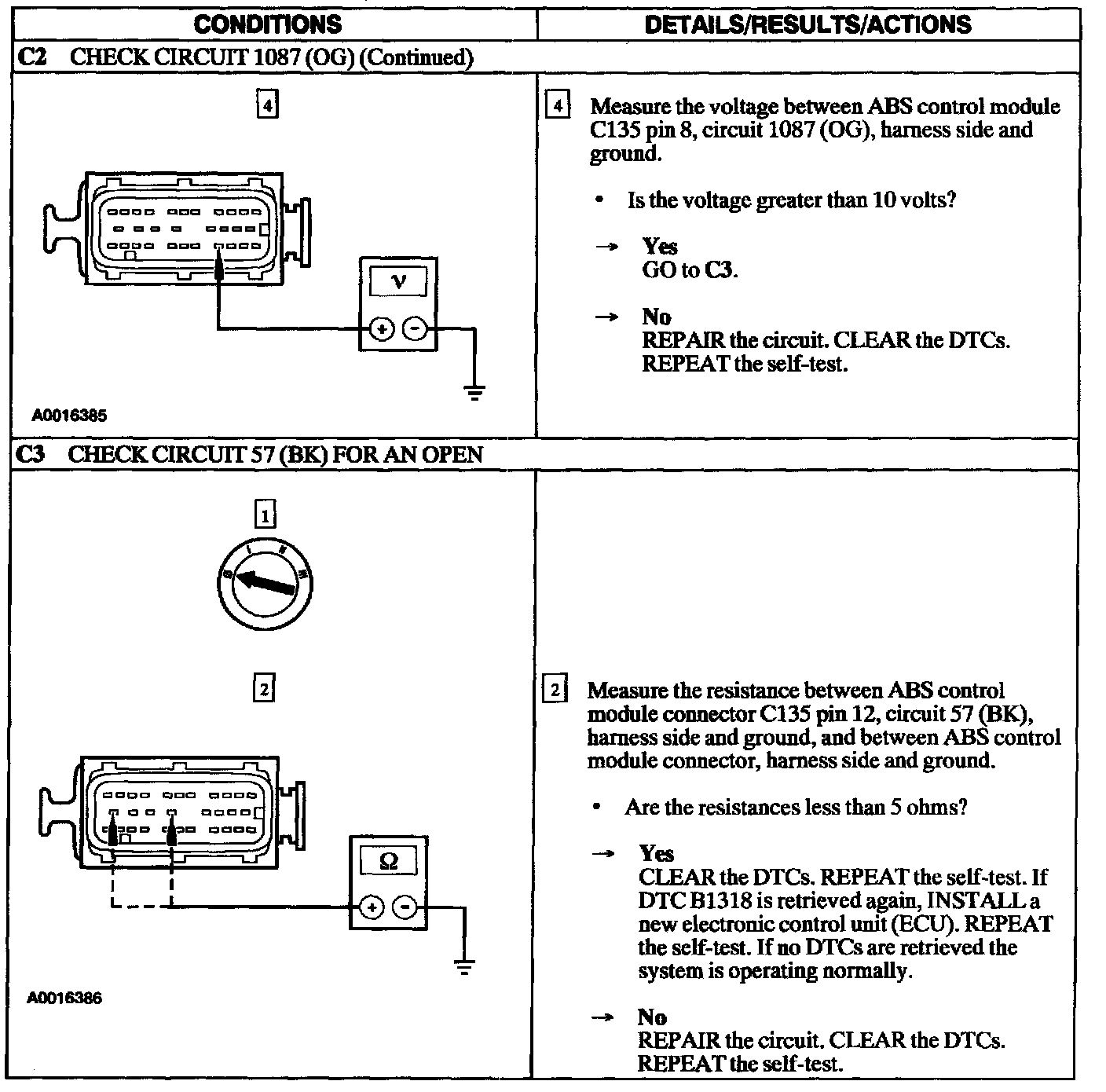

Test C2-C3:
