Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test G: Power Seat Does Not Move Horizontally - Passengers Seat

Test G: Power Seat Does Not Move Horizontally - Passengers Seat

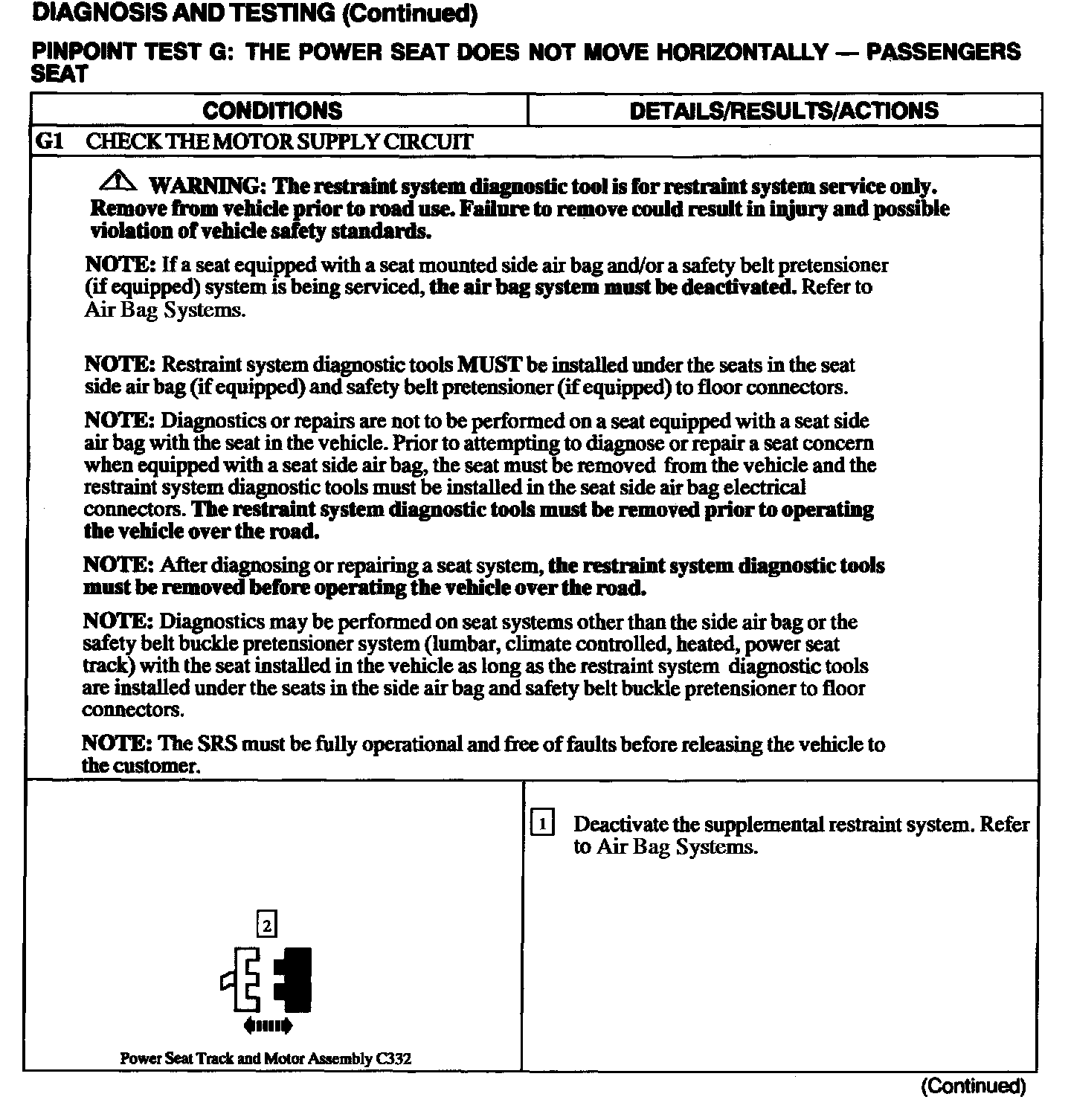

G1:

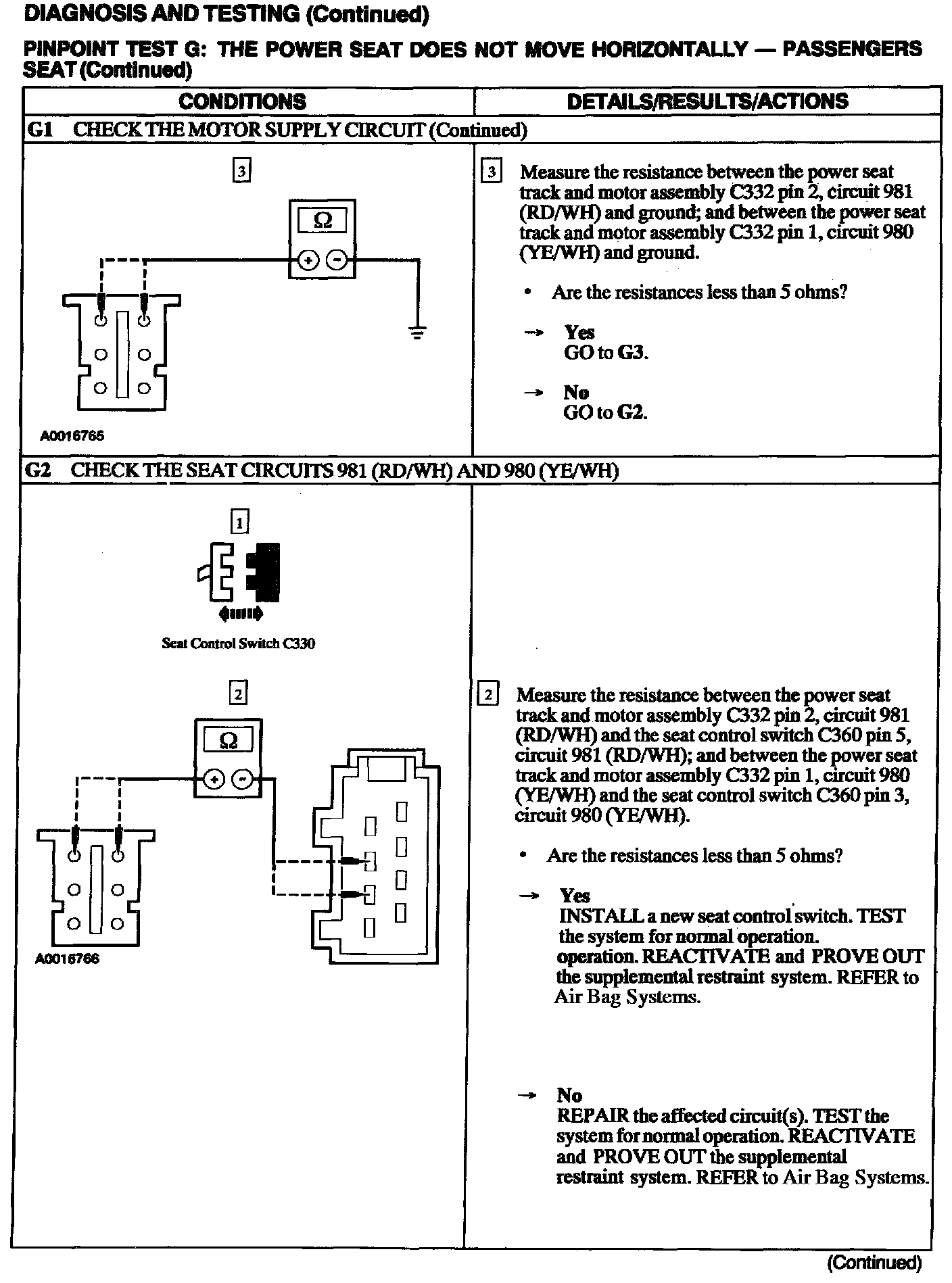

G1 - G2:

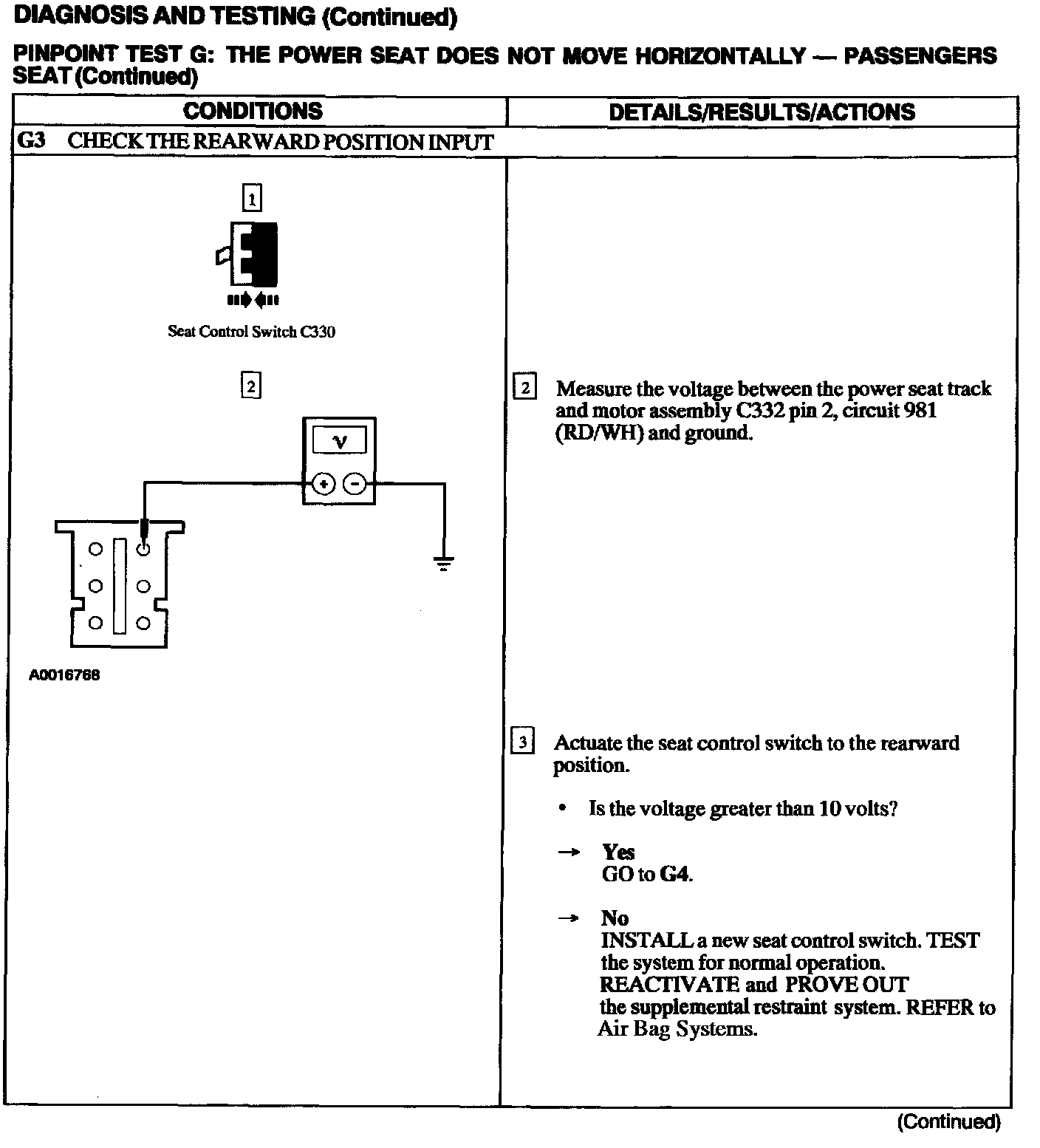

G3:

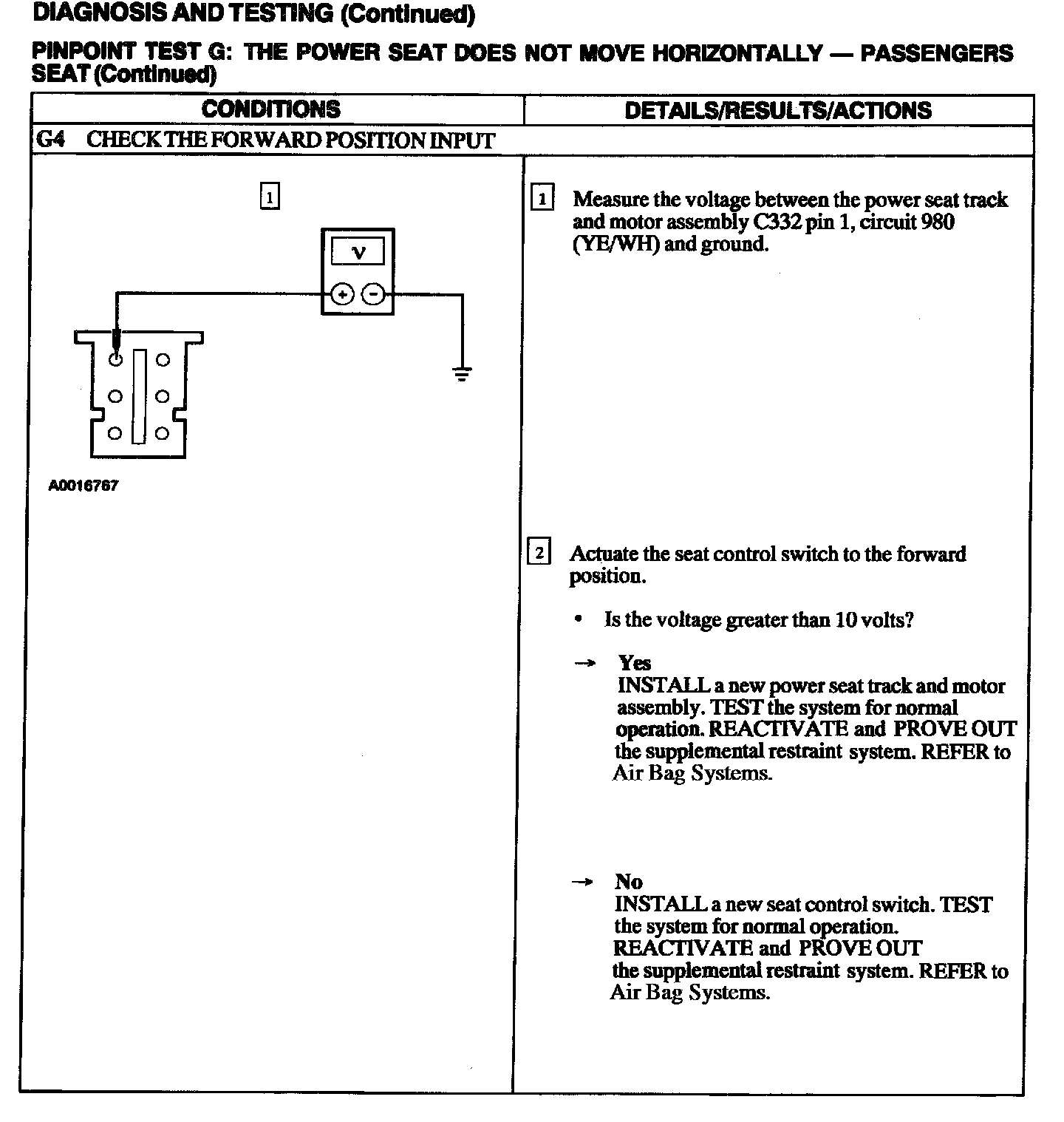

G4:
