Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Trunk / Liftgate Relay >> Locations >> Liftgate Unlock Relay

Liftgate Unlock Relay

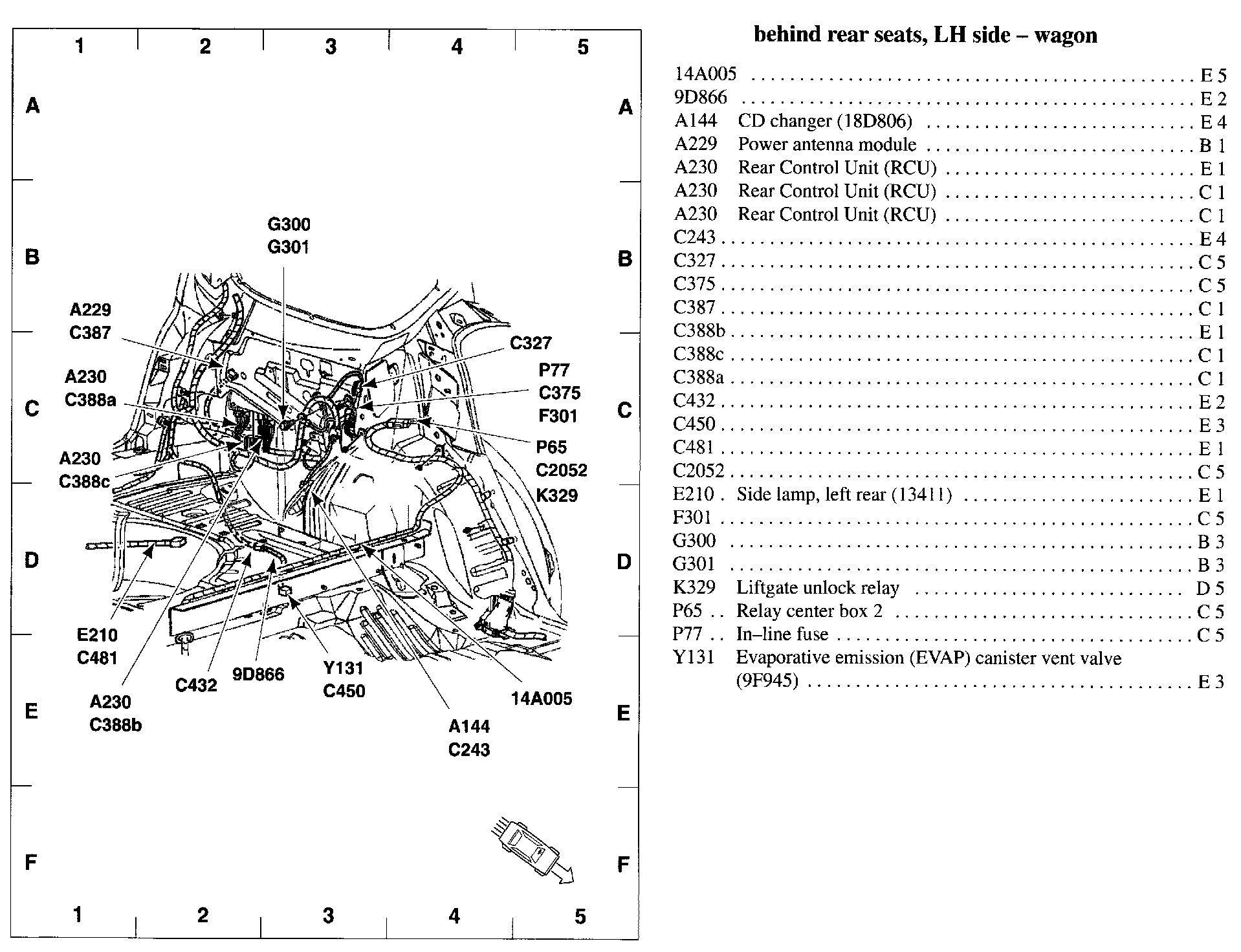

View 151-30:

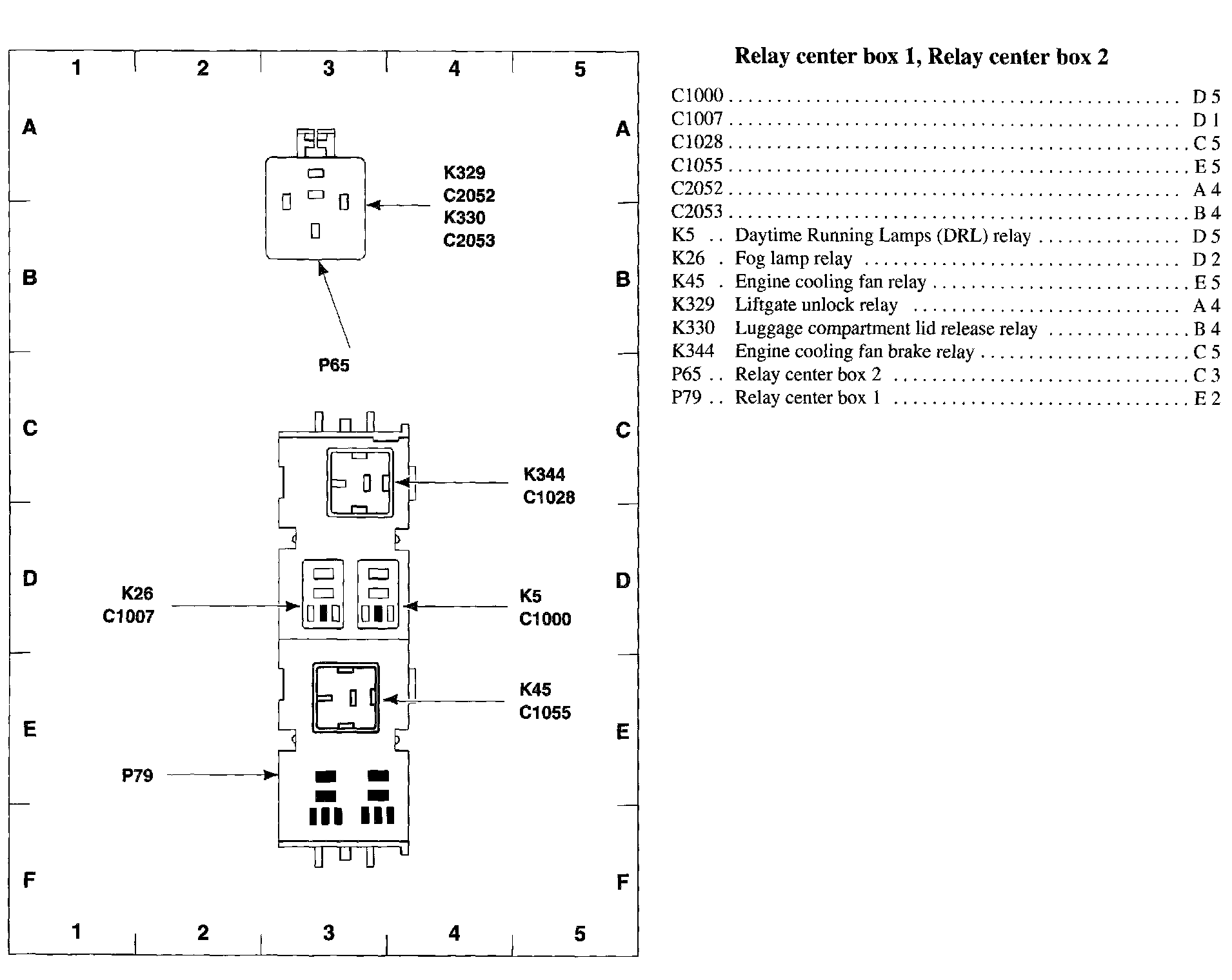

View 151-49:
