Test D: Luggage Compartment Lid Is Inoperative - From Release Switch (If Equipped With Remote Keyless Entry)

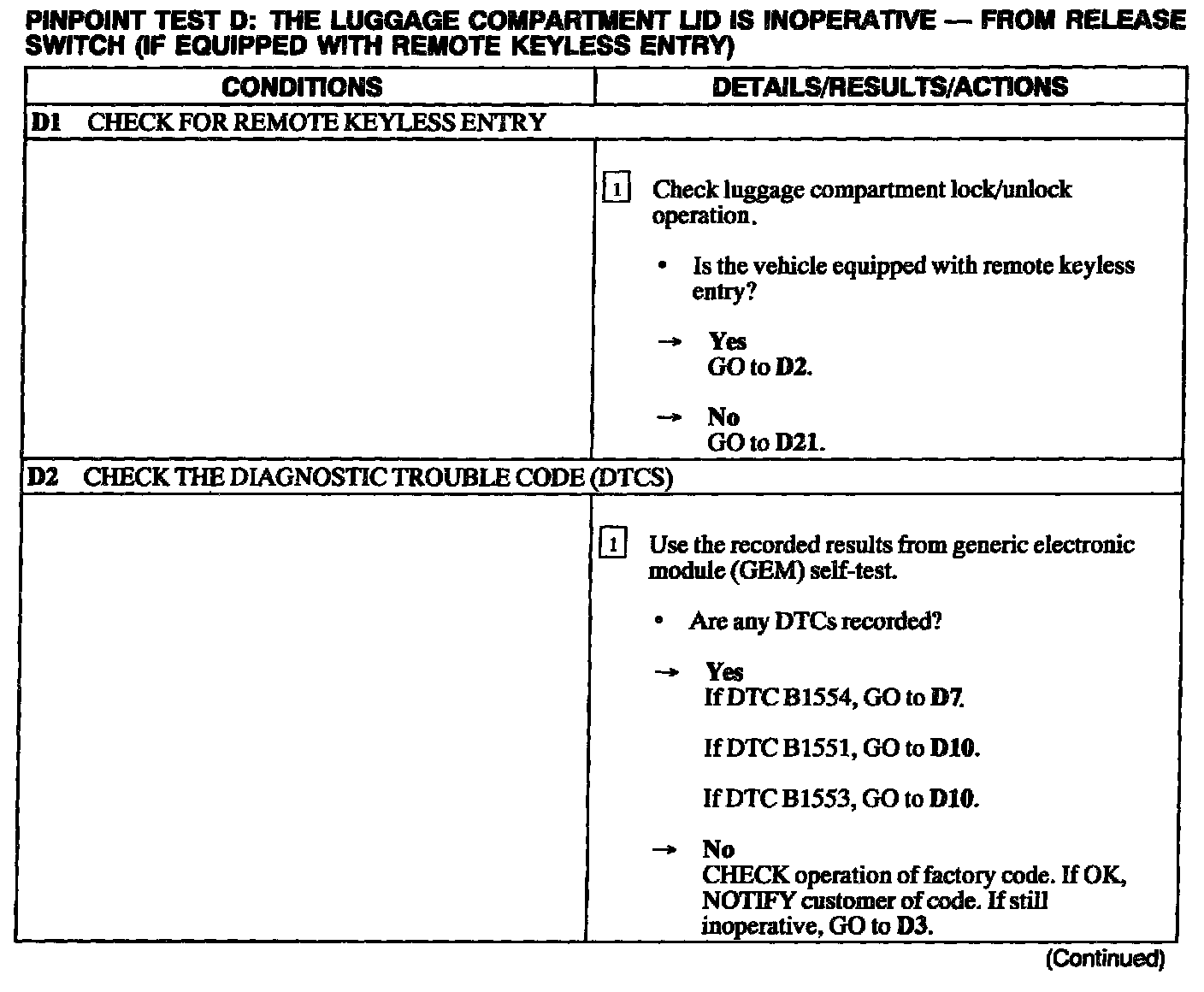

D1 - D2:

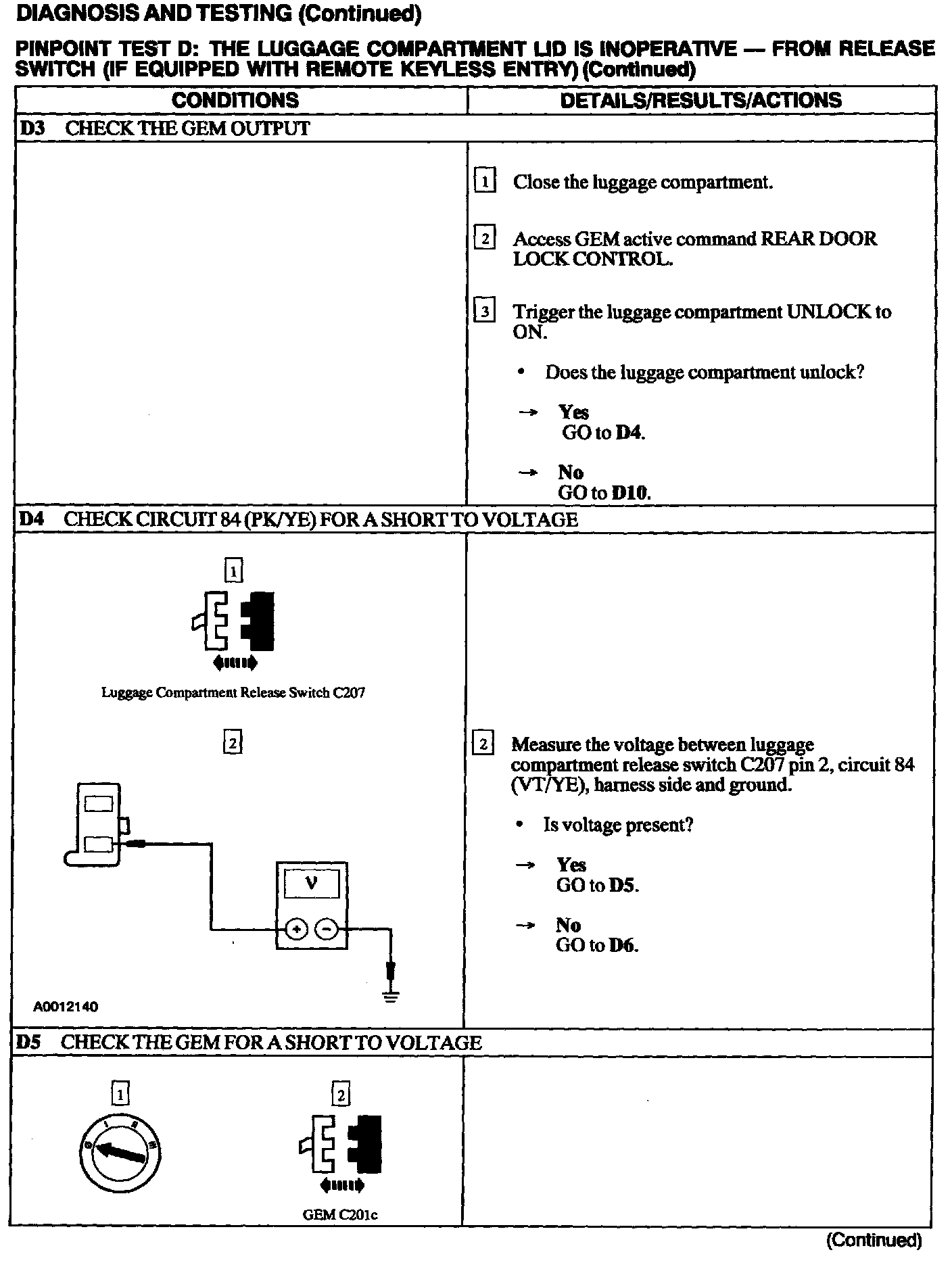

D3 - D5:

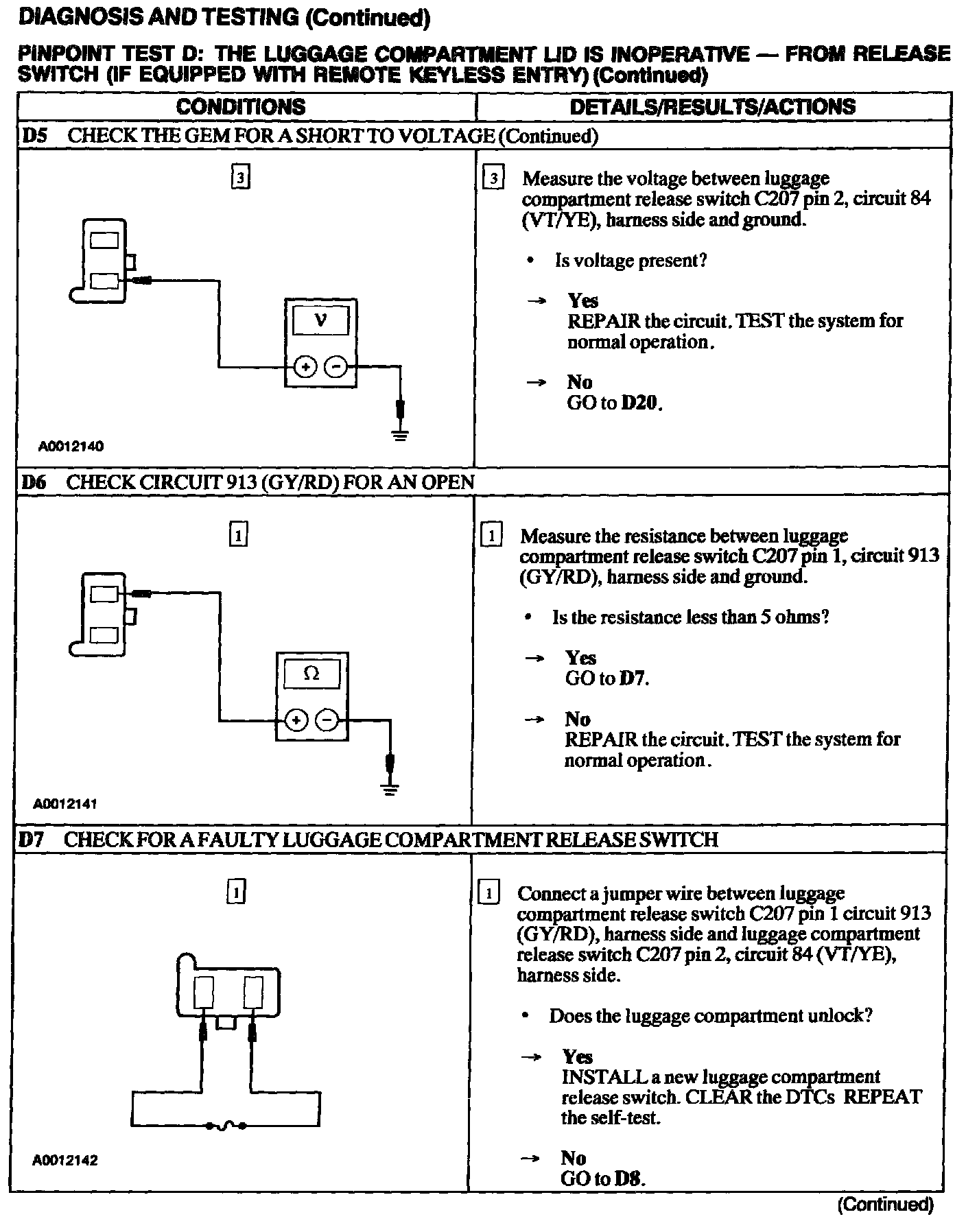

D5 - D7:

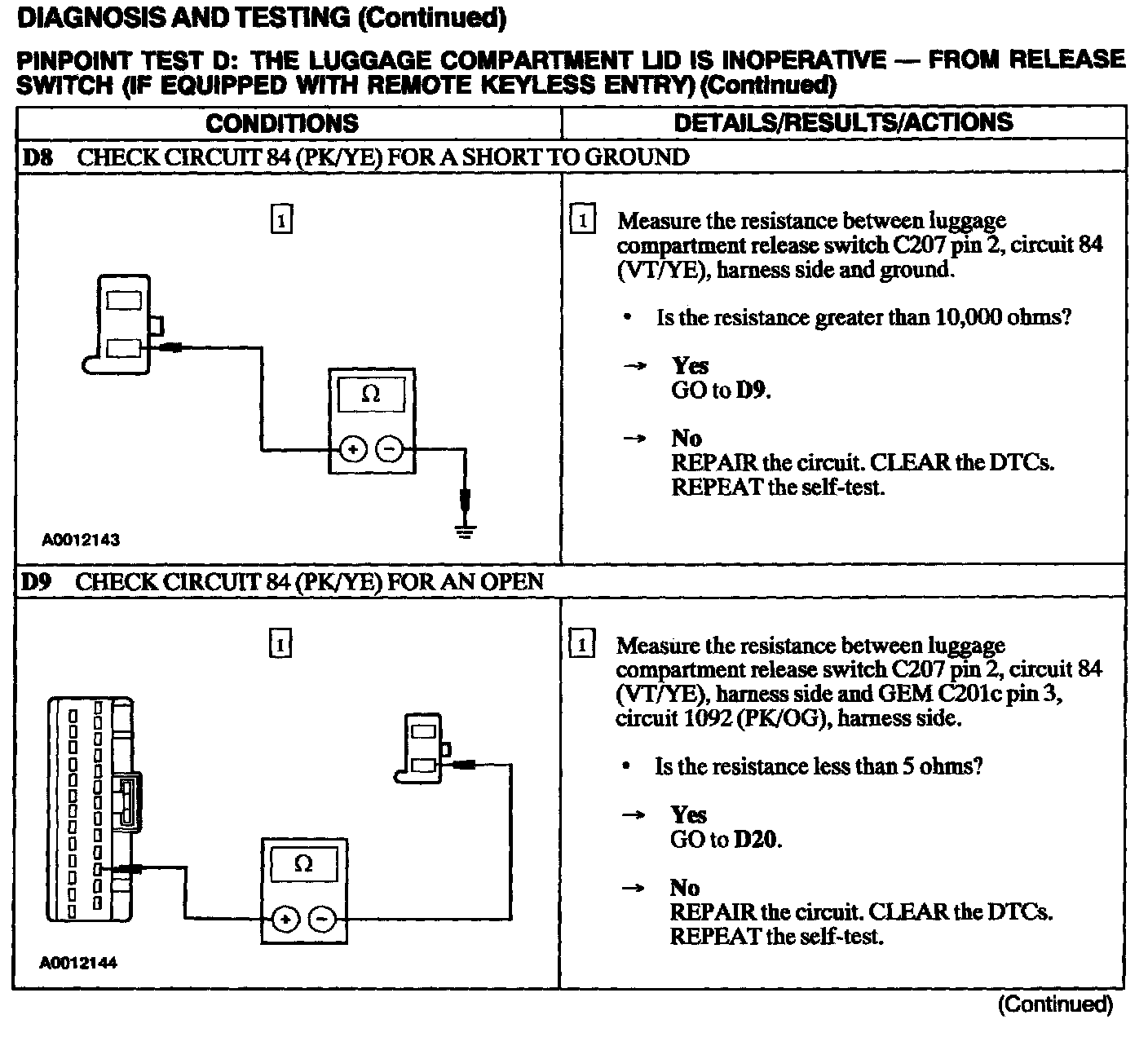

D8 - D9:

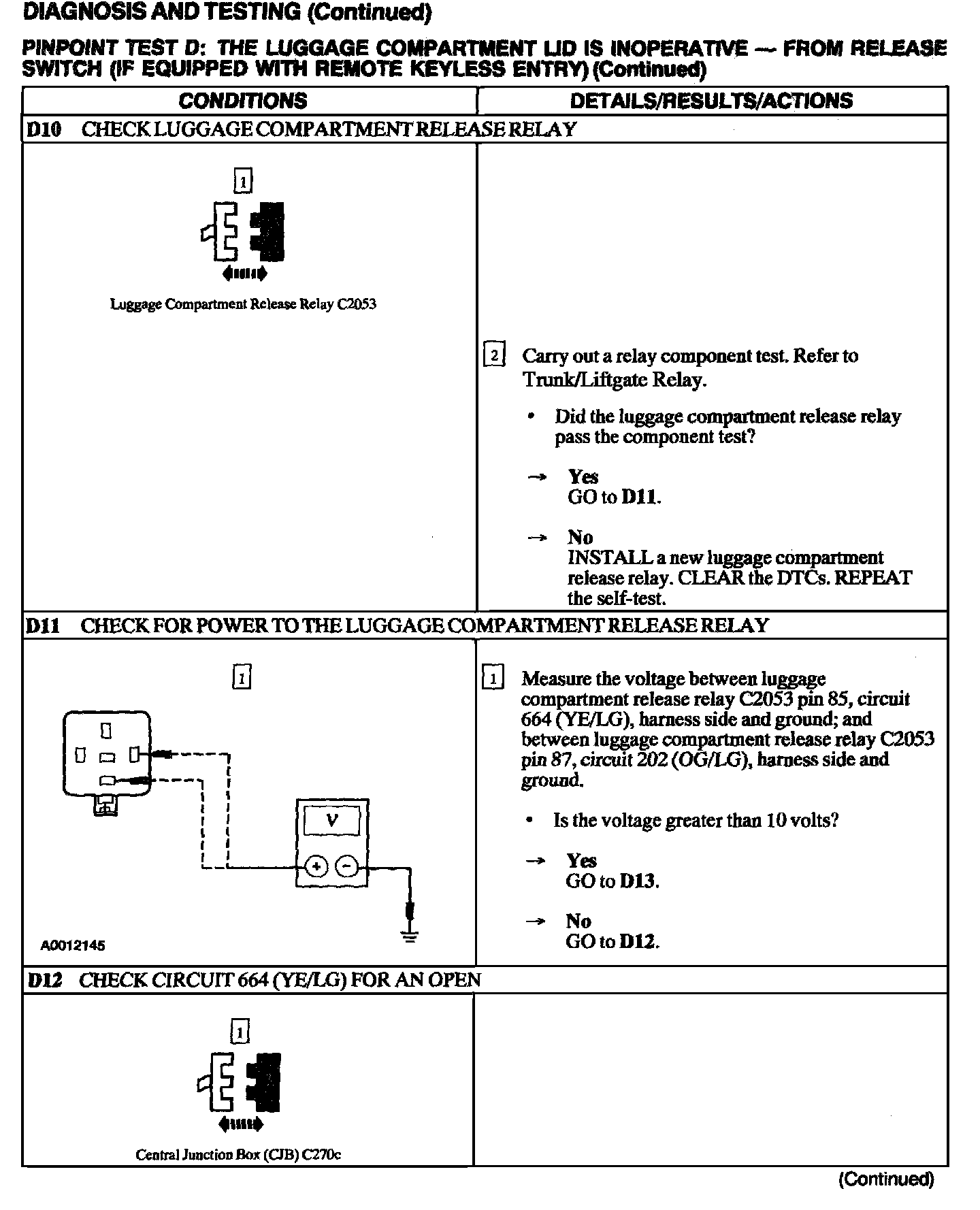

D10 - D12:

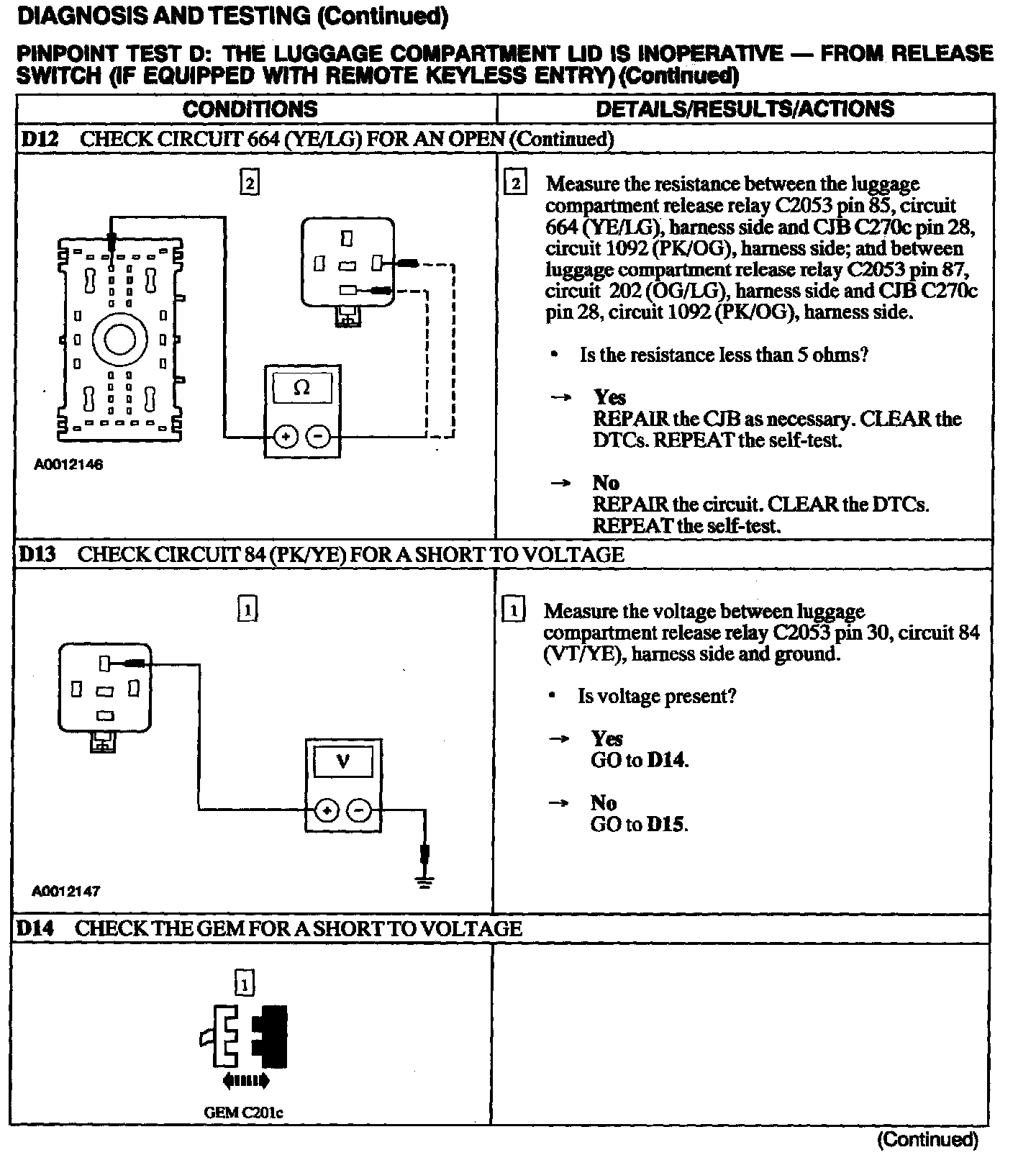

D12 - D14:

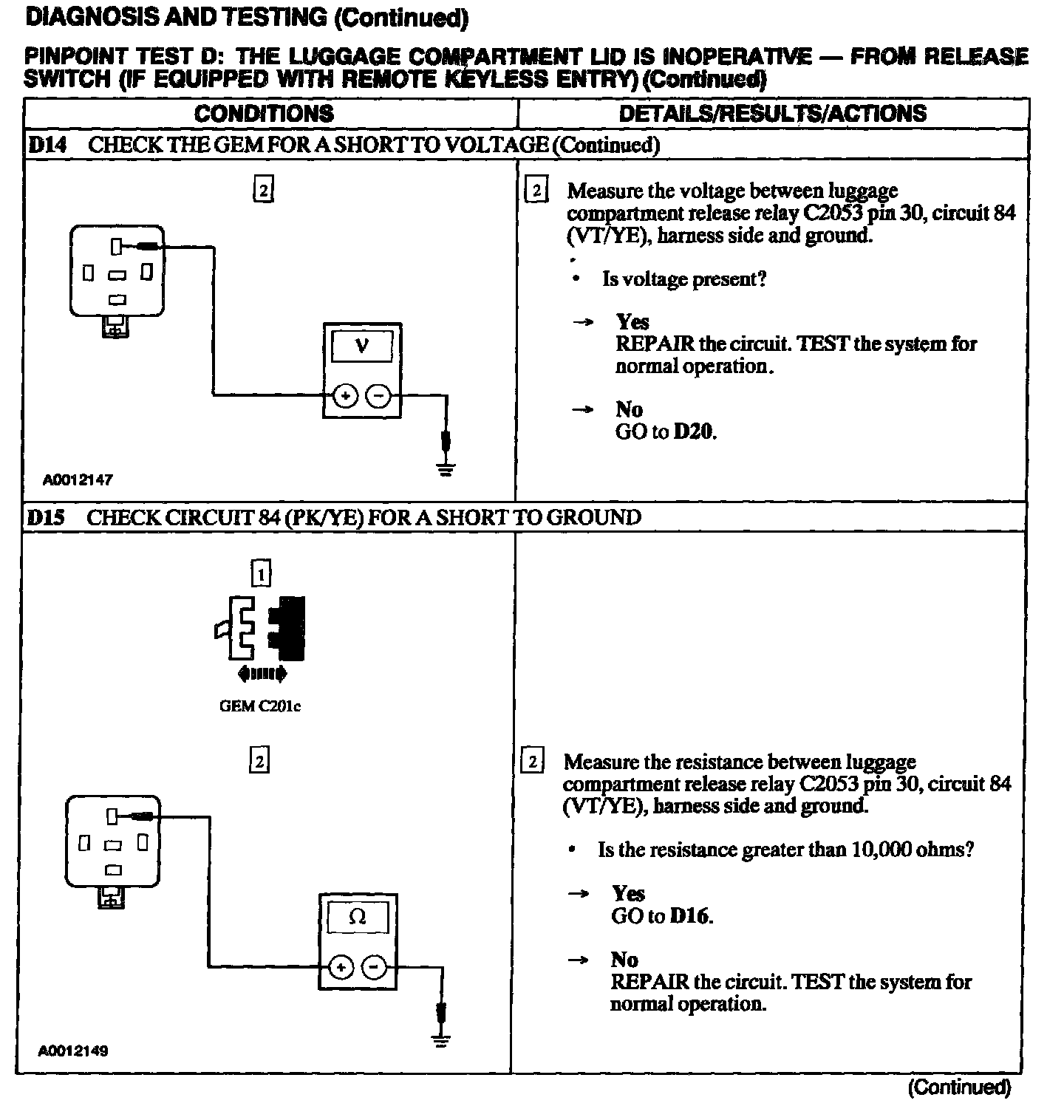

D14 - D15:

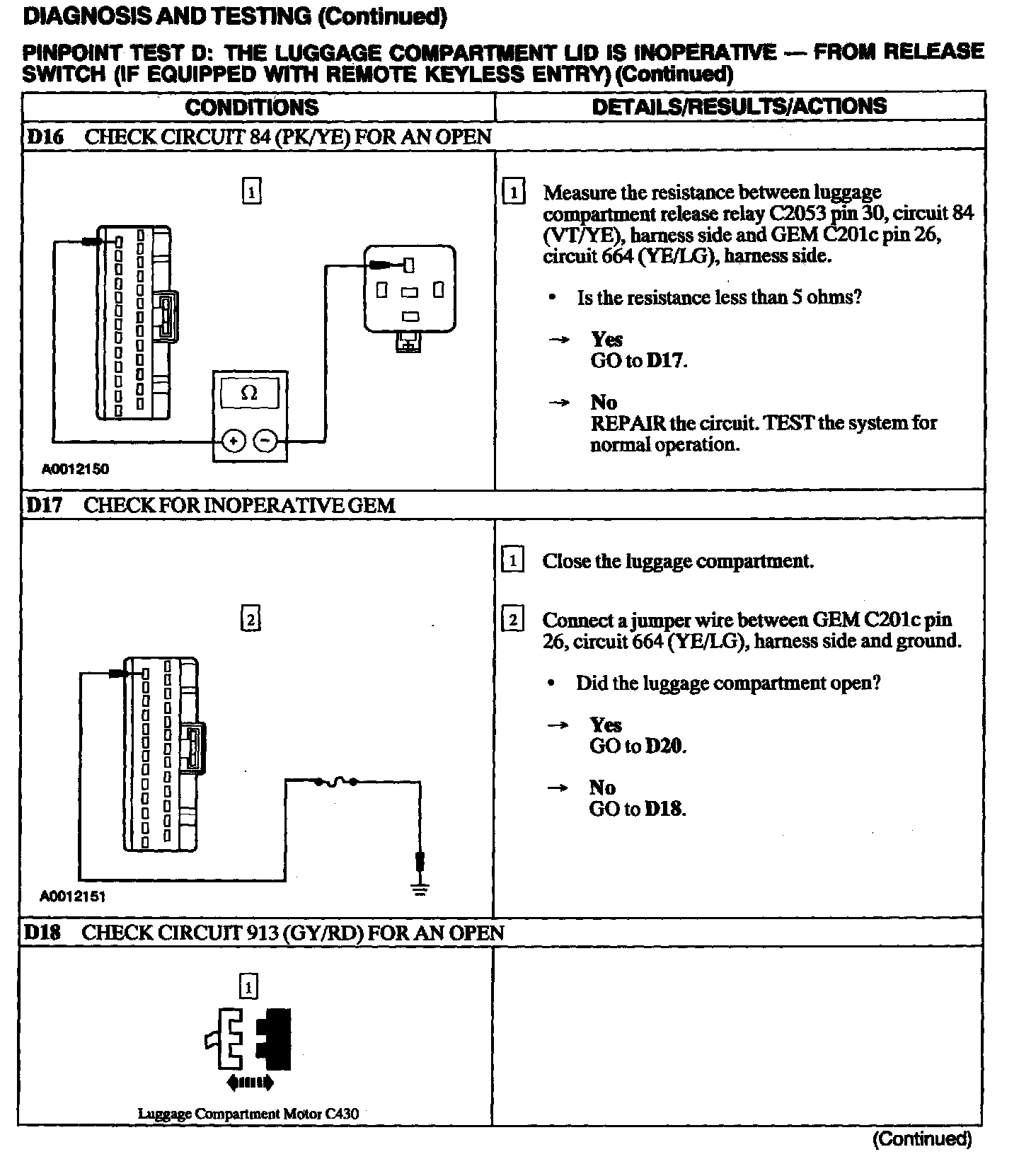

D16 - D18:

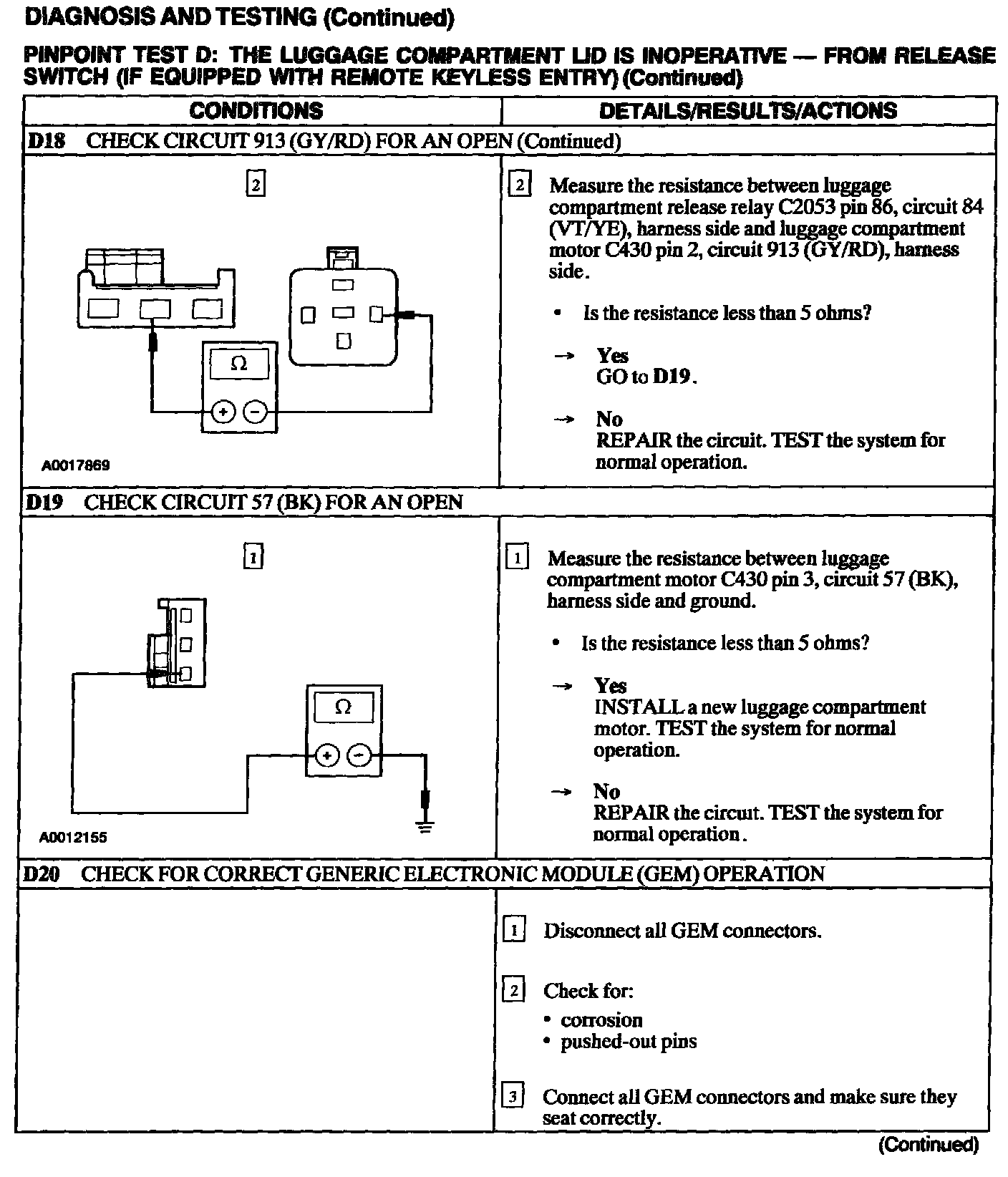

D18 - D20:

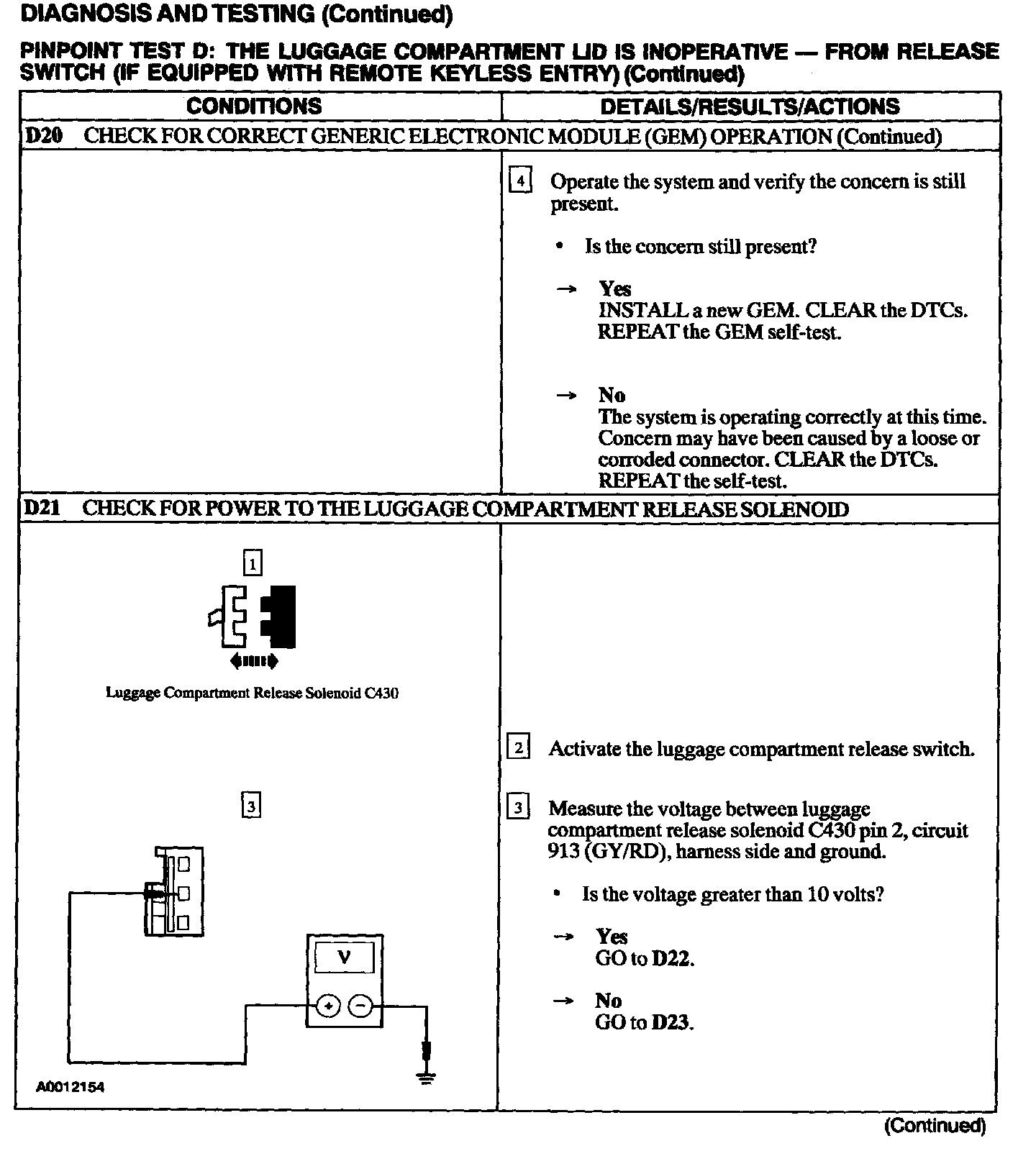

D20 - D21:

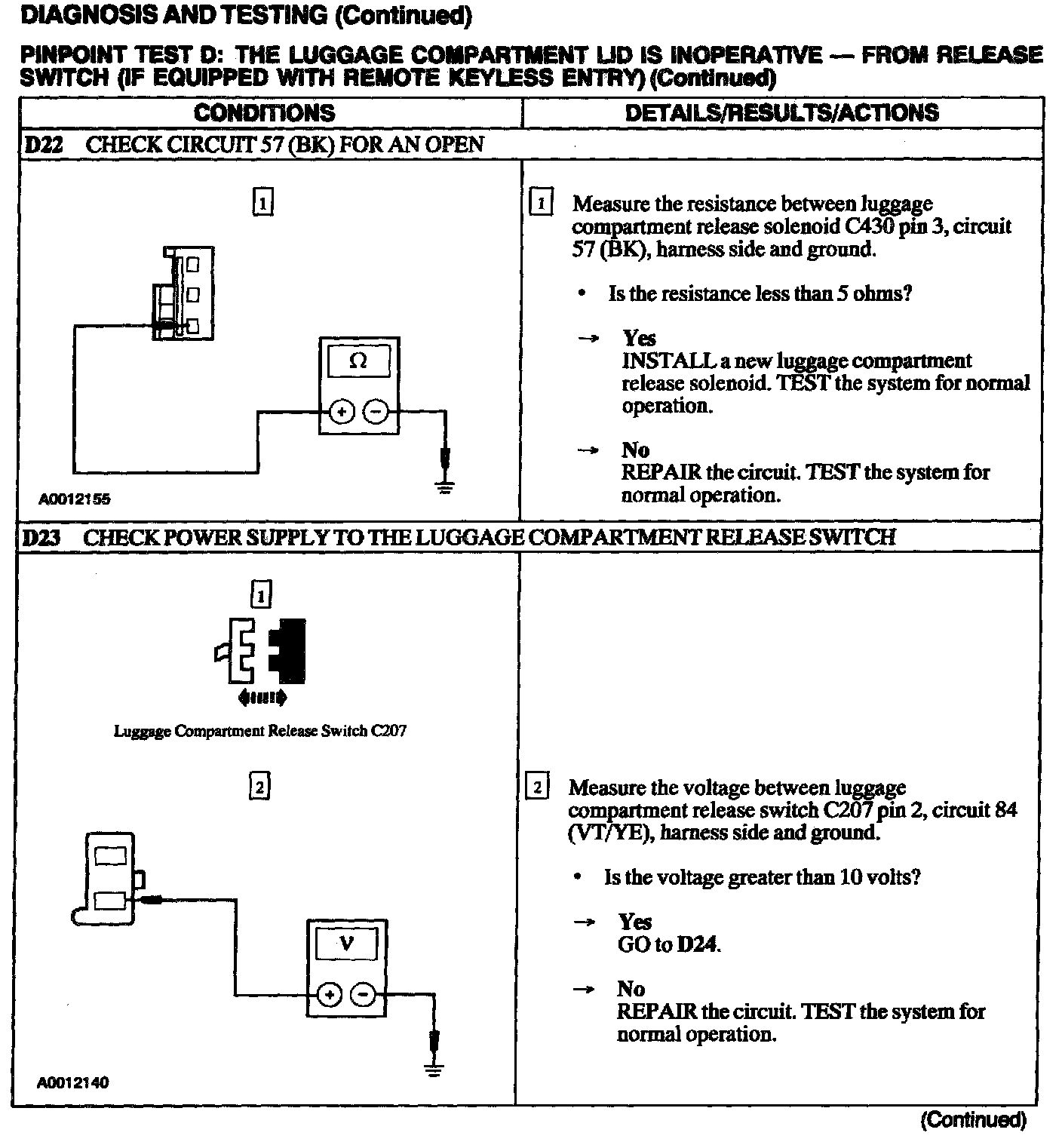

D22 - D23:

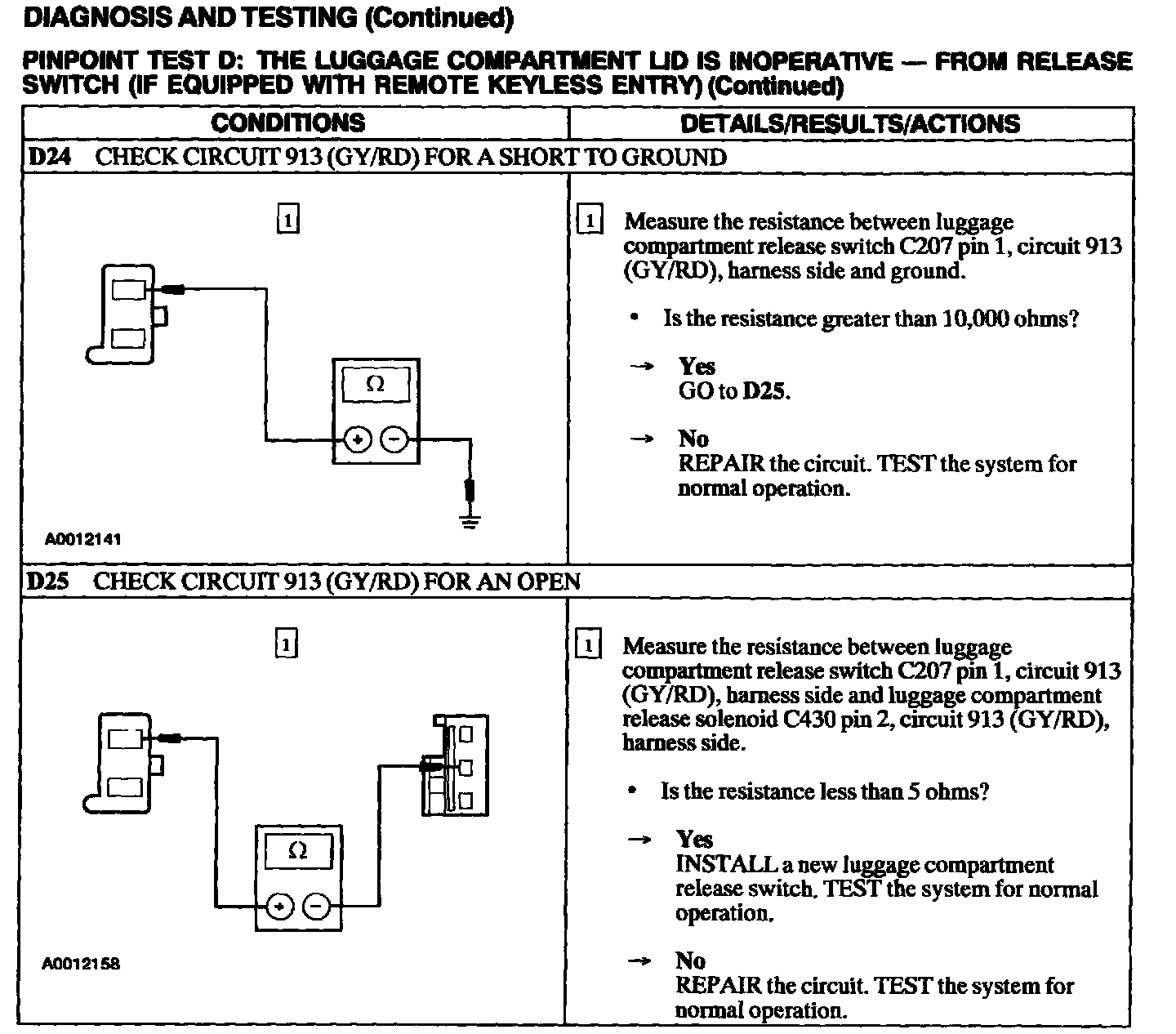

D24 - D25:
