Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Locations >> Component Location Views >> View 151-41 (In Liftgate)

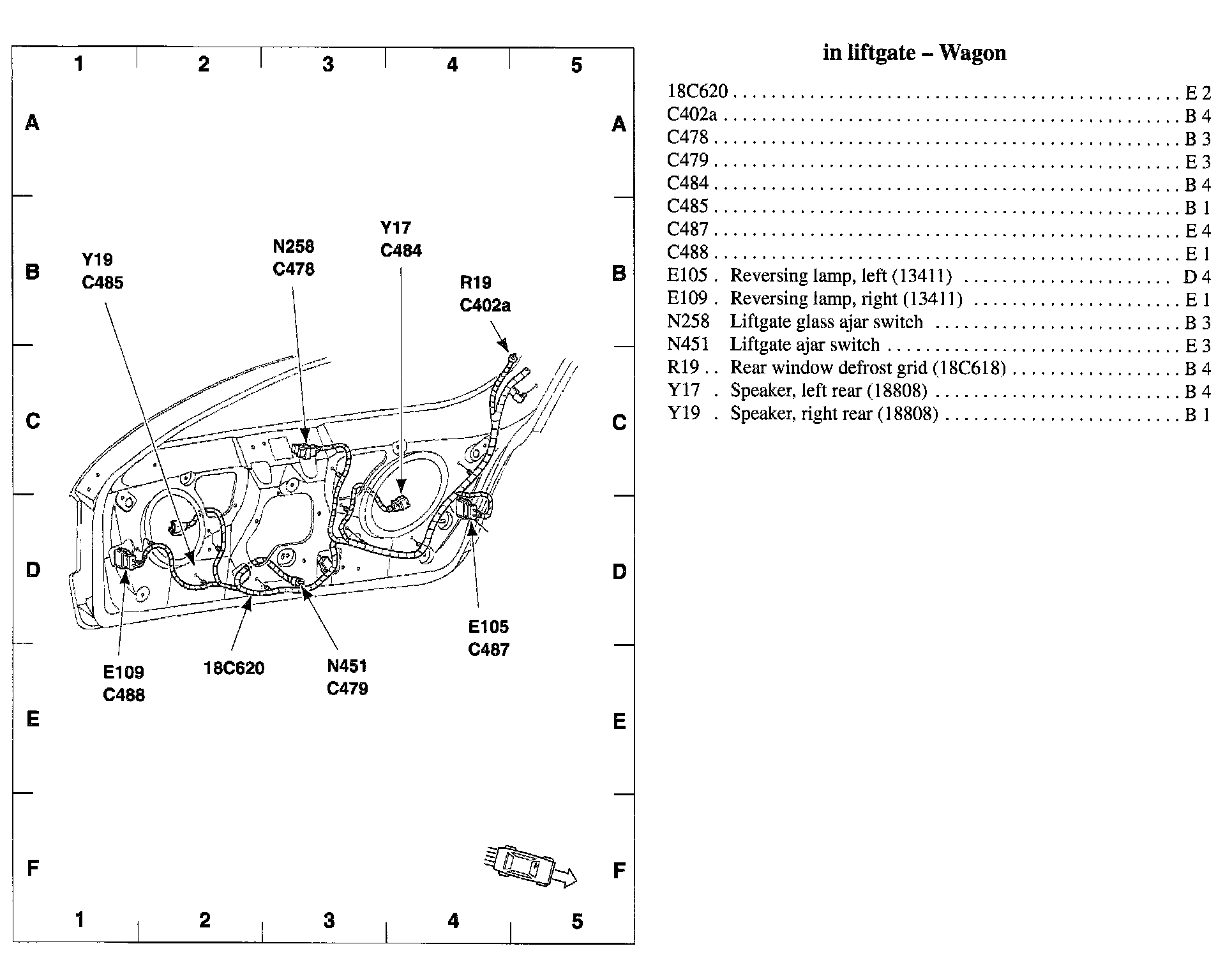

View 151-41 (In Liftgate)

View 151-41:
