Rear Door Hinge: Adjustments

NOTE: The door should be adjusted for even and parallel fit with the body opening and surrounding panels.

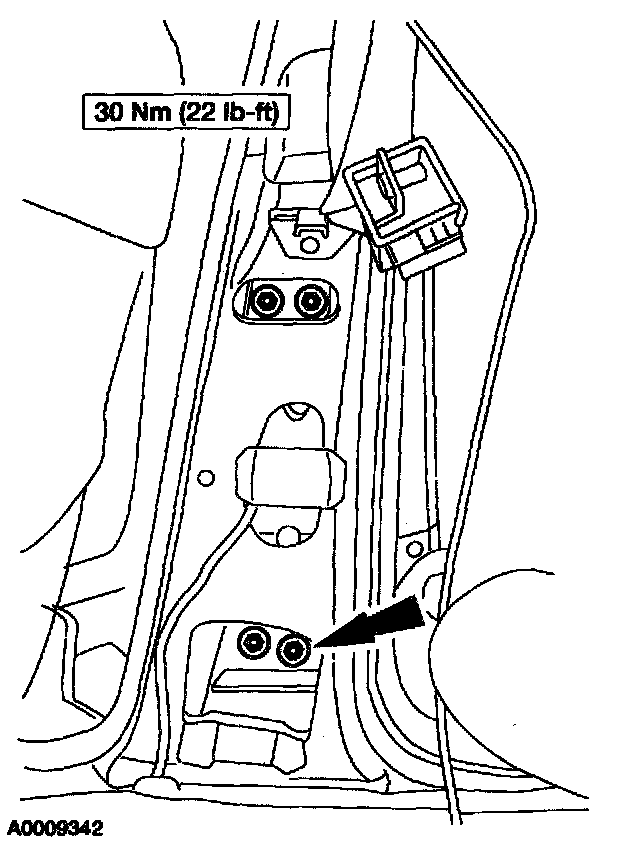

1. Remove the front seat safety belt retractor.

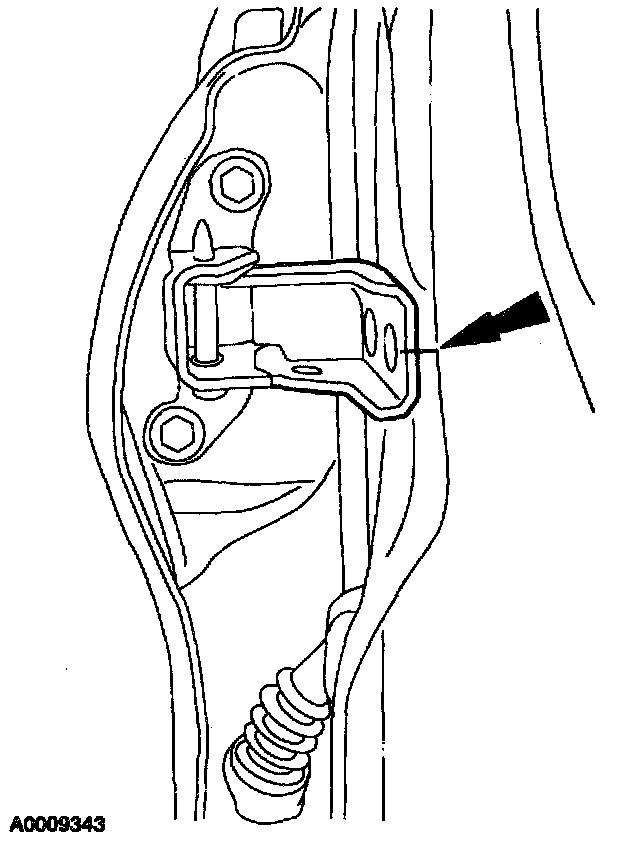

2. Mark the position of the rear door hinges to use as a reference point.







3. Loosen the rear door hinge to body nuts just enough to permit movement of the door.

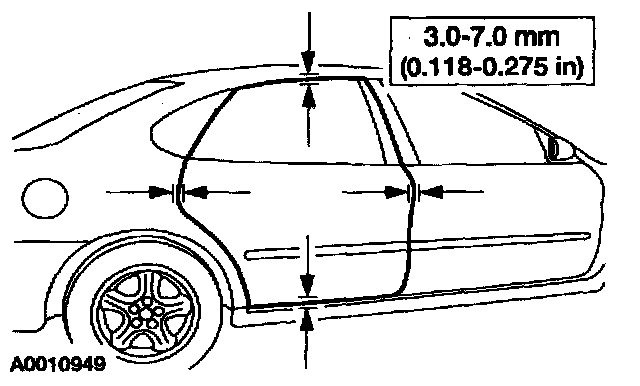

4. Adjust the rear door alignment to specifications.
5. Tighten the rear door hinge to body nuts.
6. Install the front seat safety belt retractor.
