Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Test H: Poor Quality/Distorted Sound From One Or More Speakers

Test H: Poor Quality/Distorted Sound From One Or More Speakers

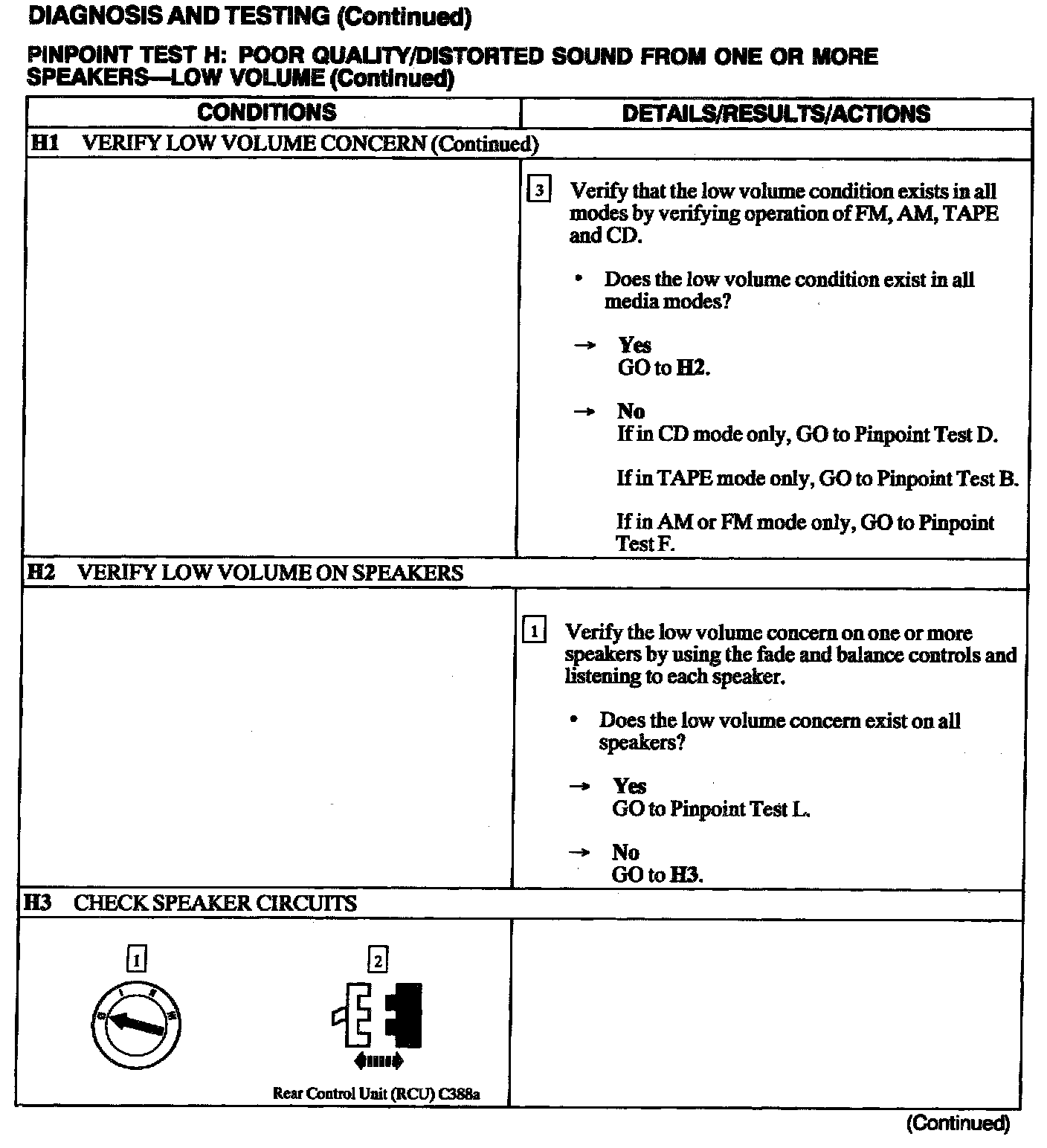

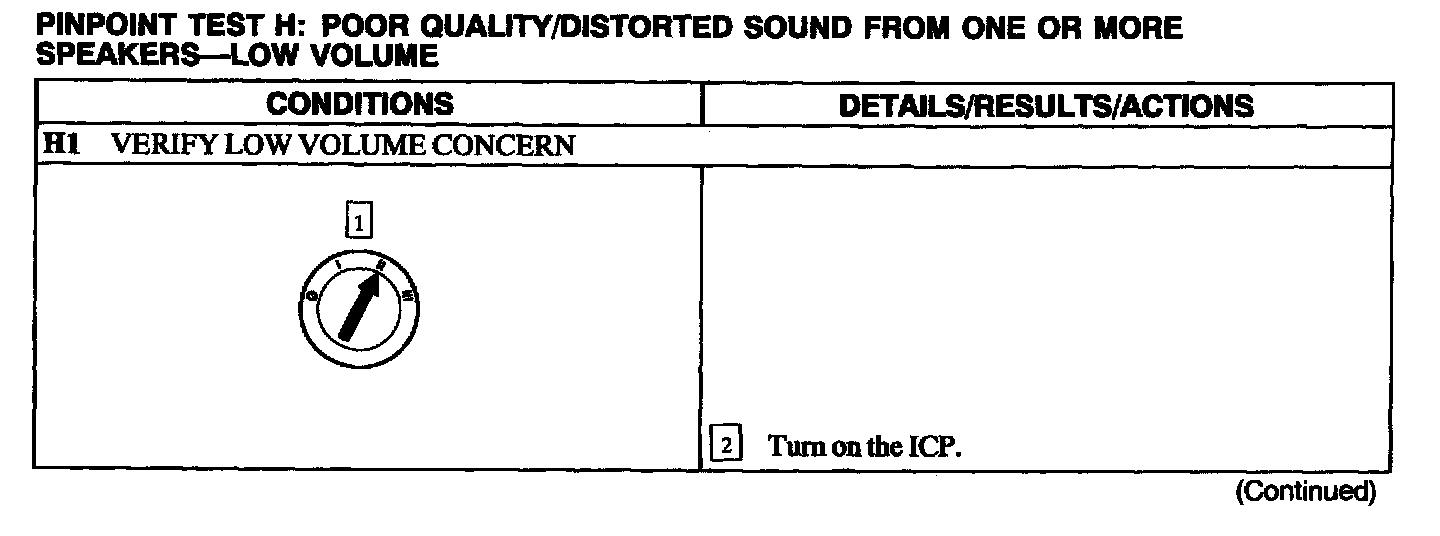

H1:

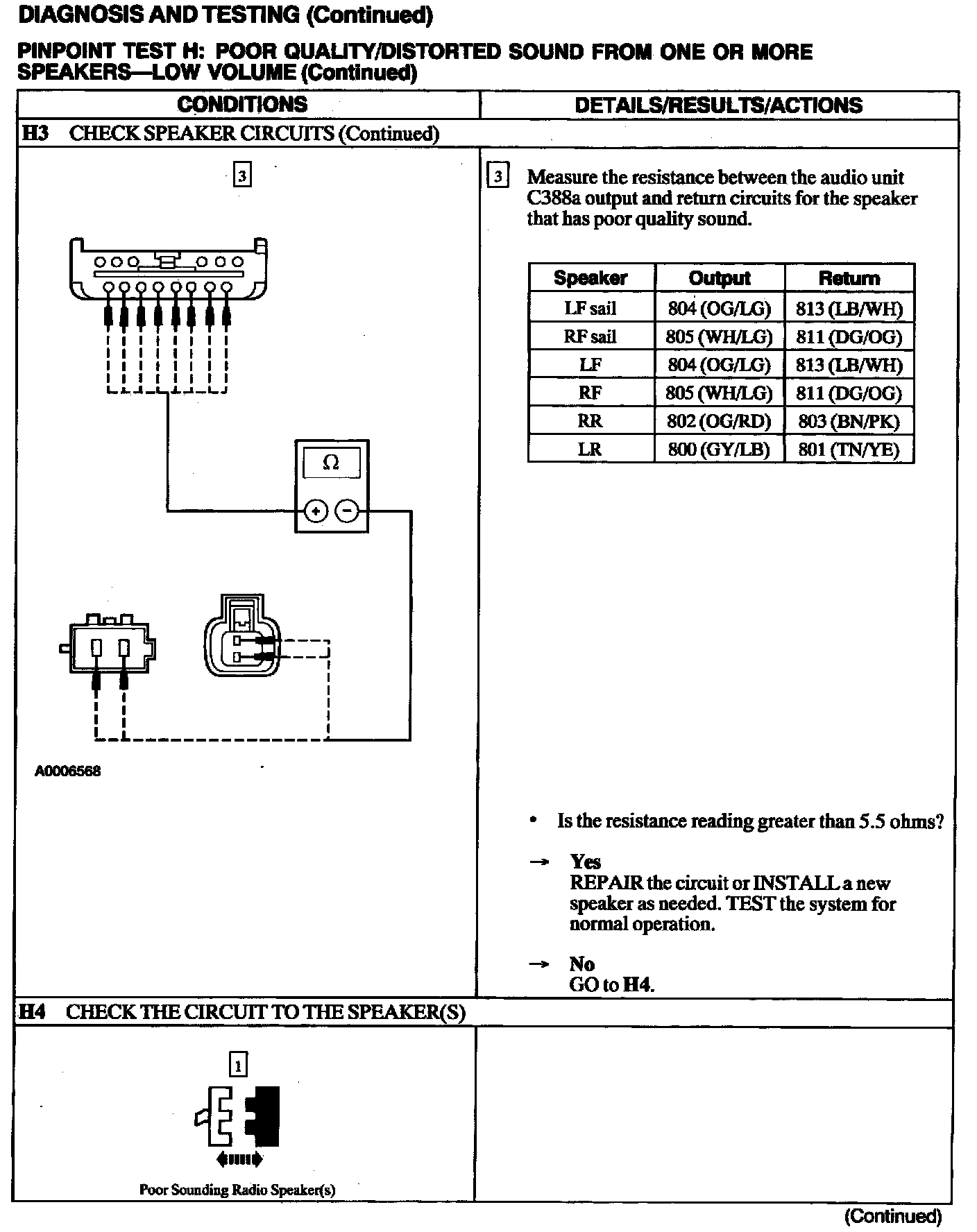

H1 - H3:






H3 - H4:

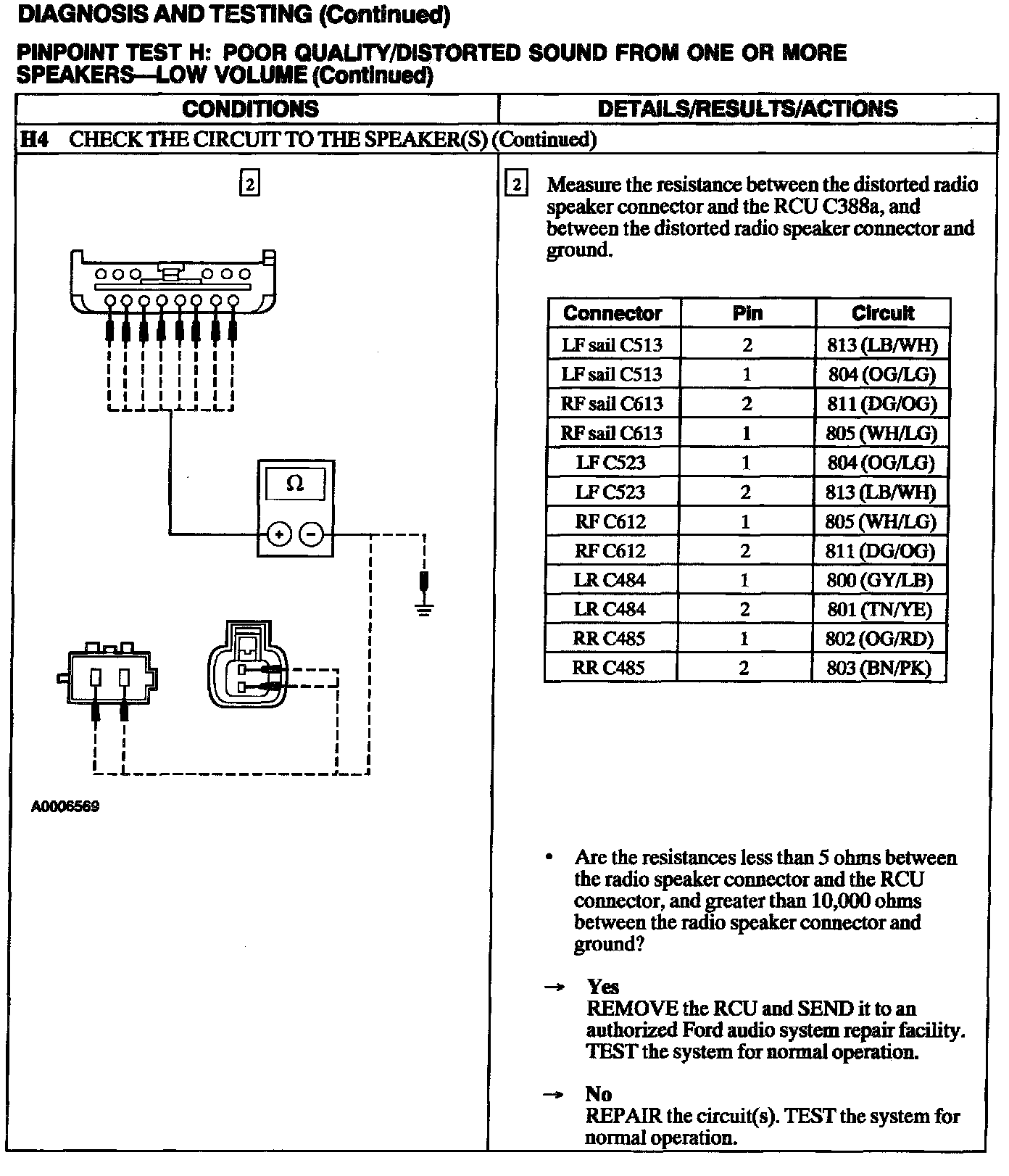

H4:
