Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Passive Anti-Theft System (PATS) >> Test G: AntiTheft Indicator Is Always/Never On

Test G: AntiTheft Indicator Is Always/Never On

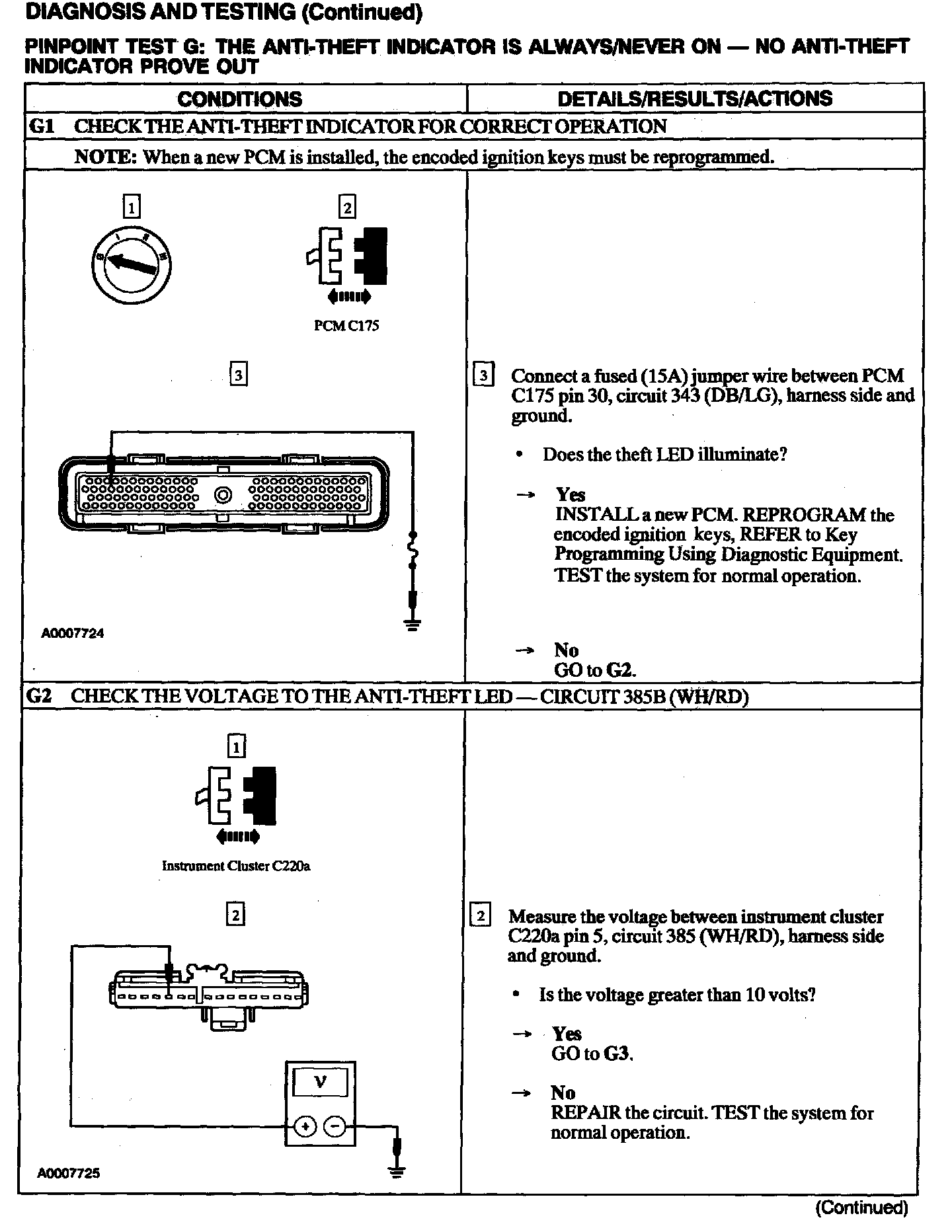

G: Anti-Theft Indicator Is Always/Never ON - No Anti-Theft Indicator Prove Out / G1 - G2:

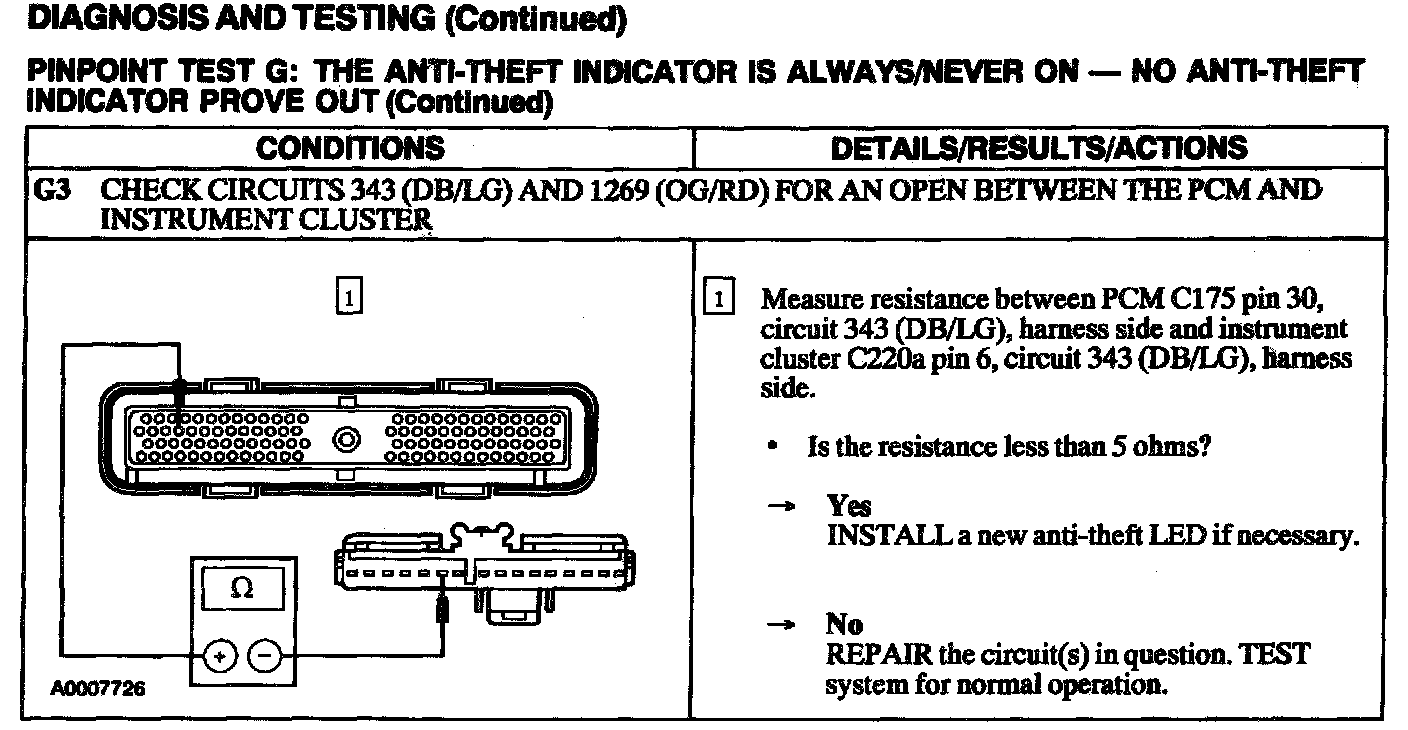

G: Anti-Theft Indicator Is Always/Never ON - No Anti-Theft Indicator Prove Out / G3:
