Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Passive Anti-Theft System (PATS)
>>

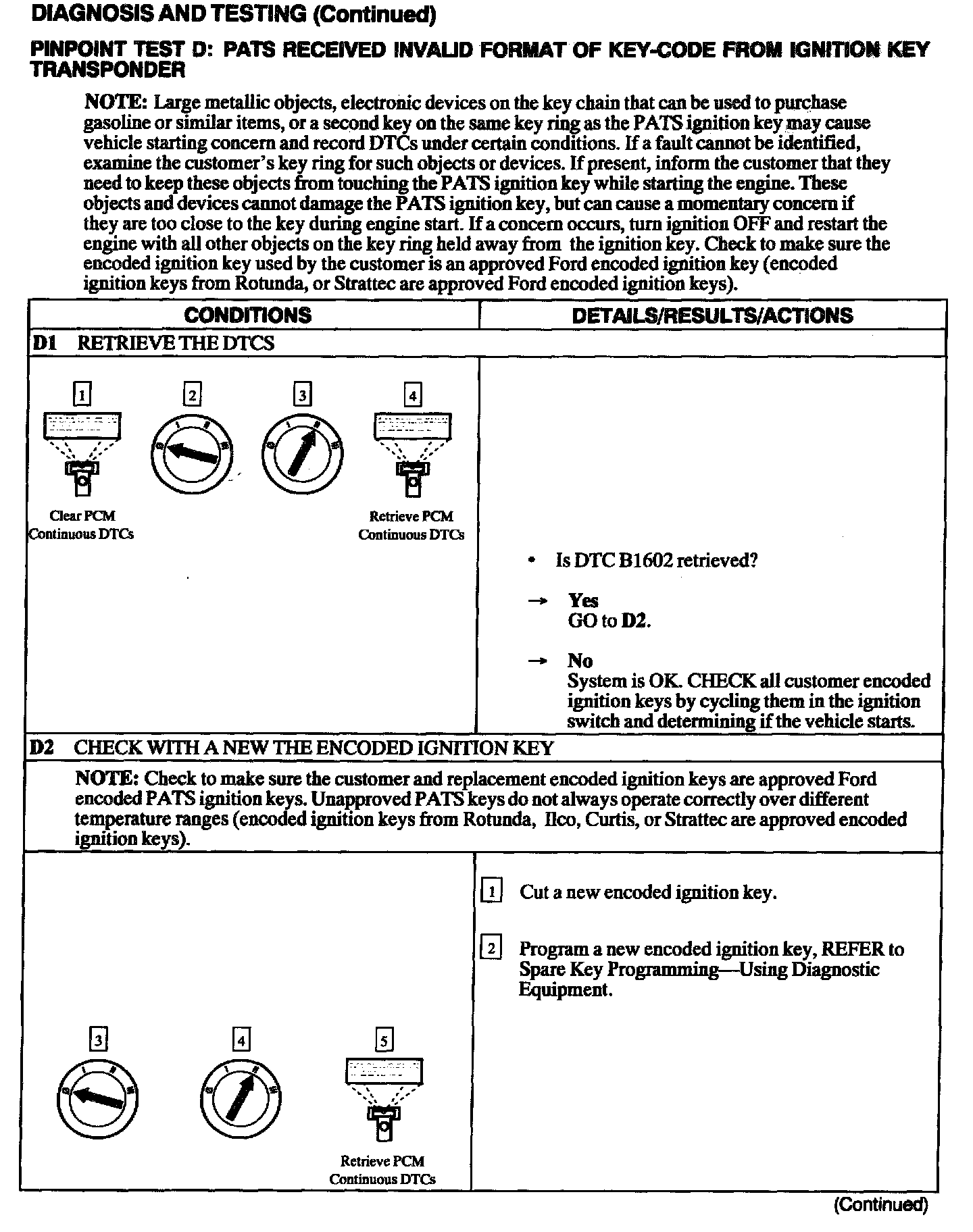

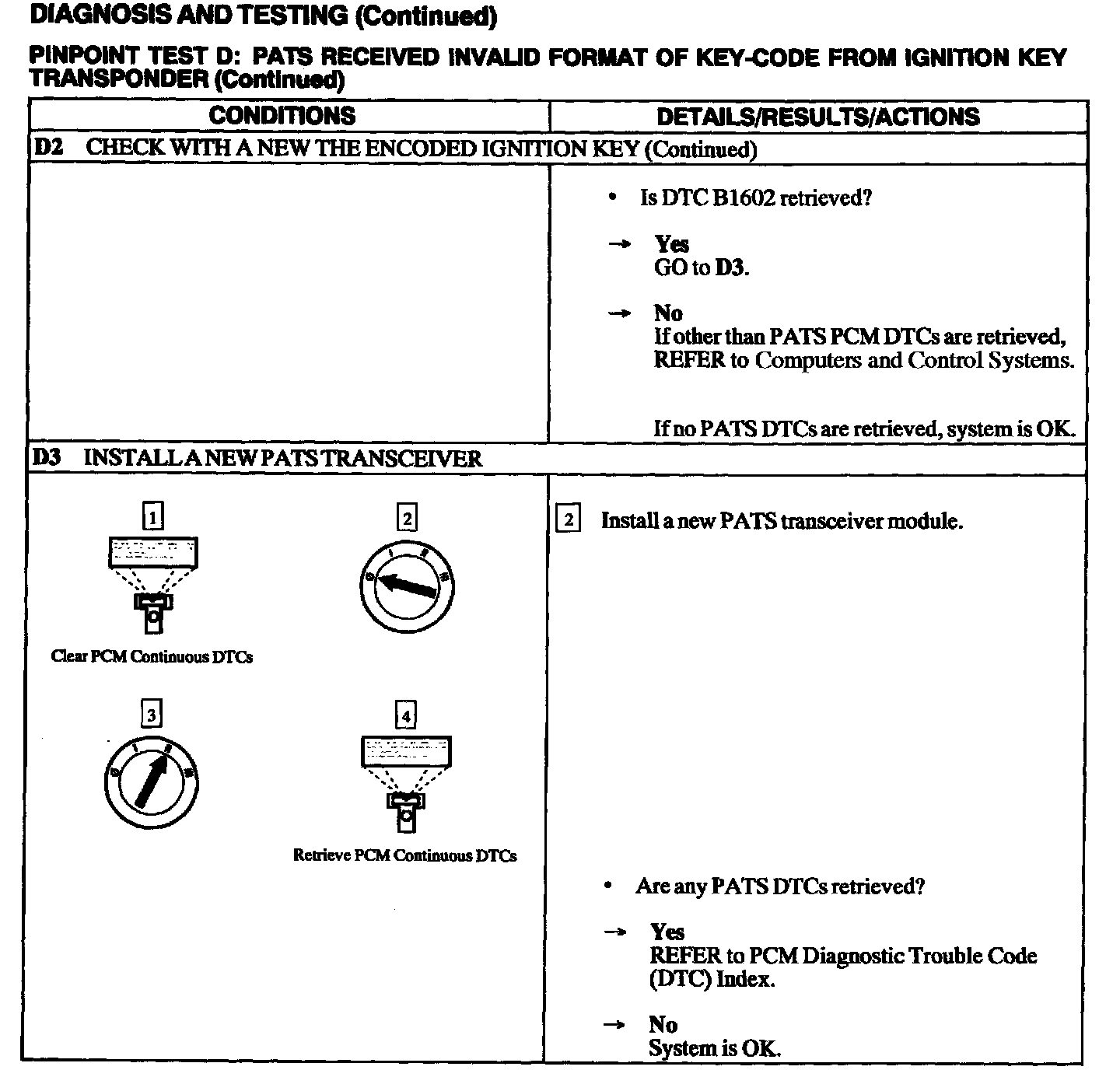

Test D: PATS Received Incorrect Key Code From Ignition Transponder
Test D: PATS Received Incorrect Key Code From Ignition Transponder
D1 - D2:
D2 - D3:
