Home >> Mercury >> 2002 >> Sable V6-3.0L VIN 2 Flex Fuel >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> 4F50N

4F50N


Component Locator

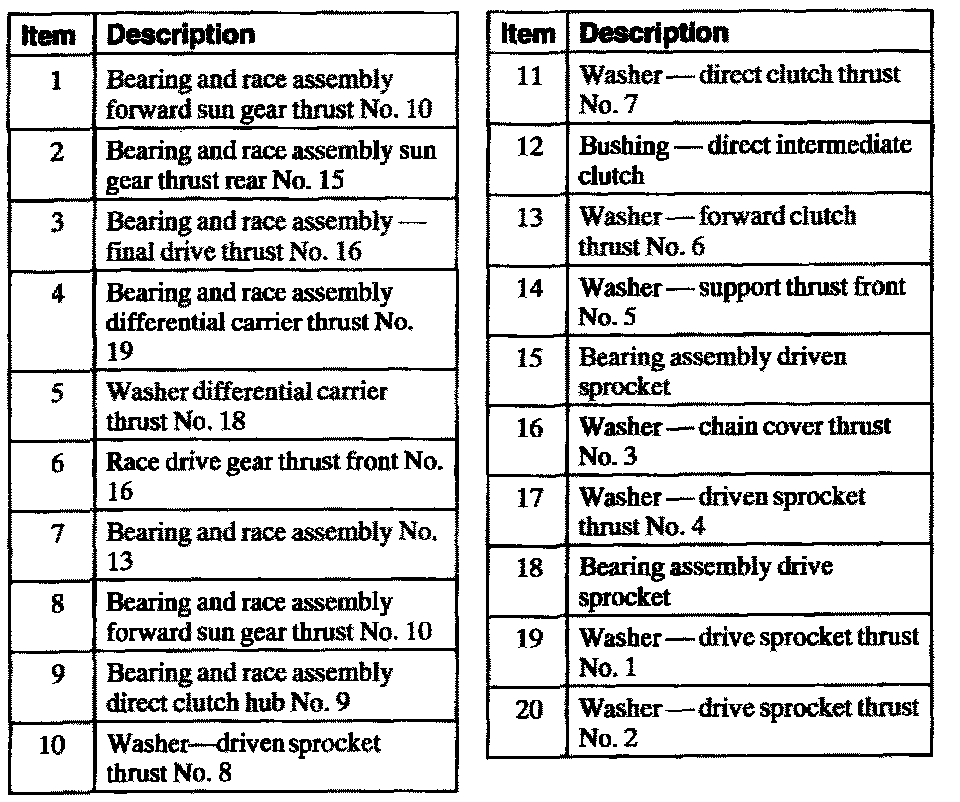

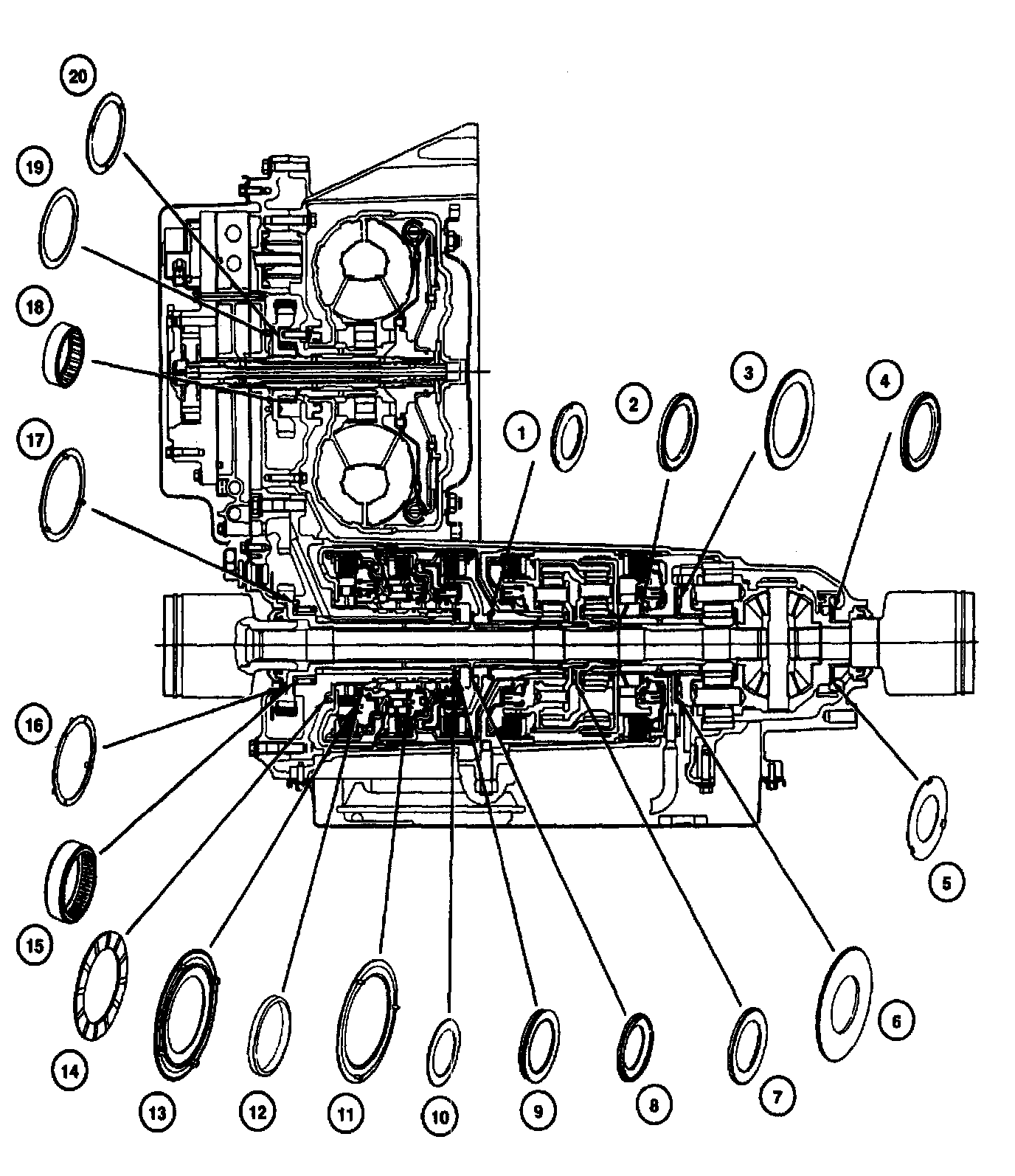

Bearing and Thrust Washer Locator

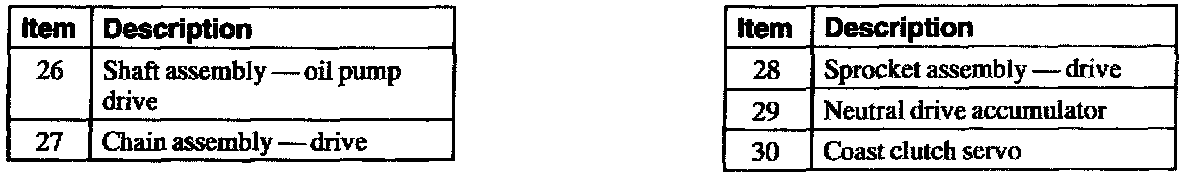

Main Components and Functions






Pressure Test Port Location 4F50N
