Air Conditioner/Heater

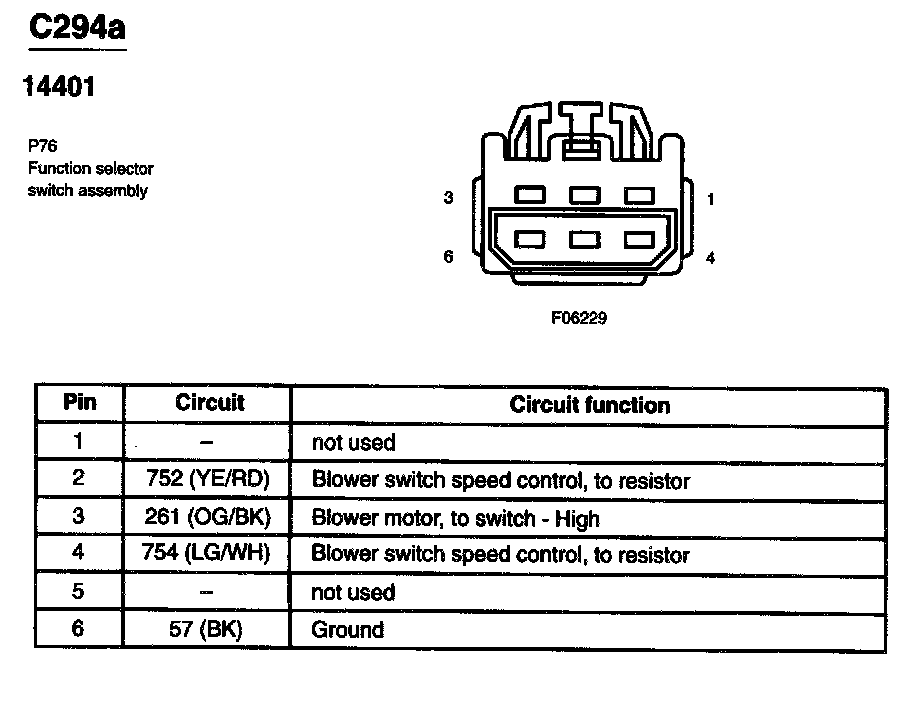

C294a (Function Selector Switch Assembly):






C294b (Function Selector Switch Assembly):

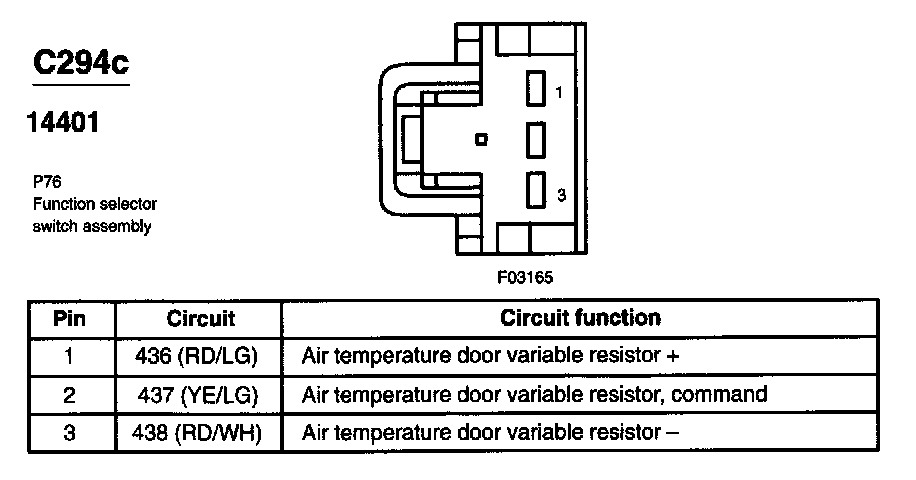

C294c (Function Selector Switch Assembly):
